Chapin 82104B Professional 80-Pound Walk-Behind Broadcast Spreader User Manual

Introduction

The Chapin 82104B Professional Salt Spreader is designed for spreading ice melt and salt on sidewalks, driveways, and parking lots. Its robust construction, including an 80-pound poly hopper and pneumatic tires, ensures easy maneuverability across various surfaces. This spreader is suitable for both professional contractors and homeowners.

Safety Information

Always follow these safety guidelines to prevent injury and damage to the equipment.

• Read and understand all instructions before operating the spreader.
• Wear appropriate personal protective equipment, such as gloves and eye protection, when handling materials and operating the spreader.
• Keep children and pets away from the operating area.
• Do not use rock salt with this spreader. The plastic agitator and blades are not designed for heavy, abrasive materials like rock salt and may wear prematurely or break.
• Ensure the spreader is on a level surface before filling to prevent tipping.
• Do not overload the hopper beyond its 80-pound capacity.
• Always clean the spreader thoroughly after each use to prevent corrosion and material buildup.

Product Features

• Durable Construction: 80-pound rust-resistant poly hopper with a stainless steel frame and rubber-grip T-handle.
• Enclosed Gear System: Weather-resistant enclosed gears for extended durability.
• Recommended Materials: Suitable for salt, halite, potassium chloride, sodium chloride, and calcium chloride (small, pelletized forms).
• Gate Control & Agitator: Adjustable gate control on the handle for precise material flow. Spike agitator helps break up clumps and prevent clogging.
• Directional Control: Fixed rear baffle and adjustable side baffle control the spread pattern.
• All-Terrain Stability: 12-inch pneumatic tires provide stability and easy movement over uneven terrain.
• Rain Cover: Includes a rain cover for material protection.
• Made in USA: Constructed with global materials.

Figure 1: The hopper grate prevents large clumps of material from entering the spreader mechanism, ensuring smooth operation.

Figure 2: The 12-inch pneumatic tire provides excellent traction and stability on various surfaces, including uneven terrain.

Figure 3: The spike agitator helps break up clumps of material in the hopper, ensuring a consistent flow to the spreader plate.

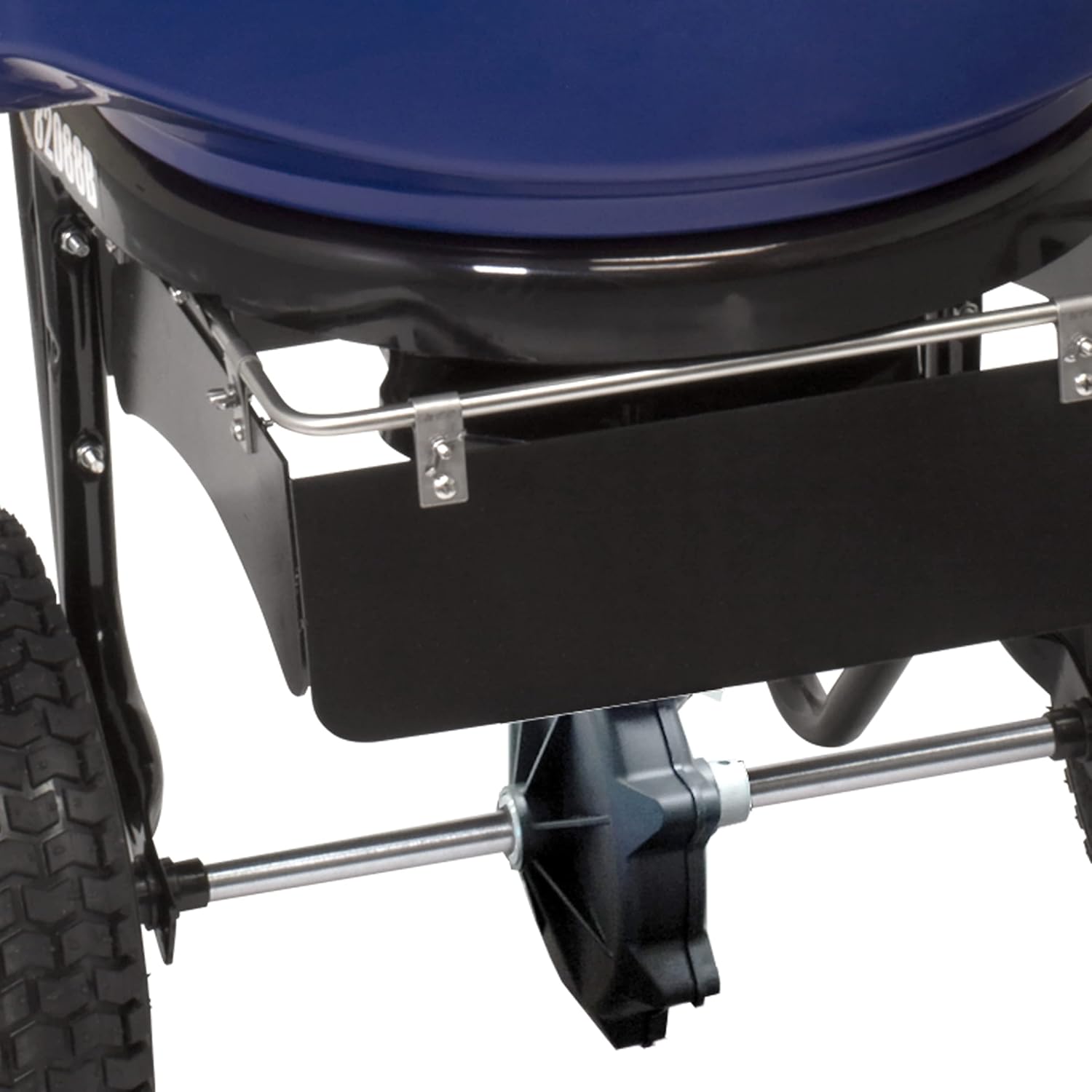

Figure 4: The enclosed gear system protects against weather, while the adjustable baffle allows control over the spread pattern.

Setup and Assembly

Your Chapin 82104B spreader requires minimal assembly. Follow these steps carefully.

1. Unpack Components: Carefully remove all parts from the packaging. Verify all components are present against the parts list (refer to the included diagram in your product box).
2. Attach Handle: Secure the T-handle to the main frame using the provided bolts and nuts. Ensure it is firmly tightened.
3. Install Wheels: Attach the 12-inch pneumatic tires to the axle. Ensure washers and cotter pins are correctly installed to secure the wheels.
4. Connect Control Rod: Connect the gate control rod from the handle to the gate mechanism at the bottom of the hopper. Test the gate lever to ensure it opens and closes smoothly.
5. Install Rain Cover: Place the rain cover over the hopper.
6. Final Check: Inspect all connections and moving parts to ensure they are secure and operate freely.

Operating Instructions

1. Prepare Material: Ensure your chosen material (salt, ice melt, etc.) is dry and free of large clumps. Break up any clumps before loading.
2. Fill Hopper: With the gate control in the closed position, carefully pour the material into the hopper. Do not overfill.
3. Set Spread Pattern: Adjust the fixed rear baffle and the adjustable side baffle to achieve the desired spread pattern. The side baffle helps prevent material from spreading into unwanted areas.
4. Set Flow Rate: Use the gate control lever on the handle to set the desired flow rate. Start with a lower setting and adjust as needed.
5. Begin Spreading: Start walking at a consistent pace before opening the gate control. Maintain a steady speed for an even spread.
6. Close Gate: Close the gate control before stopping or turning to prevent over-application in one area.
7. Overlap Passes: Overlap each pass slightly to ensure complete coverage.

Maintenance

Regular maintenance will extend the life of your spreader.

• Cleaning After Use: After each use, empty any remaining material from the hopper. Thoroughly rinse the hopper, agitator, and spreader plate with water.
• Drying: Allow all components to dry completely before storage to prevent corrosion.
• Lubrication: Periodically lubricate the axle and gear system with a water-resistant grease, especially if operating in wet conditions.
• Tire Pressure: Check and maintain the recommended air pressure in the pneumatic tires.
• Storage: Store the spreader in a dry, covered area to protect it from the elements.

Troubleshooting

Specifications

• Model Number: 82104B
• Hopper Capacity: 80 pounds
• Hopper Material: Polyethylene
• Frame Material: Stainless Steel
• Tire Size: 12 inches (pneumatic)
• Product Dimensions: 60.33 x 47.63 x 56.52 cm (23.75 x 18.75 x 22.25 inches)
• Product Weight: 16.69 kg (36.8 lbs)
• Manufacturer: Chapin International Inc

Warranty and Support

This Chapin 82104B spreader comes with a 5-year limited warranty against defects in materials and workmanship. For warranty claims, technical support, or replacement parts, please contact Chapin International Inc. customer service. Keep your purchase receipt as proof of purchase.

For further assistance, please visit the official Chapin International Inc. website or contact their customer support line.
