COOS BAY 11x13 Hardtop Gazebo Instruction Manual

1. Product Overview

The COOS BAY 11x13 Hardtop Gazebo provides a spacious and durable outdoor shelter. It features a natural cedar wood frame and a galvanized steel gable roof designed for UV protection and weather resistance. This gazebo is suitable for various outdoor settings such as gardens, patios, poolside areas, and backyards, offering 143 square feet of comfortable shade.

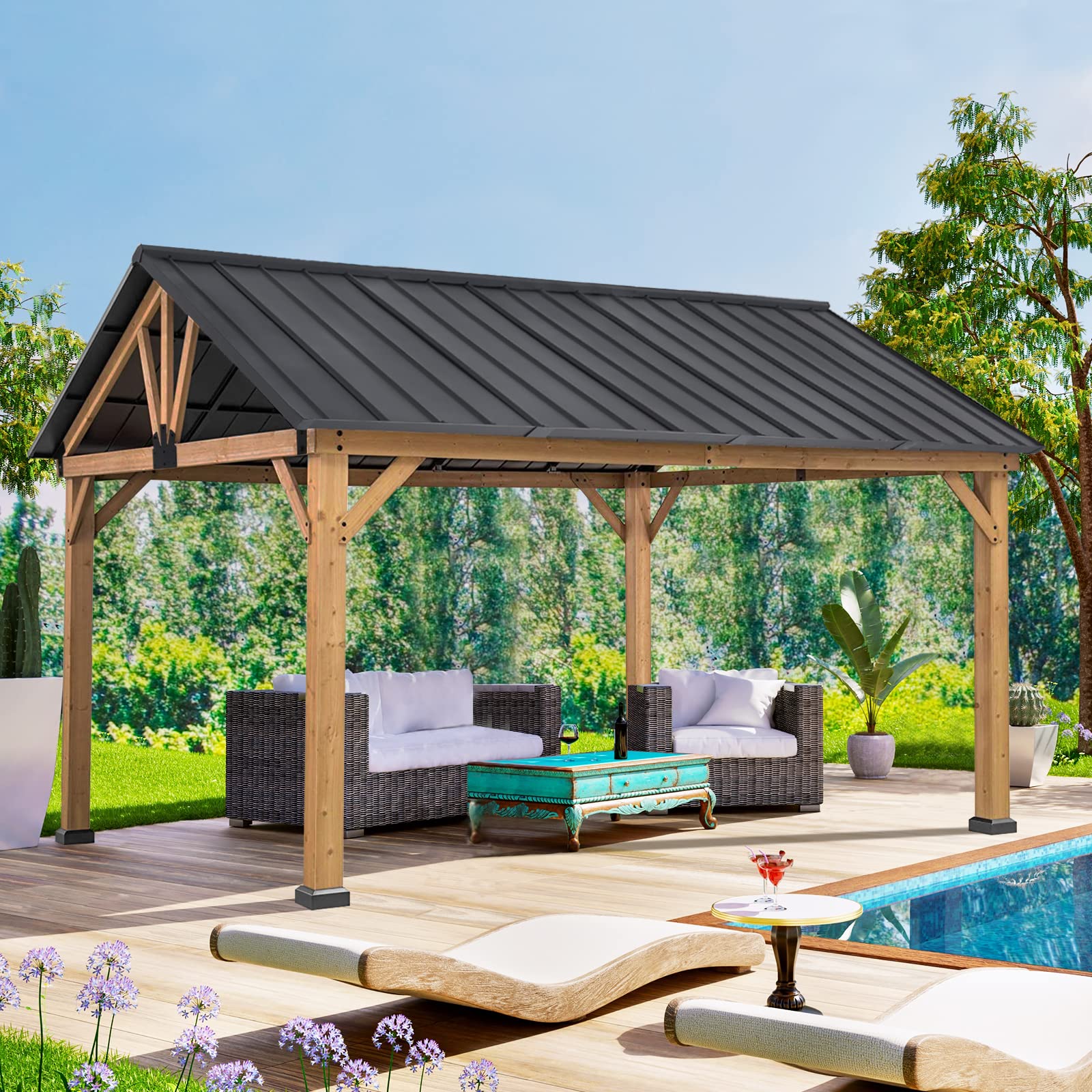

Image 1.1: The COOS BAY 11x13 Hardtop Gazebo, showcasing its cedar wood frame and galvanized steel roof in a patio environment.

Key Features:

• Premium Cedar Wood Construction: Natural cedar wood offers durability and weather resistance, with inherent properties to resist rot and decay.
• Heavy-Duty Galvanized Steel Roof: Rust-resistant double roof blocks 90% of harmful UV rays and supports significant snow load (up to 2,500 lbs). Engineered for year-round use.
• Elegant Gable Roof Design: Peaked triangular roof efficiently sheds rain and snow, enhancing architectural appeal.
• Spacious 11x13 Coverage: Provides 143 square feet of shade, ideal for outdoor dining, entertaining, or relaxation.
• Built-in Ceiling Hook: Includes a 1 J ceiling hook with a 33 lbs capacity for hanging lights, fans, or decorations.
• Quality Anchoring Plate: Each leg is equipped with an anchor panel with pre-drilled holes and a decorative cover for secure installation.

Image 1.2: Detailed view of the gazebo's unique design elements, highlighting the roof slope, anchoring plate, and built-in ceiling hook.

2. Safety Information

Please read and understand all safety instructions before assembly and use of the gazebo. Failure to follow these instructions may result in injury or damage to the product.

• Two-Person Assembly: Always assemble this gazebo with at least two people to ensure safety and proper handling of components.
• Secure Foundation: Securely anchor the gazebo to a stable and level foundation to prevent tipping, especially in windy conditions.
• Component Handling: Exercise caution when handling heavy or sharp components during assembly and disassembly. Wear appropriate protective gear, such as gloves.
• Weight Limit: Do not exceed the specified weight limit for the gazebo structure or the built-in ceiling hook (33 lbs).
• Weather Conditions: While designed for year-round durability, extreme weather conditions (e.g., severe storms, heavy snow accumulation beyond capacity) may require additional precautions or temporary disassembly.
• Clearance: Ensure adequate clearance around the gazebo from trees, power lines, and other structures.

3. Setup Instructions

This section provides general guidelines for setting up your COOS BAY Hardtop Gazebo. A detailed, step-by-step assembly manual with a complete parts list and diagrams is included in your product packaging. Refer to that manual for precise instructions.

Pre-Assembly Checklist:

• Verify all parts are present against the included parts list.
• Ensure you have the necessary tools (e.g., wrenches, screwdrivers, ladder).
• Choose a level and stable location for the gazebo.
• Have at least two people available for assembly.

General Assembly Steps:

1. Unpack and Organize: Carefully unpack all components and lay them out, organizing them by part number as indicated in the detailed manual.
2. Assemble Frame: Begin by assembling the main cedar wood frame structure, ensuring all connections are secure. Pay attention to the orientation of each beam and post.
3. Install Roof Structure: Attach the galvanized steel roof panels to the frame. The gable design facilitates efficient water and snow shedding.
4. Secure Gazebo: Once the main structure is complete, anchor the gazebo firmly to the ground using the provided anchoring plates and hardware.
5. Final Checks: Double-check all bolts, screws, and connections to ensure they are tightened properly.

Image 3.1: Illustration of the gazebo's sturdy construction, highlighting the steel peak roof, wood frame, and robust powder-coated steel brackets for enhanced stability.

Image 3.2: A detailed view of the gazebo's stable structure, emphasizing the powder-coated steel brackets and braces that reinforce the cedar wood frame.

Image 3.3: Site dimensions diagram providing measurements for proper placement and anchoring of the gazebo.

4. Operating Instructions

The COOS BAY Hardtop Gazebo is designed for straightforward use as an outdoor shelter. No complex operation is required.

• General Use: Enjoy the shaded area for relaxation, dining, or entertaining. The gazebo provides protection from sun and light rain.
• Ceiling Hook: Utilize the built-in ceiling hook to hang outdoor lights, decorative items, or a lightweight fan. Ensure the weight does not exceed 33 lbs.
• Weather Monitoring: While durable, it is advisable to monitor weather conditions. In cases of severe wind, heavy snowfall, or extreme storms, consider taking down any hanging items and ensuring the gazebo is securely anchored.

Image 4.1: View of the built-in ceiling hook for hanging accessories and the balanced slope roof design, which facilitates efficient water runoff.

Image 4.2: A detailed image of the sturdy built-in ceiling hook, suitable for hanging chandeliers or fans (not included).

5. Maintenance

Regular maintenance will help prolong the life and appearance of your gazebo.

Cedar Wood Frame Care:

• Annual Sealing/Staining: For optimal longevity and to maintain the wood's natural beauty, apply a water-based sealant or exterior stain annually. This protects against moisture and UV damage.
• Cleaning: Clean the wood frame periodically with a mild soap and water solution. Rinse thoroughly and allow to air dry. Avoid harsh chemicals or abrasive cleaners.
• Inspection: Regularly inspect the wood for any signs of wear, rot, or insect damage. Address any issues promptly.

Galvanized Steel Roof Care:

• Cleaning: Clean the roof panels with a soft brush or cloth and mild soap and water to remove dirt, leaves, and debris. Rinse thoroughly.
• Snow Removal: While the roof is designed to support snow load, it is recommended to clear excessive snow accumulation to prevent undue stress on the structure.
• Inspection: Periodically check the roof for any signs of rust, dents, or loose fasteners. Tighten any loose screws or bolts.

General Maintenance:

• Fastener Check: Regularly check all nuts, bolts, and screws to ensure they remain tight and secure.
• Anchoring: Verify that the gazebo remains securely anchored to its foundation, especially after strong winds.

Image 5.1: The balanced slope roof design, engineered to allow rainwater to flow off quickly, preventing accumulation.

6. Troubleshooting

This section addresses common issues you might encounter with your gazebo.

• Wobbling/Instability:
  Solution: Ensure all frame connections are securely tightened. Verify that the gazebo is anchored properly to a level surface. Check for any damaged or bent components.
• Water Accumulation on Roof:
  Solution: The gable roof is designed for drainage. If water accumulates, check for any obstructions (e.g., leaves, debris) on the roof surface. Ensure the roof panels are installed correctly and are not sagging.
• Missing Parts During Assembly:
  Solution: Refer to the parts list in your physical instruction manual. If parts are genuinely missing, contact COOS BAY customer support immediately for assistance.
• Wood Discoloration/Wear:
  Solution: This is often a natural process for outdoor wood. Apply a water-based sealant or exterior stain annually as part of routine maintenance to protect and restore the wood's appearance.

7. Specifications

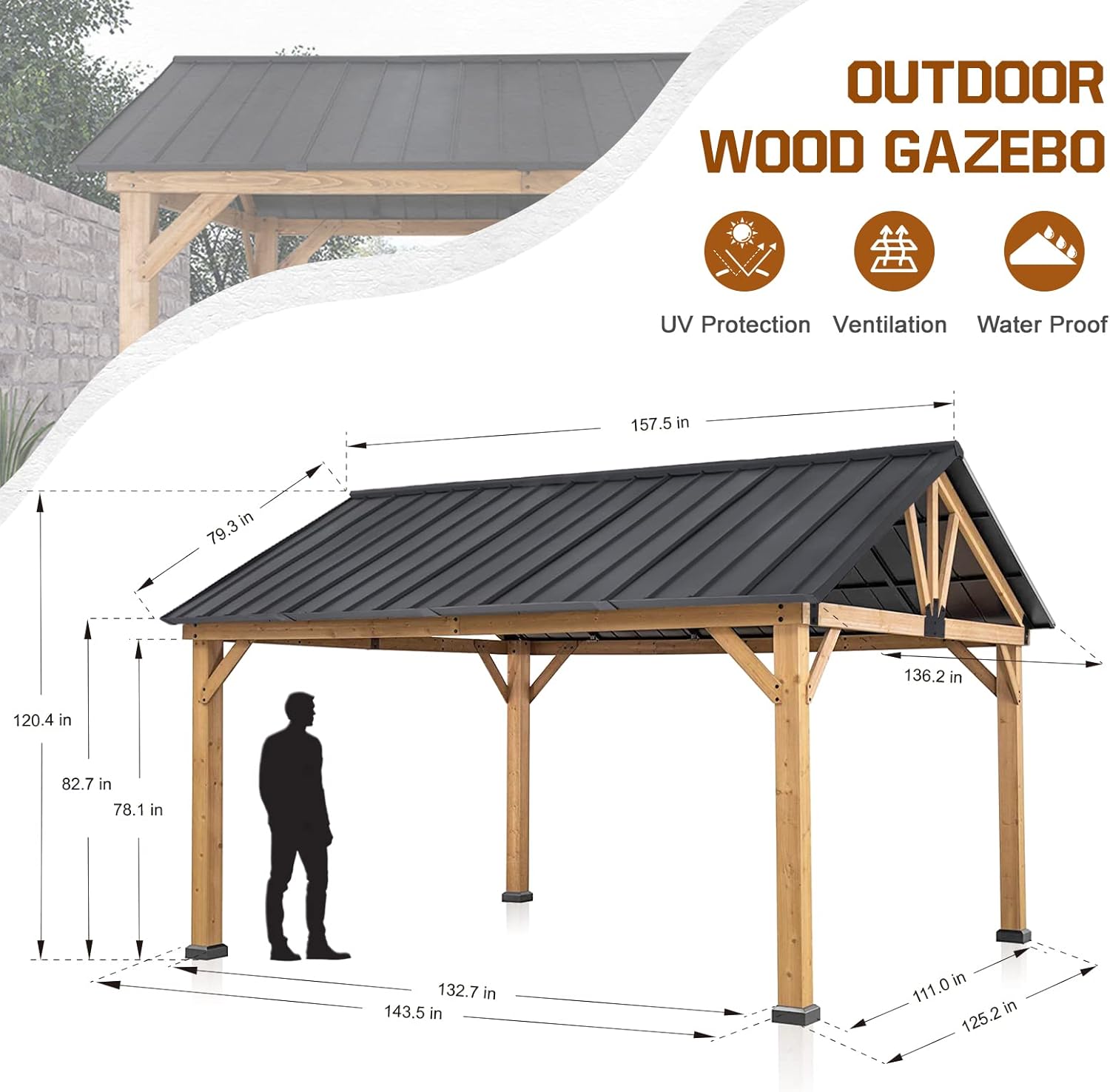

Image 7.1: Overall dimensions of the gazebo, including height, length, and width.

8. Warranty and Support

Warranty Information:

COOS BAY offers a 1-year limited after-sale protection from the original date of purchase. This warranty covers manufacturing defects under normal use and service.

Customer Support:

If you have any questions, require assistance with assembly, or need to report missing/damaged parts, please do not hesitate to contact COOS BAY customer service. Our professional service team is available to provide superior support.

Please refer to the contact information provided in your product packaging or visit the official COOS BAY website for support details.

Image 8.1: Anchor panel with decorative cover, ensuring stability and a clean finish at the base of each leg.
