DWVO LED DRL Headlight Assembly User Manual

Introduction

This manual provides essential information for the installation, operation, and maintenance of your DWVO LED DRL Headlight Assembly. Designed for specific GMC Sierra models, these headlight assemblies enhance vehicle visibility and aesthetic appeal with integrated LED Daytime Running Lights (DRL).

Image: A pair of DWVO LED DRL Headlight Assemblies, showcasing their black housing and clear lens with illuminated DRLs.

Image: A side-by-side comparison showing the visual upgrade from an old halogen headlight to the new DWVO LED DRL headlight assembly on a vehicle.

Compatibility

These headlight assemblies are designed for direct replacement and are compatible with the following vehicle models:

• 2007-2013 GMC Sierra 1500
• 2007-2014 GMC Sierra 2500 HD
• 2007-2014 GMC Sierra 3500 HD

Note: These assemblies are not compatible with classic models.

High Beam: 9005 (HB3) / Low Beam: H11. Bulbs are not included with the assembly.

What's in the Box

Your package should contain the following items:

• 1 x Driver Side Headlight Assembly
• 1 x Passenger Side Headlight Assembly

Setup and Installation

Professional installation is highly recommended for optimal performance and safety. The following steps provide a general guide for installation.

General Installation Steps:

1. Preparation: Ensure your vehicle is turned off and the battery is disconnected for safety.
2. Remove Old Headlights: Locate the retaining rods or clips holding the existing headlight assemblies. For many GMC Sierra models, this involves turning two retaining rods a quarter turn and pulling them straight up, then the headlight assembly can be pulled out.
3. Disconnect Wiring: Carefully disconnect the electrical connectors from the old headlight assembly.
4. Install Bulbs (if not pre-installed): Insert your 9005 (HB3) high beam and H11 low beam bulbs into the new DWVO headlight assemblies. Ensure bulbs are fully seated and locked into place. Note: Some users have reported issues with bulb tabs not aligning perfectly; minor adjustments to the bulb tab may be necessary for a secure fit.
5. Connect New Headlights: Connect the electrical wiring from your vehicle to the new DWVO headlight assemblies.
6. Position New Headlights: Carefully slide the new headlight assemblies into their respective openings. Ensure all tabs and mounting points align correctly.
7. Secure Headlights: Re-engage the retaining rods or clips to secure the new headlight assemblies. Ensure both inner and outer locking pins are fully seated. Note: Verify that the assembly sits flush and does not pop out due to tension, as some aftermarket units may require careful alignment.
8. Test Functionality: Reconnect the battery and test all lighting functions: low beam, high beam, daytime running lights (DRL), and turn signals.
9. Adjust Beam (if necessary): Use the beam adjuster screw on the rear of the housing to ensure proper light alignment.

Image: Detailed view of the rear structure of the headlight assembly, highlighting the one-way vents for moisture removal and the beam adjuster for precise light alignment.

Image: Close-up of the headlight components, illustrating the good transmittance PC lens and the larger reflector designed for enhanced safety and visibility.

Operating Instructions

The DWVO LED DRL Headlight Assemblies offer enhanced lighting features for improved visibility and safety.

• Daytime Running Lights (DRL): The sleek, bright LED DRLs are designed to increase your vehicle's conspicuity during daylight hours, making your car more noticeable to other drivers. These typically activate automatically when the vehicle is running.
• Low Beam: Provides standard illumination for driving at night or in low-light conditions.
• High Beam: Offers maximum illumination for clear, unobstructed roads, providing a longer and wider light spread.

Image: A vehicle illustrating the three distinct lighting modes: High Beam, Low Beam, and the bright LED Daytime Running Lights (DRL).

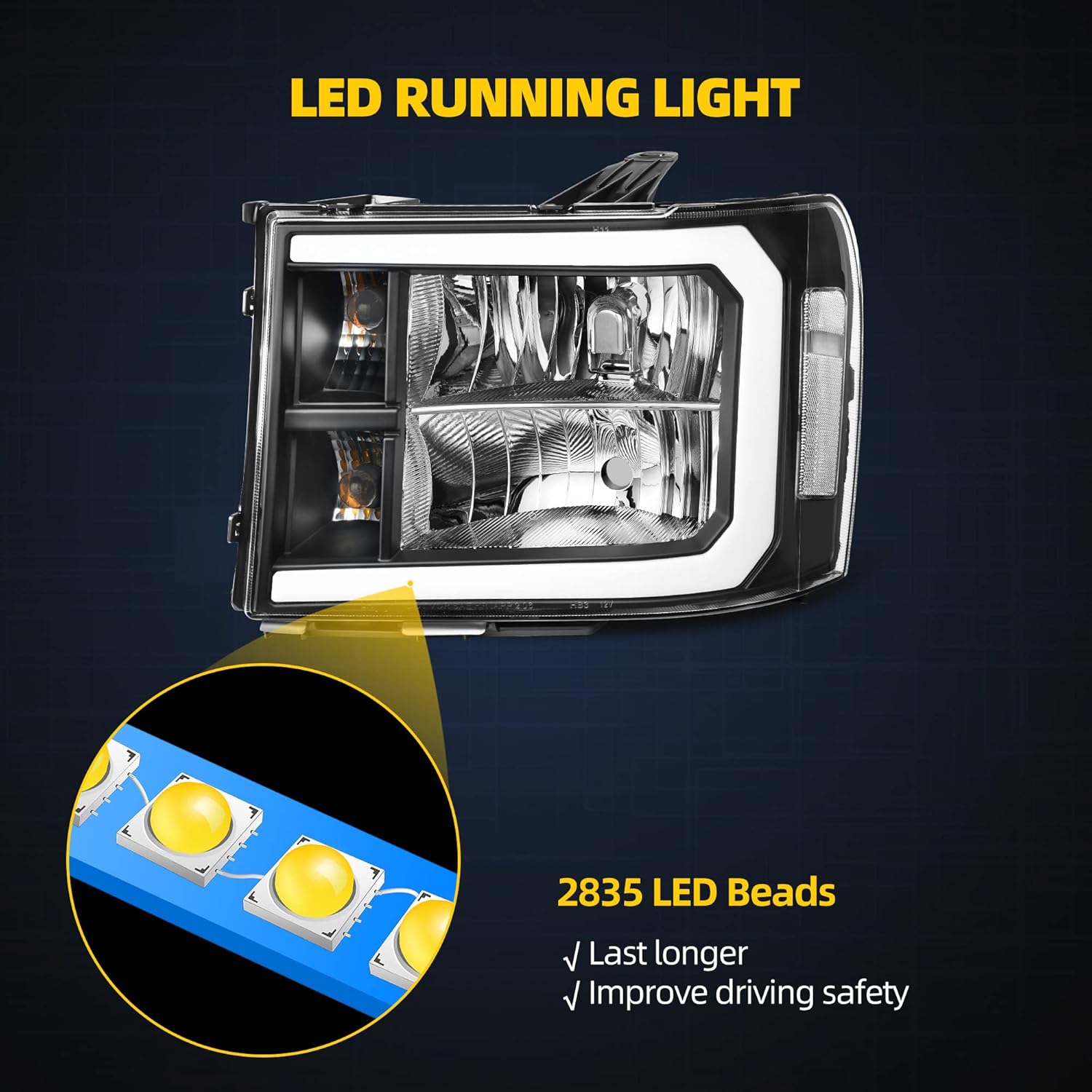

Image: A close-up view of the LED running light strip, highlighting the 2835 LED beads which contribute to longer lifespan and improved driving safety.

Maintenance

Proper maintenance ensures the longevity and optimal performance of your headlight assemblies.

• Cleaning: Clean the polycarbonate lenses regularly with a soft cloth and mild soap and water. Avoid abrasive cleaners or harsh chemicals that can damage the lens material.
• Inspection: Periodically inspect the headlight assemblies for any signs of damage, cracks, or loose connections.
• Weather Protection: The assemblies are weather-sealed to prevent moisture intrusion. However, ensure the seals remain intact and free from debris.

Image: A vehicle driving in rainy conditions, demonstrating the waterproof design of the headlight assemblies, ensuring no leaking worries.

Troubleshooting

Condensation Inside Headlight:

It is common for clear covers to mist up due to temperature differences, which is not necessarily a malfunction. The assemblies are equipped with one-way vents to help manage this.

Image: A diagram illustrating condensation inside a headlight and two suggested methods for resolution.

How to Solve:

• Method 1: Take the bulbs out and let the inside cover dry completely. This allows air circulation to evaporate the moisture.
• Method 2: If fogging persists, consider applying a silica-gel drier packet inside the housing (ensure it's securely placed and won't interfere with components) or apply a small bead of flowable silicone sealant around the plastic weld seam of the lens to ensure a tighter seal.

Fitment Issues:

If the headlight assembly does not fit perfectly or seems loose:

• Double-check that all retaining rods, clips, and tabs are correctly aligned and fully engaged.
• Ensure no wiring or other components are obstructing the assembly from seating properly.
• Verify that the vehicle model and year are within the specified compatibility range.

Specifications

Warranty and Support

For information regarding product warranty, returns, or technical support, please refer to the official DWVO website or contact their customer service directly. Keep your purchase receipt for any warranty claims.

You can visit the DWVO store for more information: DWVO Official Store
