Important Safety Instructions
Please read these instructions carefully before using the appliance and retain them for future reference. Failure to follow these instructions may result in electric shock, fire, or serious injury.
- Ensure the power supply voltage matches the rating label on the vacuum cleaner.
- Do not use the vacuum cleaner to pick up water or other liquids, hot ashes, burning cigarettes, or sharp objects.
- Always unplug the appliance from the power outlet before cleaning or performing maintenance.
- Do not operate the vacuum cleaner with a damaged cord or plug. If the cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard.
- Keep hair, loose clothing, fingers, and all parts of the body away from openings and moving parts.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
- Children should be supervised to ensure that they do not play with the appliance.
Product Overview
Familiarize yourself with the components of your Sokany SK-3384 Vacuum Cleaner.
Components
- Main Unit (Motor, Dust Container)
- Flexible Hose
- Telescopic Wand
- Floor Nozzle
- Small Nozzle / Brush Attachment
- Power Cord
Figure 1: Fully assembled Sokany SK-3384 Vacuum Cleaner, showcasing the main unit, flexible hose, telescopic wand, and floor nozzle.
Figure 2: Top view of the vacuum cleaner's main unit, highlighting the dust container access and power button.
Figure 3: The floor nozzle attachment, suitable for various floor types.

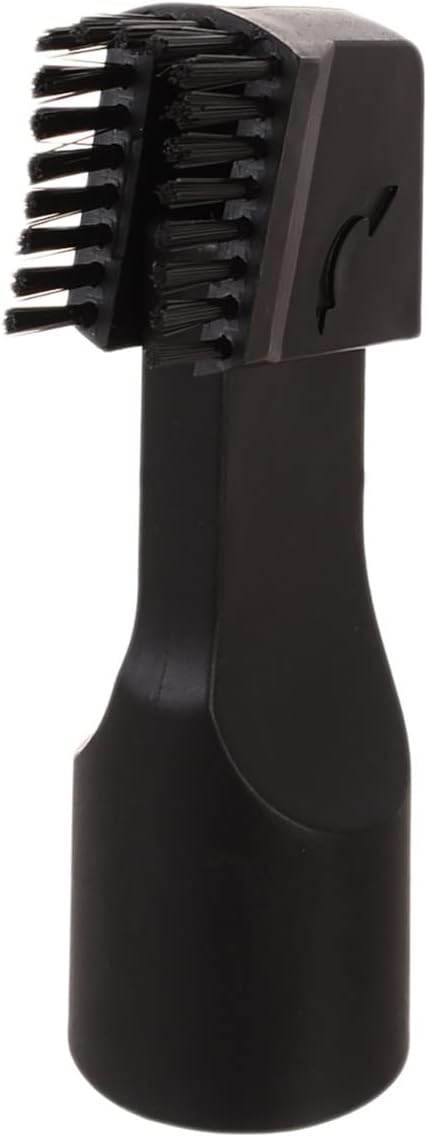

Figure 4: The small nozzle with integrated brush, ideal for crevices and upholstery.
Setup and Assembly
Follow these steps to assemble your vacuum cleaner before first use.
- Attach the Flexible Hose: Insert the end of the flexible hose into the suction inlet on the main unit until it clicks securely into place.
- Connect the Telescopic Wand: Attach the telescopic wand to the handle end of the flexible hose. Extend the wand to a comfortable length by pressing the release button and pulling.
- Attach the Floor Nozzle: Connect the floor nozzle to the end of the telescopic wand. Ensure it is firmly attached.
- Power Connection: Pull out the power cord from the rear of the unit and plug it into a suitable electrical outlet.
Figure 5: Rear view of the vacuum cleaner, illustrating the power cord storage and exhaust area.
Operating Instructions
How to use your Sokany SK-3384 Vacuum Cleaner for effective cleaning.
- Power On: Press the ON/OFF pedal switch located on the main unit to start the vacuum cleaner.
- Adjust Suction (if applicable): Some models may have a suction control slider on the hose handle. Adjust as needed for different surfaces.
- Vacuuming: Move the floor nozzle slowly and steadily over the surface to be cleaned. For hard-to-reach areas, detach the floor nozzle and use the small nozzle/brush attachment directly on the telescopic wand or hose handle.
- Power Off: After use, press the ON/OFF pedal switch again to turn off the vacuum cleaner.
- Cord Rewind: Press the cord rewind pedal switch to automatically retract the power cord into the unit. Guide the cord to prevent whipping.
Maintenance
Regular maintenance ensures optimal performance and extends the life of your vacuum cleaner.
Emptying the Dust Container
- Ensure the vacuum cleaner is unplugged from the power outlet.
- Locate the dust container release button/latch on the main unit.
- Press the button and carefully remove the dust container.
- Empty the contents of the dust container into a waste bin.
- Reattach the dust container to the main unit, ensuring it clicks securely into place.
Cleaning the Filter
The filter should be cleaned regularly, especially if you notice a decrease in suction power.
- Unplug the vacuum cleaner.
- Remove the dust container as described above.
- Carefully remove the filter from the dust container.
- Tap the filter gently over a waste bin to remove loose dust. If washable, rinse under cold running water until the water runs clear. Do not use detergents.
- Allow the filter to air dry completely for at least 24 hours before reinserting. Do not use a hairdryer or other heating devices.
- Once dry, place the filter back into the dust container and reattach the container to the main unit.
Troubleshooting
Refer to this section for solutions to common issues you might encounter.
| Problem | Possible Cause | Solution |
|---|---|---|
| Vacuum cleaner does not start. | No power supply. | Check if the plug is securely inserted into the outlet. Check the power outlet with another appliance. |
| Low suction power. | Dust container full. Clogged filter. Obstruction in hose/nozzle. | Empty the dust container. Clean or replace the filter. Check hose and nozzles for blockages and remove them. |
| Unusual noise during operation. | Obstruction in fan or motor area. | Turn off and unplug the vacuum. Inspect for any foreign objects. If noise persists, contact customer support. |
| Dust escaping from the unit. | Dust container not properly closed. Filter not correctly installed or damaged. | Ensure the dust container is securely latched. Check filter for proper installation and damage; replace if necessary. |
Technical Specifications
Detailed specifications for the Sokany SK-3384 Vacuum Cleaner.
| Feature | Specification |
|---|---|
| Brand | SOKANY |
| Model Number | SK-3384 |
| Power Source | Corded Electric |
| Power / Wattage | 3000 watts |
| Dust Capacity | 2.5 Liters |
| Noise Level | 80 Decibels |
| Item Weight | 4.07 Kilograms |
| Special Features | Electric |
| Recommended Uses | Vacuum Cleaner |
