1. Introduction
Thank you for choosing the SOKANY EL-8888 2400W Steam Iron. This manual provides essential information for the safe and efficient operation, maintenance, and care of your new appliance. Please read these instructions carefully before first use and retain them for future reference.
Image 1: SOKANY EL-8888 2400W Steam Iron. This image displays the overall design of the iron, featuring its purple and black color scheme, ergonomic handle, and ceramic soleplate.
2. Important Safety Instructions
- Always ensure the voltage indicated on the rating label corresponds to your mains voltage.
- Do not immerse the iron, power cord, or plug in water or any other liquid.
- Unplug the iron from the power outlet when filling with water, emptying, or when not in use.
- Keep the iron and its cord out of reach of children and pets when it is switched on or cooling down.
- Never leave a hot iron unattended.
- Use the iron only for its intended purpose, which is ironing clothes.
- Do not operate the iron with a damaged cord or plug, or if the iron has been dropped or damaged. Contact qualified service personnel for repair.
- Avoid touching hot surfaces. Use handles or knobs.
- Exercise caution when turning the iron upside down, as there may be hot water in the reservoir.
3. Product Overview
Familiarize yourself with the components of your SOKANY EL-8888 Steam Iron:

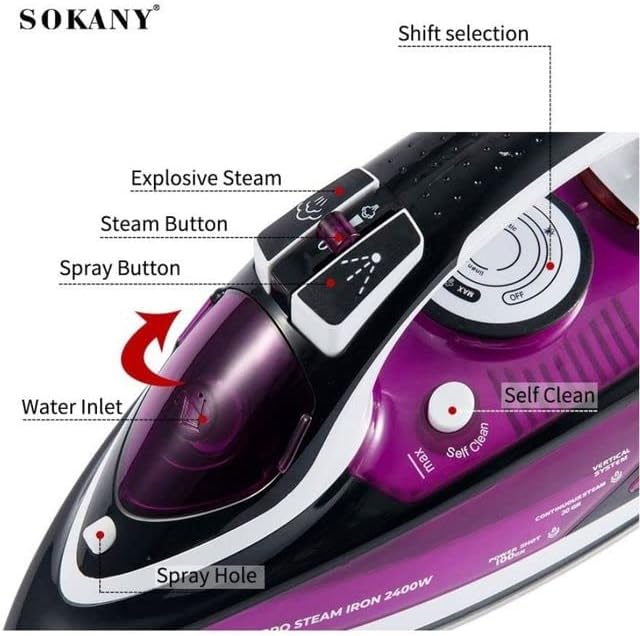

Image 2: Labeled diagram of the SOKANY EL-8888 Steam Iron's key components. This image highlights the Water Inlet, Spray Hole, Spray Button, Steam Button, Explosive Steam function, Shift Selection (temperature dial), and Self Clean button.
- Water Inlet: Opening for filling the water tank.
- Spray Hole: Emits a fine mist of water.
- Spray Button: Activates the spray function.
- Steam Button: Controls continuous steam.
- Explosive Steam (Steam Shot) Button: Delivers a powerful burst of steam.
- Shift Selection (Temperature Dial): Adjusts the ironing temperature for different fabrics.
- Self Clean Button: Initiates the self-cleaning process.
- Water Tank: Transparent reservoir for water.
- Soleplate: Ceramic non-stick ironing surface.
- Power Cord: Connects the iron to the electrical outlet.
4. Setup
4.1 Before First Use
- Remove any labels or protective film from the soleplate.
- It is normal for a slight odor or smoke to occur during the first few minutes of use as manufacturing residues burn off. This is harmless.
- Test the iron on an old piece of fabric to ensure no residue is transferred to your garments.
4.2 Filling the Water Tank
- Ensure the iron is unplugged from the power outlet.
- Set the steam control to the "Dry Ironing" position (usually indicated by a crossed-out steam symbol or "OFF").
- Open the water inlet cover.
- Fill the water tank with clean tap water up to the "MAX" fill line. Do not overfill.
- Close the water inlet cover securely.
Note: For areas with hard water, it is recommended to use a mixture of 50% tap water and 50% distilled water to prolong the life of your iron and prevent mineral buildup.
5. Operating Instructions
5.1 Temperature Selection
- Plug the iron into a suitable power outlet.
- Turn the temperature dial (Shift Selection) to the desired setting based on the fabric type. Refer to the garment's care label.
- The indicator light will illuminate, indicating the iron is heating. It will turn off when the selected temperature is reached.
5.2 Dry Ironing
- Ensure the water tank is empty or the steam control is set to "Dry Ironing".
- Select the appropriate temperature.
- Once the indicator light turns off, begin ironing.
5.3 Steam Ironing
- Fill the water tank as described in Section 4.2.
- Set the temperature dial to a steam-suitable setting (usually indicated by three dots or "MAX" on the dial). Steam is only generated at higher temperatures.
- Once the indicator light turns off, adjust the steam button to the desired steam level for continuous steam (e.g., 30g/min).
- For stubborn wrinkles, press the "Explosive Steam" (Power Shot) button for a powerful burst of steam (e.g., 100g). Wait a few seconds between bursts to allow the iron to reheat.
- Press the "Spray Button" to emit a fine mist of water for dampening fabrics.
5.4 Vertical Steaming
- Ensure the water tank is filled and the iron is heated to a high temperature setting.
- Hold the iron vertically, a few centimeters away from the garment.
- Press the "Explosive Steam" button repeatedly to release steam and remove wrinkles from hanging garments, curtains, etc.
5.5 After Use
- Turn the temperature dial to the "OFF" or minimum setting.
- Unplug the iron from the power outlet.
- Allow the iron to cool down completely before storing.
- Empty any remaining water from the tank to prevent mineral buildup.
6. Maintenance and Cleaning
6.1 Self-Clean Function
The self-clean function helps remove scale and mineral deposits from the steam chamber.
- Fill the water tank to the "MAX" line.
- Plug in the iron and set the temperature dial to "MAX".
- Once the indicator light turns off, unplug the iron.
- Hold the iron horizontally over a sink.
- Press and hold the "Self Clean" button. Hot water and steam will be expelled from the soleplate, carrying away impurities.
- Gently shake the iron back and forth until the water tank is empty.
- Release the "Self Clean" button and plug the iron back in to dry the soleplate.
- Unplug and allow to cool before storing. Perform this function monthly or as needed.
6.2 Cleaning the Soleplate
- Ensure the iron is unplugged and completely cool.
- Wipe the soleplate with a damp cloth and a non-abrasive cleaner if necessary.
- Do not use abrasive scouring pads or harsh chemicals, as these can damage the ceramic coating.
6.3 Storage
- Always store the iron upright on its heel rest to prevent damage to the soleplate.
- Ensure the iron is completely cool and empty of water before storing.
- Wrap the power cord neatly around the cord wrap area if available, or secure it with a tie.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Iron does not heat up. | Not plugged in; power outage; temperature dial set to OFF. | Check power connection; verify power supply; turn temperature dial to desired setting. |
| No steam or insufficient steam. | Water tank empty; temperature too low; steam control set to dry; steam vents clogged. | Fill water tank; set temperature to steam-suitable range; adjust steam control; perform self-clean. |
| Water leaking from soleplate. | Temperature too low for steam; water tank overfilled; iron tilted excessively. | Ensure iron is hot enough for steam; do not overfill; keep iron horizontal during steam ironing. |
| White flakes on clothes. | Mineral deposits (scale) in the iron. | Perform self-clean function. Use distilled water or a mix with tap water in hard water areas. |
8. Specifications
Image 3: Diagram illustrating the physical dimensions and key technical parameters of the SOKANY EL-8888 Steam Iron, including its model number, power, voltage, size, and weight.
- Model: EL-8888
- Brand: SOKANY
- Power/Wattage: 2400W
- Voltage: 220-240V
- Water Tank Capacity: Approximately 450ml
- Continuous Steam: 30g/min
- Power Shot (Explosive Steam): 100g
- Soleplate Material: Ceramic
- Special Features: Steam Control, Temperature Control, Anti-Calc System, Self Clean
- Dimensions (L x W x H): Approximately 30 cm x 12 cm x 15 cm
- Item Weight: Approximately 1 kg
9. Warranty and Support
This product is covered by a manufacturer's warranty against defects in materials and workmanship. Please refer to the warranty card included with your purchase for specific terms and conditions, including the warranty period and how to claim support.
For technical assistance or customer service inquiries, please contact your retailer or the SOKANY customer support line as provided in your product documentation.
