Sokany SK-3011 Digital Healthy Air Fryer User Manual

1. Introduction

Thank you for choosing the Sokany SK-3011 Digital Healthy Air Fryer. This appliance is designed to cook your favorite foods with little to no oil, providing a healthier alternative to traditional frying methods. Please read this manual thoroughly before operating the appliance to ensure safe and efficient use. Keep this manual for future reference.

Image 1.1: The Sokany SK-3011 Digital Healthy Air Fryer shown with its retail packaging.

2. Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons.

• Read all instructions before use.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electric shock, do not immerse cord, plugs, or the appliance in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to 'off', then remove plug from wall outlet.
• Do not use appliance for other than intended household use.
• Ensure the appliance is placed on a stable, heat-resistant surface, away from walls or other appliances to allow adequate air circulation.

3. Product Overview

Familiarize yourself with the components of your Sokany SK-3011 Air Fryer before first use.

Image 3.1: Side view of the Sokany SK-3011 Air Fryer, highlighting its compact design.

Components:

• Main Unit: Houses the heating element and fan.
• Digital Control Panel: Touch-sensitive interface for setting temperature and time.
• Frying Basket: Non-stick coated basket for holding food.
• Basket Handle: Heat-resistant handle for safe removal of the basket.
• Air Inlet: Located on the top of the unit.
• Air Outlet: Located at the rear of the unit for hot air exhaust.

4. Setup

Follow these steps to prepare your air fryer for its first use.

1. Unpacking: Carefully remove all packaging materials from the air fryer.
2. Initial Cleaning: Wash the frying basket and any removable accessories with hot water, dish soap, and a non-abrasive sponge. Rinse thoroughly and dry completely. Wipe the inside and outside of the appliance with a damp cloth.
3. Placement: Place the air fryer on a stable, level, and heat-resistant surface. Ensure there is at least 10 cm (4 inches) of free space behind and above the appliance for proper ventilation.
4. Power Connection: Plug the power cord into a grounded wall outlet (220-240V, 50Hz). The appliance is now in standby mode.

5. Operating Instructions

Learn how to use your Sokany SK-3011 Air Fryer for optimal cooking results.

Image 5.1: The air fryer in operation, illustrating the hot air circulation for cooking.

General Operation:

1. Prepare Food: Place the ingredients you want to air fry into the frying basket. Do not overfill the basket to ensure even cooking.
2. Insert Basket: Slide the frying basket back into the air fryer until it clicks securely into place.
3. Power On: Press the power button on the digital control panel to turn on the appliance.
4. Set Temperature and Time: Use the temperature control buttons (usually '+' and '-') to set the desired cooking temperature (90°C to 200°C). Use the timer control buttons to set the cooking time (up to 30 minutes).
5. Start Cooking: Press the start button (often indicated by a play/pause icon) to begin the cooking process. The light indicator will signal that the appliance is operating.
6. Shake Basket (Optional): For some foods, it is recommended to shake the basket halfway through the cooking time to ensure even browning. Carefully pull out the basket, shake it, and then slide it back in. The air fryer will resume cooking automatically.
7. Finish Cooking: The air fryer will automatically turn off when the set time has elapsed, and a bell will sound. Carefully pull out the basket using the heat-resistant handle.
8. Remove Food: Use tongs to remove the cooked food from the basket. Avoid tipping the basket directly as excess oil may collect at the bottom.
9. Power Off: Press the power button to turn off the appliance and unplug it from the wall outlet.

Digital Control Panel:

• Power Button: Turns the appliance on/off.
• Temperature Control: Adjusts cooking temperature (90°C - 200°C).
• Timer Control: Adjusts cooking time (0 - 30 minutes).
• Start/Pause Button: Initiates or pauses the cooking cycle.
• Pre-set Programs: Some models may include pre-set programs for common foods. Refer to the icons on your control panel for specific functions.

6. Cleaning and Maintenance

Regular cleaning ensures optimal performance and extends the lifespan of your air fryer.

1. Unplug and Cool: Always unplug the air fryer and allow it to cool down completely before cleaning.
2. Clean Basket: Remove the frying basket. Wash it with hot water, dish soap, and a non-abrasive sponge. The non-stick coating allows for easy cleaning. For stubborn residue, soak the basket in hot water with dish soap for about 10 minutes.
3. Clean Interior: Wipe the inside of the appliance with a damp cloth. Do not use abrasive cleaners or steel wool.
4. Clean Exterior: Wipe the exterior of the air fryer with a damp cloth.
5. Storage: Ensure all parts are clean and dry before storing the appliance in a cool, dry place.

Caution: Never immerse the main unit of the air fryer in water or any other liquid.

7. Troubleshooting

If you encounter issues with your air fryer, refer to the following common problems and solutions.

If the problem persists after trying these solutions, please contact customer support.

8. Specifications

Detailed technical specifications for the Sokany SK-3011 Digital Healthy Air Fryer.

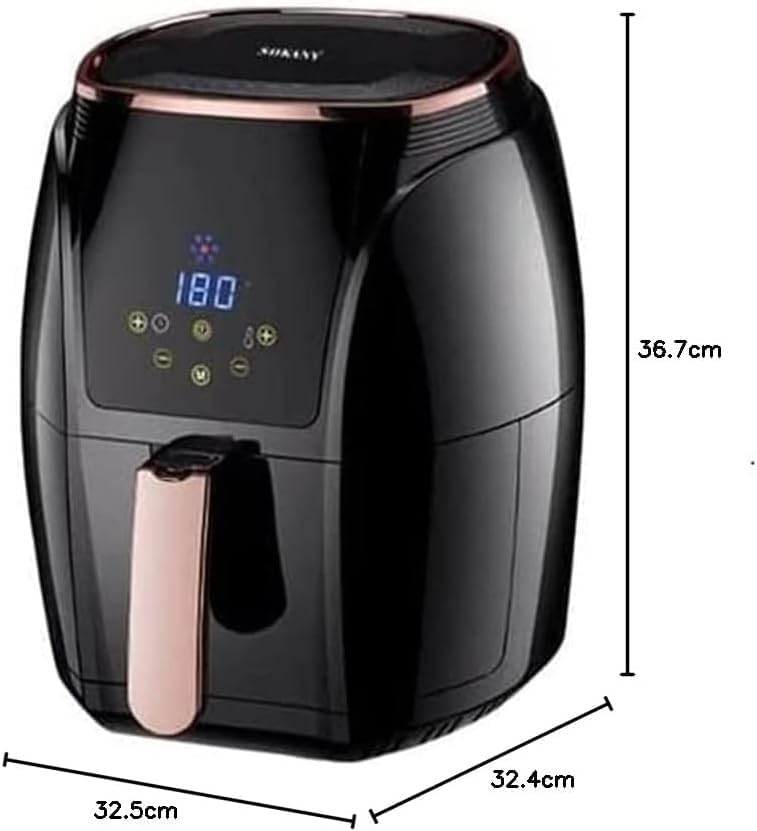

Image 8.1: Dimensions of the Sokany SK-3011 Air Fryer: 32.5cm (width), 32.4cm (depth), 36.7cm (height).

• Model Number: SK-3011 (also SE+3011)
• Brand: Sokany
• Capacity: 5 Liters
• Power: 1500 Watts
• Voltage: 220-240V
• Frequency: 50Hz
• Temperature Range: 90°C - 200°C
• Timer: Up to 30 minutes
• Material: Aluminum, Plastic
• Color: Black
• Product Dimensions (D x W x H): Approximately 30 x 20 x 25 cm (as per product data) / 32.4 x 32.5 x 36.7 cm (as per image)
• Item Weight: 900 g
• Special Features: Temperature Control, Non-stick basket, Safety lock, Light indicator, Heat-resistant handle.

9. Warranty and Support

This product is covered by a manufacturer's warranty. Please refer to the warranty card included in your product packaging for specific terms and conditions, including the warranty period and coverage details. For technical support, service, or warranty claims, please contact the retailer or the authorized service center in your region.

Extended warranty options may be available from third-party providers such as Salama Care. Please check with your retailer for details on purchasing extended protection plans.
