Cab Wiring Harness 6727178 User Manual

1. Product Overview

This document provides essential information for the installation, operation, and maintenance of the Cab Wiring Harness, Part Number 6727178. This precision-engineered wiring harness is designed to restore full functionality to cab systems in compatible Bobcat loader models, addressing issues such as dead instrument panels, unresponsive joysticks, lighting failures, AC/heat malfunctions, and specific error codes (05-XX, 07-XX).

Figure 1: Cab Wiring Harness 6727178. This image displays the complete wiring harness, coiled to show its overall length and the distribution of its various connectors and protective sheathing.

2. Compatibility

The Cab Wiring Harness 6727178 is a direct replacement part designed for a broad range of Bobcat Compact Track Loaders and Skid Steer Loaders. It is crucial to verify compatibility with your specific model and original part number before installation.

Compatible Bobcat Models:

• 700/800-Series: 753, 763, 773, 773G, 773K, 773T, 864, 873G, 883G, 963
• S-Series: S130, S150, S160, S175, S185, S205, S220, S250, S250D, S300
• T-Series: T140, T180, T190, T200, T250, T300
• A-Series: A220, A300

Important: Always match your loader's model and original part number to ensure correct fitment. Later models may utilize revised harnesses.

3. Key Features

• Direct Replacement: Engineered as a direct fit for Bobcat Part #6727178.
• Restores Cab Control: Addresses common electrical failures including instrument panel issues, joystick unresponsiveness, lighting malfunctions, and HVAC system problems.
• Heavy-Duty Construction: Features oil-resistant cross-linked polyethylene (XLPE) wiring for enhanced durability.
• Reliable Connections: Equipped with gold-plated 32-pin connectors to ensure stable electrical contact.
• Vibration Resistance: Includes vibration-proof loom clamps for secure routing and protection against operational stresses.
• Broad Model Coverage: Compatible with a wide range of Bobcat loaders from legacy 700-Series to modern T300/S250D models.

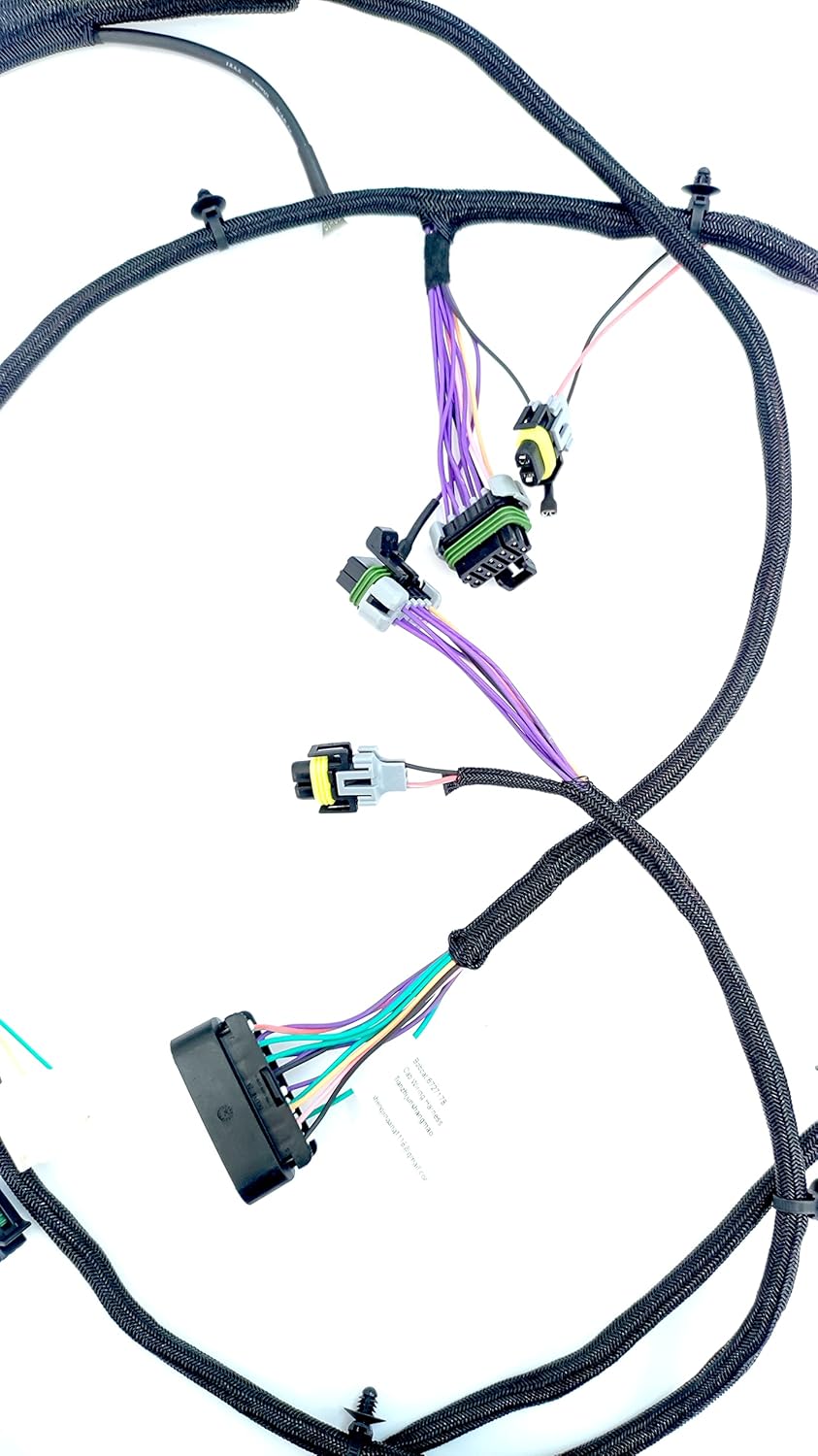

Figure 2: Detailed view of connectors. This image highlights the various multi-pin electrical connectors and the color-coded wiring, indicating the complexity and precision of the harness.

4. Setup and Installation

Installation of a wiring harness requires technical knowledge and should ideally be performed by a qualified technician. Always prioritize safety and disconnect the vehicle's battery before beginning any electrical work.

Installation Steps:

1. Safety First: Ensure the Bobcat loader is turned off, parked on a level surface, and the parking brake is engaged. Disconnect the negative terminal of the battery to prevent electrical shorts.
2. Access the Existing Harness: Locate the cab wiring harness within the loader. This may require removing panels or covers.
3. Document Connections: Before disconnecting any part of the old harness, it is highly recommended to tag each original harness connector. Use labels, markers, or take photographs to ensure error-free reconnection.
4. Remove Old Harness: Carefully disconnect all connectors and unclip the old harness from its mounting points.
5. Install New Harness: Route the new Cab Wiring Harness 6727178 in the same path as the old one. Secure it using the integrated vibration-proof loom clamps.
6. Connectors: Connect each corresponding connector from the new harness to its correct mating component, referring to your documentation from step 3. Ensure all connections are secure and fully seated.
7. Verify Routing: Double-check that the harness is routed away from moving parts, sharp edges, and heat sources.
8. Reconnect Battery: Once all connections are verified, reconnect the negative battery terminal.
9. Test Functionality: Start the loader and test all cab functions (instrument panel, joysticks, lights, AC/heat) to confirm proper operation.

Figure 3: Harness routing and connection point. This image illustrates a segment of the harness with its protective covering and a ring terminal, which is typically used for secure electrical connections to a stud or ground point.

5. Operating (Post-Installation)

After successful installation of the Cab Wiring Harness 6727178, the electrical systems within your Bobcat loader's cab should function as intended. This includes the instrument panel, control joysticks, lighting systems, and climate control (AC/heat). No specific operational procedures are required for the harness itself, as it serves as the electrical backbone for these systems.

If any issues persist after installation, refer to the Troubleshooting section of this manual or consult a qualified technician.

6. Maintenance

The Cab Wiring Harness 6727178 is designed for durability and minimal maintenance. However, periodic inspection can help ensure its longevity and reliable performance.

Maintenance Guidelines:

• Visual Inspection: Periodically inspect the harness for any signs of wear, fraying, cuts, or damage to the protective sleeving.
• Connector Integrity: Check that all connectors remain securely seated and free from corrosion. If corrosion is present, disconnect the battery and carefully clean the affected terminals.
• Routing: Ensure the harness remains properly routed and secured by its loom clamps, away from heat sources, sharp edges, and moving components.
• Cleanliness: Keep the harness free from excessive dirt, debris, and oil, which can degrade the protective materials over time. The XLPE wiring is oil-resistant, but regular cleaning is still beneficial.

Figure 4: Vibration-proof loom clamps. This image shows the durable protective sleeving of the harness and a black plastic clamp designed to secure the wiring and prevent movement due to vibration.

7. Troubleshooting

This harness is designed to resolve common electrical issues within the Bobcat loader's cab. If you experience any of the following problems after installation, review your connections and consult a professional if necessary.

Common Issues Addressed by this Harness:

• Dead Instrument Panels: No power or incorrect readings on the dashboard display.
• Unresponsive Joysticks: Controls for loader functions do not respond or respond intermittently.
• Lighting Failures: Interior or exterior lights not functioning correctly.
• AC/Heat Malfunctions: Climate control system not operating or operating incorrectly.
• Error Codes (05-XX, 07-XX): Specific diagnostic trouble codes related to cab electrical systems.

If these issues persist after verifying correct installation, it may indicate a problem external to the harness or a deeper electrical fault. Professional diagnostic assistance is recommended.

8. Specifications

9. Warranty and Support

Specific warranty information for this product is not provided in the available documentation. For details regarding warranty coverage, returns, or technical support, please contact the seller or manufacturer directly. Refer to your purchase receipt or the product listing for contact information.
