1. Introduction
This manual provides detailed instructions for the installation and maintenance of your Rooppa replacement windshield wiper blades. These blades are designed to provide clear visibility and reliable performance for your vehicle. Please read this manual thoroughly before installation and use.
2. Vehicle Compatibility
These wiper blades are specifically designed for:
- Make: Volkswagen (VW)
- Model: Tiguan
- Model Years: 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017

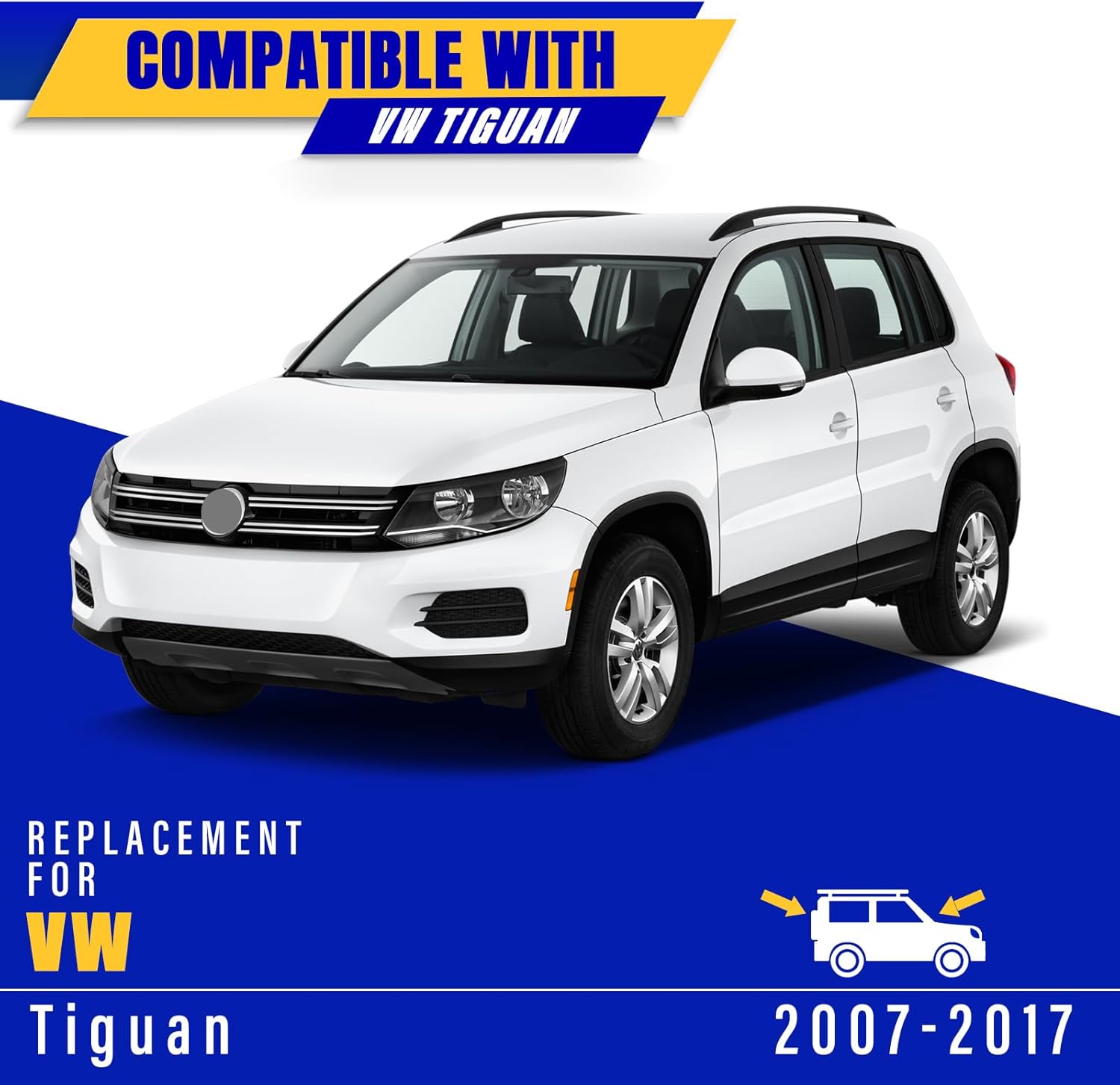

Figure 2.1: Visual confirmation of compatible vehicle model (VW Tiguan 2007-2017).
3. Product Specifications
| Brand | Rooppa |
| Model Number | RP540 |
| Wiper Blade Sizes |
|
| Attachment Type | Top Lock / Pinch Tab |
| Material | Natural Rubber |
Figure 3.1: Wiper blade sizes for front (driving and passenger) and rear windshields.
Figure 3.2: Illustration of the OE wiper arm and Top Lock attachment type.
Figure 3.3: Natural rubber material for corrosion and weather resistance, ensuring longer service life.
4. Safety Information
Please observe the following safety precautions during installation and use:
- Ensure the vehicle is parked on a level surface and the ignition is off before starting installation.
- Exercise caution when handling wiper arms, as they can snap back and cause injury or damage to the windshield.
- Always place a towel or protective material on the windshield when the wiper arm is lifted to prevent accidental glass damage.
- Do not operate wipers on a dry windshield, as this can damage the blades and the windshield.
- Keep children and pets away from the work area during installation.
5. Installation Instructions
5.1 Pre-Installation Steps
- Identify Wiper Blades: Match each new wiper blade to its correct position (driving side, passenger side, rear) based on the provided sizes.
- Lift Wiper Arm: Gently lift the existing wiper arm away from the windshield until it locks into an upright position.
- Protect Windshield: Place a thick towel or protective cloth on the windshield directly under the wiper arm. This prevents the arm from striking and cracking the glass if it accidentally falls.
- Remove Protective Cover: Before installing the new blade, locate and remove the lime green protective rubber strip cover from the blade element. This cover is for shipping protection only and must be removed for proper function.
Figure 5.1: Important pre-installation steps: Remove the green rubber strip cover and place a towel under the wiper arm.
5.2 Attaching the New Wiper Blade (Top Lock Type)
Follow these steps for a secure installation:
- Remove Old Blade: Press the release tab on the old wiper blade connector and slide the blade off the wiper arm hook.
- Prepare New Blade: Hold the new wiper blade with the connector facing the wiper arm.
- Align Wiper Arm: Position the wiper arm so its end aligns with the opening in the new blade's connector.
- Insert Wiper Arm: Slide the wiper arm into the connector until you hear a click or feel it lock securely into place. Ensure the tabs are fully engaged.
- Verify Installation: Gently pull on the wiper blade to confirm it is firmly attached to the arm.
- Lower Wiper Arm: Carefully lower the wiper arm back onto the windshield.
- Repeat for all blades: Perform these steps for the remaining wiper blades.
Figure 5.2: Step-by-step guide for installing the Top Lock wiper blade.
6. Operating Instructions
Once installed, operate your new wiper blades as you would your original equipment. For optimal performance and longevity:
- Always use windshield washer fluid when operating wipers on a dry or lightly soiled windshield.
- Avoid using wipers to clear heavy ice or snow. Clear these manually first to prevent damage to the blades and wiper motor.
- Regularly check the windshield for debris that could damage the wiper blades.
Figure 6.1: Wiper blades in operation, demonstrating clear visibility and quiet performance.
7. Maintenance
Proper maintenance can extend the life of your wiper blades:
- Clean Blades Regularly: Wipe the rubber edge of the blades with a damp cloth or a cloth soaked in windshield washer fluid to remove dirt, grime, and road film.
- Inspect for Damage: Periodically check the rubber for cracks, tears, or hardening. Replace blades if any damage is observed.
- Avoid Harsh Chemicals: Do not use petroleum-based cleaners or solvents on the wiper blades, as these can degrade the rubber.
- Winter Care: In freezing conditions, lift the wiper arms off the windshield when parking to prevent the blades from freezing to the glass.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Streaking or Smearing | Dirty blade, worn blade, improper installation angle. | Clean blades with a damp cloth. Inspect for damage and replace if necessary. Ensure wiper arm is not bent. |
| Chattering or Skipping | Dirty windshield, bent wiper arm, hardened rubber. | Clean windshield thoroughly. Check wiper arm for proper angle and bend. Replace blades if rubber is hardened. |
| Incomplete Wipe | Incorrect blade length, insufficient pressure from wiper arm. | Verify correct blade lengths were installed. Check wiper arm spring tension. |
9. Warranty and Support
For information regarding product warranty or technical support, please refer to the seller's policy on the purchase platform or contact Rooppa customer service directly. Keep your purchase receipt as proof of purchase.
10. Contact Information
For further assistance or inquiries, please contact your retailer or visit the official Rooppa website.
