1. Introduction
This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your Anbaochi Commercial Bone Saw Cutting Machine. Please read this manual thoroughly before initial use and retain it for future reference. Proper understanding and adherence to these instructions will ensure optimal performance and extend the lifespan of your equipment.
2. Important Safety Instructions
Failure to follow these safety instructions may result in serious injury or damage to the machine.
- Read All Instructions: Familiarize yourself with the machine's functions and safety warnings before operation.
- Personal Protective Equipment (PPE): Always wear appropriate safety gear, including cut-resistant gloves, safety glasses, and a protective apron.
- Keep Hands Clear: Never place hands or fingers near the cutting blade while the machine is operating or connected to power. Use the provided wide putter to guide materials.
- Unplug Before Maintenance: Always disconnect the power supply before cleaning, adjusting, or performing any maintenance on the machine.
- Stable Surface: Operate the machine on a stable, level, and non-slip surface to prevent tipping or movement during use.
- Proper Ventilation: Ensure adequate ventilation in the work area.
- No Children or Unauthorized Personnel: Keep children and unauthorized individuals away from the machine, especially during operation.
- Inspect Before Use: Before each use, check the blade for sharpness and damage, and ensure all safety guards are in place and functioning correctly.
- Emergency Stop: Know the location and operation of the emergency stop switch.

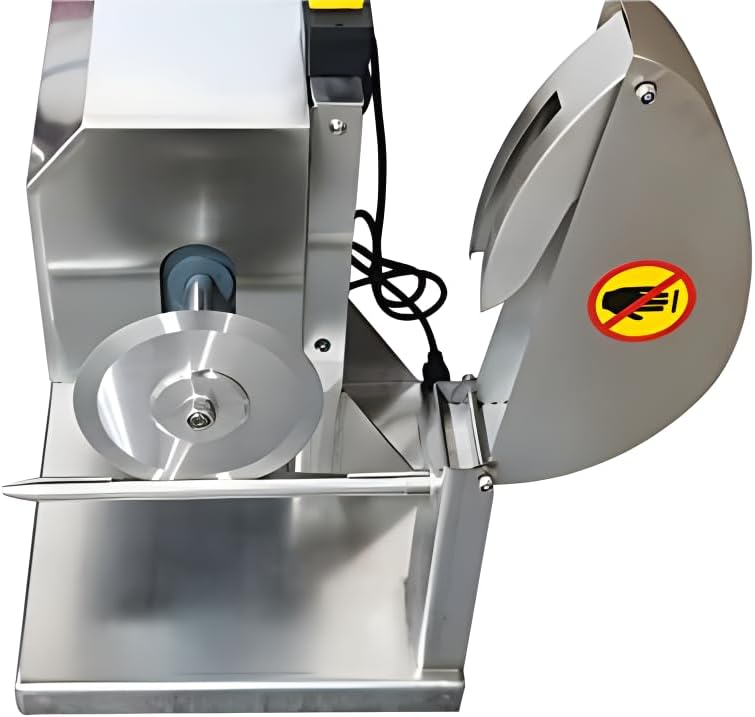

Image: Front view of the blade area, clearly showing the safety guard and a 'No Hands' warning symbol to emphasize safe operation.
Image: A close-up view of the circular cutting blade, with the safety guard partially open and the 'No Hands' warning visible.
3. Product Overview
The Anbaochi Commercial Bone Saw Cutting Machine is designed for efficient and precise cutting of various meats and bones. Constructed from durable stainless steel, it features a powerful motor and a sharp, wear-resistant blade for high-volume processing.
3.1 Components
- Cutting Blade: A 200mm diameter stainless steel blade, forged for sharpness and durability.
- Motor Unit: Powerful 750W motor providing 2000r/min speed.
- Safety Guard: Protective cover for the blade, designed to keep hands away during operation.
- Cutting Platform: Stainless steel surface for placing materials to be cut.
- Power Switch: Waterproof ON/OFF switch for safe operation.
- Wide Putter: Tool for safely guiding materials towards the blade.
Image: Side view of the Anbaochi Commercial Bone Saw Cutting Machine, showcasing its stainless steel construction.
Image: The bone saw machine with its key dimensions (length, width, height) indicated for reference.
Image: A side view highlighting the waterproof power switch (red and green buttons) located on the machine's body.
Image: A detailed close-up of the sharp, round cutting blade, which is central to the machine's function.
Image: An underside view revealing the motor ventilation holes, crucial for preventing overheating during extended operation.
Image: Rear view of the machine, displaying the power cord connection and the back of the power switch unit.
Image: A top-down perspective of the bone saw machine, showing the overall layout of the cutting platform and motor housing.
4. Setup
4.1 Unpacking
- Carefully remove the machine from its packaging.
- Inspect the machine for any signs of damage during transit. If damaged, do not operate and contact customer support.
- Remove all packing materials and protective films.
4.2 Placement
- Place the machine on a sturdy, level, and stable work surface capable of supporting its weight (approximately 67.5 lbs / 30.68 kg).
- Ensure there is sufficient space around the machine for safe operation and material handling.
- Position the machine in an area with good ventilation.
4.3 Power Connection
- Ensure the power switch is in the 'OFF' position.
- Connect the power cord to a grounded 110V power outlet.
- Verify that the voltage of your power supply matches the machine's requirements.
5. Operating Instructions
5.1 Before Operation
- Ensure all safety instructions have been read and understood.
- Wear all necessary personal protective equipment (PPE).
- Verify the blade is clean, sharp, and securely installed.
- Prepare the material to be cut, ensuring it is free from foreign objects.
5.2 Cutting Procedure
- Turn on the machine using the power switch. Allow the blade to reach full operating speed.
- Place the material (e.g., chicken, ribs, fish) on the cutting platform.
- Using the wide putter, slowly and firmly guide the material towards the rotating blade. Never use your hands directly.
- Maintain a steady pressure and feed rate for clean cuts.
- Once the cut is complete, remove the cut pieces from the platform.
5.3 After Operation
- Turn off the machine using the power switch.
- Wait for the blade to come to a complete stop before approaching the cutting area.
- Unplug the machine from the power outlet.
- Proceed with cleaning as described in the Maintenance section.
Video: Demonstration of the meat cutting machine in operation, showing how to safely feed poultry for processing.
Image: A visual guide illustrating the variety of meats and bones, including chicken, duck, pork ribs, beef ribs, goose, and steak, that can be processed by the machine.
Image: A collage depicting different commercial environments such as catering supply chain kitchens, fresh supermarkets, hotel kitchens, and meat food processing factories, where this machine is applicable.
6. Maintenance and Cleaning
Regular cleaning and maintenance are crucial for the longevity and safe operation of your bone saw machine. Always ensure the machine is unplugged before cleaning or maintenance.
6.1 Daily Cleaning
- Unplug the machine.
- Remove any meat scraps or bone fragments from the cutting platform and blade area.
- Use a damp cloth with mild detergent to wipe down all stainless steel surfaces.
- Rinse with a clean, damp cloth and dry thoroughly to prevent water spots and rust.
- The manufacturer recommends Hand Wash Only for product care.
6.2 Blade Care
- Regularly inspect the blade for sharpness. A dull blade can lead to inefficient cutting and increased motor strain.
- If the blade becomes dull, it should be sharpened by a professional or replaced with an original Anbaochi replacement blade.
- Ensure the blade is clean and dry before storage to prevent corrosion.
6.3 Storage
Store the machine in a clean, dry environment away from direct sunlight and extreme temperatures.
7. Troubleshooting
Refer to the table below for common issues and their solutions. If the problem persists, contact customer support.
| Problem | Possible Cause | Solution |
|---|---|---|
| Machine does not start | Power cord not securely plugged in Power switch is OFF Circuit breaker tripped | Check power connection Ensure switch is in the 'ON' position Reset the circuit breaker |
| Blade not cutting effectively | Blade is dull or damaged Material is too hard or thick for the machine Incorrect feeding technique | Sharpen or replace the blade Ensure material is within machine's capacity Review operating instructions for proper feeding |
| Excessive vibration or noise | Loose components or fasteners Machine not on a stable surface Damaged or unbalanced blade | Check and tighten all fasteners Place machine on a firm, level surface Inspect blade for damage; replace if necessary |
| Motor overheats | Continuous operation without rest Blocked ventilation Overloading the machine | Allow machine to cool down periodically Ensure ventilation holes are clear Reduce load and feed material at a slower rate |
8. Specifications
| Feature | Value |
|---|---|
| Brand | Anbaochi |
| Model | B0BK7ZQPN4 |
| Product Dimensions (L x W x H) | 21" x 17.3" x 24" |
| Material | Stainless Steel |
| Color | Silver |
| Special Feature | Removable Blade |
| Recommended Uses | Meat (Chicken, Rib, Lamb Chops, Pork, Frozen Fish, Trotter, Steak, Duck, Goose, Rabbit) |
| Product Care Instructions | Hand Wash Only |
| Blade Material | Stainless Steel |
| Item Weight | 30.68 Kilograms (67.5 pounds) |
| Blade Shape | Round |
| Operation Mode | Automatic |
| UPC | 727007015102 |
| Power | 750W |
| Voltage | 110V |
| Cutting Speed | 2000r/min |
| Processing Capacity | Up to 485 lbs/hour |
| Date First Available | October 24, 2022 |
9. Warranty and Support
9.1 Product Protection Plans
Extended protection plans are available for this product to provide additional coverage beyond the standard manufacturer's warranty. Options include:
- 3-Year Protection Plan
- 4-Year Protection Plan
- Complete Protect Plan (monthly billing)
Please refer to the specific terms and conditions of these plans for full details on coverage and duration.
9.2 Customer Support
For technical assistance, warranty claims, or any questions regarding your Anbaochi Commercial Bone Saw Cutting Machine, please contact the seller or manufacturer's customer support. Keep your purchase receipt and model information (B0BK7ZQPN4) readily available when contacting support.
