1. Introduction
This instruction manual provides essential information for the assembly, operation, and maintenance of your MISINI TGL T4005 Remote Control Cement Mixer Truck building block kit. Please read this manual thoroughly before beginning assembly or operation to ensure correct usage and to maximize your experience with the product. Keep this manual for future reference.
2. Product Overview

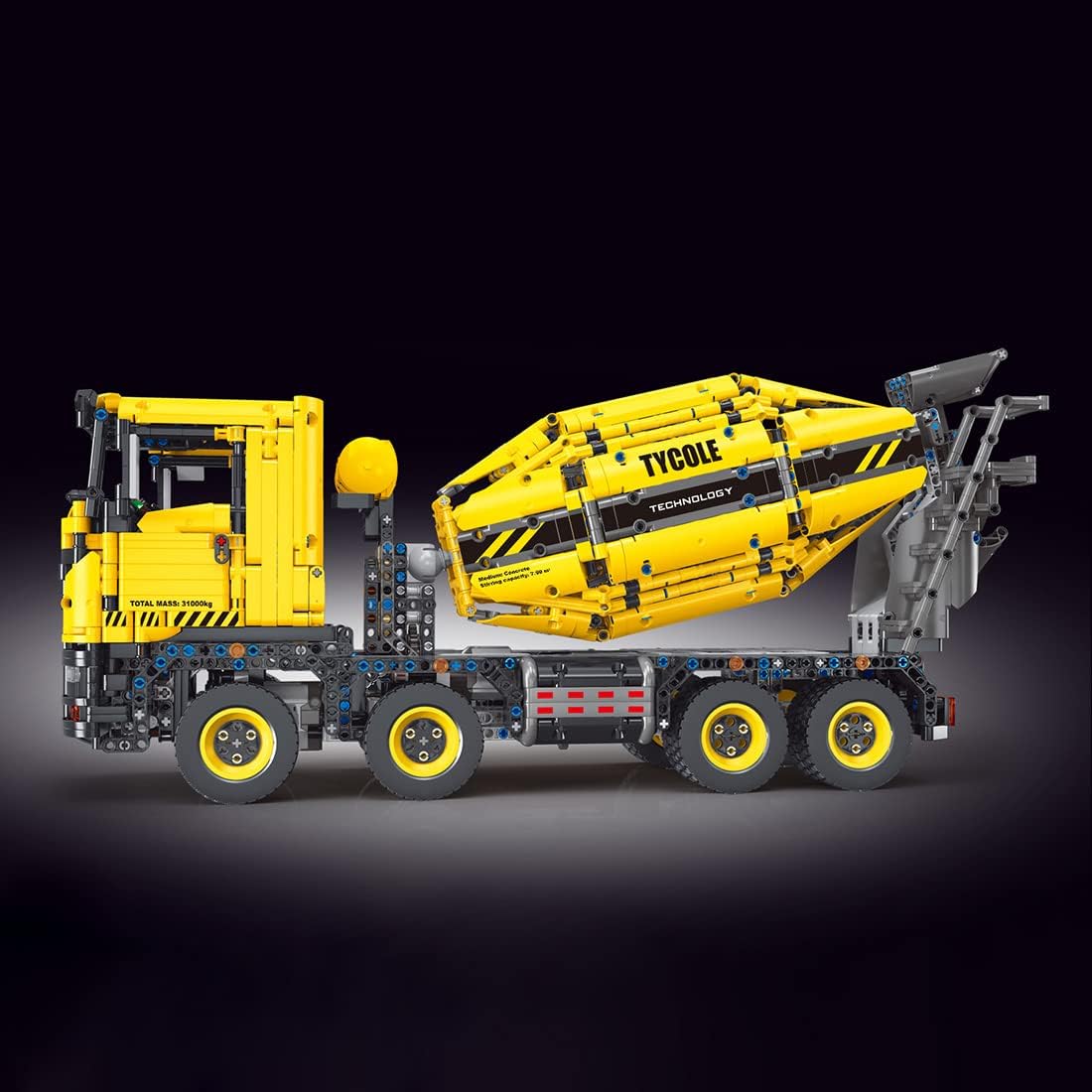

The MISINI TGL T4005 is a sophisticated building block kit designed to construct a remote-controlled cement mixer truck. This model features 3388 interlocking blocks, providing a detailed and engaging building experience. Once assembled, the truck is equipped with three motors (1 XL motor, 1 L motor, 1 servo motor) for various functions, including driving, steering, and operating the cement mixer drum. The model can be controlled via an included remote control or a mobile phone application.
3. Package Contents
Please verify that all components are present before beginning assembly:
- Approximately 3388 building blocks for the cement mixer truck model.
- 1 XL Motor
- 1 L Motor
- 1 Servo Motor
- 1 Remote Control
- 1 Lithium Battery Box
- 1 Detailed Assembly Instruction Manual (separate booklet)
If any parts are missing or damaged, please contact customer support.
4. Setup
4.1. Assembly
The MISINI TGL T4005 is a complex building block model. Refer to the separate, detailed assembly instruction manual included in your package for step-by-step guidance. Follow the instructions carefully to ensure correct construction and functionality of all mechanical and electronic components.
4.2. Battery Installation
- Locate the lithium battery box within the assembled model.
- Ensure the battery box is correctly connected to the motors and other electronic components as per the assembly manual.
- Insert the required batteries into the remote control. Typically, these are AA or AAA batteries (not always included, check packaging).
- Power on the battery box and the remote control.
4.3. Remote Control Pairing
After installing batteries, the remote control and the truck's receiver need to be paired. Specific pairing instructions will be detailed in the separate assembly manual. Generally, this involves:
- Turning on the truck's power.
- Turning on the remote control.
- Pressing a pairing button on either the remote or the receiver, or following a specific sequence of power-on/button presses until a connection is established (indicated by an LED light).
The model also supports control via a mobile phone application. Refer to the assembly manual for instructions on downloading and connecting the app.
5. Operating Instructions
Once assembled and paired, your MISINI TGL T4005 Cement Mixer Truck is ready for operation. Familiarize yourself with the remote control layout and functions.
5.1. Driving and Steering
- Use the designated joysticks or buttons on the remote control to move the truck forward and backward.
- The truck features 4-wheel drive steering. Use the steering controls to turn the vehicle left or right.
5.2. Cement Mixer Drum Operation
- Activate the mixer drum rotation using the corresponding control on the remote.
- The drum can rotate both forward and backward, simulating real cement mixer functionality.
5.3. Cab and Door Functions
- The front cab of the truck can be lifted, providing access to internal components or for display purposes.
- The doors of the cab can be opened and closed manually.
6. Maintenance
- Cleaning: Use a soft, dry cloth to clean the model. Avoid water or cleaning solutions, as they may damage electronic components.
- Storage: Store the model in a cool, dry place away from direct sunlight and extreme temperatures.
- Battery Care: If the model will not be used for an extended period, remove the batteries from both the truck's battery box and the remote control to prevent leakage and damage.
- Component Check: Periodically inspect all connections and moving parts to ensure they are secure and functioning correctly.
7. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Truck does not respond to remote control. |
|
|
| Motors are weak or inconsistent. |
|
|
| Parts are loose or fall off. |
|
|
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | T4005 |
| Number of Blocks | 3388 |
| Dimensions (L x W x H) | 55.6 x 19.3 x 26.7 cm (21.9 x 7.6 x 10.5 inches) |
| Weight | 3.77 kg (8.31 lbs) |
| Recommended Age | 6 years and up |
| Main Material | Acrylonitrile Butadiene Styrene (ABS) |
| Motors Included | 1 XL Motor, 1 L Motor, 1 Servo Motor |
| Battery Type (Truck) | Lithium-ion (in battery box) |
| Power Source | Power Function |
| Control Method | Remote Control, Mobile Phone App |
9. Safety Information
- Small Parts Warning: This kit contains small parts which may pose a choking hazard for children under 3 years old. Adult supervision is recommended during assembly and play.
- Battery Safety:
- Do not mix old and new batteries, or different types of batteries.
- Insert batteries with correct polarity (+ and -).
- Do not attempt to recharge non-rechargeable batteries.
- Remove exhausted batteries promptly.
- Do not short-circuit battery terminals.
- Electronic Components: Keep electronic components away from water and moisture. Do not disassemble or modify the motors or battery box.
- Operation Environment: Operate the remote control truck on flat, clear surfaces. Avoid operating near stairs, furniture, or other obstacles that could cause damage or injury.
10. Support
For any questions, missing parts, or suggestions regarding your MISINI TGL T4005 Cement Mixer Truck, please contact MISINI customer support. Refer to the product packaging or the separate assembly manual for contact details.
