ETOOLAB 1200W Rotary Car Buffer Polisher User Manual

1. Product Overview

The ETOOLAB Rotary Car Buffer Polisher is engineered for efficient and effective surface treatment, ideal for automotive detailing, boat maintenance, and furniture polishing. Its robust 1200W motor and variable speed settings provide precise control for various tasks, from light waxing to heavy scratch removal. The ergonomic design ensures comfortable use over extended periods.

Figure 1.1: ETOOLAB Rotary Car Buffer Polisher and its comprehensive accessory kit.

Figure 1.2: Illustration highlighting the advanced 3D Cooling Tech and pure copper wire motor for enhanced durability and performance.

2. Setup and Assembly

Before operating the polisher, ensure all components are correctly assembled and securely attached.

2.1 Unboxing and Component Identification

Upon opening the package, verify that all listed components are present. Refer to the following video for a visual guide on the contents of your ETOOLAB Buffer Polisher Kit.

2.2 Installing Backing Plate and Handles

The polisher comes with two backing plates (6-inch and 7-inch) and two types of handles (D-handle and side handle) for versatile use. Choose the appropriate size backing plate and handle for your task.

1. Attaching the Backing Plate: Align the backing plate with the spindle of the polisher. Press the spindle lock button (located on top of the polisher) to secure the spindle, then rotate the backing plate clockwise until it is firmly tightened.
2. Installing the D-handle: The D-handle offers a 135° adjustable grip. Insert the handle into the designated slots on the polisher head and secure it with the provided screws using the hex key. Ensure it is tightly fastened for stability.
3. Installing the Side Handle: Alternatively, the side handle can be screwed directly into the side port of the polisher head. Tighten it securely.

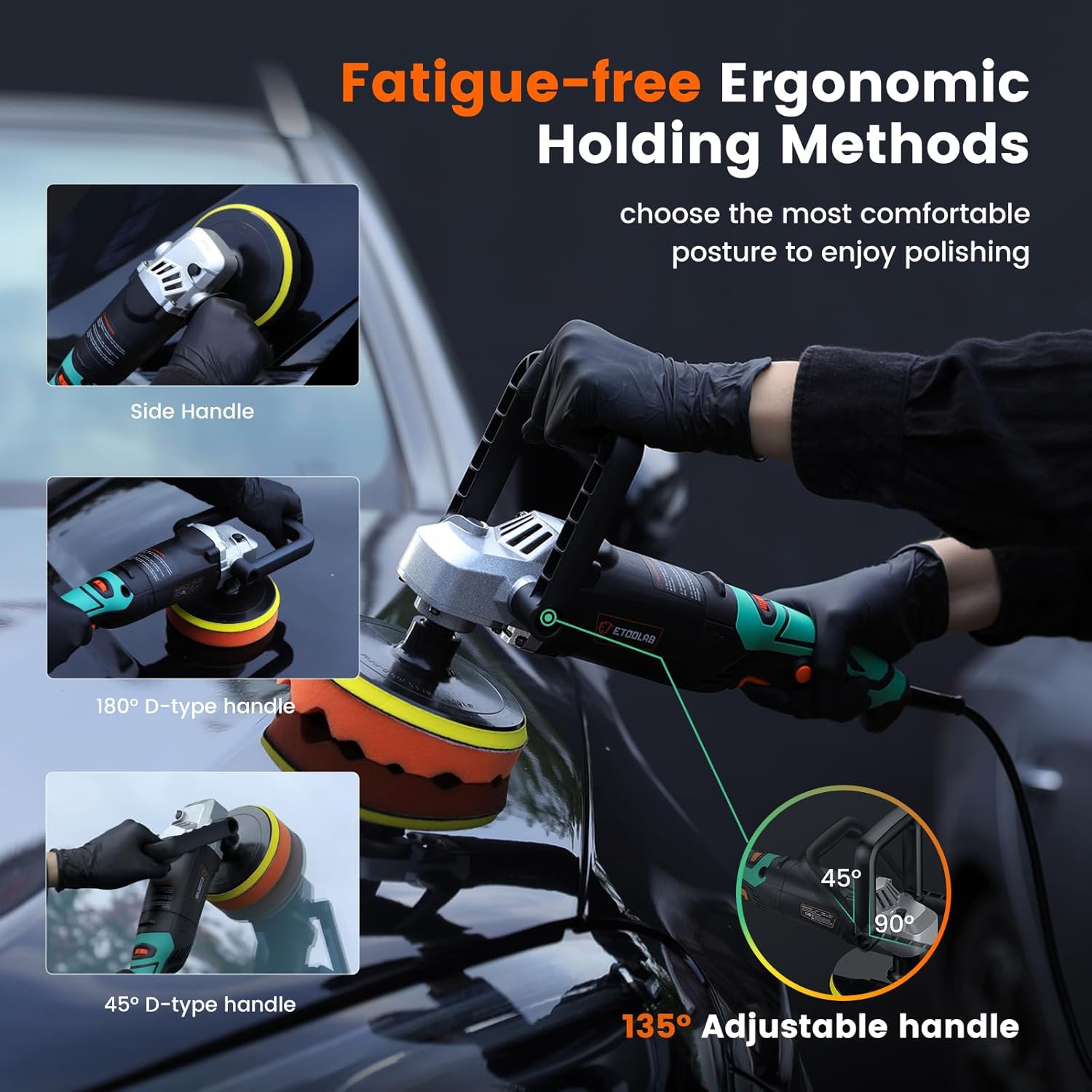

Figure 2.1: Various ergonomic holding methods for comfortable and controlled operation.

2.3 Attaching Polishing Pads

The polisher utilizes a hook-and-loop design for quick and easy pad changes.

1. Ensure the backing plate is clean and free of debris.
2. Align the desired polishing pad (foam, wool, or sandpaper) with the hook-and-loop surface of the backing plate.
3. Press the pad firmly onto the backing plate to ensure a secure attachment.

Figure 2.2: The hook-and-loop system allows for rapid and effortless pad changes.

3. Operating Instructions

The ETOOLAB polisher features variable speed control and multiple modes for optimal performance across different applications.

3.1 Powering On and Speed Control

Connect the polisher to a standard 110V power outlet. The unit features a 6-variable speed dial and a trigger-lock button for continuous operation.

• Variable Speed Dial: Adjust the speed from 1600 RPM to 3500 RPM using the dial located on the top of the handle.
• Trigger-Lock Button: Press the trigger to start the polisher. For continuous operation, press the trigger-lock button while the trigger is engaged. Release the trigger-lock button to stop continuous operation.

Figure 3.1: The variable speed dial allows precise control over polishing intensity.

3.2 Application-Specific Speed Settings

Different tasks require different speeds and pad types for optimal results:

Figure 3.2: Guide for selecting the correct pad and speed for specific polishing tasks.

3.3 General Polishing Procedure

Follow these steps for effective polishing:

1. Clean the surface thoroughly to remove dirt and debris.
2. Apply a small amount of polish or compound directly to the pad or the working area.
3. Place the pad flat on the surface before turning on the polisher to prevent splatter.
4. Start at a low speed (1-2 gears) to spread the product evenly.
5. Gradually increase the speed to the recommended setting for your task.
6. Move the polisher in a consistent, overlapping pattern (e.g., cross-hatch) across the surface, applying even pressure. Avoid pressing too hard, as this can reduce efficiency and potentially damage the surface.
7. Work in small sections (e.g., 2x2 feet) to ensure thorough coverage and prevent the product from drying out.
8. After polishing, wipe off any residue with a clean microfiber towel.

3.4 Versatile Applications

Beyond car detailing, the ETOOLAB polisher is suitable for various other applications:

• Headlight Restoration: Use appropriate pads and compounds to restore clarity to hazy headlights.
• Motorcycle Polishing: Ideal for polishing painted surfaces and chrome on motorcycles.
• Boat Gel Coat Restoration: Effectively removes oxidation and restores shine to boat surfaces.
• Furniture Shining: Can be used to polish wooden or other finished furniture surfaces.

Figure 3.3: The polisher's versatility extends to headlights, motorcycles, boats, and furniture.

4. Maintenance

Regular maintenance ensures the longevity and optimal performance of your ETOOLAB polisher.

4.1 Cleaning Polishing Pads

After each use, clean the polishing pads to remove residual polish and debris. This prevents contamination and ensures consistent performance.

1. Remove the pad from the backing plate.
2. Use a brush to gently scrub off dried compound or wax from the pad surface.
3. Rinse the pad thoroughly with water until all residue is removed.
4. Squeeze out excess water and allow the pads to air dry completely before storage. Do not wring out by hand, as this can damage the pad structure.

4.2 General Polisher Cleaning

Wipe down the body of the polisher with a clean, damp cloth to remove any dust or polish splatter. Ensure no liquids enter the motor housing.

4.3 Carbon Brush Replacement

The polisher includes extra carbon brushes. Carbon brushes are wear-and-tear components that may need replacement over time. Consult the user manual for specific instructions on how to inspect and replace carbon brushes when necessary.

5. Troubleshooting

This section addresses common issues you might encounter with your ETOOLAB polisher.

• Polisher not turning on:
  • Check if the power cord is securely plugged into a working outlet.
  • Ensure the trigger is fully depressed and the trigger-lock button (if engaged) is functioning correctly.
  • Inspect the power cord for any visible damage.
• Reduced power or inconsistent speed:
  • Verify that the speed dial is set to the appropriate level for the task.
  • Ensure you are not applying excessive pressure, which can bog down the motor.
  • Check the carbon brushes for wear and replace if necessary (refer to Section 4.3).
• Excessive vibration or noise:
  • Ensure the backing plate and polishing pad are securely attached and not damaged.
  • Check for any loose components on the polisher.
• Poor polishing results (swirls, hazing):
  • Ensure the correct pad type and speed setting are being used for the specific application (refer to Section 3.2).
  • Verify that the polishing compound or wax is suitable for the surface and task.
  • Ensure the surface is clean before polishing.
  • Adjust pressure and movement technique for even coverage.

6. Specifications

7. Warranty and Support

The ETOOLAB Rotary Car Buffer Polisher comes with a 2-year warranty.

For any questions or support regarding your product, please contact ETOOLAB customer service via Amazon. We are committed to providing excellent after-sale service and will respond to your inquiries within 24 hours.
