NATPOW 30W UV LED Black Light Instruction Manual

1. Introduction

Thank you for choosing the NATPOW 30W UV LED Black Light. This product is designed to provide effective UV-A illumination for various applications, including fluorescent parties, decorative lighting, and special effects. This manual provides essential information for the safe and efficient use of your black light. Please read it thoroughly before installation and operation, and retain it for future reference.

2. Safety Information

Please observe the following safety precautions to prevent injury or damage to the product:

• UV-A Light Exposure: This product emits UV-A light (400-405nm). While UV-A is generally less harmful than UV-B or UV-C, prolonged direct exposure to the eyes and skin should be avoided. Do not stare directly into the light source.
• Electrical Safety: Ensure the power supply voltage matches the product's requirements. Always plug the device into a grounded outlet. Do not operate with damaged cords or plugs. Disconnect power before any installation, maintenance, or cleaning.
• Heat Generation: The light fixture can become hot during operation. Avoid touching the housing directly when in use or immediately after turning off. Ensure adequate ventilation around the fixture.
• Water Resistance: The light fixture itself is IP66 waterproof, suitable for outdoor use in rain or snow. However, the power plug and switch are not waterproof. Ensure the plug and switch are protected from moisture and direct water exposure.
• Installation: Install the light securely to prevent it from falling. Do not mount near flammable materials.
• Children and Pets: Keep the device out of reach of children and pets.
• Modification: Do not attempt to modify or disassemble the product. This will void the warranty and may lead to hazards.

3. Package Contents

Verify that all items are present and in good condition:

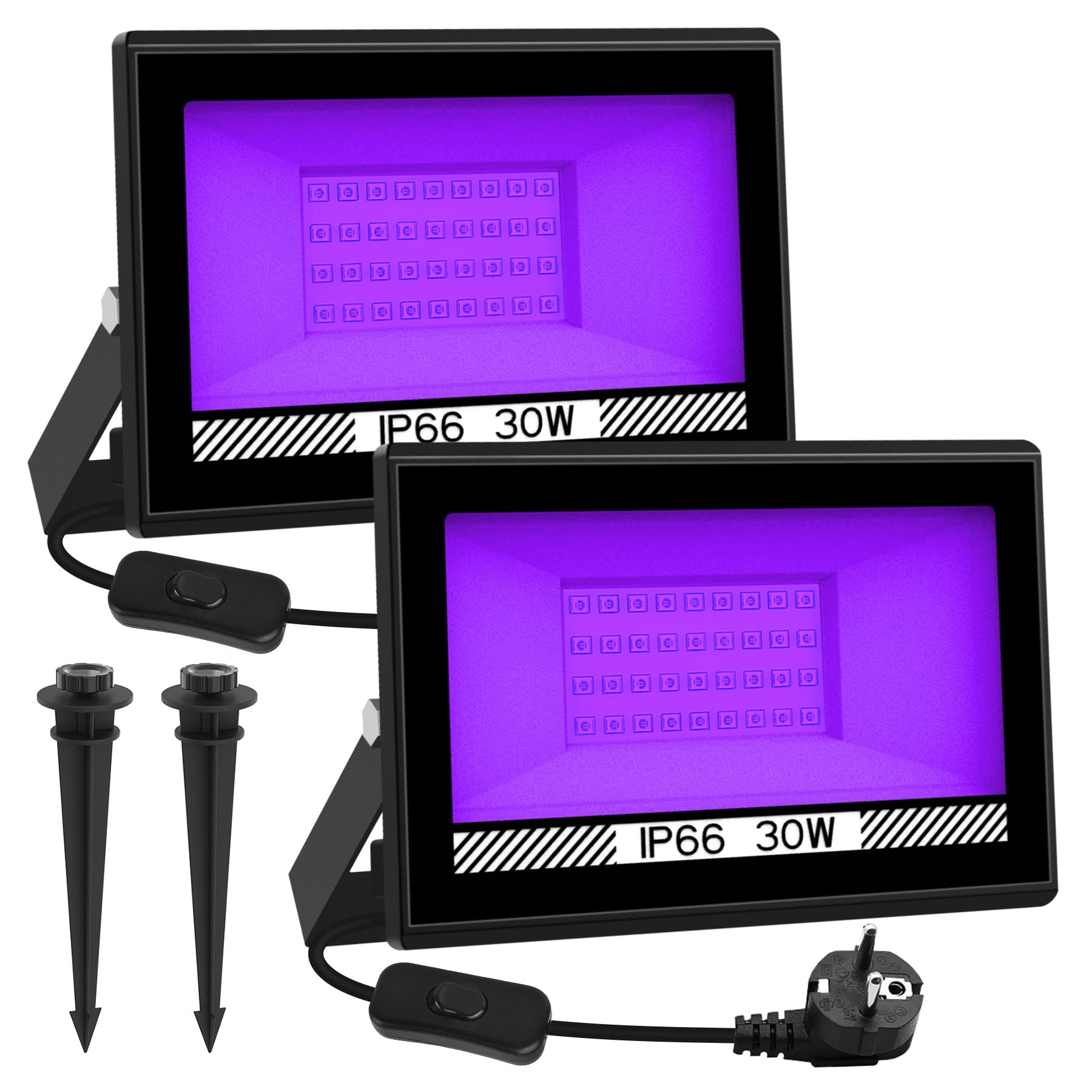

• 2 x NATPOW 30W UV LED Black Light Fixtures
• 2 x Ground Spikes (for floor mounting)
• User Manual (this document)

4. Product Features

• High Power UV-A Output: Equipped with 36 premium SMD LED beads, providing 30W of UV-A light.
• Optimal Wavelength: Emits UV-A light in the 400-405nm range, ideal for illuminating fluorescent materials.
• Wide Beam Angle: Features a 120° beam angle for broad coverage.
• Durable Construction: Made with a die-cast aluminum housing and PC transparent cover for good heat dissipation and durability.
• IP66 Waterproof Rating: The light fixture is protected against dust and powerful water jets, suitable for various outdoor conditions. (Note: Power plug and switch are not waterproof).
• Long Lifespan: LEDs are rated for 50,000+ hours of operation.
• Versatile Mounting: Supports wall, floor, and ceiling mounting options.

5. Setup

The NATPOW UV LED Black Light is designed for easy installation. Follow these steps:

1. Unpack: Carefully remove the light fixture and accessories from the packaging.
2. Choose Mounting Location: Select a suitable location for the light, considering the desired illumination area and proximity to a power outlet. Ensure the surface is stable and can support the weight of the fixture.
3. Mounting Options:
   • Wall Mounting: Use appropriate screws (not included) to secure the mounting bracket to a wall. Adjust the angle as needed.
   • Floor Mounting: Attach the included ground spike to the mounting bracket. Insert the spike firmly into soft ground.
   • Ceiling Mounting: Use appropriate screws (not included) to secure the mounting bracket to the ceiling. Adjust the angle as needed.
4. Adjust Angle: Loosen the screws on the side of the mounting bracket to adjust the light's angle, then tighten them to secure the position.
5. Power Connection: Plug the power cord (1.8M/5.9ft length) into a standard electrical outlet. Ensure the plug and switch are in a dry, protected area, as they are not waterproof.

6. Operating Instructions

Operating the NATPOW UV LED Black Light is straightforward:

1. Power On: Once the light is securely mounted and plugged into a power outlet, use the inline switch on the power cord to turn the light ON.
2. Power Off: Use the inline switch to turn the light OFF. For extended periods of non-use, it is recommended to unplug the device from the power outlet.

Optimal Use:

• The black light is most effective in dark or dimly lit environments.
• It is ideal for illuminating materials that react to UV-A light, such as fluorescent pigments, paints, dyes, and neon-colored objects.
• Common applications include Halloween decorations, Christmas displays, glow parties, aquariums, disco settings, clubs, bars, entertainment venues, game rooms, and art exhibitions.

7. Maintenance

Proper maintenance ensures the longevity and optimal performance of your black light:

• Cleaning: Before cleaning, ensure the light is unplugged and completely cool. Use a soft, dry cloth to wipe the housing and lens. Do not use abrasive cleaners or solvents, as they may damage the finish or lens.
• Inspection: Periodically inspect the power cord for any signs of damage (cuts, fraying). Check the mounting bracket for security.
• Storage: When not in use for extended periods, store the light in a cool, dry place, away from direct sunlight and extreme temperatures.

8. Troubleshooting

If you encounter issues with your NATPOW UV LED Black Light, refer to the following common problems and solutions:

If the problem persists after attempting these solutions, please contact NATPOW customer support.

9. Specifications

10. Warranty and Support

For warranty information or technical support, please refer to the product packaging or contact NATPOW customer service directly. Keep your purchase receipt as proof of purchase.
