KOHLER 27008-N-SN Occasion Bathroom Sink Faucet Spout User Manual

Product Overview

The KOHLER Occasion Bathroom Sink Faucet Spout, model 27008-N-SN, is a stationary deck-mount spout designed for bathroom sinks. It features a Cane design and a Vibrant Polished Nickel finish, offering a flow rate of 0.5 gallons per minute (GPM). This spout is part of the Occasion collection, known for its blend of classic midcentury and modern design elements.

Image: The KOHLER Occasion Cane Design Faucet Spout in Vibrant Polished Nickel finish.

Safety Information

Always turn off the water supply before beginning any installation or maintenance work. If you are unsure about any steps, consult a qualified plumber. This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm (Proposition 65 warning).

Setup and Installation

The Occasion bathroom sink faucet spout is designed for deck-mount installation on 8-inch to 16-inch (203-406 mm) centers. It requires separate handles for operation. Compatible handle options include K-27010-3 Cross, K-27010-4 Lever, or K-27010-9 Knob bathroom sink faucet handles.

• Pre-Installation Check: Ensure all necessary components are present, including the spout and the metal pop-up drain with a 1-1/4 inch tailpiece.
• Water Supply: Turn off the main water supply to the installation area.
• Mounting: Position the spout on the deck, ensuring it aligns with the pre-drilled holes for 8-inch to 16-inch centers.
• Secure Connections: Connect the spout to the water supply lines and secure it to the deck according to the detailed instructions provided in the product packaging.
• Handle Installation: Install your chosen Occasion sink faucet handles (sold separately) as per their specific instructions.
• Drain Assembly: Install the included metal pop-up drain.
• Leak Check: Once installation is complete, slowly turn on the water supply and check for any leaks.

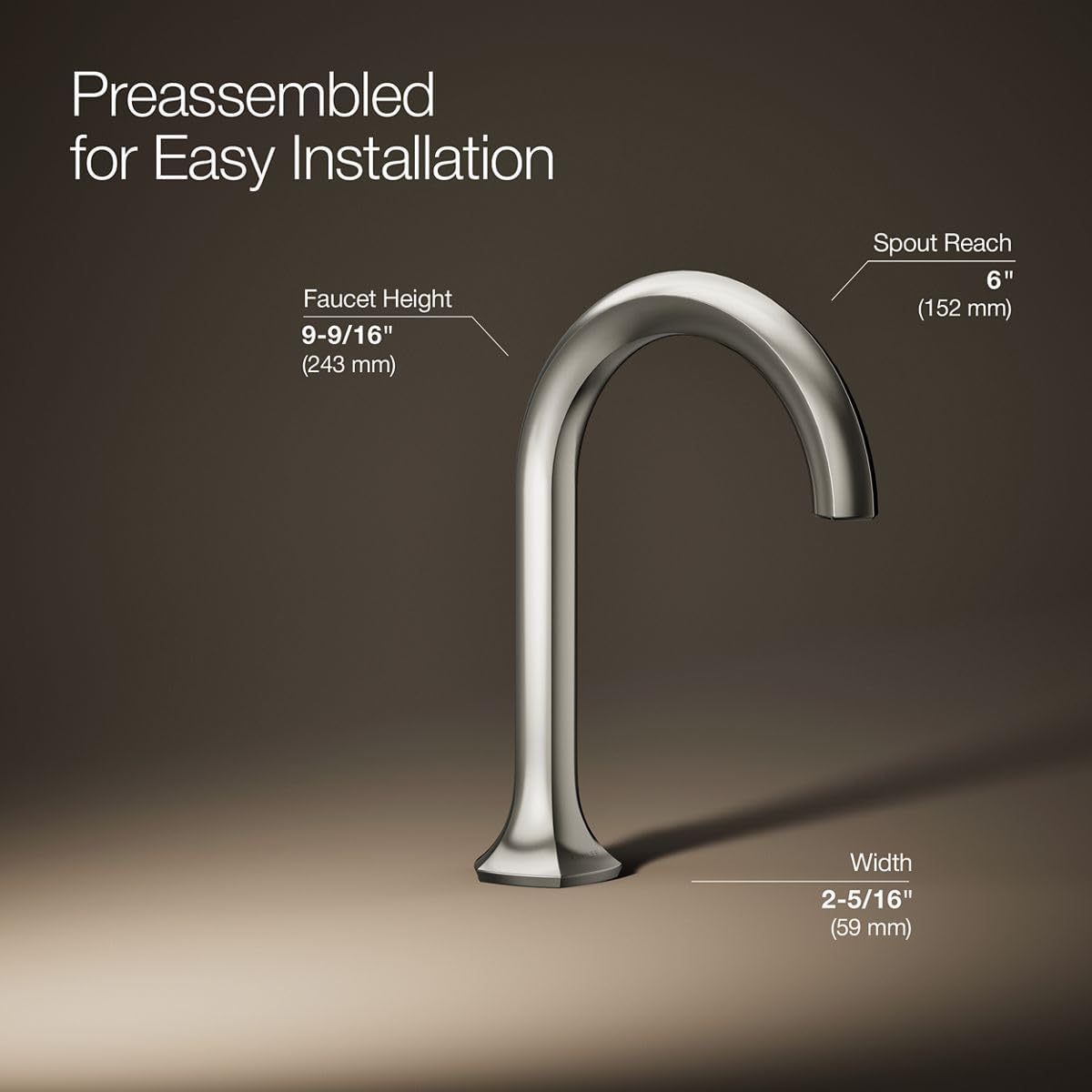

Image: Dimensional diagram of the faucet spout, indicating an overall faucet height of 9-9/16 inches (243 mm), a spout reach of 6 inches (152 mm), and a width of 2-5/16 inches (59 mm).

Operating Instructions

This spout is a non-diverter type, meaning it is designed solely for dispensing water into the sink. Water flow is controlled by the separate Occasion faucet handles (not included with the spout). The maximum flow rate for this spout is 0.5 gallons per minute (1.9 liters per minute) at 60 psi (4.14 bar), ensuring water conservation without compromising performance.

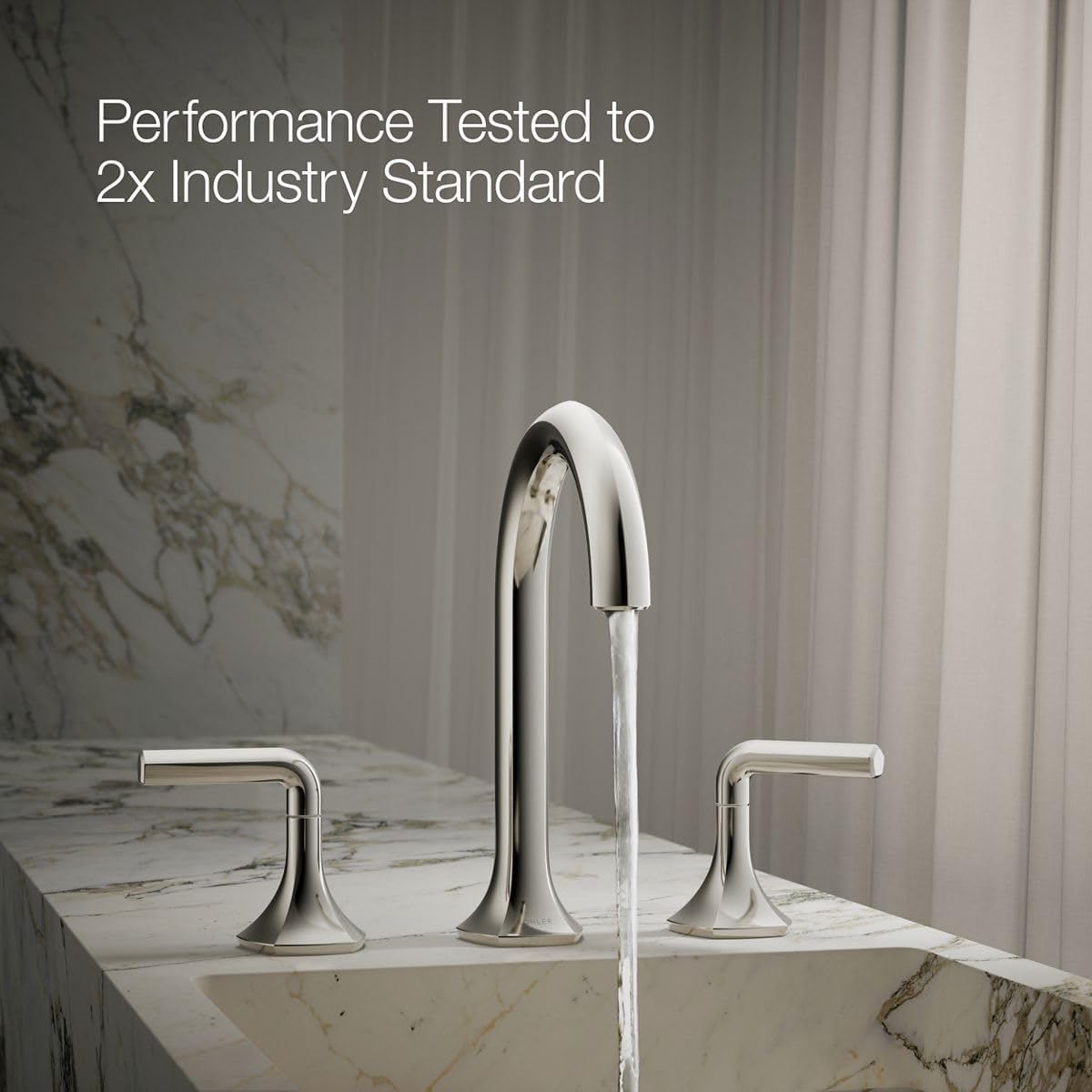

Image: The KOHLER Occasion Faucet Spout with water flowing, illustrating its operational function and consistent performance.

Maintenance

To maintain the finish and performance of your KOHLER Occasion faucet spout, follow these guidelines:

• Cleaning: Clean the spout regularly with a soft, damp cloth. Avoid abrasive cleaners, harsh chemicals, or scouring pads, as these can damage the Vibrant Polished Nickel finish.
• Spot Cleaning: For water spots or fingerprints, use a mild soap solution and rinse thoroughly with clean water, then dry with a soft cloth.
• Avoid Damage: Do not use cleaners containing ammonia, bleach, or acid. These substances can corrode the finish over time.

Troubleshooting

This section addresses common issues you might encounter with your faucet spout. For more complex problems, please contact KOHLER customer support.

• Low Water Flow: Check if the water supply valves are fully open. Inspect the aerator for any debris or mineral buildup and clean if necessary.
• Leaks: Ensure all connections are tightened properly. If leaks persist, check the O-rings and gaskets for damage and replace if needed.
• Finish Discoloration: Ensure you are using only mild, non-abrasive cleaners. Harsh chemicals can damage the finish.

Specifications

Warranty Information

The KOHLER 27008-N-SN Occasion Bathroom Sink Faucet Spout is backed by KOHLER's Lifetime Limited Warranty. This warranty covers defects in material and workmanship under normal residential use. For full details regarding warranty coverage and claims, please refer to the official KOHLER warranty documentation or contact KOHLER customer service.

Support and Contact

For further assistance, technical support, or to inquire about replacement parts, please visit the official KOHLER website or contact their customer service department. Contact information can typically be found on the KOHLER website or in the packaging materials.

KOHLER Official Website: www.kohler.com
