Introduction
Thank you for choosing the TRIPLE TREE Single Watch Winder. This device is designed to keep your automatic watch wound and ready to wear, ensuring its accuracy and longevity. Featuring a super quiet Japanese motor and multiple rotation settings, it provides optimal care for your timepiece.

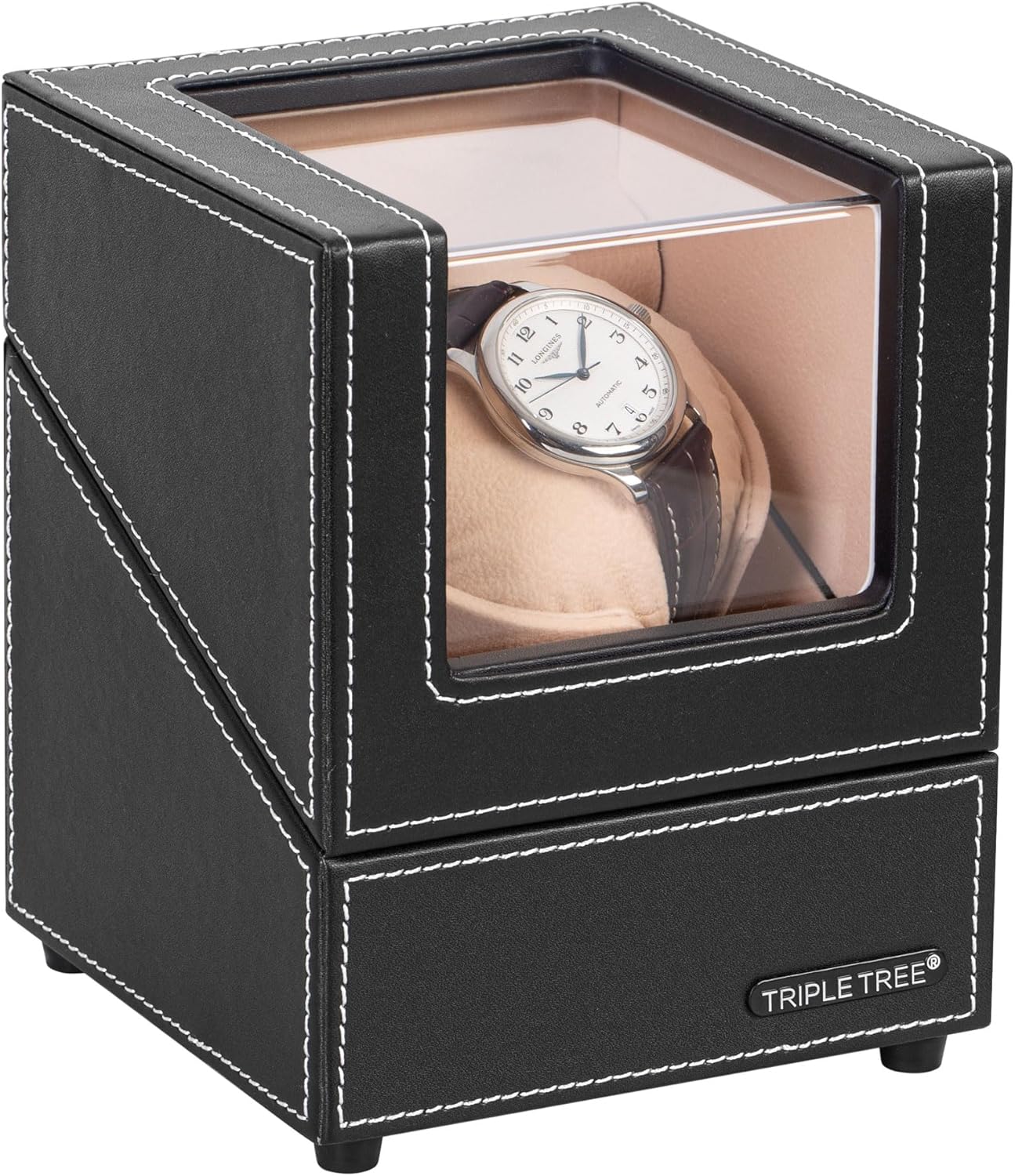

Image: Front view of the TRIPLE TREE Single Watch Winder, showcasing its compact design and a watch securely placed on the winding pillow.
Safety Information
- Ensure the watch winder is placed on a stable, level surface.
- Keep away from water and high humidity.
- Do not expose to direct sunlight or extreme temperatures.
- Use only the provided power adapter.
- Keep out of reach of children and pets.
- Do not attempt to disassemble or repair the unit yourself. Contact customer support if issues arise.
Product Components
- Watch Winder Unit
- Flexible Plush Watch Pillow
- AC Power Adapter
- User Manual (this document)
Image: Rear view of the watch winder, highlighting the power switch, mode switch knob, and power input port for easy identification.
Setup Instructions
- Unpack: Carefully remove the watch winder and all accessories from the packaging.
- Placement: Place the winder on a flat, stable surface away from direct sunlight, water, and strong magnetic fields.
- Insert Watch:
- Gently compress the flexible plush watch pillow.
- Secure your automatic watch around the pillow. The pillow is designed to accommodate both men's and women's watches.
- Place the watch and pillow assembly into the winder's rotating compartment.
Image: Close-up of the flexible plush pillow, demonstrating its adaptability for various watch sizes, including both men's and women's timepieces.
- Connect Power: Plug the provided AC power adapter into the power input port on the back of the winder, then plug the adapter into a wall outlet.
Operating Instructions
The TRIPLE TREE watch winder features a power switch and a mode switch knob to select your desired rotation program.
- Power On: Flip the power switch to the 'ON' position.
- Select Rotation Mode: Turn the mode switch knob to choose one of the four available rotation settings. Refer to your watch's manufacturer recommendations for the optimal winding direction and Turns Per Day (TPD).
Rotation Modes:
| Mode Setting | Description |
|---|---|
| Mode 1 | Rotates clockwise for 2 minutes, then rests for 6 minutes. Repeats cycle. |
| Mode 2 | Rotates counter-clockwise for 2 minutes, then rests for 6 minutes. Repeats cycle. |
| Mode 3 | Rotates clockwise for 2 minutes, rests for 6 minutes, then rotates counter-clockwise for 2 minutes, rests for 6 minutes. Repeats cycle. |
| Mode 4 | Rotates clockwise for 5 minutes, then counter-clockwise for 5 minutes. This cycle repeats for 3 hours, followed by a 9-hour rest period. The entire 12-hour cycle then repeats. |
Note: The specific Turns Per Day (TPD) for each mode is optimized for a wide range of automatic watches. Consult your watch's manual for its specific winding requirements.
Video: Demonstration of the TRIPLE TREE Single Watch Winder's operation and its four rotation settings. This video illustrates how to select different winding modes to suit various automatic watches.
Maintenance
- Cleaning: Wipe the exterior with a soft, dry cloth. Do not use abrasive cleaners or solvents.
- Pillow Care: The plush pillow can be gently dusted. Avoid getting it wet.
- Storage: If not in use for an extended period, unplug the winder and store it in a cool, dry place.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Winder is not rotating. | Not plugged in; Power switch off; Faulty adapter. | Ensure power adapter is securely plugged into both the winder and the wall outlet. Check if the power switch is ON. Try a different outlet. |
| Watch is not winding properly. | Incorrect rotation mode selected for the watch; Watch not properly seated on pillow. | Consult your watch's manual for its specific winding requirements (direction and TPD) and select the appropriate mode. Ensure the watch is securely and centrally placed on the pillow. |
| Unusual noise from the winder. | Obstruction in the rotation mechanism; Unit not on a level surface. | Ensure nothing is obstructing the rotating platform. Place the winder on a completely flat and stable surface. If noise persists, contact customer support. |
Specifications
- Model: TRIPLE TREE-HE-1
- Brand: TRIPLE TREE
- Power Source: USB (AC Adapter included)
- Motor: Super Quiet Japanese Motor
- Rotation Modes: 4 programmable settings (Clockwise, Counter-Clockwise, Bi-directional with rest periods)
- Material: Plastic casing with Acrylic crystal window, Plush interior
- Color: Black (for this variant)
- Approximate Dimensions (L x W x H): 5.3 x 5.3 x 6.2 inches (13.5 x 13.5 x 15.7 cm)
- Approximate Weight: 2.56 lbs (1.16 kg)
Warranty and Support
This product is sold with No Warranty as per manufacturer specifications. For any operational questions or technical assistance, please refer to the troubleshooting section or contact the seller directly through your purchase platform.
Manufacturer: TRIPLETREE BRANDING LLC
