zatagen DHS Dust Seal Instruction Manual
Model: DZ-DH23.5*31.5*4.5/6
1. Introduction
This manual provides essential information for the proper installation, function, and maintenance of the zatagen DHS Dust Seal, model DZ-DH23.5*31.5*4.5/6. Adhering to these instructions will help ensure optimal performance and longevity of the product.
The DHS dust seal is designed to prevent contaminants such as dust, dirt, and moisture from entering critical components, thereby protecting internal mechanisms and extending equipment lifespan.
2. Product Description
The zatagen DHS Dust Seal is a high-quality component manufactured to precise specifications. This particular variant, DZ-DH23.5*31.5*4.5/6, is part of a series of dust seals designed for various applications requiring protection against environmental particles.

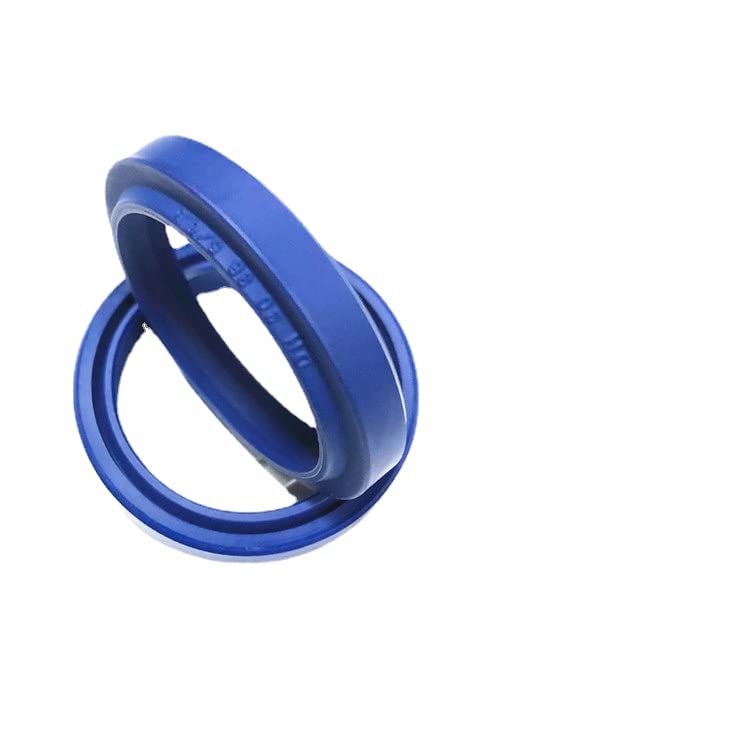

Image 1: zatagen DHS Dust Seal, Model DZ-DH23.5*31.5*4.5/6. This image displays the typical appearance of the dust seal, highlighting its circular form and material texture.
These seals are commonly used in power tools, machinery, and other equipment where moving parts need to be shielded from abrasive elements.
3. Setup and Installation
Proper installation is crucial for the effective performance of the dust seal. Follow these steps carefully:
- Preparation: Ensure the housing and shaft surfaces where the seal will be installed are clean, dry, and free from burrs, sharp edges, or contaminants.
- Lubrication: Apply a thin layer of compatible lubricant to the seal lips and the shaft surface to facilitate smooth installation and reduce initial friction.
- Orientation: Verify the correct orientation of the seal. Dust seals typically have a specific direction for optimal contaminant exclusion. Refer to the equipment's service manual for exact placement.
- Insertion: Carefully press the seal into its housing. Use a seal installation tool or a flat, blunt object to apply even pressure around the circumference of the seal. Avoid using sharp tools that could damage the seal.
- Seating: Ensure the seal is fully seated and flush with its housing, or as specified by the equipment manufacturer.
- Inspection: After installation, visually inspect the seal for any signs of damage, crimping, or improper seating.
Note: Always consult the specific equipment's service manual for detailed installation procedures and torque specifications, if applicable.
4. Operating Principles
The DHS dust seal functions by creating a barrier between the internal components of machinery and the external environment. Its design typically includes a flexible lip that maintains contact with a rotating or reciprocating shaft, effectively scraping away dust, dirt, and other particulate matter before they can penetrate the system.
The material composition and profile of the seal are engineered to provide a balance between effective sealing and minimal friction, ensuring protection without significantly impeding the movement of the shaft.
5. Maintenance
Dust seals are wear components and require periodic inspection and replacement. Regular maintenance helps prevent premature equipment failure.
- Visual Inspection: Periodically inspect the visible portion of the dust seal for cracks, hardening, excessive wear, or signs of lubricant leakage.
- Cleaning: If accessible, gently clean any accumulated dust or debris from the exterior of the seal using a soft cloth. Avoid harsh chemicals that could degrade the seal material.
- Replacement: Replace the dust seal immediately if any signs of damage or excessive wear are observed. Refer to the equipment's service schedule for recommended replacement intervals.
6. Troubleshooting
If issues arise, consider the following common problems and solutions related to dust seals:
| Problem | Possible Cause | Solution |
|---|---|---|
| Premature wear of seal | Improper installation, abrasive environment, incorrect seal size, shaft surface roughness | Re-install correctly, ensure proper shaft finish, verify seal dimensions, replace seal |
| Contaminant ingress | Damaged seal lip, incorrect orientation, seal not fully seated, excessive environmental debris | Inspect and replace seal, verify orientation, ensure full seating, improve environmental protection |
| Unusual noise or friction | Lack of lubrication, improper installation, seal material incompatibility | Apply appropriate lubricant, re-install correctly, verify seal material suitability |
7. Specifications
- Manufacturer: zatagen
- Part Number: DH14
- Item Model Number: DH14
- Pattern/Size: DZ-DH23.5*31.5*4.5/6
- ASIN: B0BHJD577V
- Quantity: 20 pieces (as per product listing)
- Shelf Life: 120 days (as per product description)
8. Warranty Information
Specific warranty details for zatagen products may vary. Please refer to the original purchase documentation or contact the seller directly for information regarding warranty coverage and terms.
Generally, seals are considered wear items, and their lifespan is dependent on operating conditions and proper installation.
9. Support
For technical assistance, product inquiries, or support, please contact the retailer or manufacturer through their official channels. When contacting support, please provide the product model number (DZ-DH23.5*31.5*4.5/6) and ASIN (B0BHJD577V) for quicker service.
You may also refer to the seller's information on the platform where the product was purchased for direct contact options.
