VIHELM DT-3353 TrueRMS Digital Clamp Ammeter Multimeter Instruction Manual

1. Introduction

Thank you for choosing the VIHELM DT-3353 TrueRMS Digital Clamp Ammeter Multimeter. This device is designed for safe and accurate measurement of various electrical parameters. Please read this manual thoroughly before use to ensure proper operation and to prevent damage to the meter or injury to yourself.

2. Safety Information

Always observe safety precautions when using this instrument. Improper use can result in electric shock or damage to the meter. Keep your fingers behind the probe barriers during measurements. Do not attempt to measure voltages or currents exceeding the specified maximum limits. Ensure the meter is in good working condition before each use.

Do not use the meter if it appears damaged or if the insulation on the test leads is compromised.
Always disconnect power to the circuit before making resistance, capacitance, or diode measurements.
Be cautious when working with voltages above 60V DC or 30V AC RMS, as these pose a shock hazard.
Ensure the function switch is in the correct position for the desired measurement.

3. Product Overview

3.1 Components

The VIHELM DT-3353 is a versatile digital clamp meter. Key components include the clamp jaw for non-contact current measurement, the LCD display, function dial, and input terminals for test leads.

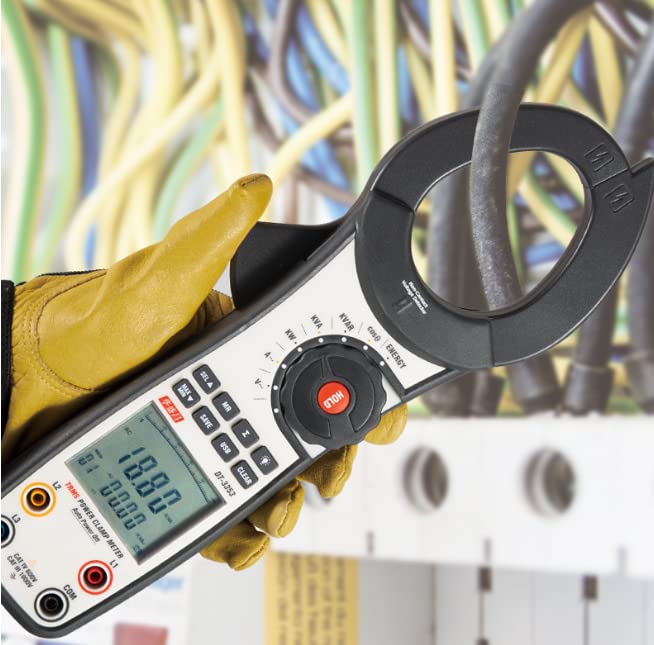

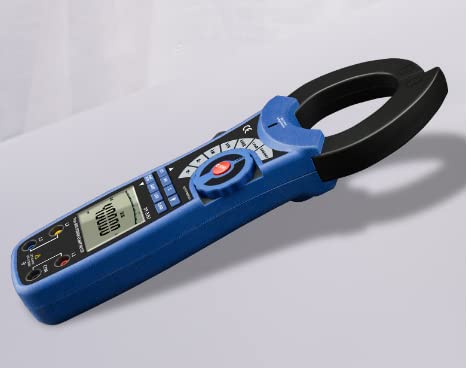

Close-up view of the VIHELM DT-3353 TrueRMS Digital Clamp Ammeter Multimeter, showing its display, function dial, and buttons. — Figure 1: Front view of the DT-3353 Clamp Meter, highlighting the display, function dial, and control buttons.

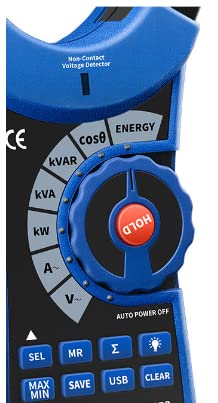

Close-up of the function dial and control buttons on the VIHELM DT-3353 TrueRMS Digital Clamp Ammeter Multimeter. — Figure 2: Detailed view of the function dial and control buttons for selecting measurement modes and features.

4. Setup

4.1 Battery Installation/Check

The DT-3353 is battery-powered. While the product information indicates it does not require batteries, it is designed to operate with internal batteries. Ensure the meter powers on correctly. If the display is dim or does not turn on, the internal batteries may need to be checked or replaced by a qualified technician.

4.2 Connecting Test Leads

For voltage, resistance, capacitance, and other non-clamp measurements, insert the red test lead into the 'VΩmA' input terminal and the black test lead into the 'COM' (common) input terminal.

5. Operating Instructions

5.1 Power On/Off

Rotate the function dial from the 'OFF' position to any desired measurement function to power on the meter. To power off, rotate the dial back to 'OFF'. The meter may also feature an auto-power-off function to conserve battery life.

5.2 Selecting Measurement Functions

Turn the rotary switch to the desired function. The display will show the corresponding measurement mode. For current measurements, use the clamp jaw. For other measurements, use the test leads as described in Section 4.2.

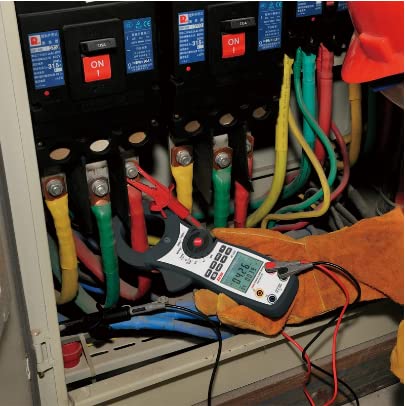

VIHELM DT-3353 TrueRMS Digital Clamp Ammeter Multimeter measuring current in an electrical panel. — Figure 3: The DT-3353 in use, measuring current on a conductor within an electrical panel. Ensure proper safety gear is worn.

VIHELM DT-3353 TrueRMS Digital Clamp Ammeter Multimeter in use, measuring current on industrial busbars. — Figure 4: The DT-3353 measuring current on industrial busbars, demonstrating its application in high-current environments.

6. Measurement Functions

The DT-3353 offers a wide range of measurement capabilities:

AC Voltage (V~): Measures alternating current voltage.
AC Current (A~): Measures alternating current using the clamp jaw.
Effective Power (kW): Measures real power.
Apparent Power (kVA): Measures apparent power.
Reactive Power (kVAR): Measures reactive power.
Power Factor (cosθ): Measures the power factor.
Phase Angle: Measures the phase difference.
Frequency (Hz): Measures the frequency of AC signals.
Energy (kWh): Measures electrical energy consumption.
Non-Contact Voltage (NCV) Detection: For detecting live AC voltage without direct contact.

Diagram showing various applications for the clamp meter, including solder joint line, equipment maintenance, leakage test, and industrial equipment. — Figure 5: Examples of applications for the DT-3353, including solder joint line testing, equipment maintenance, leakage current testing, and industrial equipment diagnostics.

7. Maintenance

7.1 Cleaning

Wipe the meter with a dry, clean cloth. Do not use abrasives or solvents. Keep the clamp jaw free of dust and debris.

7.2 Storage

When not in use for extended periods, store the meter in a cool, dry place away from direct sunlight and extreme temperatures. If the meter uses removable batteries, remove them before storage to prevent leakage.

8. Troubleshooting

Meter does not power on: Check the function dial position. If battery-powered, ensure batteries are correctly installed and have sufficient charge.
No reading or unstable reading: Ensure test leads are properly connected. Verify the function dial is set to the correct measurement type. For clamp measurements, ensure the conductor is properly centered within the clamp jaw and only one conductor is being measured.
'OL' or 'OVER' displayed: The input value exceeds the meter's range for the selected function. Select a higher range or a different measurement method if available.

9. Specifications

The following table outlines the technical specifications for the VIHELM DT-3353:

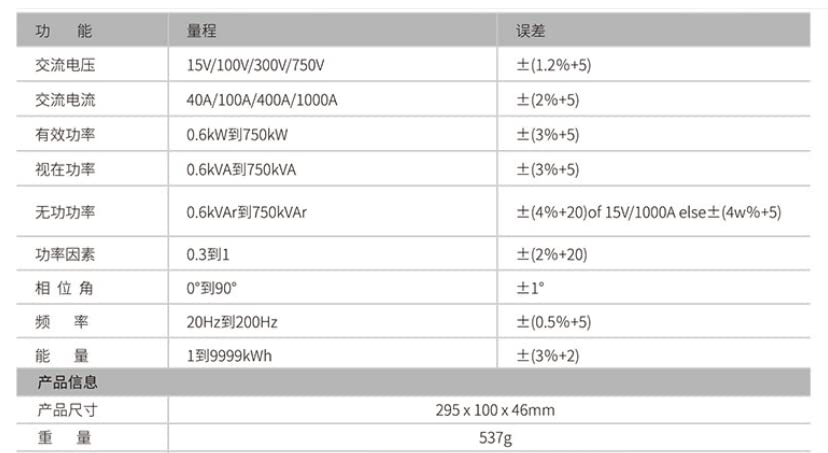

Table of technical specifications for the VIHELM DT-3353 TrueRMS Digital Clamp Ammeter Multimeter, including measurement ranges and accuracy. — Figure 6: Technical specifications table for the DT-3353.

VIHELM DT-3353 Technical Specifications
Function	Range	Accuracy
AC Voltage	15V/100V/300V/750V	±(1.2%+5)
AC Current	40A/100A/400A/1000A	±(2%+5)
Effective Power	0.6kW to 750kW	±(3%+5)
Apparent Power	0.6kVA to 750kVA	±(3%+5)
Reactive Power	0.6kVAR to 750kVAR	±(4%+20) of 15V/1000A else ±(4%+5)
Power Factor	0.3 to 1	±(2%+20)
Phase Angle	0° to 90°	±1°
Frequency	20Hz to 200Hz	±(0.5%+5)
Energy	1 to 9999kWh	±(3%+2)
Product Dimensions	295 x 100 x 46 mm
Weight	537g

Additional Specifications:

Manufacturer: VIHELM
Power Source: Battery
Style: Voltage Tester
Measurement Type: Multimeter
Included Components: DT-3353X1

10. Warranty and Support

For warranty information and technical support, please refer to the documentation provided with your purchase or contact the retailer. Keep your purchase receipt as proof of purchase.
