1. Introduction
This manual provides essential information for the installation, operation, and maintenance of your Technical Precision replacement starter motor, model AX-XYRT-1. This starter is designed as a direct replacement for Mercruiser Model 454 MAG Bravo (Gen V) 1994 GM 7.4L - 454CI - 8CYL marine engines.
Please read these instructions carefully before proceeding with installation or use to ensure proper function and safety.

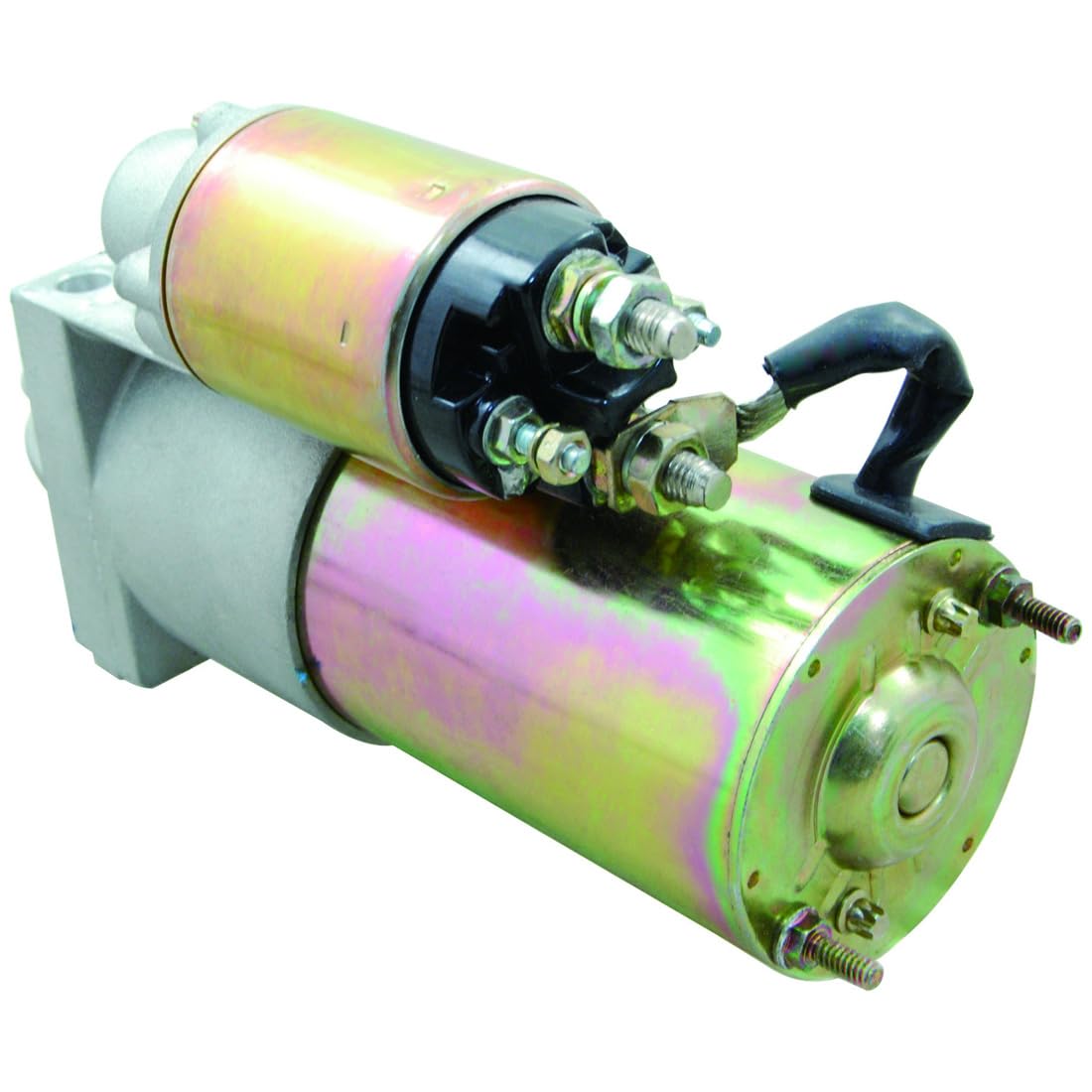

This image displays the Technical Precision replacement starter motor. It features a metallic housing, a solenoid assembly with multiple terminals for electrical connections, and a drive end. The main body of the starter is a combination of silver-gray and gold-colored metallic finishes.
2. Safety Information
Always prioritize safety when working with marine electrical systems. Failure to follow safety precautions can result in serious injury or damage to equipment.
- Disconnect the battery's negative terminal before performing any electrical work.
- Wear appropriate personal protective equipment, including safety glasses and gloves.
- Ensure the work area is well-ventilated and free from flammable materials.
- If you are unsure about any step, consult a qualified marine mechanic.
3. Setup and Installation
This starter motor is a vehicle-specific fit for the specified Mercruiser engine. Professional installation is highly recommended due to the complexity of marine electrical systems and engine components.
General Installation Steps:
- Prepare the Vessel: Ensure the vessel is securely docked or trailered. Disconnect the main battery cables, starting with the negative (-) terminal.
- Locate the Old Starter: Identify the existing starter motor on your Mercruiser 454 MAG Bravo engine.
- Disconnect Wiring: Carefully label and disconnect all electrical wires from the old starter motor. Note the position of each wire (e.g., battery cable, solenoid wire).
- Remove Mounting Bolts: Remove the bolts securing the old starter motor to the engine block. Support the starter as you remove the last bolt to prevent it from falling.
- Install New Starter: Position the Technical Precision AX-XYRT-1 starter motor in place and secure it with the mounting bolts. Ensure it is properly aligned and tightened to the manufacturer's specifications.
- Connect Wiring: Reconnect the electrical wires to the new starter motor, matching them to the labels made during removal. Ensure all connections are clean, tight, and free from corrosion.
- Reconnect Battery: Reconnect the main battery cables, starting with the positive (+) terminal, then the negative (-) terminal.
- Test: Before starting the engine, perform a visual inspection of all connections. Then, attempt to start the engine.
Refer to your Mercruiser engine service manual for specific torque specifications and detailed removal/installation procedures.
4. Operating Instructions
The starter motor's operation is integrated with your vessel's ignition system. When the ignition key is turned to the 'START' position, the starter motor engages the engine's flywheel, initiating the engine' cranking process.
- Ensure the engine is in neutral before attempting to start.
- Turn the ignition key to the 'START' position. Release the key once the engine starts.
- Avoid prolonged cranking (more than 10-15 seconds) to prevent overheating the starter motor. If the engine does not start, wait a few minutes before attempting again.
5. Maintenance
The Technical Precision starter motor is designed for reliable operation with minimal maintenance. However, periodic checks can help ensure its longevity and performance.
- Inspect Connections: Annually, or if starting issues arise, inspect all electrical connections to the starter motor. Ensure they are clean, tight, and free from corrosion. Loose or corroded connections can impede current flow and cause starting problems.
- Keep Clean: Keep the exterior of the starter motor clean and free from excessive dirt, oil, or debris.
- Battery Condition: Ensure your vessel's battery is in good condition and fully charged, as a weak battery can put undue strain on the starter motor.
6. Troubleshooting
If you experience issues with your starter motor, consider the following common troubleshooting steps:
| Symptom | Possible Cause | Action |
|---|---|---|
| Engine does not crank or cranks slowly | Weak or dead battery | Check battery charge and condition. Recharge or replace if necessary. |
| Engine does not crank, only a clicking sound | Loose or corroded battery cables/connections; faulty solenoid | Inspect and clean all battery and starter connections. Tighten securely. Test solenoid. |
| Starter spins but engine does not engage | Faulty starter drive (bendix) | Professional inspection and replacement of starter motor may be required. |
| Starter motor overheats | Prolonged cranking; short circuit | Avoid excessive cranking. Check for electrical shorts. |
If troubleshooting steps do not resolve the issue, it is recommended to seek assistance from a certified marine technician.
7. Specifications
- Brand: Technical Precision
- Model: AX-XYRT-1
- Compatibility: Replacement for MERCRUISER MODEL 454 MAG BRAVO (GEN V) YEAR 1994 GM 7.4L - 454CI - 8CYL
- Fit Type: Vehicle Specific Fit (Boat)
- Product Grade: New
- Unit per Sale: 1
8. Warranty and Support
For information regarding product warranty, returns, or technical support, please contact Technical Precision directly or refer to the seller's policies where the product was purchased.
