FOJILL FEH-50B Headless Electric Guitar Instruction Manual

Introduction

Thank you for choosing the FOJILL FEH-50B Headless Electric Guitar. This manual provides essential information for setting up, operating, maintaining, and troubleshooting your instrument. Please read it thoroughly to ensure optimal performance and longevity of your guitar.

Setup

Unpacking and Inspection

Carefully remove the guitar from its packaging. Inspect the instrument for any signs of damage that may have occurred during shipping. Retain all packaging materials in case the guitar needs to be returned or transported.

Image: The FOJILL FEH-50B Headless Electric Guitar resting next to its black gig bag, ready for transport or storage.

String Installation and Tuning

The FEH-50B features a headless design with a unique string locking and tuning system. Standard electric guitar strings can be used.

1. String Locking Nut: At the headstock end, loosen the string locking screws on the nut. Insert the string through the appropriate hole and tighten the screw to secure it.
2. Bridge Tuning System: At the bridge, insert the other end of the string into the corresponding tuner mechanism.
3. Tuning: Use the fine tuners located at the bridge to adjust the pitch of each string. Turn clockwise to raise the pitch and counter-clockwise to lower it.

Image: A detailed view of the headless guitar's nut, showing the string locking mechanism and the beginning of the fretboard.

Image: A close-up of the guitar's bridge, highlighting the individual string saddles and the fine-tuning mechanisms.

Connecting to an Amplifier

Locate the output jack on the side of the guitar body. Connect a standard 1/4-inch instrument cable from this jack to your amplifier's input.

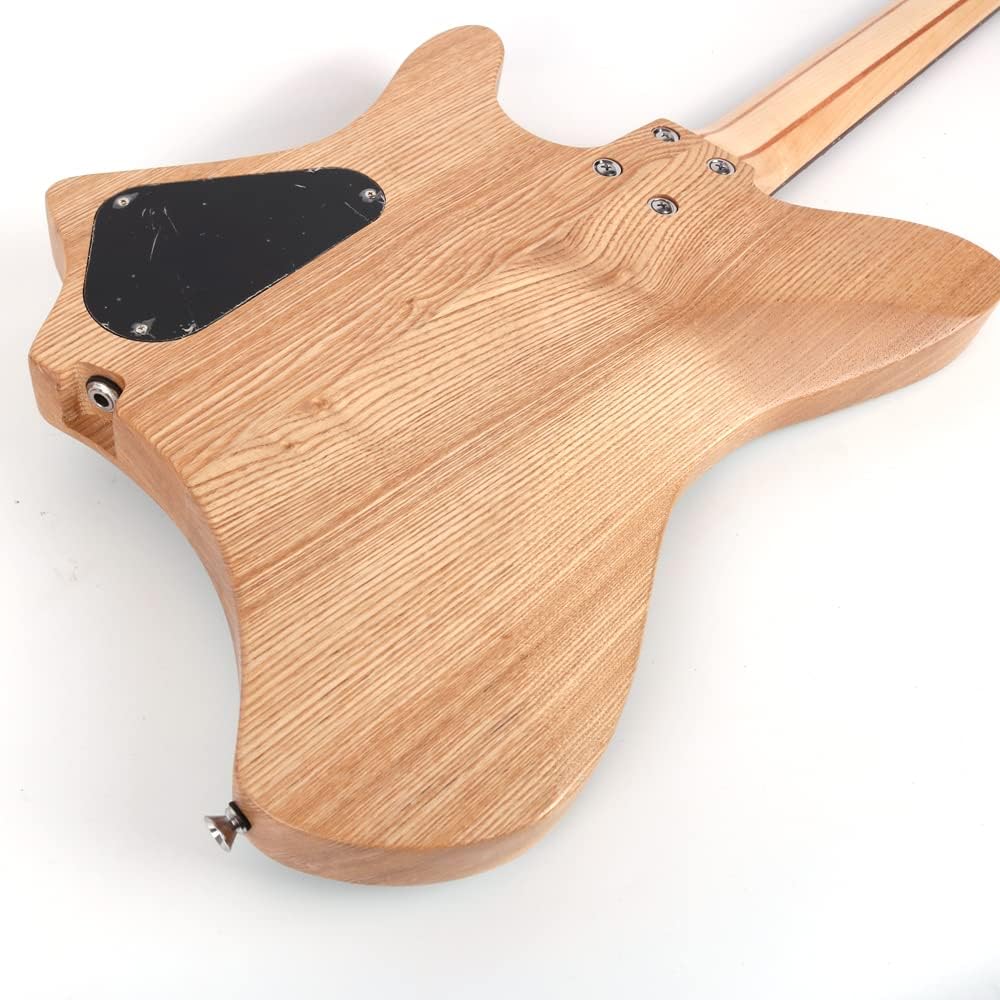

Image: The back of the headless guitar, revealing the wooden body and the recessed output jack for connecting to an amplifier.

Operating the Guitar

Controls Overview

Image: A detailed view of the guitar's body, showcasing the two humbucker pickups, the 3-way pickup selector switch, and the volume and tone control knobs.

• Volume Knob: Controls the overall output level of the guitar. Turn clockwise to increase volume, counter-clockwise to decrease.
• Tone Knob: Adjusts the treble frequencies. Turn clockwise for brighter tones, counter-clockwise for warmer, darker tones.
• 3-Way Pickup Selector Switch:
  • Position 1 (Neck): Activates the neck pickup for warmer, fuller tones.
  • Position 2 (Middle): Activates both neck and bridge pickups for a balanced sound.
  • Position 3 (Bridge): Activates the bridge pickup for brighter, more aggressive tones.

Maintenance

Cleaning

Regularly wipe down the guitar with a soft, dry cloth after use to remove sweat and fingerprints. For the body, a guitar-specific polish can be used sparingly. Clean the fretboard with a suitable fretboard conditioner periodically to prevent drying and cracking.

String Replacement

Strings should be replaced regularly, depending on usage, to maintain optimal tone and playability. Refer to the "String Installation and Tuning" section for guidance on replacing strings on this headless system.

Storage

When not in use, store the guitar in its gig bag or a hard case to protect it from dust, humidity changes, and physical damage. Avoid exposing the guitar to extreme temperatures or direct sunlight.

Troubleshooting

• No Sound:
  • Check if the amplifier is turned on and volume is up.
  • Ensure the instrument cable is securely connected at both ends.
  • Verify the guitar's volume knob is turned up.
  • Test with a different cable or amplifier if possible.
• Buzzing or Fret Noise:
  • Check string action (height) at the bridge.
  • Ensure strings are properly seated in the nut and bridge.
  • Consider professional setup if buzzing persists.
• Poor Tuning Stability:
  • Ensure strings are stretched properly after installation.
  • Check that string locking screws at the nut are tight.
  • Inspect strings for wear or damage; replace if necessary.

Specifications

Warranty and Support

For warranty information and customer support, please refer to the documentation provided at the time of purchase or visit the official FOJILL website. Keep your proof of purchase for any warranty claims.

For further assistance, you may contact FOJILL customer service through their official channels.
