BOXO USA MotoBox 103-Piece Heavy Duty Hand Carry Tool Box User Manual

1. Introduction

The BOXO USA MotoBox is a comprehensive 103-piece metric tool set designed for maintaining motorcycles, dirt bikes, and dual sport vehicles. This heavy-duty hand carry tool box provides a robust and organized solution for both professional mechanics and enthusiasts. Each tool is securely housed in EVA foam trays, ensuring organization and preventing shifting during transport. The tools feature a mirror chrome finish for corrosion protection and easy cleaning. This manual provides essential information for the proper setup, operation, and maintenance of your MotoBox tool set.

Figure 1: The BOXO USA MotoBox 103-Piece Heavy Duty Hand Carry Tool Box in Nardo Gray.

2. Safety Information

Always prioritize safety when using any tools. Adhere to the following guidelines to prevent injury and ensure proper tool usage:

• Always use caution when handling tools.
• Wear appropriate safety gear, including gloves and safety glasses, to protect your hands and eyes.
• Keep tools clean and in good condition to prevent accidents and ensure optimal performance.
• Do not use tools beyond their intended use or load capacity. Overloading tools can lead to breakage and injury.
• Always follow manufacturer guidelines for safe use and storage of all tools.

3. Setup and Initial Inspection

Upon receiving your BOXO USA MotoBox, perform the following steps:

1. Unpacking: Carefully remove the tool box from its packaging. Inspect the tool box and all included tools for any signs of damage that may have occurred during shipping.
2. Tool Organization: The tools are pre-arranged in custom-cut EVA foam trays. These trays are designed to keep each tool secure and organized. Verify that all 103 pieces are present and correctly seated in their designated slots.
3. Locking System: Familiarize yourself with the key locking system and the combination lock on the tool box. Ensure the locks function correctly to secure your tools.

Figure 2: The MotoBox opened, showing the top compartment and organized tools.

4. Operating Instructions

The MotoBox is designed for ease of use and efficient tool access. Follow these instructions for optimal operation:

4.1 Accessing Tools

• Top Compartment: Lift the lid to access the main compartment, which contains various sockets, ratchets, extensions, and other specialized tools.
• Drawers: The tool box features smooth-latch locking drawers with ball-bearing slides for easy opening and closing. Pull the drawer handles to access the tools stored within.

Figure 3: A tray showcasing the organized sockets and ratchets.

4.2 Tool Usage Overview

The 103-piece set includes a wide array of tools for various tasks:

• Sockets and Ratchets: Includes 1/4" and 3/8" drive 90-tooth ratchets, extensions, and 6-point sockets ranging from 4mm to 32mm. These are ideal for fastening and loosening nuts and bolts.
• Wrenches: A 15-piece metric combination wrench set (6mm to 27mm) with smooth jaw open ends and 12-point box ends. The 15° offset provides clearance in tight spaces. Each wrench is clearly marked for quick identification.
• Screwdrivers: A 6-piece 1/4" drive screwdriver set including Slotted (SL3, SL4, SL5.5, SL6.5) and Phillips (PH1, PH2) types, equipped with ergonomic handles for comfort and grip.
• Pliers and Cutters: Features a 10" groove joint water pump pliers, 6" long nose pliers, 7" heavy-duty diagonal side cutter, 5-1/2" scissors, 4" flush cutter, and 9" reversible wire twist pliers.
• Hex and Torx Sockets: Includes 1/4" drive hex bit and Torx sockets (H3-H6, T15-T25), 3/8" drive hex bit and Torx sockets (H5-H12, T27-T55), and 1/2" drive hex bit sockets (H14, H17).
• Specialty Tools: The set also contains a 12" engineer's hammer, 5M SAE/Metric tape measure, digital tire gauge, spoke wrench, and a 3/8" drive hex axle tool (17, 19, 22, 24mm).

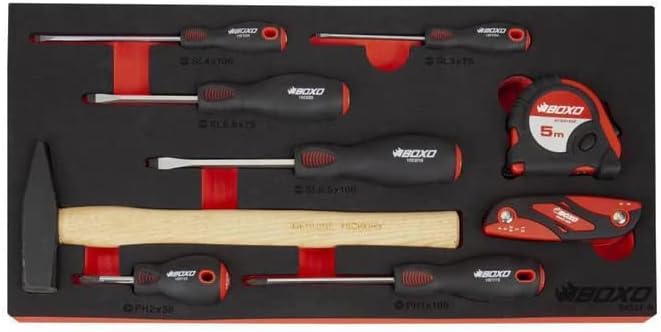

Figure 4: A tray containing screwdrivers, hammer, and measuring tools.

Figure 5: A tray displaying various pliers and cutting tools.

Figure 6: A tray featuring combination wrenches and a digital tire gauge.

4.3 Product Demonstration Video

5. Maintenance

Proper maintenance ensures the longevity and performance of your BOXO USA MotoBox and its tools:

• Cleaning Tools: The mirror chrome finish on the tools protects against corrosion and allows for easy cleaning. After each use, wipe tools clean of dirt, grease, and moisture.
• Organization: Always return tools to their designated slots in the EVA foam trays. This not only keeps the set organized but also helps in quickly identifying any missing tools.
• Tool Box Care: Keep the heavy-duty 20 gauge steel tool box clean and dry. Periodically check the ball-bearing drawer slides and smooth-latch mechanisms for smooth operation. Lubricate if necessary.
• Storage: Store the tool box in a dry environment to prevent rust and corrosion. Utilize the key locking system to secure your tools when not in use.

6. Troubleshooting

While the MotoBox is designed for durability and reliability, occasional issues may arise. Here are some common troubleshooting tips:

• Missing Tools: The EVA foam trays are designed to highlight missing tools. If a tool is missing, check surrounding areas where it might have been misplaced during use.
• Sticking Drawers: If a drawer is difficult to open or close, check the ball-bearing slides for obstructions or debris. Clean the slides and apply a light lubricant if needed.
• Tool Malfunction: If a tool is not performing as expected, inspect it for damage, wear, or incorrect usage. Ensure you are using the correct tool for the task and that it is the appropriate size. Do not force tools.
• Locking Mechanism Issues: If the key lock or combination lock is not functioning, ensure no debris is obstructing the mechanism. For combination locks, verify the correct code is being entered.

7. Specifications

8. Warranty and Support

BOXO USA is committed to providing high-quality products. For specific warranty details, please refer to the warranty card included with your product or visit the official BOXO website.

• Returns: This product is eligible for 30-day easy returns. Please consult the retailer's return policy for detailed instructions.
• Customer Support: For any questions, technical assistance, or warranty claims, please contact BOXO USA customer support. You can often find contact information on the official BOXO website or through your purchase platform.
• Brand Store: Visit the BOXO Store for more products and information.
