AYGEN CalmDo 1500W Air Fryer Oven User Manual

1. Introduction

This manual provides essential information for the safe and efficient operation of your AYGEN CalmDo 1500W Air Fryer Oven. This appliance is designed for versatile cooking, including air frying, baking, sautéing, grilling, roasting, dehydrating, reheating, and rotisserie functions. With a 12L/12.7QT capacity and 18 pre-set functions, it offers a convenient solution for various culinary needs.

Please read this manual thoroughly before first use and retain it for future reference.

2. Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons.

• Read all instructions before operating the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electric shock, do not immerse cord, plugs, or the main unit in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• Ensure the appliance is placed on a stable, heat-resistant surface, away from walls and other appliances to allow for proper air circulation.

3. Product Components and Accessories

Your AYGEN CalmDo Air Fryer Oven comes with several accessories to enhance your cooking experience. Please ensure all parts are present upon unboxing.

Figure 3.1: The AYGEN CalmDo Air Fryer Oven includes 10 dishwasher-safe accessories such as mesh racks, skewer racks, a rolling cage, a rotisserie fork, a fetch tool, and a drip tray, designed for various cooking methods.

Included Accessories:

• Mesh Racks (multiple)
• Skewer Racks
• Rolling Cage
• Rotisserie Fork
• Fetch Tool
• Drip Tray
• Other specialized accessories for specific functions.

These accessories are designed to be machine-washable for convenient cleaning.

4. Setup and First Use

4.1 Unboxing

1. Carefully remove the air fryer oven and all accessories from the packaging.
2. Remove any protective film or stickers from the appliance.
3. Inspect the appliance for any signs of damage. Do not use if damaged.

4.2 Cleaning Before First Use

1. Wash all removable accessories (mesh racks, drip tray, rotisserie fork, etc.) with warm soapy water. Rinse thoroughly and dry completely.
2. Wipe the interior and exterior of the main unit with a damp cloth. Do not immerse the main unit in water.
3. Ensure all parts are completely dry before plugging in the appliance.

4.3 Initial Operation (Burn-in)

Before cooking food, it is recommended to run the air fryer oven for a short period to eliminate any manufacturing odors.

1. Place the appliance on a stable, heat-resistant surface.
2. Plug the power cord into a grounded electrical outlet.
3. Set the temperature to 200°C (390°F) and the time to 15 minutes.
4. Allow the appliance to run. A slight odor or smoke may be present; this is normal and will dissipate.
5. Once complete, unplug the appliance and let it cool down completely.

5. Operating Instructions

5.1 Control Panel Overview

Figure 5.1: The LED touch screen control panel allows for easy selection of cooking options and monitoring of cooking status.

The appliance features an intuitive LED touch screen control panel. It displays temperature, time, and various pre-set functions. Use the touch controls to adjust settings and select cooking modes.

5.2 Pre-set Functions

The AYGEN CalmDo Air Fryer Oven offers 18 one-touch pre-set functions for common dishes. These functions automatically set optimal temperature and time, which can then be adjusted manually if needed.

Figure 5.2: The 18 pre-set functions simplify cooking for a wide range of dishes, from chicken and pizza to dehydrating and rotisserie.

• Chicken
• Bake
• Chips
• Pizza
• Wings
• Steak
• Fish
• Shrimp
• Defrost
• Cake
• Vegetable
• Cookie
• Rotisserie
• Dehydrator
• Reheat
• Sausage
• Nuts
• Lamb

5.3 Manual Operation

To manually set cooking parameters:

1. Press the Power button to turn on the appliance.
2. Use the Temperature controls (usually '+' and '-') to set the desired cooking temperature.
3. Use the Time controls (usually '+' and '-') to set the desired cooking duration.
4. Press the Start/Pause button to begin cooking.

The transparent door allows you to check the cooking status at any time without opening the oven, maintaining consistent internal temperature.

5.4 Rotisserie Function

The rotisserie function is ideal for cooking whole chickens or roasts evenly. Use the rotisserie fork accessory for this purpose. Ensure the food is securely fastened and balanced on the rotisserie rod before placing it into the oven.

5.5 Dehydrator Function

The dehydrator function operates at lower temperatures (30-80°C / 86-176°F) over longer periods to remove moisture from food, preserving fruits, vegetables, and meats.

6. Cooking Guide and Tips

The AYGEN CalmDo Air Fryer Oven utilizes a 360° hot air convection system for faster and more even cooking, reducing the need for excessive oil compared to traditional frying methods.

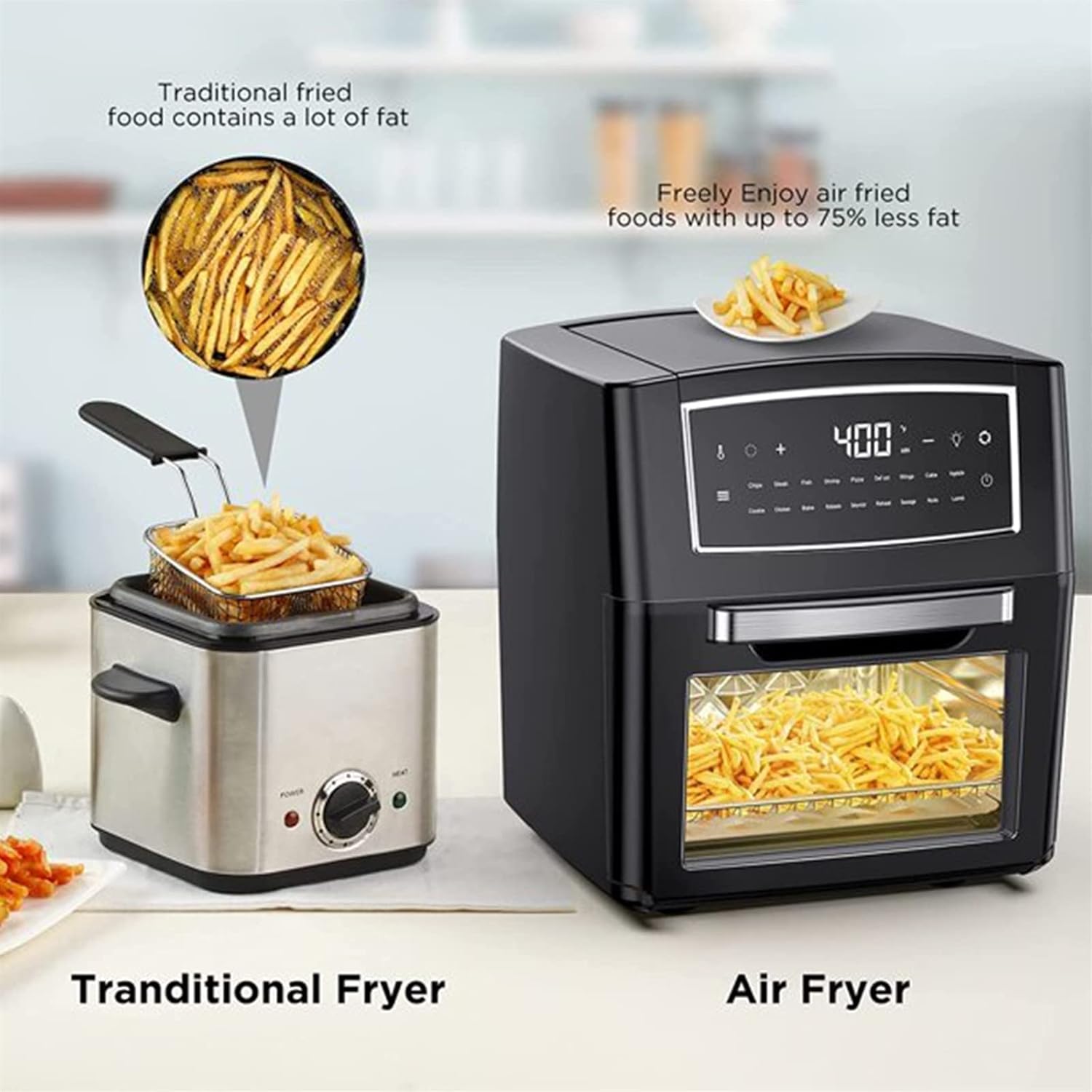

Figure 6.1: Air frying offers a healthier alternative to traditional deep frying, using super-heated air to achieve crispy results with significantly less fat.

• Preheating: For best results, preheat the oven for 3-5 minutes before adding food.
• Oil Usage: While air frying requires little to no oil, a light spray or toss with a small amount of oil can enhance crispiness and flavor for some foods.
• Even Cooking: For even cooking, especially with larger batches, shake or flip food halfway through the cooking process.
• Capacity: The 12L/12.7QT capacity is suitable for cooking a 2kg chicken, an 8-inch pizza, or 18 chicken wings. Avoid overcrowding the oven to ensure proper air circulation.

Figure 6.2: The generous 12-liter capacity accommodates family-sized meals, such as a whole chicken or multiple servings of other dishes.

7. Maintenance and Cleaning

Regular cleaning ensures the longevity and optimal performance of your air fryer oven.

7.1 Cleaning the Main Unit

1. Always unplug the appliance and allow it to cool completely before cleaning.
2. Wipe the exterior with a damp cloth and mild detergent. Do not use abrasive cleaners.
3. The stainless steel cavity is designed for easy cleaning. Wipe the interior with a damp cloth. For stubborn food residue, use a non-abrasive sponge with warm soapy water.
4. Ensure the interior is completely dry before next use.

7.2 Cleaning Accessories

Figure 7.1: The unique detachable door design facilitates thorough cleaning, as it can be washed by hand or in a dishwasher.

• All included accessories are dishwasher-safe.
• Alternatively, wash accessories with warm soapy water, rinse, and dry thoroughly.
• The detachable door can be removed for easier cleaning, either by hand or in a dishwasher.

8. Troubleshooting

If you encounter issues with your air fryer oven, please refer to the following common problems and solutions:

9. Specifications

10. Warranty and Support

For warranty information or technical support, please contact the manufacturer, Rad Picks, or your retailer. Keep your proof of purchase for any warranty claims.

For further assistance, please refer to the contact information provided with your purchase or visit the official AYGEN website.
