HYUNDAI WS 1070 B Weather Station

1. Introduction

The HYUNDAI WS 1070 B is a compact weather station designed to provide accurate indoor and outdoor temperature readings, along with humidity information. It also features an integrated clock with an alarm function, making it a versatile device for your home or office. The large LCD ensures clear digital display of all values and functions.

This manual provides detailed instructions for setting up, operating, and maintaining your weather station to ensure optimal performance.

2. Package Contents

• HYUNDAI WS 1070 B Main Unit
• Wireless Outdoor Sensor
• User Manual (this document)

Note: Batteries are not included and must be purchased separately.

3. Product Overview

3.1 Main Unit

The main unit features a large LCD display showing indoor and outdoor temperatures, time, and alarm status. Control buttons are located below the display.

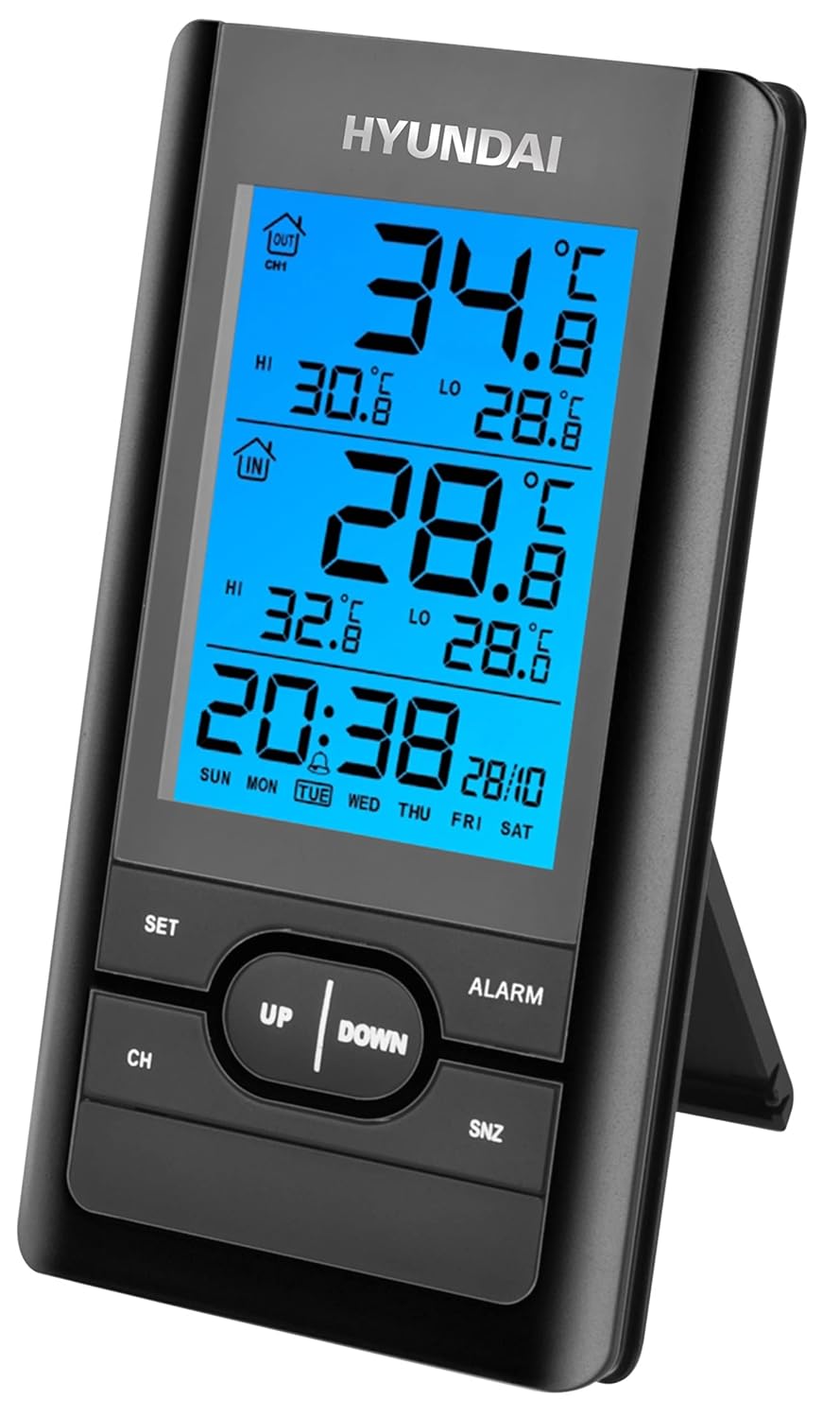

Image 1: Front view of the HYUNDAI WS 1070 B main unit, displaying indoor and outdoor temperatures, time, and day of the week. Buttons for 'SET', 'CH', 'UP', 'DOWN', 'ALARM', and 'SNZ' are visible below the screen.

• LCD Display: Shows time, date, indoor/outdoor temperature, humidity, and alarm status.
• SET Button: Enters setting mode for time, date, and other parameters.
• CH Button: Selects display channel for multiple outdoor sensors (if additional sensors are connected).
• UP / DOWN Buttons: Adjusts values during setting mode or cycles through display options.
• ALARM Button: Enters alarm setting mode or activates/deactivates the alarm.
• SNZ (Snooze) Button: Activates the snooze function when the alarm sounds.

3.2 Wireless Outdoor Sensor

The wireless sensor transmits outdoor temperature data to the main unit. It features a small display for local temperature readings and a channel selector.

Image 2: Side view of the HYUNDAI WS 1070 B wireless outdoor sensor, showing its compact black casing and a small display indicating 'CH1' and the current temperature. A 433MHz signal icon is also visible.

• Temperature Display: Shows the current temperature measured by the sensor.
• Channel Selector: Allows selection of the transmission channel (1, 2, or 3) to avoid interference with other sensors.
• Battery Compartment: Located on the back for battery installation.

4. Setup

4.1 Battery Installation

1. Main Unit: Open the battery compartment on the back of the main unit. Insert 2 x 1.5V AAA batteries, observing the correct polarity (+/-). Close the compartment.
2. Wireless Outdoor Sensor: Open the battery compartment on the back of the sensor. Insert 2 x 1.5V AAA batteries, observing the correct polarity (+/-). Close the compartment.

4.2 Initial Setup and Synchronization

1. After installing batteries in both the main unit and the outdoor sensor, the main unit will automatically begin searching for the sensor signal. This process may take a few minutes.
2. Ensure the outdoor sensor is within effective transmission range (typically up to 30 meters in open air) and not obstructed by thick walls or large metal objects.
3. Once synchronized, the outdoor temperature will appear on the main unit's display. If synchronization fails, remove and reinsert batteries in both units, then try again.

4.3 Sensor Placement

For accurate outdoor temperature readings, place the wireless sensor in a sheltered location away from direct sunlight and rain. Avoid placing it near heat sources (e.g., vents, windows) or reflective surfaces that could affect temperature measurements. Ensure it is mounted vertically for proper drainage.

5. Operating Instructions

5.1 Setting Time and Date

1. Press and hold the SET button for approximately 3 seconds to enter time setting mode. The hour digit will start flashing.
2. Use the UP or DOWN buttons to adjust the hour.
3. Press SET again to confirm the hour and move to setting the minutes.
4. Repeat the process using UP/DOWN for minutes, then SET to cycle through year, month, and day settings.
5. Press SET one last time to exit the setting mode.

5.2 Setting the Alarm

1. Press the ALARM button once to display the current alarm time.
2. Press and hold the ALARM button for approximately 3 seconds to enter alarm setting mode. The alarm hour digit will flash.
3. Use the UP or DOWN buttons to adjust the alarm hour.
4. Press ALARM again to confirm the hour and move to setting the alarm minutes.
5. Use the UP or DOWN buttons to adjust the alarm minutes.
6. Press ALARM one last time to confirm and exit alarm setting mode.
7. To activate or deactivate the alarm, press the ALARM button briefly when the alarm time is displayed. An alarm icon will appear/disappear on the LCD.

5.3 Snooze Function

When the alarm sounds, press the SNZ button to activate the snooze function. The alarm will temporarily stop and sound again after a few minutes (typically 5-10 minutes, depending on the model's default setting). To turn off the alarm completely, press any other button (e.g., ALARM, SET, UP, DOWN).

5.4 Temperature Unit Selection

The weather station displays temperature in Celsius (°C). There is no explicit mention of Fahrenheit (°F) conversion in the product description. If available, this option is usually found within the SET menu or by a dedicated button on the back of the unit.

5.5 Channel Selection (for multiple sensors)

If you have purchased additional outdoor sensors (up to three are supported), press the CH button repeatedly to cycle through the channels (CH1, CH2, CH3) and view the temperature from each connected sensor. The main unit will automatically scan and display data from active channels.

6. Maintenance

• Cleaning: Wipe the main unit and sensor with a soft, slightly damp cloth. Do not use abrasive cleaners or solvents, as these may damage the display or casing.
• Battery Replacement: Replace batteries in both the main unit and the outdoor sensor when the display becomes dim or readings become erratic. Always replace all batteries at the same time with new ones of the same type.
• Storage: If the device will not be used for an extended period, remove the batteries to prevent leakage and corrosion.

7. Troubleshooting

8. Specifications

9. Warranty and Support

For warranty information or technical support, please refer to the documentation provided at the time of purchase or contact your retailer. You may also visit the official HYUNDAI Electronics website for customer service contact details.
