Seesii 8-Inch Mini Electric Chainsaw User Manual

1. Introduction

Thank you for choosing the Seesii 8-Inch Mini Electric Chainsaw. This manual provides essential information for the safe and efficient operation, maintenance, and troubleshooting of your new tool. Please read this manual thoroughly before first use and keep it for future reference.

Package Contents

• Seesii 8-Inch Mini Electric Chainsaw Body
• 8-Inch Guide Bar
• Chains (4 total, including pre-installed)
• 2 x 21V 2000mAh Batteries
• Battery Charger
• Detachable Auxiliary Handle
• Chain Sharpening Files
• Tool Kit (wrench, screwdriver)
• Storage Case
• User Manual

Image 1.1: Contents of the Seesii 8-Inch Mini Electric Chainsaw package, including the chainsaw body, guide bar, multiple chains, two batteries, charger, auxiliary handle, sharpening files, and storage case.

2. Safety Instructions

WARNING: Read all safety warnings, instructions, illustrations, and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious injury.

General Safety

• Always wear appropriate personal protective equipment (PPE) including safety glasses, gloves, hearing protection, and sturdy footwear.
• Keep children and bystanders at a safe distance (at least 15 meters/50 feet) from the operating area.
• Do not operate the chainsaw in wet conditions or in the presence of flammable liquids or gases.
• Ensure the work area is well-lit and clear of obstacles.
• Never operate the chainsaw when fatigued, under the influence of drugs, alcohol, or medication.
• Inspect the chainsaw for damage before each use. Do not use if damaged.

Electrical Safety

• Use only the charger specified by the manufacturer for recharging.
• Do not expose battery packs or chargers to rain or wet conditions.
• Do not short-circuit the battery terminals.
• Store batteries away from metal objects that could make a connection.

Chainsaw Specific Safety

• Always hold the chainsaw firmly with both hands when operating.
• Be aware of kickback. Avoid the guide bar tip contacting any object.
• Never cut above shoulder height.
• Do not attempt to cut branches that are too small or too flexible.
• Ensure the chain is properly tensioned before each use.
• Disconnect the battery before performing any adjustments, cleaning, or maintenance.

3. Setup and Assembly

3.1 Charging the Battery

1. Insert the battery into the charger.
2. Plug the charger into a standard power outlet.
3. The indicator light on the charger will show charging status (e.g., red for charging, green for fully charged).
4. Allow 1-2 hours for a full charge.
5. Disconnect the charger once charging is complete.

Image 3.1: Two 21V 2000mAh batteries and the charging unit. The image indicates a charging time of 1-2 hours and a working time of 40-60 minutes per charge.

3.2 Installing the Guide Bar and Chain

1. Ensure the battery is removed from the chainsaw.
2. Remove the side cover by loosening the retaining knob.
3. Place the chain around the sprocket and guide bar, ensuring the cutting edges face the correct direction (refer to chain markings).
4. Fit the guide bar onto the chainsaw studs, aligning the chain with the guide bar groove.
5. Replace the side cover and lightly tighten the retaining knob.
6. Adjust chain tension (see Section 5.2).
7. Fully tighten the retaining knob.

Image 3.2: Close-up view of the chainsaw chain, highlighting components such as the driver link, tie strap, rivet, and cutter. This detail is useful for understanding chain assembly and maintenance.

3.3 Filling the Auto-Oil System

The Seesii Mini Electric Chainsaw features a Smart Auto-Oil System for automatic chain lubrication.

1. Locate the oil reservoir cap on the chainsaw body.
2. Unscrew the cap and fill the reservoir with appropriate bar and chain oil. Do not use motor oil or waste oil.
3. Replace the cap securely.
4. During operation, press the lubrication button to activate the auto-oil system.

3.4 Attaching the Auxiliary Handle

For enhanced control and safety, attach the detachable auxiliary handle.

1. Slide the auxiliary handle onto the designated mounting point on the chainsaw body.
2. Secure it firmly using the provided fastener or mechanism.

Image 3.3: The Seesii mini chainsaw in use, demonstrating the detachable extra grip for improved handling and safety during cutting operations.

4. Operating Instructions

4.1 Pre-Operation Checklist

• Ensure battery is fully charged and securely inserted.
• Check chain tension and sharpness.
• Verify oil reservoir is filled.
• Confirm all fasteners are tight.
• Wear all required PPE.
• Clear the work area of obstructions.

4.2 Starting and Stopping

1. To start: Press and hold the safety lock button, then squeeze the trigger switch.
2. To stop: Release the trigger switch. The chain will stop immediately.

4.3 Cutting Techniques

• Always hold the chainsaw firmly with both hands.
• Position yourself securely with good balance.
• Begin cutting with the bottom edge of the guide bar, allowing the chain to pull the saw into the wood.
• Do not force the saw; let the chain do the work.
• Be aware of potential kickback, especially when cutting with the tip of the guide bar.
• For larger branches, make an undercut first to prevent pinching and splintering.

Image 4.1: The Seesii 8-inch mini electric chainsaw demonstrating its cutting capacity on an 8-inch diameter log. This illustrates the tool's capability for handling substantial wood.

5. Maintenance

Regular maintenance ensures the longevity and safe operation of your chainsaw. Always remove the battery before performing any maintenance.

5.1 Cleaning

• After each use, clean sawdust and debris from the guide bar, chain, and motor housing.
• Use a brush or compressed air. Do not use water directly on electrical components.
• Wipe down the exterior with a damp cloth.

5.2 Chain Tension Adjustment

• With the battery removed, loosen the side cover retaining knob.
• Use the tensioning screw to adjust the chain. The chain should be snug against the guide bar but still able to be pulled freely by hand.
• Ensure there is no excessive slack or tightness.
• Tighten the side cover retaining knob securely.

5.3 Chain Sharpening

A sharp chain is crucial for efficient and safe cutting. Use the included chain sharpening files.

• Refer to the chain specifications (pitch, gauge) for the correct file size.
• Sharpen each cutter uniformly, maintaining the original angle.
• If the chain is severely dull or damaged, replace it with a new one.

5.4 Storage

• Remove the battery from the chainsaw before storage.
• Clean the chainsaw thoroughly.
• Store the chainsaw in its original case in a dry, secure location, out of reach of children.
• Store batteries in a cool, dry place, away from direct sunlight and extreme temperatures.

6. Troubleshooting

7. Specifications

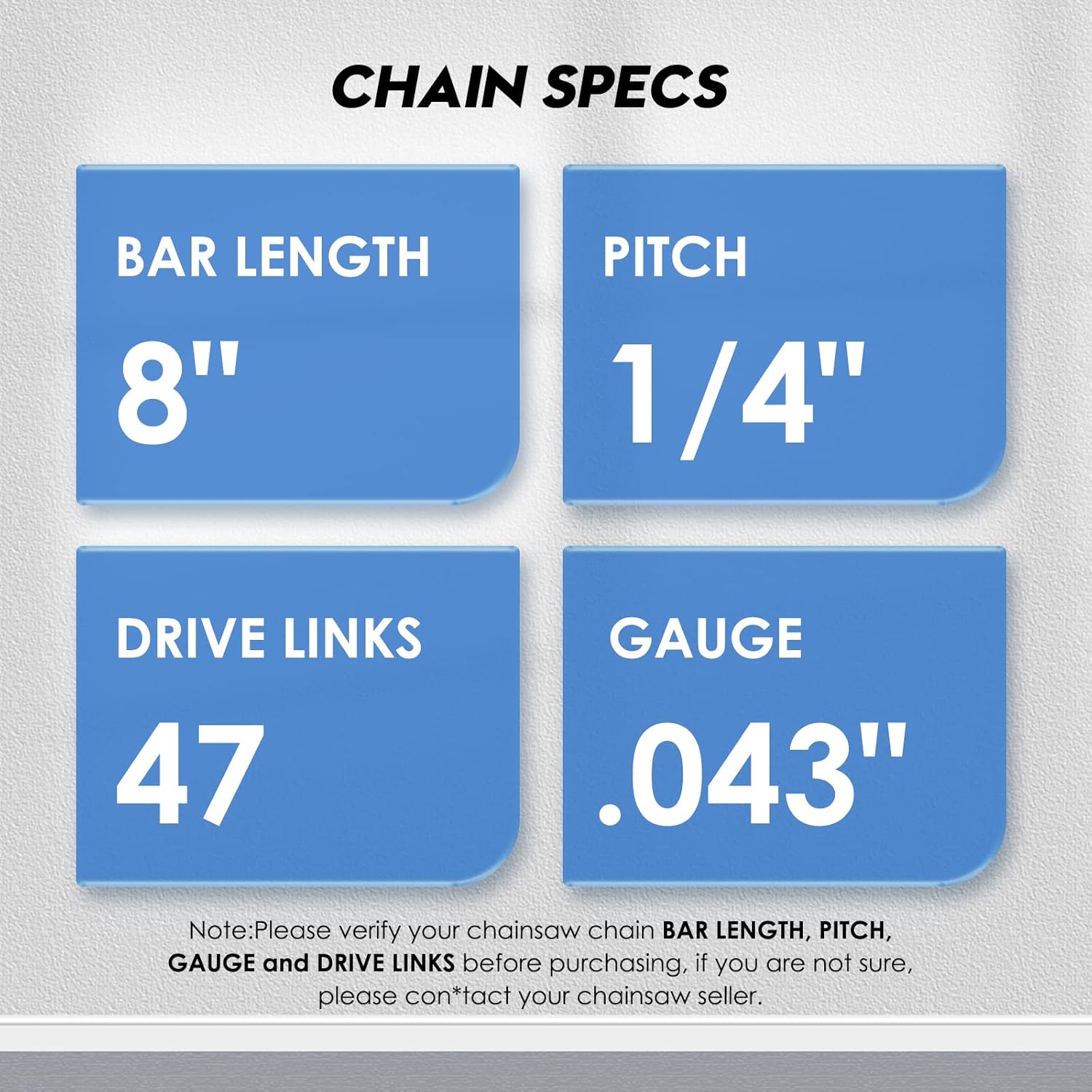

Image 7.1: Diagram detailing the key specifications of the chainsaw chain, including an 8-inch bar length, 1/4" pitch, 47 drive links, and a .043" gauge. This information is critical for chain replacement and maintenance.

8. Warranty and Support

Seesii products are manufactured to high-quality standards. For specific warranty details, including coverage period and terms, please refer to the warranty card included with your product or visit the official Seesii website.

For technical support, replacement parts, or service inquiries, please contact Seesii customer service through the contact information provided in your product packaging or on the official brand website.

Please retain your proof of purchase for warranty claims.
