usvehj 243222 Airless Sprayer Pressure Transducer Sensor Instruction Manual
Model: 243222 | Brand: usvehj
Introduction
This manual provides detailed instructions for the installation, function, and maintenance of the usvehj 243222 Airless Sprayer Pressure Transducer Sensor. This sensor is a critical component designed to ensure accurate pressure monitoring in compatible Graco airless paint sprayer models, contributing to optimal performance and safety.
Image 1: The usvehj 243222 Airless Sprayer Pressure Transducer Sensor, showing the sensor unit with its threaded connection and the attached cable with an RJ-style connector.
Important Safety Information
Always prioritize safety when working with paint sprayers and their components. Failure to follow safety guidelines can result in serious injury or property damage.
- Always wear appropriate safety gear, including gloves and eye protection, when handling this product and any chemicals it may come into contact with.
- Never operate the sprayer under pressure unless all safety guidelines have been followed.
- Always follow the manufacturer's instructions for proper use, maintenance, and disposal of your airless paint sprayer.
- Ensure the sprayer is unplugged and depressurized before attempting any installation, removal, or maintenance procedures.
Specific Fitments
The 243222 Pressure Transducer Sensor is compatible with a range of Graco airless sprayer models. Verify your sprayer model against the list below to ensure compatibility.
Image 2: Visual representation of compatible Graco airless sprayer models for the 243222 pressure transducer sensor.
Compatible Graco Models:
- 395 PC PRO, 490 PC PRO, 495 PC PRO, 595 PC PRO, 650 PC PRO
- 395 PC FinishPro, 595 PC FinishPro
- 390 FinishPro, 395 FinishPro, 595 FinishPro
- 395 Ultra, 490 UltraMax II, 495 UltraMax II, 595 UltraMax II, 695 UltraMax II, 795 UltraMax II, 1095 UltraMax II
- 3400 GMax II, 3900 GMax II, 5900 GMax II, 7900 GMax II
- 5900HD GMax II, 7900HD GMax II
- Mark V TexSpray
Product Function
The 243222 Pressure Sensor plays a vital role in the operation of various electric and gasoline airless sprayer models. It is strategically connected between the high-pressure filter and the control board of the sprayer.
The primary function of this transducer is to send a precise signal to the control board. This signal provides the control board with crucial information regarding the sprayer's internal pressure, allowing it to accurately determine when the sprayer has reached its maximum operating pressure. This ensures consistent performance and helps prevent over-pressurization.

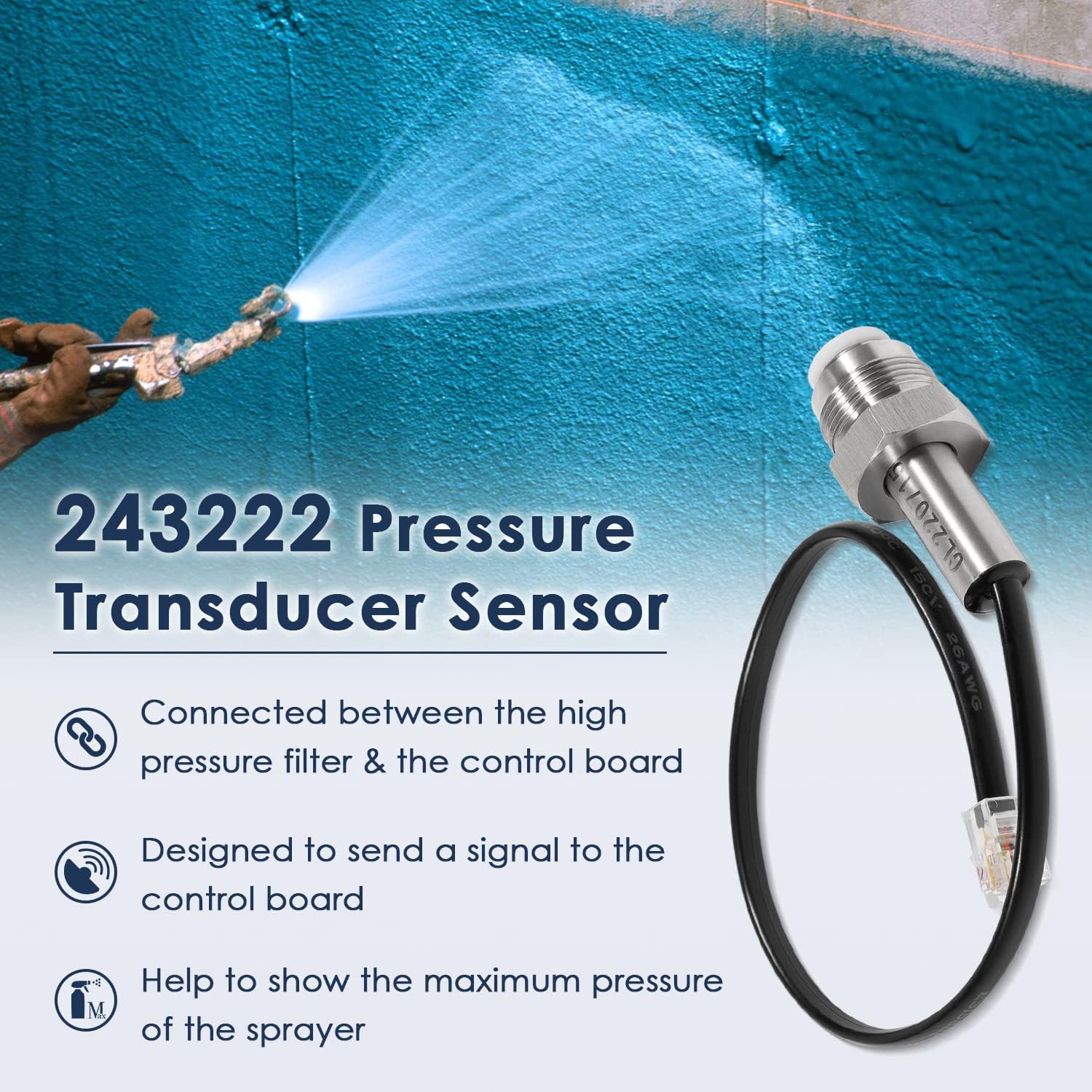

Image 3: Diagram showing the connection and function of the 243222 Pressure Transducer Sensor within an airless sprayer system.
Installation Guide
This section outlines the steps for replacing or installing the 243222 Pressure Transducer Sensor. Proper installation is crucial for the correct operation of your airless sprayer.
When to Replace the Sensor:
The 243222 pressure transducer sensor typically needs replacement if the sprayer's display panel shows "CODE 03" or if the control board's LED blinks three times. These indicators suggest a malfunction in the pressure sensing system.
Installation Steps:
- Step 1: Power Down and Unplug
Before beginning any work, turn off the power to your airless sprayer and unplug the power cord from the electrical outlet. This is a critical safety measure to prevent electrical shock.
Image 4: Illustration of turning off the sprayer's power switch and unplugging the power cord.
- Step 2: Unplug the Old Transducer
Locate the existing pressure transducer sensor. Carefully unplug the cable connected to the old transducer from the control board. You may need to remove the control box cover to access it.
Image 5: Depiction of unplugging the cable from the old pressure transducer sensor on the control board.
- Step 3: Install the New Transducer
Install the new 243222 pressure transducer sensor by connecting its cable to the corresponding port on the control board. Ensure the connection is secure.
Image 6: Visual guide for connecting the new pressure transducer sensor to the control board.
- Step 4: Verify Operation
After installation, reassemble any covers, plug in the sprayer, and turn on the power. Check the display board. If no error code (like CODE 03) is showing, it indicates the new transducer sensor is functioning correctly.
Image 7: Checking the sprayer's display board for error codes after installing the new transducer.
Note: The illustrations only display relevant components of some models. Please refer to your specific sprayer model's manual for detailed wiring diagrams and component locations.
Image 8: Example wiring diagram and pressure filter assembly for Graco 3900/5900/7900 series sprayers, highlighting the transducer location.
Operating Principles
Once installed, the 243222 Pressure Transducer Sensor operates continuously to monitor the pressure within your airless sprayer system. It translates the physical pressure into an electrical signal that is sent to the sprayer's control board.
The control board uses this signal to regulate the pump's operation, maintaining a consistent spray pressure for optimal paint application. A properly functioning transducer ensures that the sprayer delivers paint at the desired pressure, preventing issues like inconsistent spray patterns or premature wear on other components.
Maintenance
The 243222 Pressure Transducer Sensor is designed for durability and long-life. Regular maintenance of your overall airless sprayer system will help prolong the life of all components, including the transducer.
- Cleaning: Always clean your airless sprayer thoroughly after each use, following the manufacturer's guidelines. This prevents paint buildup that could affect pressure readings or damage components.
- Inspection: Periodically inspect the transducer and its cable for any signs of wear, damage, or corrosion. Ensure the connections are secure.
- Storage: Store your sprayer and components in a clean, dry environment to prevent damage from moisture or extreme temperatures.
If you suspect the transducer is malfunctioning, refer to the "Troubleshooting" section or consult a qualified service technician.
Troubleshooting
If your airless sprayer is exhibiting issues related to pressure regulation or error codes, the pressure transducer may be a contributing factor. Here are common troubleshooting steps:
- Error Code 03: If your sprayer's display panel shows "CODE 03", or the control board's LED blinks three times, this is a direct indicator that the pressure transducer sensor needs to be replaced. Follow the "Installation Guide" to replace the sensor.
- Inconsistent Pressure: If the sprayer is delivering inconsistent pressure, first check for common issues like clogged filters, worn spray tips, or air in the system. If these are ruled out, a faulty transducer could be sending incorrect signals to the control board.
- No Pressure: Ensure all connections are secure and there are no leaks in the system. If the sprayer motor runs but no pressure builds, and other components are confirmed functional, the transducer or control board might be at fault.
- Visual Inspection: Inspect the transducer and its wiring for any visible damage, corrosion, or loose connections.
If troubleshooting steps do not resolve the issue, it is recommended to consult a professional service technician or refer to your specific Graco sprayer's service manual.
Specifications
Detailed specifications for the usvehj 243222 Airless Sprayer Pressure Transducer Sensor:
| Feature | Detail |
|---|---|
| Model Name | 243222 Pressure Transducer Sensor |
| Brand | usvehj |
| Material | Alloy Steel, Copper, Plastic |
| Color | Black (cable) |
| Item Weight | 0.03 Kilograms (1.13 ounces) |
| Product Dimensions | 4.33 x 3.93 x 0.91 inches (11cm x 10cm x 2.3cm) |
| Maximum Pressure | 3000 PSI |
| Recommended Uses | Painting (Airless Sprayers) |
Image 9: Detailed dimensions of the 243222 Pressure Transducer Sensor and its cable.
Image 10: Close-up view of the materials (steel, copper, plastic) comprising the 243222 Pressure Transducer Sensor.
Warranty and Support
The usvehj 243222 Airless Sprayer Pressure Transducer Sensor comes with a commitment to customer satisfaction.
- Satisfaction Guarantee: We are committed to providing excellent products and the best service.
- Return Policy: If you are not satisfied with the product, you may return it within 30 days for a refund.
- Warranty: The product includes a 12-month warranty against manufacturing defects.
For further support or warranty claims, please contact usvehj customer service through your purchase platform.
