1. Product Overview
The Greenworks 80V 18" TruBrushless Chainsaw (Gen 2) is a high-performance, battery-powered tool designed for efficient cutting tasks. Featuring an 18-inch bar and chain, it is ideal for tree felling, limbing, pruning, and cutting firewood. Its advanced brushless motor delivers increased power, torque, and extended runtime comparable to a 42CC gas chainsaw, all without the need for gas, oil mixing, or pull cords.
This chainsaw is part of the Greenworks 80V system, offering compatibility with over 50 tools and batteries. It includes an automatic oiler for continuous chain lubrication and a mechanical chain brake for enhanced safety.
Image 1: The Greenworks 80V 18" TruBrushless Chainsaw in use, demonstrating its cutting capability on a log. This powerful tool offers gas-comparable performance without the emissions or maintenance of traditional gas chainsaws.
2. Safety Instructions
Always prioritize safety when operating the chainsaw. Read and understand all instructions before use. Wear appropriate personal protective equipment (PPE), including safety glasses, hearing protection, gloves, and sturdy footwear.
Mechanical Chain Brake
The chainsaw is equipped with a mechanical chain brake designed to stop the chain's rotation if activated by the operator's hand or if the saw kicks back with sufficient force. Ensure the chain brake is functioning correctly before each use.
Image 2: Detailed view of the mechanical chain brake, a critical safety feature that quickly stops the chain in case of kickback or manual activation.
Double Safety Design
The chainsaw incorporates a double safety design to prevent accidental starts. This includes a lock-out button and a trigger. Both must be engaged simultaneously to operate the saw.
Image 3: Illustration of the chainsaw's double safety mechanism, highlighting the lock-out button and trigger that must be pressed together to start the tool.
3. Package Contents
Your Greenworks 80V 18" TruBrushless Chainsaw package includes:
- Greenworks 80V 18" TruBrushless Chainsaw (Tool Only)
- Instruction Manual
Note: Battery and charger are sold separately.
4. Assembly
Before assembly, ensure the battery is removed from the chainsaw and wear protective gloves.
Bar and Chain Installation
- Remove the chainsaw cover by unscrewing the nuts.
- Place the chain drive links into the bar groove.
- Position the chain and bar around the drive sprocket. Ensure the chain is in the correct direction.
- Screw the tension bolt to align the pin into the hole properly.
- Replace the chainsaw cover, but do not completely tighten the nuts yet.
Chain Tension Adjustment
Proper chain tension is crucial for safe and efficient operation. The correct chain tension allows for 3mm - 4mm of play when pulled from the bar. Adjust the tension by wrenching the tension adjuster:
- Screw clockwise to tighten the chain.
- Screw anti-clockwise to loosen the chain.
Once the chain is well-tensioned, tighten the cover nuts securely.
Image 4: The Greenworks 80V Chainsaw featuring its 18-inch bar and chain, ready for assembly or operation.
Video 1: This instructional video demonstrates the step-by-step process of assembling the bar and chain, adjusting chain tension, and adding lubricating oil to the Greenworks 80V Chainsaw.
5. Operation
Adding Lubricating Oil
The chainsaw features an automatic oiler system. Before each use, ensure the oil reservoir is filled with appropriate bar and chain oil. The transparent oil window allows you to monitor the oil level and know when to refill.
Image 5: The auto-oiling system of the Greenworks 80V Chainsaw, showing the oil reservoir cap and the transparent window for checking oil levels.
Battery Installation
Insert a fully charged Greenworks 80V battery into the battery compartment until it clicks securely into place.
Starting and Cutting
To start the chainsaw, pull the mechanical brake towards the front handle, then press the lock-out button and the trigger simultaneously. Release the trigger to stop the saw. The TruBrushless motor provides a chain speed of 79 feet per second for efficient cutting.
Image 6: The Greenworks 80V Chainsaw cutting through wood, illustrating its 79 FT/S chain speed for rapid and effective cutting.

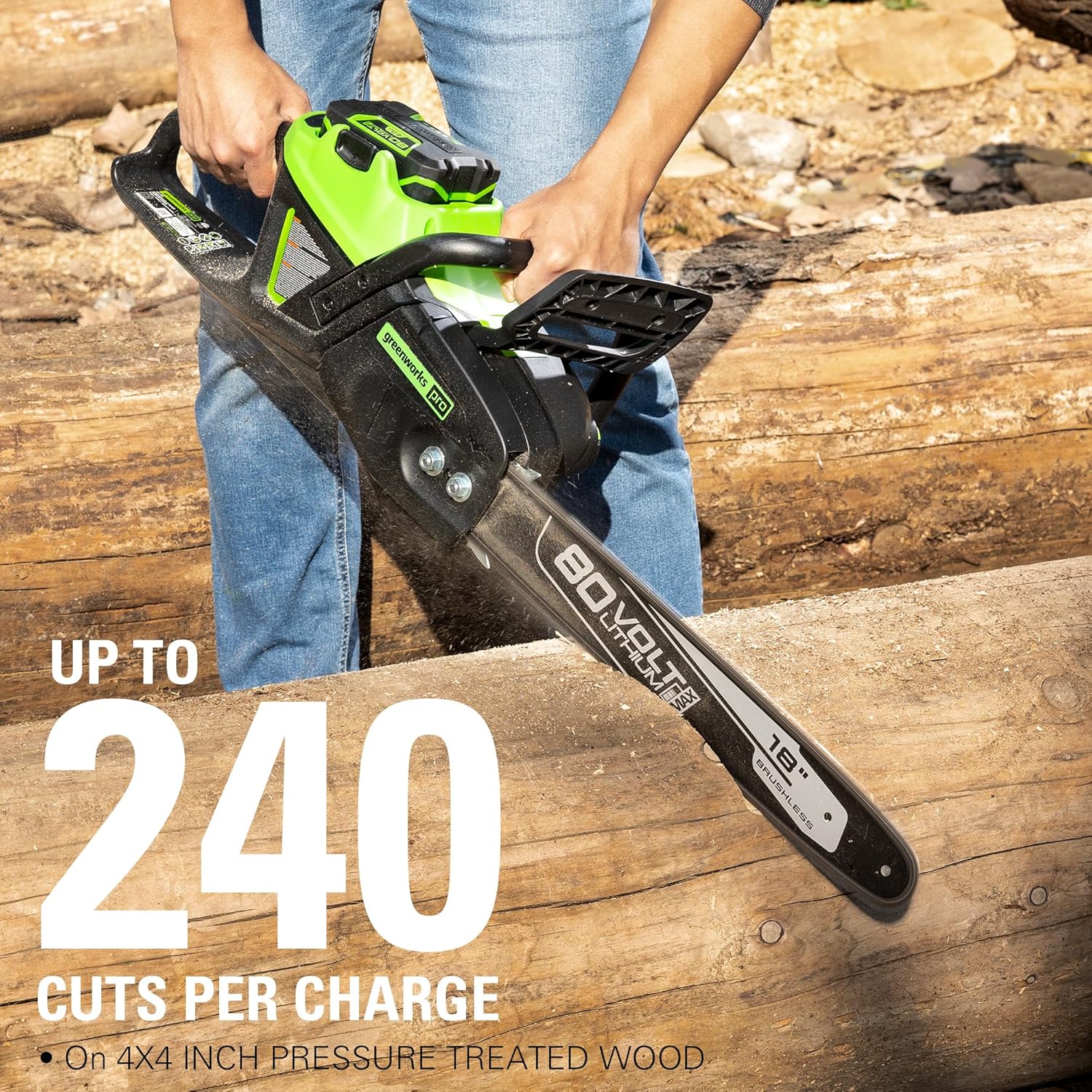

Image 7: The Greenworks 80V Chainsaw highlighting its capability of achieving up to 240 cuts on 4x4 lumber with a 4.0Ah battery.
Video 2: This video provides a demonstration of the Greenworks 80V 18" Chainsaw in action, showcasing its cutting power and ease of use for various tasks.
6. Maintenance
Chain Lubrication
Regularly check and refill the automatic oiler reservoir with quality bar and chain oil to ensure the chain remains adequately lubricated. This extends chain life and maintains cutting performance.
General Care
Keep the chainsaw clean and free of sawdust and debris. Inspect the bar and chain for wear or damage before and after each use. Store the chainsaw in a dry, secure location with the chain cover in place.
7. Specifications
- Brand: Greenworks
- Model Number: CS80L03
- Power Source: Battery Powered (80V)
- Bar Length: 18 Inches
- Motor: TruBrushless
- Item Weight: 7.2 Kilograms
- Product Dimensions: 9.06"L x 9.37"W x 35.91"H
- Included Components: Chainsaw, Manual
- GTIN/UPC: 841821087265
Image 8: An internal view highlighting the advanced brushless motor technology, which provides more torque, runtime, and extends the life of the tool.
8. Warranty Information
The Greenworks 80V 18" TruBrushless Chainsaw is backed by a 4-year warranty, protecting your investment against manufacturing defects and ensuring reliable performance.
