COTLIN HX-160BR
COTLIN 24-Inch Built-in Outdoor Refrigerator User Manual
Model: HX-160BR
1. Introduction
This manual provides essential information for the safe and efficient operation of your COTLIN 24-inch Built-in Outdoor Refrigerator. Please read all instructions carefully before installation and use, and retain this manual for future reference.
2. Safety Information
Your safety and the safety of others are very important. We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety messages.
- Electrical Safety: Ensure the appliance is connected to a properly grounded outlet. Do not use extension cords.
- Flammable Refrigerant: This appliance uses R600a refrigerant, which is flammable. Handle with care and ensure proper ventilation.
- Ventilation: Do not block any ventilation openings on the appliance or in the built-in structure.
- Children Safety: Supervise children to ensure they do not play with the appliance.
- Disposal: Dispose of the appliance according to local regulations for flammable refrigerants.
3. Setup and Installation
3.1 Unpacking
Carefully remove all packaging materials, including foam and adhesive tape. Inspect the refrigerator for any shipping damage. Keep packaging materials away from children.
3.2 Placement
This refrigerator is designed for both built-in under-counter and freestanding applications, suitable for indoor or outdoor use. Ensure the installation location has adequate ventilation and is protected from direct sunlight and extreme weather conditions.
Image: The refrigerator integrated into an outdoor kitchen counter, demonstrating its suitability for outdoor environments.

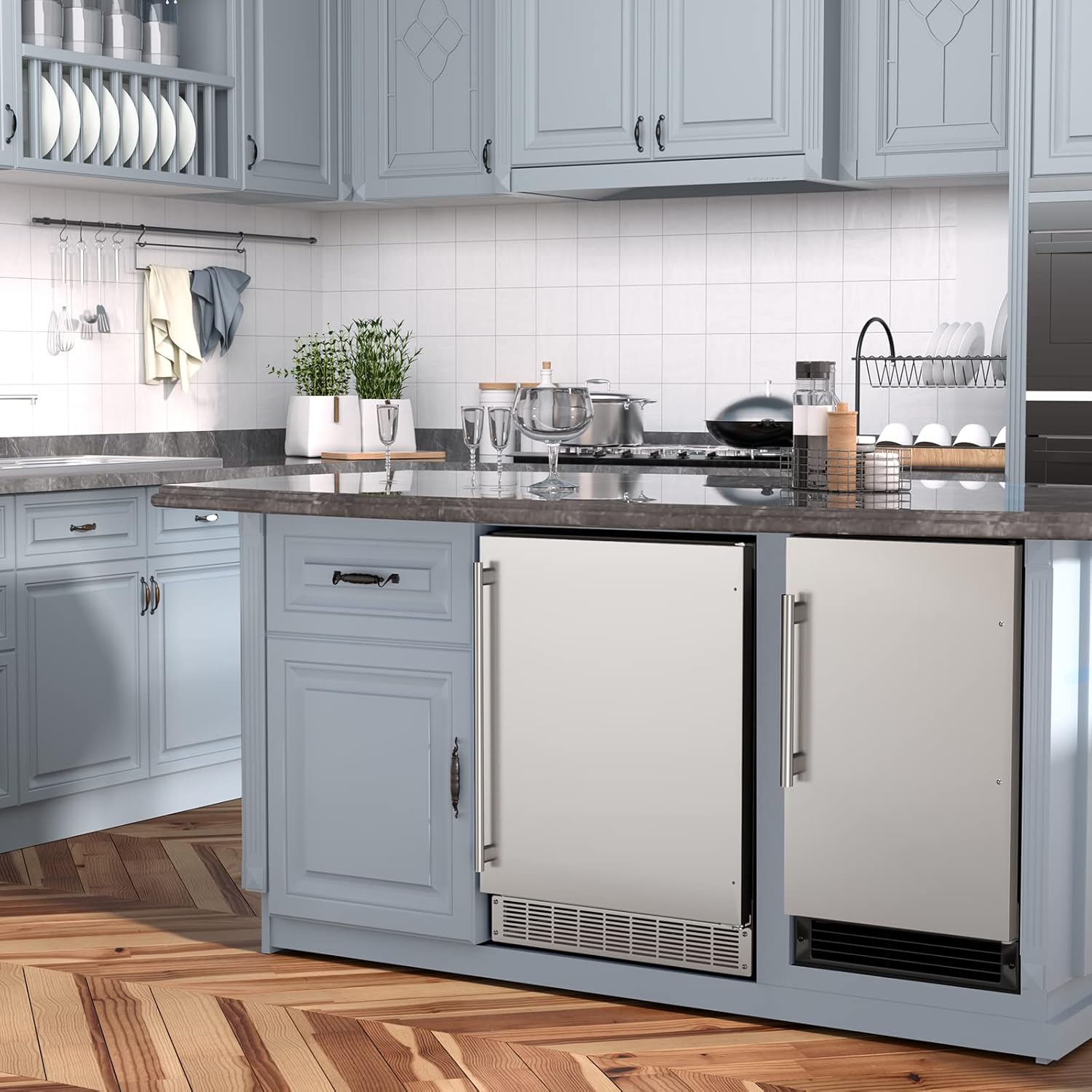

Image: The refrigerator seamlessly installed under an indoor kitchen counter, highlighting its versatility for indoor use.
For built-in installation, ensure the cutout dimensions are 24 inches (W) x 24 inches (D) x 34.6 inches (H). Allow sufficient clearance for proper ventilation, especially at the front vent.
Image: A diagram illustrating the required cutout dimensions for built-in installation, including clearances for the back and sides.
3.3 Electrical Connection
Connect the refrigerator to a dedicated 115V AC, 60Hz, 15A grounded electrical outlet. Do not use a two-prong adapter or an extension cord. If the power cord is damaged, it must be replaced by a qualified service technician.
3.4 Door Reversal
The door and hinge are reversible, allowing you to choose between left or right-hand opening. Refer to the detailed instructions in the separate door reversal guide (if provided) or contact customer support for assistance. This process typically involves removing the top hinge, transferring the door, and reattaching hinges on the opposite side.

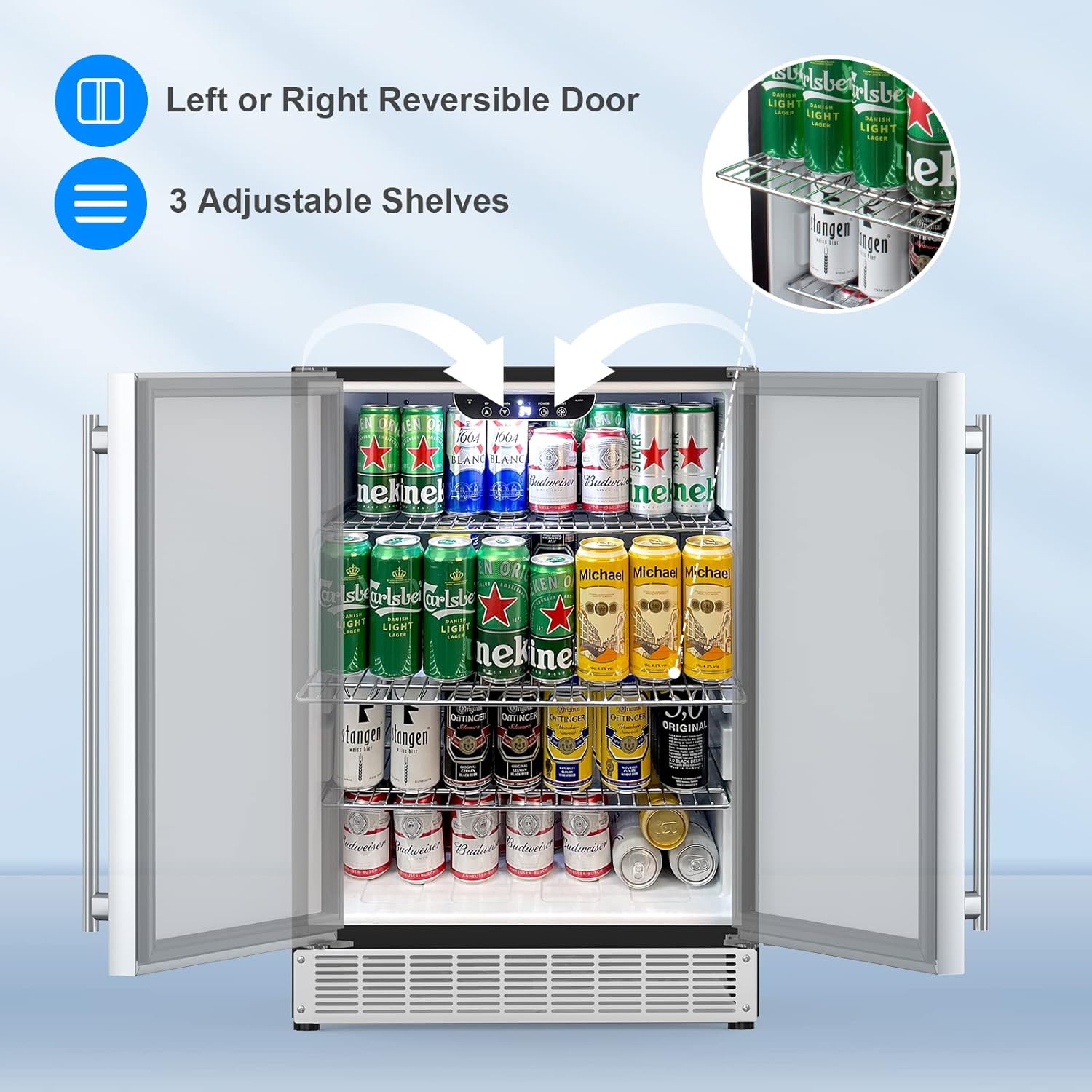

Image: The refrigerator interior with arrows demonstrating the reversible door feature and the flexibility of adjustable shelves.
3.5 Shelf Installation
Your refrigerator comes with 3 adjustable wire shelves. These can be positioned at various heights to accommodate different sizes of beverages and food items. To adjust, simply lift the shelf, pull it out, and reinsert it into the desired slots.
Image: The refrigerator interior displaying various configurations of adjustable shelves to fit different beverage sizes.
4. Operating Instructions
4.1 Initial Startup
After installation, allow the refrigerator to stand upright for at least 2-4 hours before plugging it in. This allows the refrigerant to settle. Once plugged in, let the unit run for several hours to reach its set temperature before loading it with items.
4.2 Temperature Control
The refrigerator features a digital temperature display and controls located inside the unit. The temperature range is adjustable from 34°F to 65°F (1°C to 18°C). Use the "UP" and "DOWN" buttons to set your desired temperature. The display will show the current internal temperature.

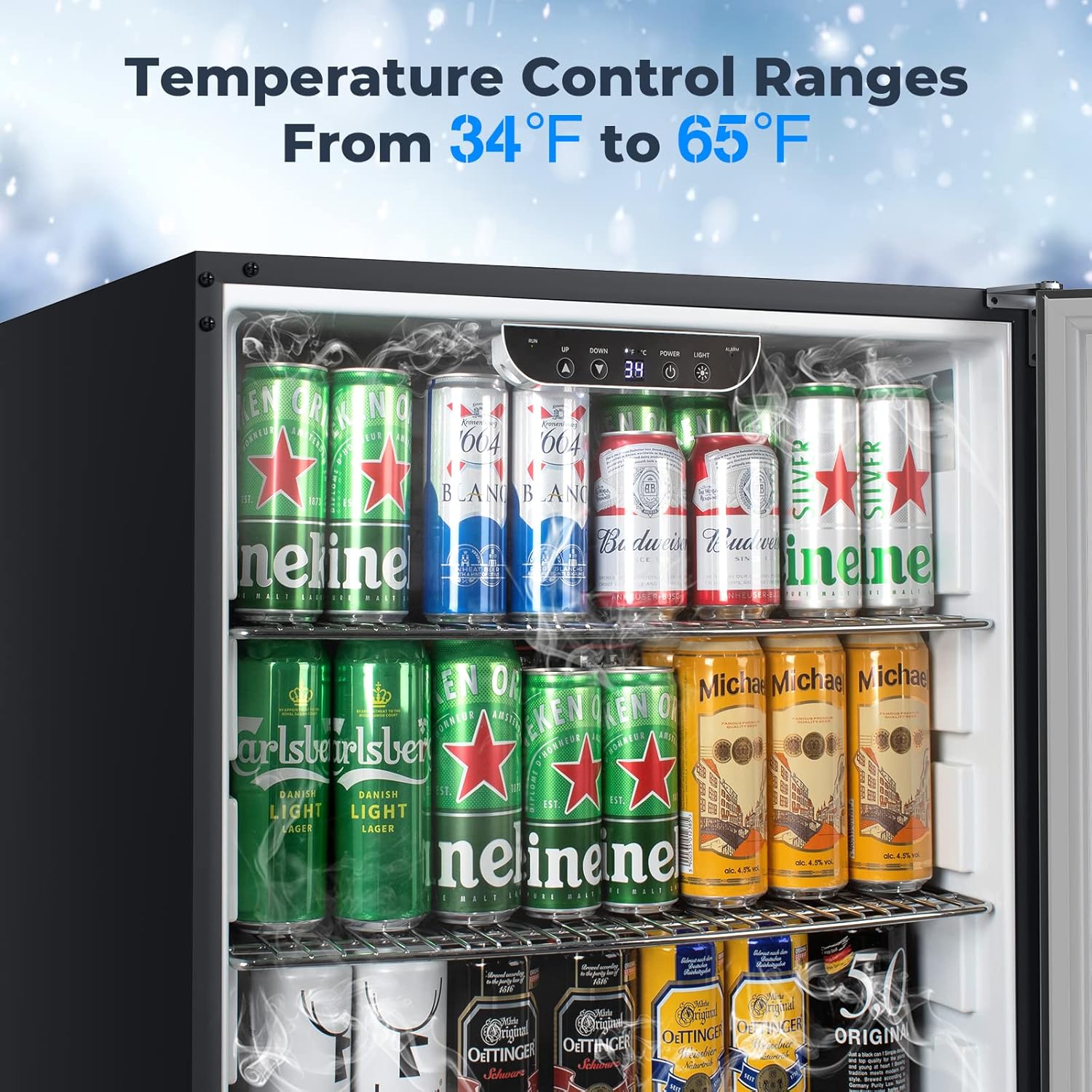

Image: A detailed view of the internal digital control panel, showing temperature display and adjustment buttons.
4.3 LED Lighting
The interior LED lighting automatically turns on when the door is opened, providing clear visibility of contents. There may also be a manual light control button on the panel.
4.4 Loading Capacity
The 5.4 Cu.Ft capacity can hold up to 175 standard 12 oz cans. Arrange items to allow for proper air circulation, which helps maintain consistent temperatures.
Image: The refrigerator interior fully stocked with various beverage cans, demonstrating its large storage capacity.
5. Maintenance
5.1 Automatic Defrost
This appliance features an automatic defrost system, which minimizes ice buildup. During the defrost cycle, frost on the evaporator will melt and drain into a drip tray, where it evaporates. This reduces the need for manual defrosting.
5.2 Cleaning
- Interior: Clean the interior regularly with a mild detergent and warm water. Avoid abrasive cleaners or harsh chemicals. Remove shelves and clean them separately.
- Exterior: Wipe the stainless steel exterior with a soft cloth and a stainless steel cleaner. Do not use abrasive pads.
- Door Gasket: Clean the door gasket regularly to ensure a tight seal.
- Condenser Coils: Periodically clean the condenser coils located behind the front grille to ensure efficient operation. Unplug the unit before cleaning.
6. Troubleshooting
Before contacting customer service, please refer to the following troubleshooting guide for common issues:
| Problem | Possible Cause | Solution |
|---|---|---|
| Refrigerator does not operate. | No power, circuit breaker tripped, power cord loose. | Check power supply, reset circuit breaker, ensure cord is securely plugged in. |
| Temperature is not cold enough. | Door not closed properly, excessive door openings, high ambient temperature, blocked air vents, temperature setting too high. | Ensure door is sealed, reduce door openings, move unit to cooler location if possible, clear vents, lower temperature setting. |
| Unit is noisy. | Unit not level, vibrating against wall, normal compressor operation. | Adjust leveling feet, ensure clearance from walls, some noise from compressor is normal. |
| Water on floor. | Drain tube clogged or dislodged. | Clear drain tube, ensure it is correctly positioned in the drip tray. |
7. Specifications
| Feature | Detail |
|---|---|
| Model Number | HX-160BR |
| Capacity | 5.4 Cubic Feet (approx. 175 x 12 oz cans) |
| Dimensions (D x W x H) | 23.4"D x 23.6"W x 33.6"H |
| Cutout Dimensions (W x D x H) | 24"W x 24"D x 34.6"H |
| Weight | 88 Pounds |
| Temperature Range | 34°F to 65°F (1°C to 18°C) |
| Voltage | 115 Volts (AC) |
| Defrost System | Automatic |
| Shelves | 3, Adjustable Wire |
| Door Orientation | Reversible |
| Material | Stainless Steel |
| Certifications | ETL, DOE |
Image: A diagram illustrating the overall dimensions of the refrigerator, including height, width, and depth.
8. Warranty and Support
Warranty: This product comes with a 1-year warranty from the date of purchase. This warranty covers manufacturing defects and malfunctions under normal use. Please retain your proof of purchase for warranty claims.
Customer Support: For technical assistance, warranty claims, or any questions regarding your COTLIN refrigerator, please contact our customer support team. Refer to your purchase documentation or the manufacturer's website for contact details.
Note: Shipping damage cannot always be avoided. If your unit arrives damaged, please contact us promptly for assistance.
