Tatub Twin Over Full Bunk Bed with Trundle and Staircase Instruction Manual

1. Introduction

Thank you for choosing the Tatub Twin Over Full Bunk Bed with Trundle and Staircase. This manual provides detailed instructions for the safe assembly, operation, and maintenance of your new bunk bed. Please read all instructions carefully before beginning assembly and retain this manual for future reference.

This bunk bed features a twin bed over a full bed, a pull-out trundle, and a staircase with integrated storage shelves. It is designed for versatility and can be converted into separate beds.

2. Safety Information

Important: Failure to follow these safety guidelines may result in serious injury.

• Always follow the assembly instructions precisely.
• Ensure all connections are tight before use. Periodically check and tighten hardware as needed.
• The top bunk is equipped with full-length guardrails. Ensure they are properly installed and maintained.
• Weight Capacity:
  • Upper Bunk: 200 lbs
  • Lower Bunk: 250 lbs
  • Trundle Bed: 200 lbs
• Mattress Thickness: The maximum thickness for the top bunk mattress should be 6 inches or less.
• Do not allow children under 6 years of age on the upper bunk.
• Prohibit more than one person on the upper bunk.
• Always use the staircase for access to the upper bunk. Do not use chairs or other substitutes.
• Do not attach or hang items to any part of the bunk bed that are not designed for use with the bed; for example, but not limited to, hooks, belts, and jump ropes.
• Keep these instructions for future reference.

Image: Diagram illustrating the weight capacities for the upper bunk (200 lbs), lower bunk (250 lbs), and trundle (200 lbs), along with the recommended maximum mattress thickness of 6 inches for the top bunk.

3. Parts List

Before assembly, ensure all parts are present and undamaged. If any parts are missing or damaged, do not proceed with assembly. Contact Tatub customer support for assistance.

While a detailed parts diagram is not provided here, typical components include:

• Headboards and Footboards for Twin and Full beds
• Side Rails for Twin and Full beds
• Trundle Bed Frame and Wheels
• Staircase Unit with Storage Shelves
• Guardrails for Upper Bunk
• Slats for all bed frames (approximately 35 slats total)
• Hardware (screws, bolts, nuts, washers, dowels, Allen wrenches)

Image: An exploded view of the bunk bed showing various components such as bed frames, trundle, staircase, and slats, indicating the complexity of assembly.

4. Assembly Instructions

Assembly requires two adults and can take several hours. Follow the numbered steps provided in the manufacturer's packaging. Ensure you have adequate space and all tools (typically an Allen wrench is included, but a screwdriver may also be needed).

1. Unpack and Organize: Carefully unpack all components and lay them out on a clean, soft surface to prevent scratches. Group similar parts and hardware.
2. Assemble the Lower (Full) Bed Frame:
   • Attach the side rails to the headboard and footboard of the full-size bed using the provided hardware.
   • Insert the full-size bed slats into the designated slots or attach them with screws.
3. Assemble the Upper (Twin) Bed Frame:
   • Attach the side rails to the headboard and footboard of the twin-size bed.
   • Insert the twin-size bed slats.
4. Assemble the Trundle Bed:
   • Connect the trundle frame pieces and attach the wheels.
   • Install the trundle slats.
5. Assemble the Staircase Unit:
   • Construct the staircase frame, ensuring the storage shelves are correctly integrated. Note that the staircase is not reversible.
   • Attach the handrails to the staircase.


   Image: Close-up view of the staircase unit, highlighting the four steps, integrated storage shelves, and safety handrails.

6. Connect the Upper Bed to the Lower Bed: Carefully lift the assembled twin bed frame and secure it to the full bed frame using the provided connectors. Ensure proper alignment.
7. Attach Guardrails: Install the full-length guardrails to the upper bunk.
8. Attach Staircase: Securely attach the assembled staircase unit to the bunk bed structure.
9. Final Inspection: Double-check all bolts, screws, and connections to ensure they are tight and secure. Do not overtighten.

Note: Some users have reported issues with pre-drilled holes not aligning or missing. If you encounter such issues, contact customer support. Do not attempt to force parts together.

Image: A complete view of the assembled Tatub bunk bed, showcasing the twin upper bed, full lower bed, pull-out trundle, and the integrated staircase with storage.

5. Operating Instructions

5.1 Using the Trundle Bed

The trundle bed is designed for easy access and storage. Simply pull the trundle frame out from under the lower bunk when needed. The four wheels allow for smooth movement. Push it back in when not in use to save space.

Image: A detailed view of the trundle bed pulled out from beneath the main bed, showing its wheels and mattress support.

5.2 Using the Storage Staircase

The staircase provides safe access to the upper bunk. The steps also feature integrated shelves for storing books, toys, or other small items. Ensure items on shelves do not obstruct the path or create a tripping hazard.

Image: A close-up of the staircase showing the open shelves used for storage, with books and a stuffed animal visible.

5.3 Converting the Bed (3-in-1 Feature)

This bunk bed can be conveniently converted into separate twin and full beds, along with the trundle. To convert:

1. Carefully disassemble the upper bunk from the lower bunk.
2. Remove the staircase unit.
3. The twin bed, full bed, and trundle can then be used as individual units.

Note: Reassembly into bunk bed configuration will require following the assembly instructions in reverse for disassembly, and then the original assembly steps.

Image: A visual representation of the bunk bed converting into separate twin and full beds, demonstrating its versatility.

6. Maintenance

• Cleaning: Wipe the bed frame with a dry cloth to remove dust and dirt. Avoid using harsh chemicals or abrasive cleaners, which can damage the wood finish.
• Hardware Check: Periodically inspect all bolts, screws, and connections to ensure they remain tight. Retighten as necessary to maintain structural integrity and safety.
• Wood Care: The bed is crafted from solid pinewood. Protect it from extreme temperature changes and direct sunlight to prevent warping or fading.

7. Troubleshooting

• Missing or Damaged Parts: If you find any parts missing or damaged upon opening the package, do not proceed with assembly. Contact Tatub customer support immediately for replacement parts.
• Difficulty Assembling / Misaligned Holes: Some users have reported challenges with assembly due to misaligned or missing pre-drilled holes. If you encounter this, do not attempt to force parts. Contact customer support for guidance. Drilling new holes without proper instruction may void your warranty or compromise safety.
• Bed Feels Unstable: Ensure all hardware is fully tightened. If the bed still feels unstable, re-check the assembly steps to confirm all components are correctly installed.
• Trundle Not Rolling Smoothly: Check for any obstructions under the bed or debris in the trundle wheels. Ensure the wheels are securely attached.

8. Specifications

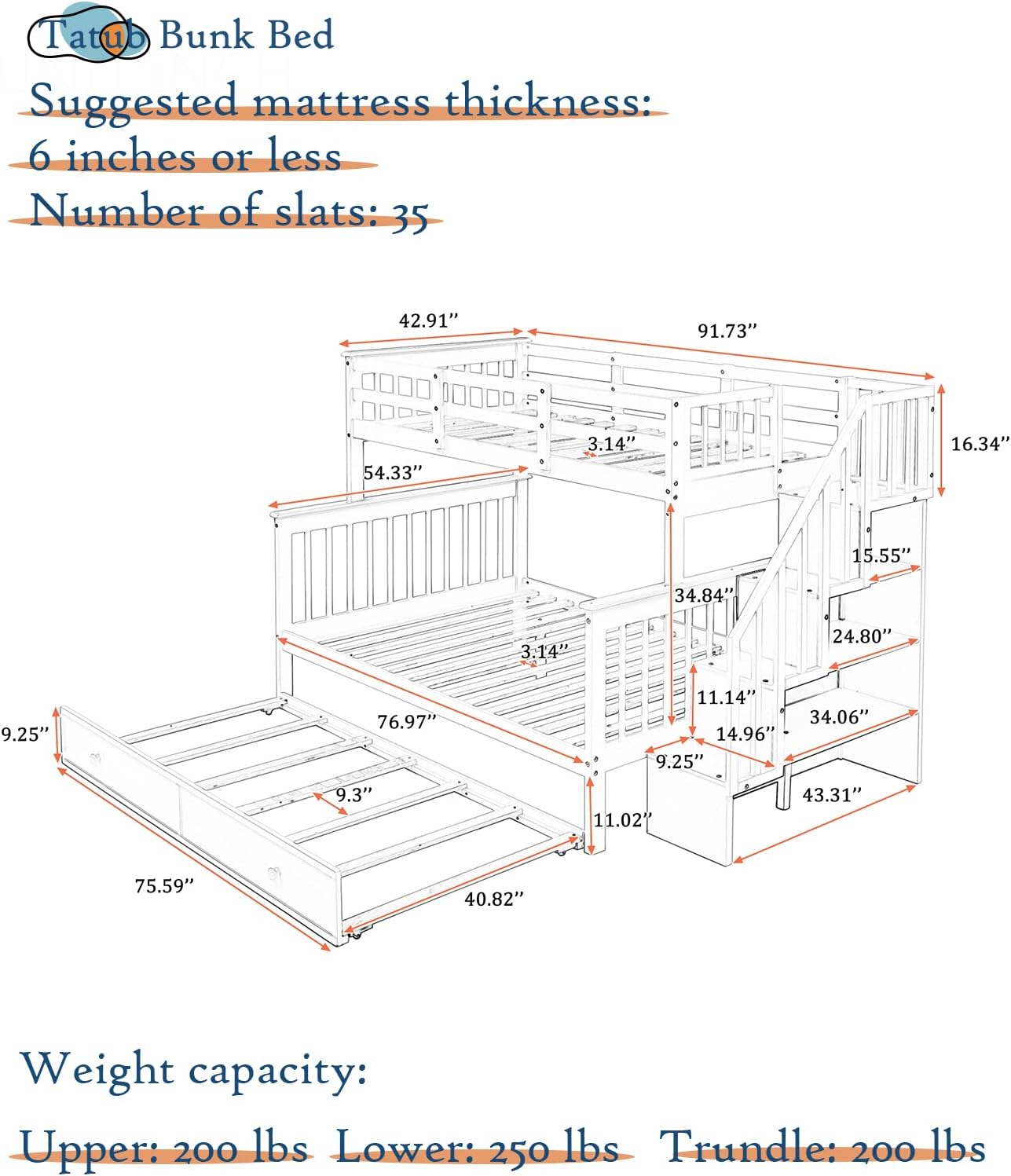

Image: Technical drawing with detailed measurements of the bunk bed, including length, width, and height of various sections.

9. Warranty and Customer Support

For warranty information, specific product support, or to report missing/damaged parts, please contact Tatub customer service directly. Refer to your purchase documentation for contact details or visit the official Tatub website.

When contacting support, please have your model number (Bunk Bed) and ASIN (B0BFDVGW9R) available.

You can also visit the Tatub Store on Amazon for more information.
