LP LIVING PLUS KEK-MS160

LP LIVING PLUS Electric Multifunctional Pot KEK-MS160 Instruction Manual

Model: KEK-MS160

Introduction

Thank you for purchasing the LP LIVING PLUS Electric Multifunctional Pot, Model KEK-MS160. This versatile appliance is designed for convenient cooking, boiling, and steaming. Please read this instruction manual thoroughly before first use to ensure safe operation and optimal performance. Keep this manual for future reference.

LP LIVING PLUS Electric Multifunctional Pot KEK-MS160 with features listed

Image: The LP LIVING PLUS Electric Multifunctional Pot, Model KEK-MS160, showcasing its design and key features like fast boiling, cordless operation, and stainless steel body.

Important Safety Instructions

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and injury to persons, including the following:

  • Read all instructions carefully before operating the appliance.
  • Do not touch hot surfaces. Use handles or knobs.
  • To protect against electrical shock, do not immerse the cord, plugs, or the appliance base in water or other liquid. The pot itself is not submersible.
  • Close supervision is necessary when any appliance is used by or near children.
  • Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.
  • Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner. Contact customer service for examination, repair, or adjustment.
  • The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock, or injury to persons.
  • Do not use outdoors.
  • Do not let the cord hang over the edge of a table or counter, or touch hot surfaces.
  • Do not place on or near a hot gas or electric burner, or in a heated oven.
  • Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
  • Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to "off", then remove plug from wall outlet.
  • Do not use the appliance for other than intended use.
  • Ensure the appliance is placed on a stable, heat-resistant surface.
  • Do not overfill the pot beyond the maximum fill line.

Product Components

The LP LIVING PLUS Electric Multifunctional Pot comes with the following components:

  • Main Pot Body: Stainless steel construction with a non-stick interior.
  • Glass Lid: Transparent lid with a heat-resistant handle.
  • Power Base: 360-degree rotating cordless base with cord storage.
  • Control Knob: For selecting Off, Warm, or Boil functions.
  • Steaming Wire Rack: For elevating items during steaming.
  • Steaming Bowl: For steaming smaller items or ingredients.

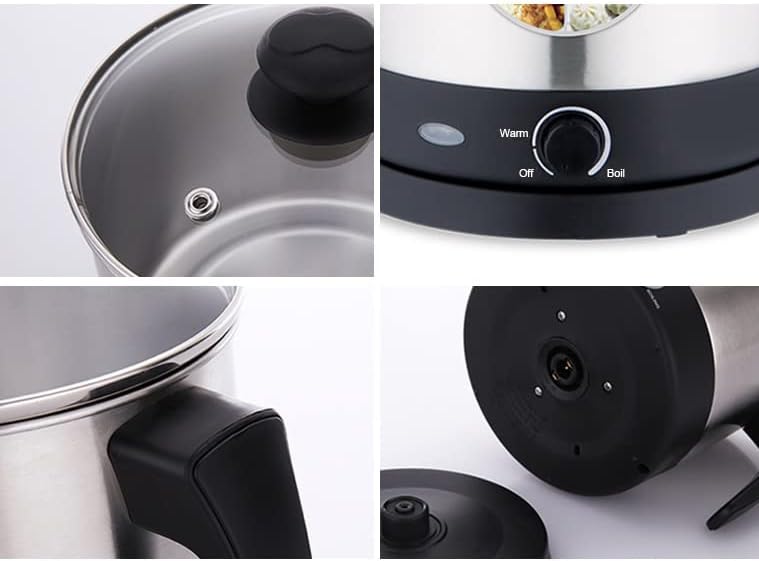

Close-up views of the pot's lid, control knob, handle, and detachable power base

Image: Detailed views of the pot's components, including the glass lid, ergonomic handle, control knob with 'Warm', 'Off', and 'Boil' settings, and the detachable power base.

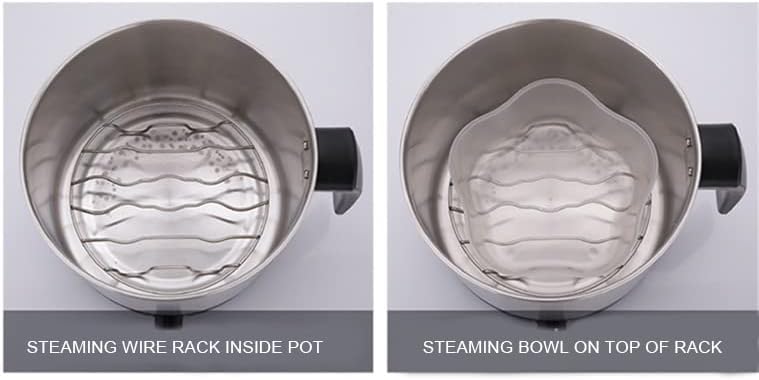

Steaming wire rack inside the pot and steaming bowl placed on top of the rack

Image: The steaming wire rack positioned inside the pot, and the steaming bowl placed on top of the rack, demonstrating how these accessories are used for steaming.

Initial Setup

  1. Unpack: Carefully remove all components from the packaging. Retain packaging for storage or future transport.
  2. Clean: Before first use, wash the pot, glass lid, steaming wire rack, and steaming bowl with warm, soapy water. Rinse thoroughly and dry completely. Do not immerse the power base in water.
  3. Placement: Place the power base on a dry, flat, and stable surface away from the edge of the counter.
  4. Connect: Place the main pot body onto the power base. Ensure it is seated correctly.
  5. Power: Plug the power cord into a standard electrical outlet.

Operating Instructions

Boiling Water or Cooking Liquids

  1. Ensure the pot is clean and properly placed on the power base.
  2. Fill the pot with the desired amount of water or liquid. Do not exceed the maximum fill line (2.0L capacity).
  3. Place the glass lid on the pot.
  4. Turn the control knob to the "Boil" position. The indicator light will illuminate.
  5. Once the liquid reaches a boil or cooking is complete, turn the control knob to "Off".
  6. Carefully remove the pot from the base by holding the handle. Be cautious of hot steam.

Steaming Food

  1. Add water to the main pot, ensuring it is below the level of the steaming wire rack.
  2. Place the steaming wire rack inside the pot.
  3. Place food directly on the wire rack or inside the steaming bowl, then place the bowl on the rack.
  4. Cover the pot with the glass lid.
  5. Turn the control knob to the "Boil" position.
  6. Steam for the recommended time for your food.
  7. Once steaming is complete, turn the control knob to "Off".
  8. Carefully remove the lid, being mindful of hot steam. Use oven mitts to remove the steaming rack/bowl.

Keeping Food Warm

  1. After cooking, turn the control knob to the "Warm" position.
  2. The pot will maintain a warm temperature. This setting is not for cooking.
  3. Do not leave food on the "Warm" setting for extended periods to prevent spoilage.

Care and Cleaning

Proper care and cleaning will extend the life of your multifunctional pot.

  1. Unplug and Cool: Always unplug the appliance from the power outlet and allow it to cool completely before cleaning.
  2. Pot Interior: Wash the interior of the pot with warm, soapy water and a soft sponge. For stubborn food residue, soak the pot in warm water before cleaning. Rinse thoroughly.
  3. Exterior: Wipe the exterior of the pot and the power base with a damp cloth. Do not use abrasive cleaners or scourers.
  4. Lid and Accessories: The glass lid, steaming wire rack, and steaming bowl are dishwasher safe or can be hand-washed with warm, soapy water.
  5. Drying: Ensure all parts are completely dry before storing or next use.
  6. Storage: Store the appliance in a dry place. The power cord can be wrapped around the base for neat storage.

Troubleshooting Guide

ProblemPossible CauseSolution
Appliance does not turn on.Not plugged in; power outlet malfunction; pot not seated correctly on base.Ensure power cord is securely plugged in. Test outlet with another appliance. Re-seat the pot firmly on the power base.
Water not boiling quickly.Too much water; low voltage.Ensure water level is within recommended limits. Check if other high-power appliances are on the same circuit.
Food sticking to the bottom.Insufficient liquid; cooking at too high a temperature for too long without stirring.Add more liquid if necessary. Stir food regularly. Ensure the pot is clean before use.
Steam escaping excessively from lid.Lid not properly seated.Adjust the lid to ensure it is securely placed on the pot.

Product Specifications

  • Model: KEK-MS160
  • Brand: LP LIVING PLUS
  • Capacity: 2.0 Liters
  • Material: Stainless Steel (Pot Body), Glass (Lid)
  • Product Dimensions (L x W x H): 6.2" x 6.2" x 8.4"
  • Item Weight: 1.08 Kilograms
  • Power: Electric
  • Features: Fast Boiling, Cordless 360-degree rotating base, One-button touch control (Off/Warm/Boil)
LP LIVING PLUS Electric Multifunctional Pot with dimensions 6.2 inches by 8.4 inches

Image: The electric multifunctional pot with its key dimensions indicated: 6.2 inches in width and 8.4 inches in height.

Warranty and Customer Support

For warranty information or customer support inquiries regarding your LP LIVING PLUS Electric Multifunctional Pot, please refer to the warranty card included with your purchase or contact the manufacturer directly. Keep your purchase receipt as proof of purchase.

Manufacturer: LP LIVING PLUS
