BLACK+DECKER BXSC16045GB 6.5L Digital Sear & Stew Slow Cooker User Manual

1. Important Safeguards

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

• Read all instructions before using the appliance.
• Do not touch hot surfaces. Use handles or knobs.
• To protect against electrical shock, do not immerse cord, plugs, or the main unit in water or other liquid.
• Close supervision is necessary when any appliance is used by or near children.
• Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts.
• Do not operate any appliance with a damaged cord or plug, or after the appliance malfunctions or has been damaged in any manner.
• The use of accessory attachments not recommended by the appliance manufacturer may cause injuries.
• Do not use outdoors.
• Do not let cord hang over edge of table or counter, or touch hot surfaces.
• Do not place on or near a hot gas or electric burner, or in a heated oven.
• Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
• Always attach plug to appliance first, then plug cord into the wall outlet. To disconnect, turn any control to 'off', then remove plug from wall outlet.
• Do not use appliance for other than intended use.
• The removable pot is hob-proof but ensure it is suitable for your hob type (e.g., induction, gas, electric).

2. Product Overview

The BLACK+DECKER BXSC16045GB is a 6.5L digital slow cooker designed for versatile cooking. It features a removable hob-proof pot, digital controls, and multiple heat settings.

Figure 1: The BLACK+DECKER BXSC16045GB slow cooker with stainless steel finish and digital control panel.

Components:

• Main Unit: The outer housing containing the heating element and control panel.
• Removable Aluminium Pot: A 6.5-liter capacity pot suitable for searing on hobs and slow cooking.
• Tempered Glass Lid: Allows monitoring of cooking progress and retains moisture.
• Digital Control Panel: Features an LED display, heat setting indicators (High, Low, Warm), and function buttons.

Figure 2: An infographic highlighting the 6.5L capacity, removable hob-proof pot, 3 heat settings, LED display, tempered glass lid, and easy cleaning features of the slow cooker.

3. Before First Use

Before using your slow cooker for the first time, follow these steps:

1. Remove all packaging materials and labels.
2. Wash the removable aluminum pot and tempered glass lid in warm, soapy water. Rinse thoroughly and dry completely. The pot and lid are also dishwasher safe.
3. Wipe the exterior of the main unit with a damp cloth. Do not immerse the main unit in water.
4. Ensure all parts are dry before assembly and use.

4. Setup

To set up your slow cooker:

1. Place the main unit on a stable, heat-resistant, and dry surface, away from the edge of the countertop.
2. Ensure there is adequate ventilation around the appliance.
3. Place the removable aluminum pot into the main unit.
4. Plug the power cord into a suitable 220V electrical outlet. The LED display will illuminate.

5. Operating Instructions

5.1. Sear & Sauté Function

The removable aluminum pot is hob-proof, allowing you to sear or sauté ingredients directly on your stovetop before slow cooking. This helps to enhance flavors and reduce the need for additional cookware.

1. Remove the aluminum pot from the main unit.
2. Place the pot directly onto your hob (gas, electric, or induction compatible).
3. Add oil or butter and sear/sauté your ingredients as desired.
4. Once searing is complete, carefully transfer the hot pot back into the main unit of the slow cooker.

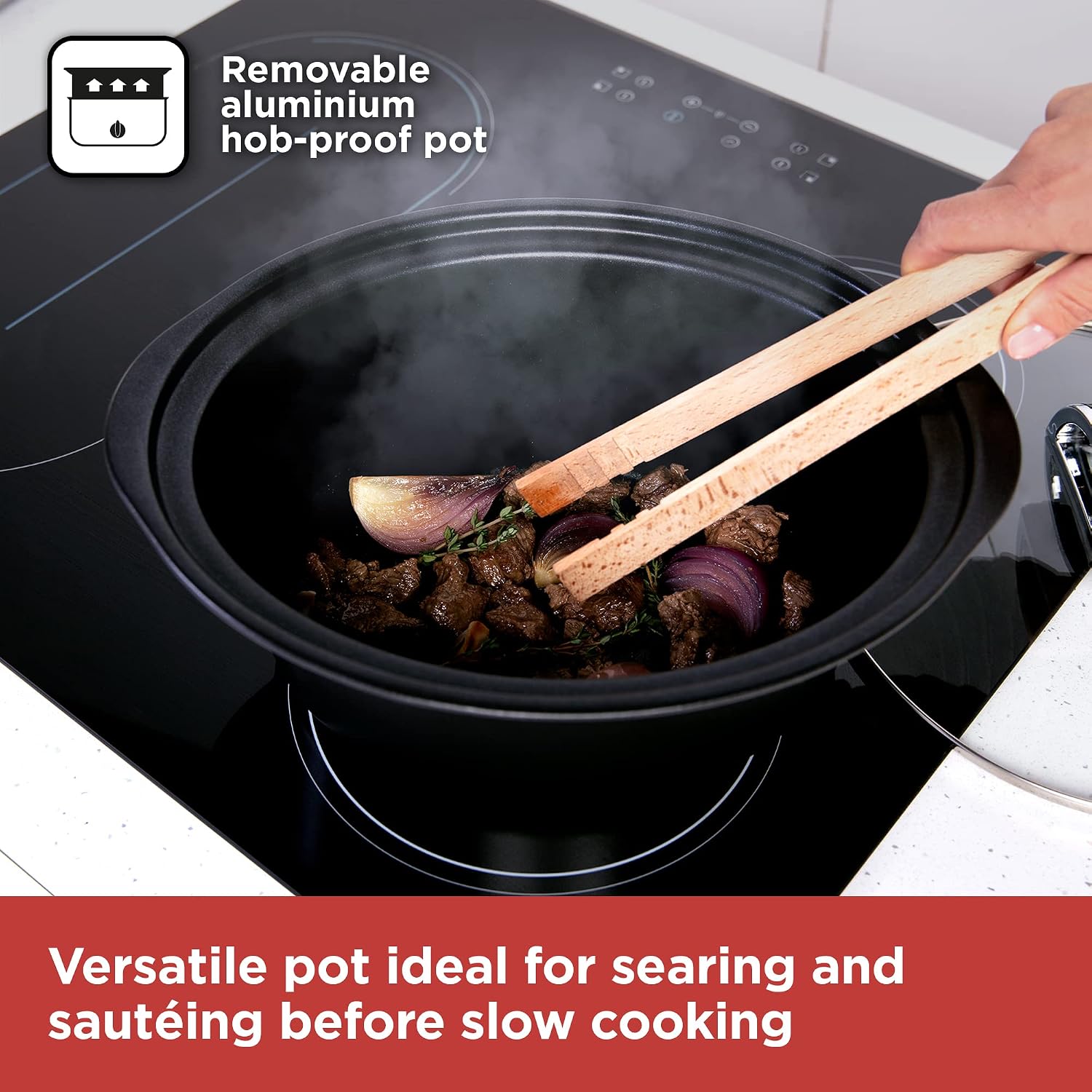

Figure 3: The removable aluminum pot being used on an induction hob to sear ingredients before slow cooking.

5.2. Slow Cooking

After preparing your ingredients and placing them in the pot, you can begin the slow cooking process.

1. Place the tempered glass lid onto the pot.
2. Use the digital control panel to select your desired heat setting:
• High: For faster cooking, typically 2-4 hours.
• Low: For slower cooking, typically 6-8 hours.
• Warm: Automatically activates after cooking to keep food at serving temperature.
3. Adjust the cooking time using the controls. The LED display will show the remaining cooking time.
4. The slow cooker will automatically switch to the 'Warm' setting once the cooking time is complete.

Figure 4: The digital control panel showing High, Low, Warm indicators, a timer display, and buttons for cooking and delay functions.

5.3. Delay Function

The delay function allows you to set a specific time for the slow cooker to start cooking. This is convenient for preparing meals in advance.

1. Load your ingredients into the pot and place the lid.
2. Select your desired heat setting (High or Low).
3. Press the 'Delay' button and adjust the delay time using the controls. The LED display will show the delay countdown.
4. Once the delay time expires, the slow cooker will automatically begin cooking on the selected heat setting.

Figure 5: The tempered glass lid in place on the slow cooker, allowing visibility of contents while cooking and retaining moisture.

6. Cleaning and Maintenance

Proper cleaning and maintenance ensure the longevity and optimal performance of your slow cooker.

1. Always unplug the slow cooker from the power outlet and allow it to cool completely before cleaning.
2. Removable Pot and Lid: The aluminum pot and tempered glass lid are dishwasher safe. Alternatively, wash them in warm, soapy water, rinse, and dry thoroughly. Do not use abrasive cleaners or scouring pads that could damage the non-stick coating or glass.
3. Main Unit: Wipe the exterior of the main unit with a soft, damp cloth. Do not use abrasive cleaners. Never immerse the main unit in water or any other liquid.
4. Storage: Store the slow cooker in a dry place. You can store the lid inverted on the pot, and the pot inside the main unit to save space.

Figure 6: An icon representing the easy cleaning features of the slow cooker, including dishwasher-safe components.

7. Troubleshooting

If you encounter issues with your slow cooker, refer to the following common problems and solutions:

8. Specifications

Technical specifications for the BLACK+DECKER BXSC16045GB Slow Cooker:

9. Warranty and Support

This BLACK+DECKER BXSC16045GB Slow Cooker comes with a 2-year guarantee from the date of purchase. Please retain your proof of purchase for warranty claims.

Figure 7: A graphic indicating a 2-year guarantee for the product.

For technical support, warranty service, or to inquire about replacement parts, please visit the official BLACK+DECKER website or contact their customer service department. Contact information can typically be found on the brand's official website or in the product packaging.
