Introduction
This manual provides detailed instructions for the assembly, operation, and maintenance of your Generic KOMPLEMENT Pull-Out Rail for Baskets. This product is designed to enhance the functionality of your closet system by allowing baskets to slide in and out smoothly. Please read this manual thoroughly before installation and use to ensure proper function and safety.
Safety Information
- Always ensure all components are securely fastened before use.
- Do not overload baskets, as this may damage the rails or the closet structure.
- Keep small parts away from children during assembly.
- Use appropriate tools for assembly to prevent injury or damage to the product.
- If any part is damaged or missing, do not proceed with assembly. Contact customer support.
Package Contents
Verify that all components are present before beginning assembly:
- 2 x Pull-Out Rails (Dark Gray, approximately 22 7/8" length)
- Mounting Hardware (screws, brackets - quantity may vary, refer to packaging)
Note: Baskets are sold separately and are not included with this product.
Setup and Assembly Instructions
Follow these steps to properly install the pull-out rails in your closet system:
- Prepare the Cabinet: Ensure the interior of your closet or cabinet is clean and free of obstructions. Determine the desired height for your basket.
- Position the Rails: Hold one pull-out rail against the inner side panel of your cabinet at the desired height. Ensure it is level. The end with the larger, circular mounting plate typically faces the front of the cabinet opening.
- Mark Drilling Points: Using a pencil, mark the positions for the screws through the pre-drilled holes on the rail. Repeat for the second rail on the opposite side panel, ensuring both rails are at the same height and parallel to each other.
- Attach Rails: Using appropriate screws (provided in mounting hardware), securely fasten each rail to the cabinet side panels. Do not overtighten.
- Install Brackets (if applicable): If your model includes small L-shaped brackets (as shown in the image), these typically attach to the rear of the basket and then slide into a slot on the rail, or they might be used to secure the rail to the back wall for added stability. Refer to specific diagrams on your product packaging if available.
- Insert Basket: Once both rails are securely mounted, carefully slide your compatible KOMPLEMENT basket onto the rails. Ensure it glides smoothly without resistance.

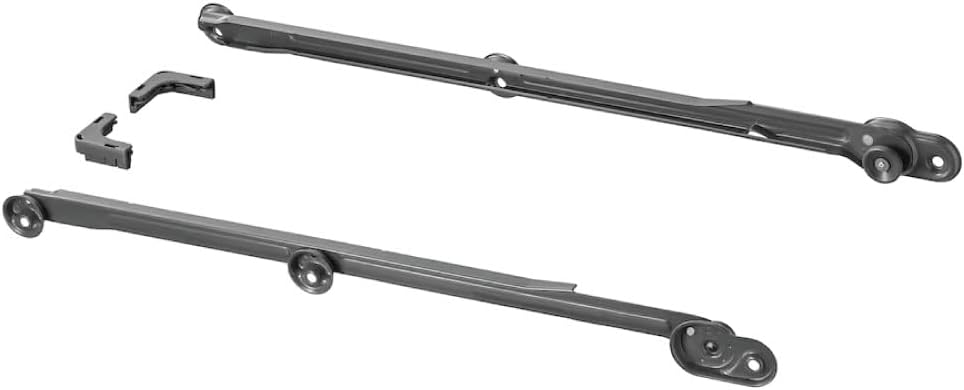

Image 1: Components of the KOMPLEMENT Pull-Out Rail system. This image displays two dark gray metal pull-out rails, each approximately 22 7/8 inches long, featuring circular mounting points at both ends and a central support point. Also visible are two smaller, L-shaped dark gray plastic or metal brackets, which are typically used for securing the basket to the rails or for additional rail support.
Operating Instructions
Using the pull-out rails with your compatible KOMPLEMENT basket is straightforward:
- To access items, gently pull the basket outwards until it reaches its full extension.
- To close, push the basket inwards until it is fully recessed within the cabinet.
- Avoid forcing the basket if it encounters resistance. Check for obstructions or misalignment.
Maintenance
Regular maintenance ensures the longevity and smooth operation of your pull-out rails:
- Cleaning: Wipe the rails with a soft, damp cloth. Use a mild detergent if necessary, then wipe dry. Avoid abrasive cleaners or solvents.
- Inspection: Periodically check all screws and mounting points to ensure they remain tight. Retighten if necessary.
- Lubrication: If the rails begin to stick or become difficult to slide, a small amount of silicone-based lubricant can be applied to the sliding mechanisms. Avoid oil-based lubricants as they can attract dust.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Basket does not slide smoothly. | Rails are misaligned or dirty. | Check that rails are parallel and level. Clean rails and apply lubricant if needed. |
| Basket falls off rails. | Basket not properly seated or damaged. | Ensure basket is correctly placed on both rails. Inspect basket and rails for damage. |
| Rails feel loose. | Mounting screws are loose. | Retighten all mounting screws. |
Specifications
- Model Number: 102.632.32
- Product Dimensions (Packaging): 23 x 23 x 1 inches
- Finish: Steel
- Material: Alloy Steel, Polyester
- Color: Dark Gray
- Special Feature: Stackable (system compatibility)
- Number of Items: 2 (rails)
Warranty and Support
For warranty information or technical support, please refer to the documentation provided with your purchase or contact the retailer/manufacturer directly. Specific warranty terms and support channels may vary.
