Instruction Manual for Radiator Tube LR014567
Brand: MOLEI-AUTO
Model: 9331562767430
1. Introduction
This manual provides essential information for the proper installation, operation, and maintenance of the MOLEI-AUTO Radiator Tube, part number LR014567. This component is designed to be compatible with specific LR vehicle models, serving as a critical part of the engine's cooling system.
The radiator tube facilitates the flow of coolant between various components of the cooling system, ensuring optimal engine temperature regulation. Proper functioning of this tube is vital for preventing engine overheating and maintaining vehicle performance.
Important: Please double confirm the matching OE number of your corresponding vehicle model before purchasing and installation. If you are unsure about compatibility, please provide your vehicle identification number (VIN) to the supplier or a qualified technician to verify suitability.
2. Setup and Installation
Installation of automotive cooling system components requires careful attention to detail and safety. If you are not experienced with automotive repairs, it is highly recommended to seek professional assistance.
2.1. Safety Precautions
- Ensure the vehicle's engine is completely cool before beginning any work on the cooling system. Hot coolant and engine parts can cause severe burns.
- Disconnect the vehicle's battery to prevent accidental electrical shorts.
- Wear appropriate personal protective equipment, including safety glasses and gloves.
- Dispose of old coolant responsibly according to local regulations.
2.2. Tools Required
- Socket/Wrench set
- Screwdriver set
- Hose clamp pliers
- Drain pan for coolant
- Funnel for refilling coolant
- New coolant (compatible with your vehicle)
2.3. Installation Steps
- Drain Coolant: Place a drain pan under the radiator and open the drain cock or remove the lower radiator hose to drain the coolant.
- Locate and Remove Old Tube: Identify the radiator tube to be replaced. Use hose clamp pliers to loosen and remove the clamps securing the old tube. Carefully detach the tube from its connections.
- Inspect Connections: Clean the connection points on the radiator and engine/thermostat housing to ensure they are free of debris or old gasket material.
- Install New Tube: Position the new MOLEI-AUTO Radiator Tube LR014567, ensuring it aligns correctly with the connection points. Secure it with new or properly functioning hose clamps. Ensure clamps are tight but do not overtighten.
- Refill Coolant: Close the radiator drain cock or reattach the lower hose. Refill the cooling system with the manufacturer-recommended coolant. Follow the vehicle manufacturer's procedure for bleeding air from the cooling system.
- Check for Leaks: Start the engine and allow it to reach operating temperature. Carefully inspect all connections for any signs of leaks. Monitor the coolant level and top up as necessary after the engine cools down.
Figure 2.3.1: Main view of the MOLEI-AUTO Radiator Tube LR014567. This image shows the overall shape and connections of the tube, highlighting its specific design for vehicle integration.

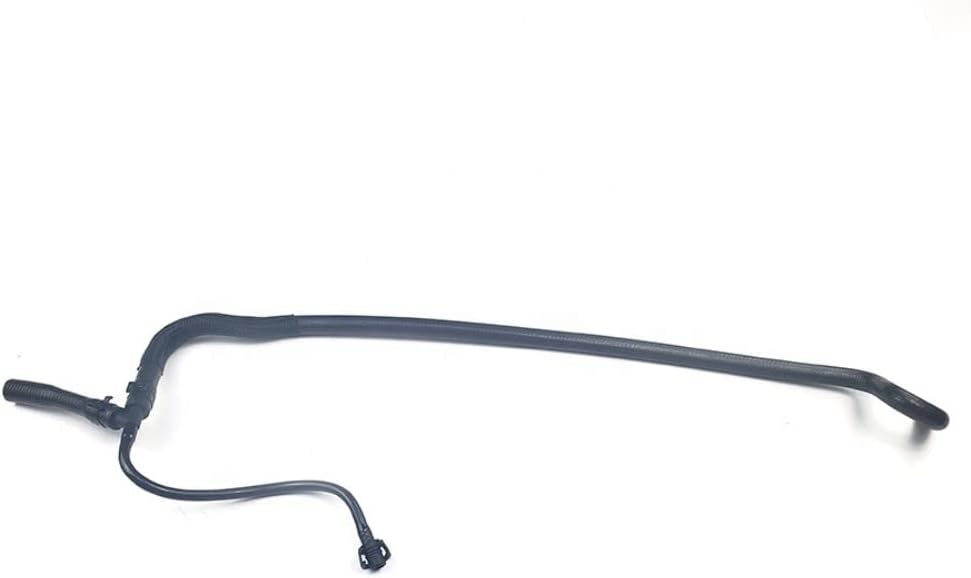

Figure 2.3.2: Full length view of the radiator tube, illustrating its complete form and the various bends and connectors along its length. This view helps in identifying the correct routing during installation.
3. Operation
The MOLEI-AUTO Radiator Tube LR014567 is a passive component within the vehicle's cooling system. Once correctly installed, it operates continuously as part of the engine's thermal management system without requiring direct user interaction.
Its primary function is to transport heated coolant from the engine to the radiator for cooling, and then return the cooled fluid back to the engine. This continuous circulation is crucial for maintaining the engine within its optimal operating temperature range, preventing both overheating and undercooling.
The tube is designed to withstand the temperatures and pressures typically found in a vehicle's cooling system. Proper operation is indicated by stable engine temperature readings on the vehicle's dashboard and the absence of coolant leaks.
4. Maintenance
Regular inspection and basic maintenance of your vehicle's cooling system, including the radiator tube, can significantly extend its lifespan and prevent costly repairs.
4.1. Routine Checks
- Visual Inspection: Periodically inspect the radiator tube for any signs of wear, cracks, bulges, hardening, or softening. Check for any coolant residue around the connections or along the tube, which indicates a leak.
- Hose Clamps: Ensure that all hose clamps are secure and free from corrosion. Loose clamps can lead to leaks.
- Coolant Level: Regularly check the coolant level in the reservoir when the engine is cool. A consistently low coolant level without visible leaks may indicate an internal issue.
4.2. Coolant System Care
- Coolant Quality: Use only the type of coolant specified by your vehicle manufacturer. Mixing incompatible coolants can lead to corrosion and damage to cooling system components.
- Coolant Flush: Follow your vehicle manufacturer's recommendations for coolant flush and replacement intervals. Old or contaminated coolant can degrade hoses and other components.
Figure 4.2.1: Close-up view of a connection point on the radiator tube. Regular inspection of these areas for leaks or deterioration is crucial for proper maintenance.
5. Troubleshooting
This section outlines common issues related to radiator tubes and their potential solutions. Always prioritize safety and consult a professional if you are unsure about diagnosing or repairing a problem.
| Problem | Possible Cause | Solution |
|---|---|---|
| Coolant Leak from Tube | Loose hose clamps, cracked or punctured tube, degraded rubber. | Tighten clamps, inspect tube for damage. If damaged, replace the tube. |
| Engine Overheating | Low coolant level, air in cooling system, restricted coolant flow (clogged tube), faulty thermostat, radiator issues. | Check coolant level and top up. Bleed air from system. Inspect tube for blockages. Consult a mechanic for other cooling system components. |
| Tube Swelling or Collapsing | Internal pressure issues, degraded rubber, faulty radiator cap, blockages. | Inspect radiator cap. Check for blockages in the system. Replace the tube if it shows signs of structural degradation. |
| Unusual Noises (e.g., Hissing) | Coolant leak under pressure. | Immediately inspect the tube and connections for leaks. Do not drive the vehicle if a significant leak is present. |
If troubleshooting steps do not resolve the issue, or if you suspect a more complex problem, it is advisable to consult a certified automotive technician.
6. Specifications
Key specifications for the MOLEI-AUTO Radiator Tube LR014567 are provided below:
- Manufacturer: MOLEI-AUTO
- Brand: MOLEI-AUTO
- Manufacturer Part Number: 9331562767430
- ASIN: B0BF4B12XB
- Exterior Finish: Smooth
- Date First Available: September 4, 2022
- Compatibility: Compatible with LR models (verify OE number LR014567)
7. Warranty and Support
For specific warranty terms and conditions related to your MOLEI-AUTO Radiator Tube LR014567, please refer to the documentation provided at the time of purchase or contact the seller directly. Warranty coverage typically addresses manufacturing defects.
If you require technical assistance, have questions regarding compatibility, or need to report an issue with the product, please contact MOLEI-AUTO customer support or the authorized reseller from whom you purchased the product. When contacting support, please have your purchase details and the product's model number (9331562767430) ready.
