1. Introduction
This manual provides essential information for the safe assembly, operation, and maintenance of your Soozier Multifunction Home Gym Equipment, Model A91-132. This equipment is designed to offer a comprehensive strength training experience for various muscle groups, including arms, legs, and core, through exercises such as lat pulldowns, butterfly presses, chest presses, seated rows, preacher curls, and leg extensions.
Please read this manual thoroughly before using the equipment. Retain this manual for future reference.
Image 1.1: The Soozier Multifunction Home Gym Equipment, Model A91-132.
2. Safety Instructions
To prevent injury, always adhere to the following safety guidelines:
- Consult a Physician: Before beginning any exercise program, consult with a healthcare professional to ensure you are physically able to use this equipment.
- Read All Instructions: Familiarize yourself with all assembly and operating instructions before use.
- Proper Assembly: Ensure all parts are correctly assembled and tightened according to the instructions. Improper assembly can lead to instability and injury.
- Inspect Equipment: Before each use, inspect the equipment for worn, loose, or damaged parts. Pay close attention to cables, pulleys, and connection points. Do not use the equipment if any components are compromised.
- Proper Form: Always use proper exercise form to avoid muscle strain or injury. If you experience pain or discomfort, stop exercising immediately.
- Clearance Area: Maintain a clear area of at least 2 feet (0.6 meters) around the equipment during use.
- Supervision: Keep children and pets away from the equipment at all times. This equipment is not a toy.
- Weight Limit: The maximum recommended user weight for this equipment is 264 pounds (120 kg). Do not exceed this limit.
- Stable Surface: Place the equipment on a flat, stable surface to prevent tipping.
- Secure Weight Stack: Ensure the weight stack pin is fully inserted into the desired weight plate before starting an exercise.
3. Components Overview
The Soozier Multifunction Home Gym Equipment consists of a robust steel frame, a 99 lbs (45 kg) adjustable weight stack, a system of nylon-coated steel cables and pulleys, and various padded components for user comfort and support. Key components include:
- Main Frame Structure
- Weight Stack (10 levels, 99 lbs total)
- Lat Pulldown Bar
- Chest Press/Butterfly Arms with padded handles
- Preacher Curl Pad
- Leg Extension Bar with padding
- Seat and Backrest pads
- Cable and Pulley System
A detailed parts list and assembly diagrams are provided in the physical instruction manual included with your product. Please refer to that document for specific component identification.

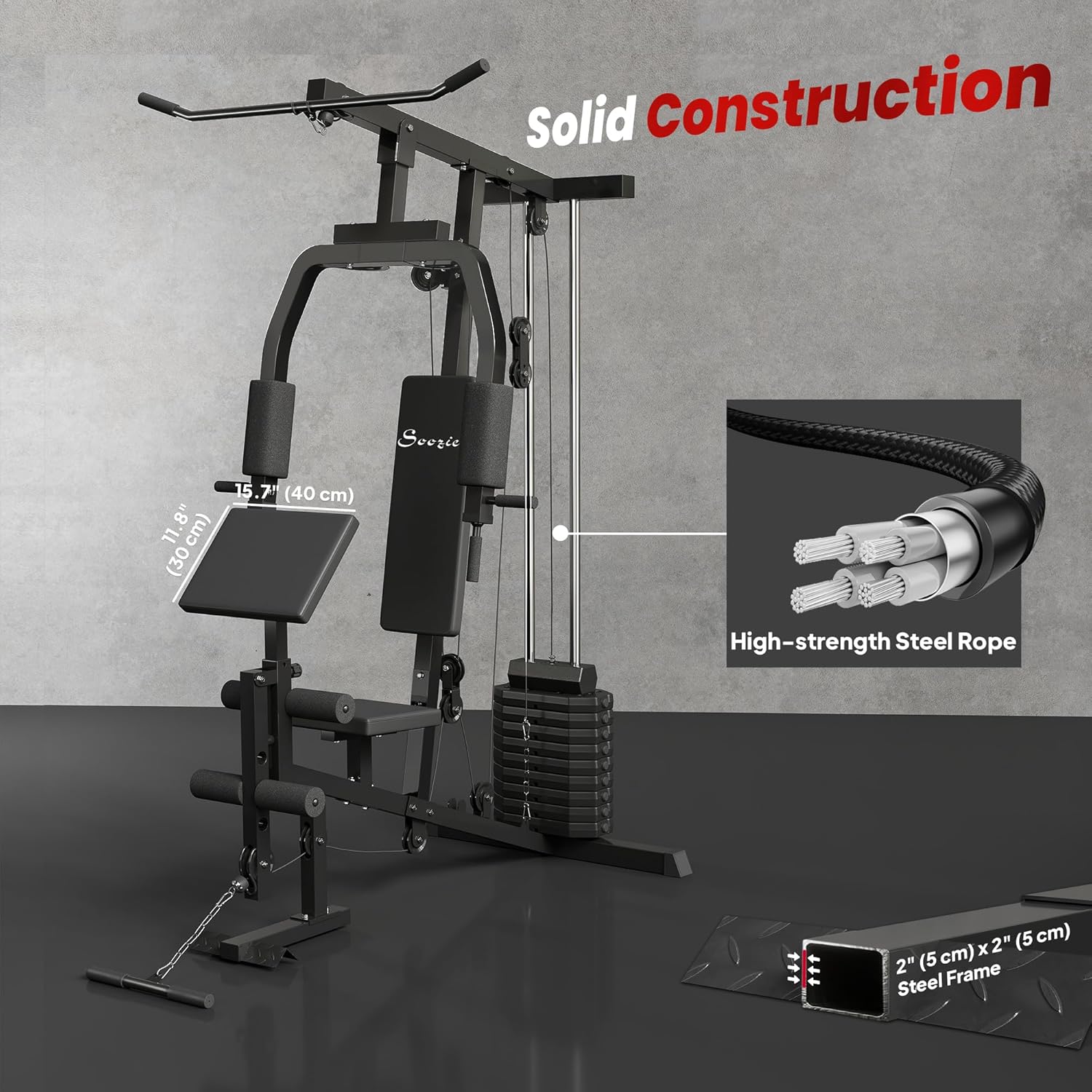

Image 3.1: Illustration of the equipment's solid construction, highlighting the steel frame and high-strength steel rope.
4. Setup and Assembly
Assembly of the Soozier Multifunction Home Gym Equipment requires careful attention to detail. It is recommended that two adults perform the assembly process.
- Unpack Components: Carefully unpack all boxes and lay out the components. Note that the equipment is shipped in four separate packages, which may arrive on different dates. Verify all parts against the included parts list.
- Prepare Workspace: Choose a clear, level area for assembly. Ensure sufficient space around the equipment for safe operation once assembled.
- Follow Manual Diagrams: Refer to the step-by-step diagrams and instructions in the physical assembly manual. Assemble the main frame first, ensuring all bolts are securely tightened.
- Install Pulleys and Cables: This step often requires careful attention. Follow the cable routing diagrams precisely to ensure smooth operation and prevent premature wear. Incorrect cable routing can affect functionality and safety.
- Attach Weight Stack: Install the weight plates and guide rods as instructed. Ensure the weight stack pin can be easily inserted and removed to select desired resistance levels.
- Final Checks: Once assembled, perform a thorough inspection. Check all bolts, nuts, and connections for tightness. Test the movement of all cables and pulleys to ensure they operate smoothly without obstruction.
If you encounter any difficulties during assembly or find missing/damaged parts, refer to the 'Troubleshooting' section or contact customer support.
5. Operating Instructions and Exercises
The Soozier Multifunction Home Gym offers a variety of exercises targeting different muscle groups. Always warm up before exercising and cool down afterwards.
5.1. Adjusting Weight Resistance
The equipment features a 10-level adjustable weight stack totaling 99 lbs (45 kg). To adjust the resistance, simply insert the weight stack pin into the desired weight plate. Ensure the pin is fully engaged before beginning your exercise.
5.2. Performing Exercises
Below are examples of exercises you can perform. Always maintain controlled movements and proper breathing.
Image 5.1: Chest Press
Image 5.2: Multiple Workout Types
- Chest Press: Sit on the seat with your back against the backrest. Grip the handles of the chest press arms. Push forward, extending your arms, then slowly return to the starting position.
- Lat Pulldown: Sit facing the machine, grasp the lat pulldown bar with an overhand grip. Pull the bar down towards your upper chest, squeezing your shoulder blades together. Slowly release the bar back up.
- Butterfly (Pec Deck): Sit on the seat, facing the machine. Place your forearms against the padded levers. Bring the levers together in front of your chest, then slowly return to the starting position.
- Preacher Bicep Curls: Adjust the preacher curl pad to a comfortable height. Rest your upper arms on the pad, grip the curl bar (attached to the lower cable). Curl the bar upwards, contracting your biceps, then slowly lower it.
- Leg Extensions: Sit on the seat, placing your shins behind the padded leg extension bar. Adjust the angle of the leg extension bar from 0-90 degrees for comfort. Extend your legs forward, contracting your quadriceps, then slowly lower the weight.
- Seated Row: Sit on the floor or a low bench facing the machine, with your feet against the footplate (if available). Grasp the handle attached to the lower cable. Pull the handle towards your abdomen, squeezing your shoulder blades. Slowly extend your arms back.
Image 5.3: Training parameters for Lat Pulldown and Preacher Curls.
6. Maintenance
Regular maintenance ensures the longevity and safe operation of your home gym equipment.
- Routine Inspection: Periodically check all nuts, bolts, and moving parts for tightness. Tighten any loose fasteners.
- Cable and Pulley Check: Inspect the nylon-coated steel cables for fraying, kinks, or wear. Check pulleys for smooth rotation and ensure they are free of debris. Replace any damaged cables or pulleys immediately.
- Cleaning: Wipe down the frame and padded surfaces with a damp cloth after each use to remove sweat and dust. Avoid abrasive cleaners or solvents.
- Lubrication: Apply a silicone-based lubricant to guide rods and pivot points as needed to ensure smooth operation and prevent squeaking.
- Storage: Store the equipment in a dry, clean environment away from direct sunlight and extreme temperatures.
7. Troubleshooting
This section addresses common issues you might encounter with your Soozier Home Gym.
| Problem | Possible Cause | Solution |
|---|---|---|
| Equipment feels stiff or noisy during operation. | Lack of lubrication, loose fasteners, or debris in pulleys. | Lubricate guide rods and pivot points. Check and tighten all fasteners. Clean pulleys and cable paths. |
| Cables are not moving smoothly or appear frayed. | Incorrect cable routing, worn cables, or damaged pulleys. | Review the assembly manual for correct cable routing. Inspect cables and pulleys for damage; replace if necessary. |
| Missing or damaged parts upon delivery. | Shipping error or manufacturing defect. | Contact customer support immediately with your purchase details and a description of the issue. |
| Difficulty with assembly. | Unclear instructions or complex steps. | Carefully re-read the assembly manual and review diagrams. Consider seeking assistance from another person. Contact customer support if issues persist. |
8. Specifications
Key technical specifications for the Soozier Multifunction Home Gym Equipment, Model A91-132:
- Model Number: A91-132
- Overall Dimensions: 58.25" L x 42.5" W x 81.5" H (148 cm L x 108 cm W x 207 cm H)
- Weight Stack: 99 lbs (45 kg), 10 adjustable levels
- Maximum User Weight: 264 lbs (120 kg)
- Materials: Steel frame, PU padding
- Color: Black
- Recommended User Height: 63" - 78.75" (160 cm - 200 cm)
- Lat Pulldown Distance: 35.4" (90 cm)
- Preacher Pad Height: 24.8" - 32.7" (63 cm - 83 cm)
- Leg Extension Bar Adjustment: 0-90 degrees
- UPC: 673986086612
Image 8.1: Dimensional overview of the Soozier Multifunction Home Gym.
9. Warranty Information
Specific warranty details for the Soozier Multifunction Home Gym Equipment are typically provided with your purchase documentation or on the manufacturer's official website. Please refer to these sources for information regarding warranty coverage, duration, and terms. Keep your proof of purchase for any warranty claims.
10. Customer Support
For assistance with assembly, missing parts, troubleshooting, or any other inquiries regarding your Soozier Multifunction Home Gym Equipment, please contact the manufacturer or seller directly.
Manufacturer: Aosom Canada
Contact Information: Refer to the contact details provided in your purchase documentation or visit the official Soozier or Aosom Canada website for customer service options.
When contacting support, please have your model number (A91-132) and proof of purchase readily available.
