Introduction
Thank you for choosing the FOCUHUNTER 1x28mm Lightweight Fiber Optic Red Dot Sight. This sight is designed for quick target acquisition and enhanced accuracy, particularly suitable for shotguns with rib rails. Its lightweight, battery-free design and automatic brightness adjustment make it ideal for various daytime outdoor activities. Please read this manual thoroughly before installation and use to ensure proper operation and longevity of your product.
Product Overview
Key Features
- Magnification: 1x for true-to-life viewing.
- Objective Lens Diameter: 28mm for a wide field of view.
- Lightweight Design: Weighs only 50g for minimal impact on firearm balance.
- Battery-Free Operation: Utilizes fiber optics for illumination, eliminating the need for batteries.
- Automatic Brightness Adjustment: Reticle brightness adapts to ambient light conditions.
- Unlimited Eye Relief: Provides flexibility in mounting position and comfortable viewing.
- Parallax-Free: Accurate aiming within 50 meters.
- Durable Construction: Made from aluminum for robust performance.
Package Contents
Verify that all items listed below are included in your package:
- 1x FOCUHUNTER 1x28mm Fiber Optic Red Dot Sight
- 1x Allen Wrench
- 1x Lens Cleaning Cloth
Image: Included components of the FOCUHUNTER Red Dot Sight.
Technical Specifications
| Specification | Value |
|---|---|
| Model Number | MZJ-RDP-0151 |
| Magnification | 1x |
| Objective Lens Diameter | 28mm |
| Reticle Type | Red Dot |
| Eye Relief | Unlimited |
| Parallax-Free Distance | Within 50m |
| Weight | 50g |
| Material | Aluminum |
| Mounting Compatibility | 5.5-10mm Shotgun Rib Rails |
| Night Vision Capability | No |
| Real Field of View | 6 degrees |
Image: Product dimensions and weight.
Setup
Mounting the Red Dot Sight
This red dot sight is specifically designed for shotguns with 5.5-10mm wide rib rails. Ensure your firearm has a compatible rib rail before attempting installation.
- Identify the mounting screws on the base of the red dot sight.
- Carefully align the sight's base with the rib rail on your shotgun.
- Using the provided Allen wrench, gently tighten the mounting screws to secure the sight to the rail. Do not overtighten, as this may damage the rail or the sight.
- Ensure the sight is firmly attached and does not wobble.

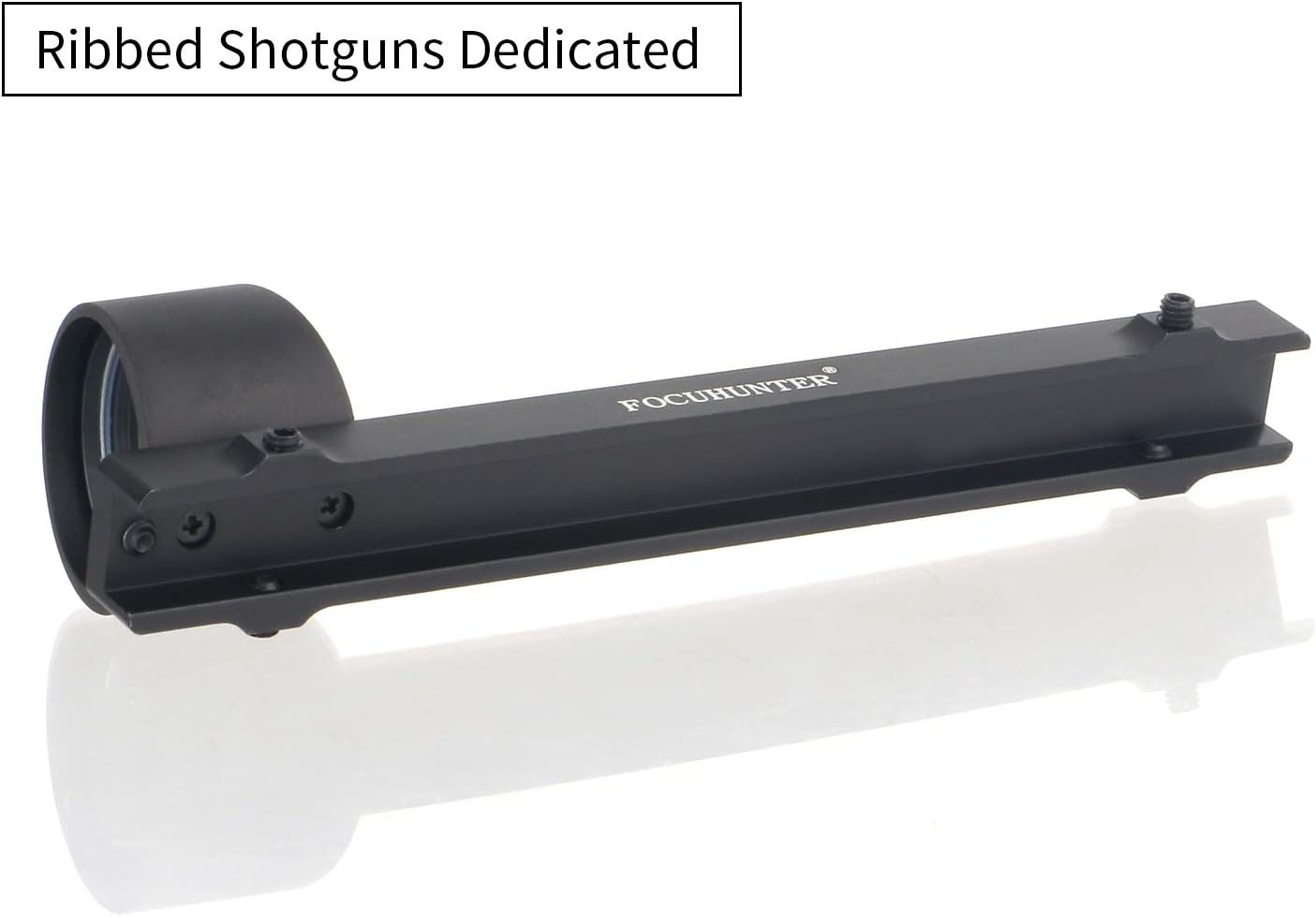

Image: Red dot sight designed for ribbed shotguns.
Image: Compatibility with 5.5-10mm wide rib rails.
Operating Instructions
Reticle Illumination
This red dot sight features a fiber optic illumination system, which means it does not require batteries. The reticle's brightness automatically adjusts based on the ambient light conditions. In sufficient sunlight or artificial light, the red dot will appear clearly on the lens.
Image: Battery-free operation with auto light sensing.
Image: Example of the red dot reticle.
Windage and Elevation Adjustment
The red dot sight allows for windage (horizontal) and elevation (vertical) adjustments to zero your sight. Use the provided Allen wrench for these adjustments.
- Elevation Adjustment: The front centerscrew is used to adjust the height. Tightening this screw will lower the point of impact (POI). The rear centerscrew is used to adjust the height. Tightening this screw will raise the point of impact (POI).
- Windage Adjustment: The left front screw and right front screw are used to adjust the sight horizontally. Adjust these screws to move the point of impact left or right as needed.
Perform adjustments incrementally and test fire to achieve desired accuracy. Always ensure the screws are snug after adjustment to maintain zero.
Image: Windage and elevation adjustment points.
Maintenance
Proper maintenance ensures the longevity and performance of your red dot sight.
- Cleaning Lenses: Use the provided lens cleaning cloth or a soft, lint-free cloth to gently wipe the objective and ocular lenses. For stubborn smudges, a small amount of lens cleaning solution designed for optics can be applied to the cloth, not directly to the lens.
- Cleaning Body: Wipe the aluminum body with a soft, damp cloth to remove dirt and debris. Avoid harsh chemicals or abrasive materials.
- Storage: Store the red dot sight in a cool, dry place, away from direct sunlight and extreme temperatures. If storing for extended periods, ensure it is clean and dry.
- Inspection: Periodically check all screws and mounting points to ensure they are secure.
Troubleshooting
If you encounter issues with your red dot sight, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Red dot is dim or not visible. | Insufficient ambient light. | The sight relies on ambient light for illumination. Ensure you are in a sufficiently lit environment. |
| Red dot is blurry or distorted. | Dirty lens or astigmatism. | Clean the lenses with the provided cloth. If the issue persists, it may be due to astigmatism; consult an eye care professional. |
| Sight does not hold zero. | Mounting screws are loose or improper installation. | Check and tighten all mounting screws. Ensure the sight is correctly installed on a compatible rib rail. |
| Sight wobbles on the rail. | Mounting screws are loose or rail incompatibility. | Tighten mounting screws. Verify that your shotgun's rib rail width is between 5.5-10mm. |
Warranty Information
Specific warranty details for the FOCUHUNTER 1x28mm Lightweight Fiber Optic Red Dot Sight are typically provided at the point of purchase or within separate warranty documentation. Please retain your proof of purchase for any warranty claims. For information regarding warranty periods, coverage, and procedures, refer to the documentation included with your product or contact the retailer.
Customer Support
If you have any questions, require assistance with installation, operation, or encounter any issues not covered in this manual, please contact FOCUHUNTER customer support. Contact information can usually be found on the product packaging, the official FOCUHUNTER website, or through your retailer.
We are committed to providing excellent service and support for our products.
