Border Model BS-001 DKM Type VIIC U-Boat 1:35 Scale Model Kit Instruction Manual

1. Introduction

Thank you for purchasing the Border Model BS-001 DKM Type VIIC U-Boat 1:35 Scale Model Kit. This kit allows you to construct a highly detailed replica of the iconic German Navy Type VIIC U-Boat, featuring a new mold, detailed conning tower (Kanbridge), weapons, interior reproduction, and included torpedoes and etched parts. This manual provides essential information for the assembly, painting, and care of your model.

Please note that this is a plastic model kit requiring assembly and painting. Adhesives, tools, and paints are not included and must be purchased separately.

2. Safety Information

Always prioritize safety during the assembly process. Please read and adhere to the following guidelines:

• Small Parts: This kit contains small parts that can be a choking hazard. Keep out of reach of small children.
• Sharp Tools: Assembly requires the use of sharp tools such as hobby knives, nippers, and files. Handle with extreme care to prevent injury.
• Adhesives and Paints: Use glues and paints in a well-ventilated area. Refer to the safety instructions provided with your specific adhesive and paint products. Avoid prolonged skin contact and inhalation of fumes.
• Eye Protection: Consider wearing safety glasses to protect your eyes from small flying plastic pieces when cutting parts from sprues.
• Work Area: Maintain a clean, well-lit, and organized workspace to prevent accidents.

3. Setup and Assembly

Successful model building requires patience and attention to detail. Follow these general steps for assembly:

3.1 Preparation

• Read Instructions: Before starting, thoroughly read the entire instruction manual included in your kit. Familiarize yourself with all parts and steps.
• Gather Tools: Ensure you have all necessary tools, such as plastic cement, nippers, hobby knife, files, sandpaper, tweezers, and paints.
• Organize Parts: Carefully remove parts from the sprues using nippers. Use a hobby knife to clean any excess plastic (flash) from the parts.

3.2 Assembly Steps

The kit is designed for precise fit. Follow the numbered steps in the kit's specific assembly guide. Key areas of assembly include:

• Hull Construction: Assemble the main hull sections.
• Interior Details: Install the reproduced interior components.
• Conning Tower (Kanbridge): Assemble the detailed conning tower, including its internal and external features.
• Weapons Systems: Assemble and attach the various weapons, including the main gun and torpedoes.
• Etched Parts: Carefully attach the included etched parts for enhanced detail. These often require super glue and fine tweezers.

Figure 1: An assembled view of the DKM Type VIIC U-Boat model, showcasing its overall form and details.

Figure 2: Detailed view of the conning tower and deck gun, highlighting the intricate railings and equipment.

Figure 3: Front view of the model's bow, showing the torpedo tube details and deck structure.

3.3 Painting and Finishing

After assembly, the model can be painted to achieve a realistic finish. Refer to the included painting and marking guide for color schemes and decal placement.

• Surface Preparation: Ensure the model surface is clean and free of dust or grease before painting.
• Priming: Apply a thin coat of primer for better paint adhesion and a uniform base.
• Base Coats: Apply base colors according to the guide. Multiple thin coats are better than one thick coat.
• Detail Painting: Use fine brushes for intricate details.
• Weathering: Optional weathering techniques can be applied to add realism (e.g., washes, dry brushing, chipping).
• Decals: Apply decals carefully using water and decal setting solutions as needed.
• Top Coat: Apply a clear matte or satin top coat to protect the paint and decals.

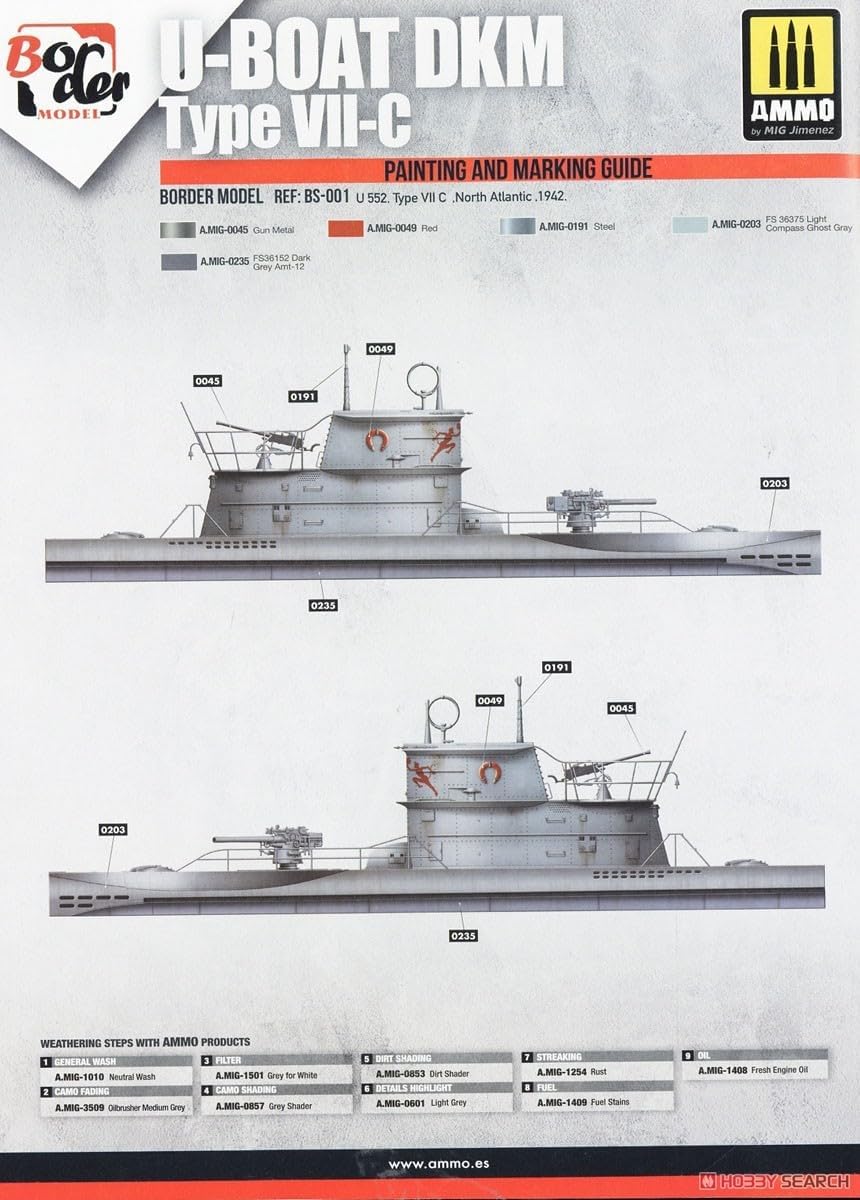

Figure 4: Example of a painting and marking guide, illustrating recommended colors and decal placement for the U-Boat model.

4. Display and Usage

Once assembled and painted, your Border Model DKM Type VIIC U-Boat is ready for display. This is a static display model and is not designed for functional use in water.

• Display Location: Choose a stable, level surface away from direct sunlight, extreme temperatures, and high humidity to prevent damage or fading.
• Handling: Handle the model carefully, preferably by its base or sturdy sections, to avoid breaking delicate parts.

5. Maintenance

Proper care will preserve the appearance of your model for years to come.

• Dusting: Regularly dust the model using a soft brush (e.g., a clean, soft makeup brush or a dedicated model dusting brush) or a can of compressed air. Avoid wiping with cloths that might scratch the paint or snag small parts.
• Cleaning: For stubborn dirt, lightly dampen a cotton swab with plain water (no solvents or harsh chemicals) and gently dab the affected area. Test on an inconspicuous area first.
• Avoid Solvents: Do not use alcohol, paint thinners, or other chemical cleaners, as they can damage the paint and plastic.

6. Troubleshooting

Here are some common issues encountered during model assembly and their potential solutions:

• Parts Not Fitting: Ensure all sprue gates and flash are completely removed. Lightly sand or file mating surfaces if necessary. Do not force parts.
• Gaps Between Parts: Use plastic filler putty to fill any noticeable gaps after gluing. Sand smooth once dry.
• Paint Issues:
  • Orange Peel/Rough Finish: Paint applied too thick or too far away. Apply thinner coats closer to the surface.
  • Runs/Drips: Too much paint applied at once. Apply lighter coats.
  • Poor Adhesion: Surface not clean or not primed. Ensure proper surface preparation.
• Missing or Damaged Parts: Carefully check all sprues and the box. If a part is genuinely missing or damaged upon opening, contact your retailer or the manufacturer with proof of purchase and details of the missing part.

7. Specifications

8. Warranty and Support

As a plastic model kit, this product typically does not come with a functional warranty for the assembled item. However, if you encounter issues such as missing or defective parts directly from the manufacturer's packaging, please contact your retailer where the kit was purchased. They will be able to assist you with potential replacements or solutions.

For general inquiries or further assistance, please refer to the contact information provided by Border Model or your specific retailer.
