1. Introduction
This manual provides instructions for the safe and effective use of the Generic HARTDIY Adapter. This adapter allows you to utilize your existing Hart 20V cordless tool batteries to power various DIY electrical projects, providing a convenient and portable power source for applications such as LEDs, portable scales, and other DC-powered devices. Please read this manual thoroughly before use and retain it for future reference.
2. Safety Information
WARNING: Failure to follow these safety instructions may result in electric shock, fire, or serious injury.
- Always ensure the adapter is correctly connected to the battery and your project before applying power.
- Do not short-circuit the output terminals of the adapter. This can damage the battery, adapter, and connected devices, and poses a fire risk.
- Verify the voltage requirements of your DIY project. The adapter outputs the nominal voltage of the Hart 20V battery.
- Do not modify the adapter in any way. Unauthorized modifications can lead to malfunction, electric shock, or fire.
- Keep the adapter and battery away from water, moisture, and extreme temperatures.
- Disconnect the adapter from the battery when not in use to prevent accidental discharge or activation.
- Handle the adapter with care. Do not drop or subject it to strong impacts.
- This adapter is intended for DIY electrical projects. Do not use it for purposes other than its intended use.
- Ensure proper ventilation when using the battery and adapter, especially during prolonged operation.
3. Package Contents
The package includes the following item:
- 1 x Generic HARTDIY Adapter
4. Product Overview
The Generic HARTDIY Adapter is designed to securely connect to a Hart 20V lithium-ion battery, providing accessible positive and negative terminals for custom electrical projects. It features a durable plastic housing and pre-attached silicone wires for easy integration.
Figure 4.1: Front view of the HARTDIY adapter, showing the main body and attached red and black silicone wires.

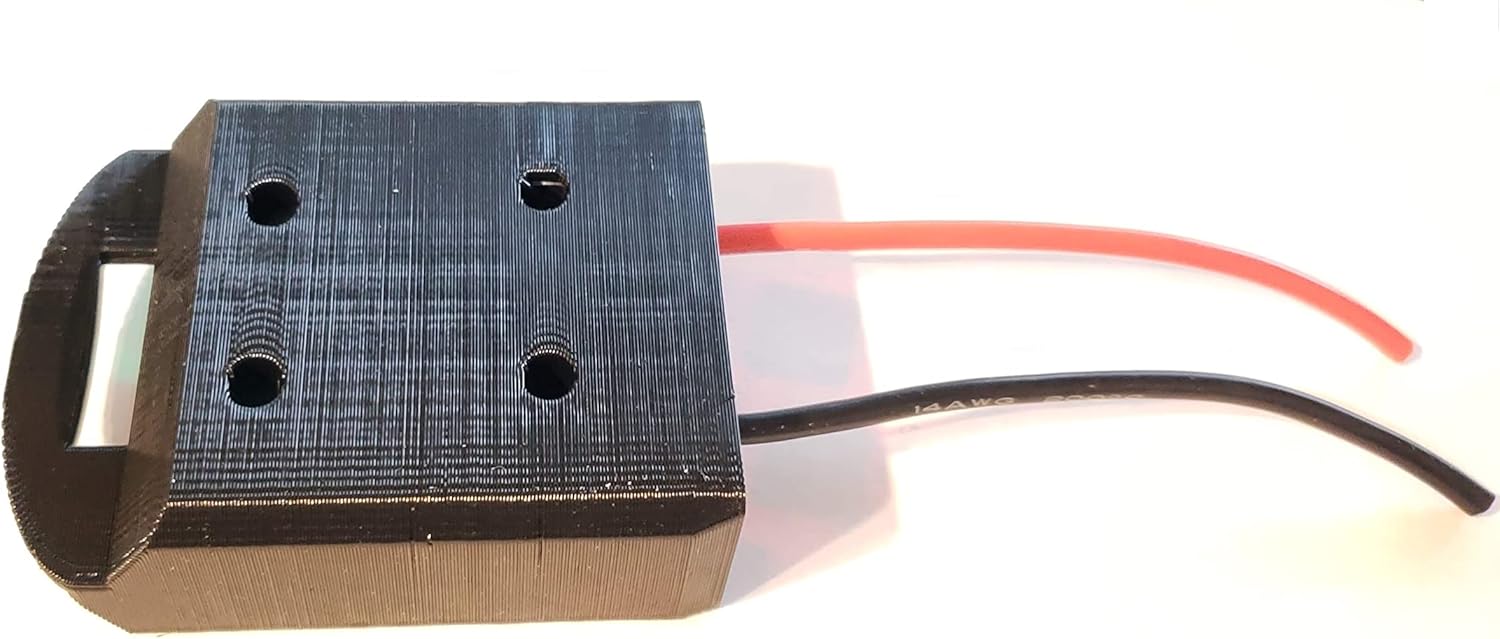

Figure 4.2: Top view of the adapter, highlighting the mounting holes and the red and black wires extending from the unit.

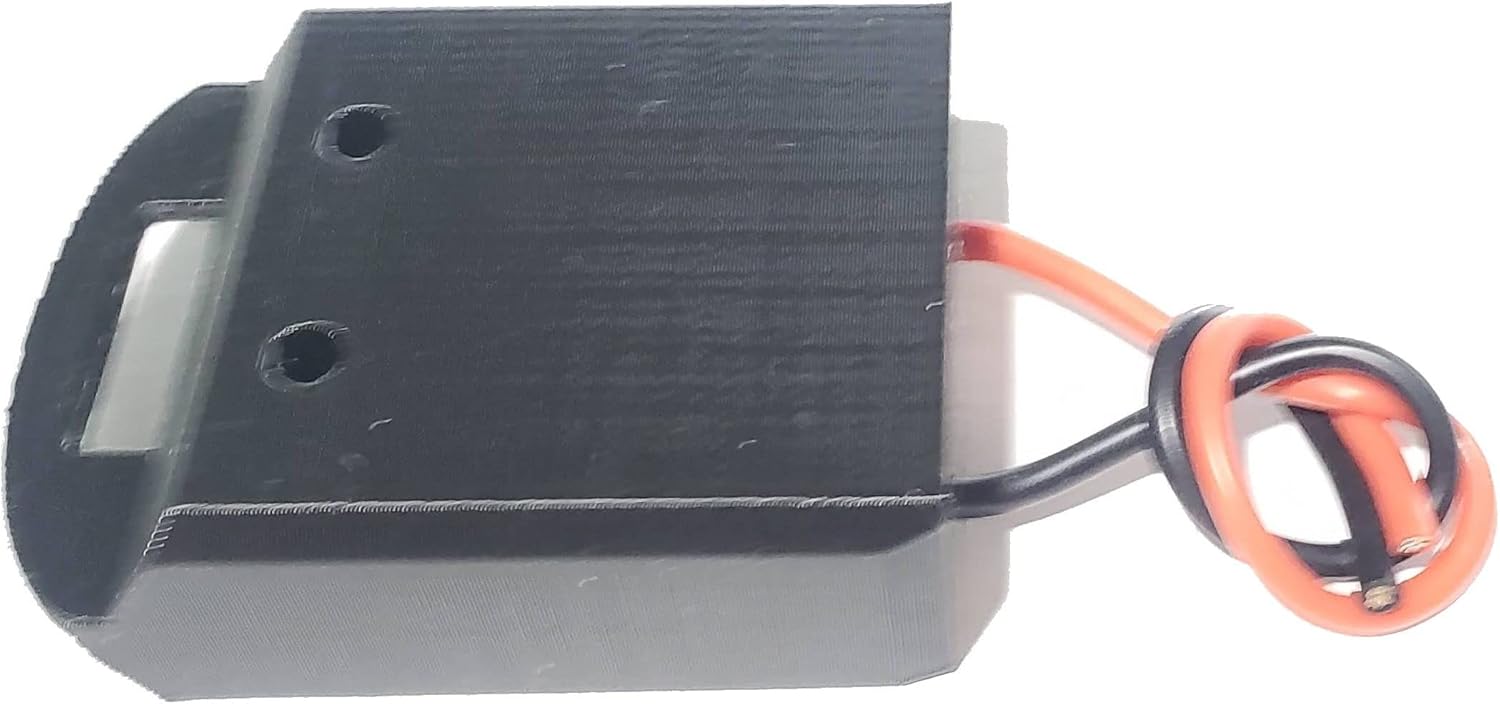

Figure 4.3: Side profile of the adapter, showing its compact design and the battery connection slot.
Figure 4.4: Bottom view of the adapter, revealing the internal metal contacts designed to connect with the Hart 20V battery terminals.
Figure 4.5: Another internal view of the adapter, showing the contact points and the robust plastic construction.
Figure 4.6: The HARTDIY adapter securely attached to a Hart 20V lithium-ion battery, demonstrating the intended use.
5. Setup
- Prepare Your Work Area: Ensure your workspace is clean, dry, and well-lit. Gather all necessary tools and components for your DIY project.
- Identify Wires: The adapter comes with pre-attached red and black silicone wires. The red wire typically indicates the positive (+) terminal, and the black wire indicates the negative (-) terminal. Confirm polarity with a multimeter if unsure, especially for sensitive electronics.
- Connect to Project: Carefully connect the adapter's wires to your DIY electrical project. Ensure secure and insulated connections to prevent short circuits. Soldering or using appropriate connectors is recommended.
- Attach Battery: Align the adapter with your Hart 20V lithium-ion battery. Slide the adapter onto the battery until it clicks securely into place. Ensure a firm connection.
- Verify Connection: Before operating your project, double-check all connections for correct polarity and security.
6. Operating Instructions
Once the adapter is securely connected to a charged Hart 20V battery and your DIY project, the battery's power will be available through the adapter's output wires.
- Powering Your Project: The adapter provides direct DC power from the 20V battery. Ensure your project is designed to operate at this voltage.
- Monitoring Battery Level: Monitor the charge level of your Hart 20V battery using its built-in indicator, if available. Discontinue use and recharge the battery when it is low to prevent over-discharge.
- Disconnecting: To turn off power to your project, simply slide the adapter off the Hart 20V battery.
7. Maintenance
- Cleaning: Keep the adapter clean and free from dust and debris. Use a dry, soft cloth to wipe the exterior. Do not use harsh chemicals or abrasive cleaners.
- Storage: Store the adapter in a cool, dry place away from direct sunlight and moisture when not in use. Disconnect it from the battery before storage.
- Inspection: Periodically inspect the adapter for any signs of damage, such as cracked housing or frayed wires. Do not use a damaged adapter.
8. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| No power output from adapter. |
|
|
| Adapter feels hot during use. |
|
|
9. Specifications
- Model Name: HARTDIY
- Compatible Battery: Hart 20V Lithium-Ion Batteries
- Output Voltage: Nominal 20V DC (matches battery voltage)
- Product Dimensions (L x W x H): 6 x 6 x 2 inches
- Item Weight: 4.8 ounces
- Material: Durable Plastic, Silicone Wire
- ASIN: B0BD622Q37
10. Warranty and Support
This product is manufactured by Generic. For any questions regarding product operation, troubleshooting, or potential warranty claims, please contact the seller or manufacturer directly through your purchase platform. Please retain your proof of purchase for any support inquiries.
