1. Introduction
This manual provides essential information for the safe and efficient operation of your new Galanz 38 Liter 1000 Watt Microwave Oven, Model D100N38ATP-SS. Please read all instructions carefully before use and retain this manual for future reference.
Your microwave oven features a 38-liter capacity and 1000 watts of microwave output power. It includes 5 power levels and a responsive touch control panel. The grill function offers 1300 watts of power, complemented by 2 mixed cooking levels for versatile meal preparation. The door is made of mirror glass, enhancing its aesthetic appeal.
Key Features:
- Defrost function (by time or weight).
- Preset and quick start cooking options.
- Durable gray enamel interior.
- Operates on 230 Volts / 50 Hertz.
- Equipped with a 350 mm diameter glass turntable.
2. Important Safety Instructions
When using electrical appliances, basic safety precautions should be followed, including the following:
- Read all instructions before using the appliance.
- Do not attempt to operate this oven with the door open as this can result in harmful exposure to microwave energy.
- Do not place any object between the oven front face and the door or allow soil or cleaner residue to accumulate on sealing surfaces.
- Do not operate the oven if it is damaged. It is particularly important that the oven door closes properly and that there is no damage to the (1) door (bent), (2) hinges and latches (broken or loosened), (3) door seals and sealing surfaces.
- The oven should not be adjusted or repaired by anyone except properly qualified service personnel.
- Do not heat liquids or other foods in sealed containers since they are liable to explode.
- Only use utensils that are suitable for use in microwave ovens.
- Do not use corrosive chemicals or vapors in this appliance.
- Close supervision is necessary when the appliance is used by or near children.
- Always ensure the turntable and roller ring are correctly positioned before operating.
3. Setup and Installation
Unpacking:
Carefully remove the microwave oven from its packaging. Remove all packing materials, including any protective film or tape. Inspect the oven for any damage during transit. If any damage is found, do not operate the appliance and contact customer service.
Placement:
- Place the microwave oven on a flat, stable, heat-resistant surface.
- Ensure adequate ventilation. Maintain a minimum clearance of 20 cm (8 inches) above the oven, 10 cm (4 inches) at the rear, and 5 cm (2 inches) on both sides for proper airflow. Do not block any ventilation openings.
- Keep the oven away from heat sources, strong magnetic fields, and areas with high humidity.
Turntable Installation:
- Place the roller ring in the center of the oven cavity floor.
- Place the glass turntable securely on top of the roller ring, ensuring it sits properly in the center hub.

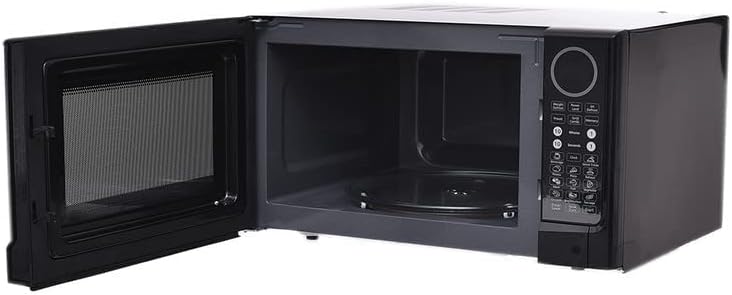

Image: Interior view of the Galanz microwave oven with the door open, showing the glass turntable and roller ring in place.
Power Connection:
Plug the power cord into a grounded electrical outlet that meets the specifications (230V, 50Hz). Do not use extension cords or adapters.
4. Operating Instructions
Your microwave oven is designed for ease of use with a touch control panel. Familiarize yourself with the control panel layout.

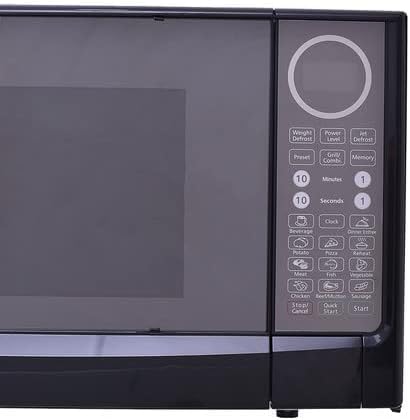

Image: Close-up view of the microwave oven's touch control panel, displaying buttons for various functions like power level, defrost, grill, time settings, and preset cooking options.
Basic Microwave Cooking:
- Place food in a microwave-safe container on the glass turntable. Close the door securely.
- Press the 'Power Level' button repeatedly to select the desired power level (e.g., P100 for 100% power, P80 for 80%, etc. up to 5 levels).
- Use the '10 Minutes', '1 Minute', and '10 Seconds' buttons to set the cooking time.
- Press 'Start' to begin cooking.
Defrost Function:
The defrost function allows you to thaw food based on weight or time.
- Defrost by Weight: Press the 'Weight Defrost' button. Use the number buttons to enter the food weight. The oven will automatically calculate the defrosting time. Press 'Start'.
- Defrost by Time: Press the 'Jet Defrost' button. Use the time buttons to set the desired defrosting time. Press 'Start'.
Grill Cooking:
For grilling, use the metal grill rack provided (if included) and place it on the turntable.
- Place food on the grill rack.
- Press the 'Grill' button.
- Set the desired grilling time using the time buttons.
- Press 'Start'.
Combined Cooking:
This oven offers two mixed cooking levels (Microwave + Grill).
- Press the 'Grill/Comb.' button to cycle through the combined cooking modes (C-1, C-2).
- Set the desired cooking time.
- Press 'Start'.
Preset and Quick Start Functions:
- Preset Menus: The control panel features various preset buttons for common foods (e.g., Pizza, Potato, Meat, Fish, Vegetable). Select the desired food and quantity (if applicable), then press 'Start'.
- Quick Start: Press the 'Quick Start' button to immediately begin cooking at full power for 30 seconds. Each subsequent press adds 30 seconds to the cooking time.
5. Maintenance and Cleaning
Regular cleaning and maintenance will ensure the longevity and optimal performance of your microwave oven.
General Cleaning:
- Always unplug the oven before cleaning.
- Wipe the exterior surfaces with a soft, damp cloth. Do not use abrasive cleaners or harsh chemicals.
- Clean the door, door seals, and control panel with a soft, damp cloth.
Interior Cleaning:
- To remove food splatters and odors, place a bowl of water with lemon slices or vinegar inside the oven and microwave on high power for 5-7 minutes. This will loosen food particles and make cleaning easier.
- Wipe the interior with a soft, damp cloth. For stubborn stains, use a mild detergent.
Turntable and Roller Ring:
- The glass turntable and roller ring can be removed for cleaning. Wash them in warm, soapy water or in the dishwasher.
- Ensure they are completely dry before placing them back in the oven.
6. Troubleshooting
If you encounter any issues with your microwave oven, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Oven does not start. | Power cord not plugged in; Door not closed properly; Fuse blown or circuit breaker tripped. | Ensure power cord is securely plugged in; Close door firmly; Check household fuse or reset circuit breaker. |
| Food not heating. | Door not closed properly; Incorrect cooking time/power level set. | Ensure door is fully closed; Adjust cooking time and power level as needed. |
| Turntable not rotating. | Turntable or roller ring not positioned correctly; Food too large or heavy. | Reposition turntable and roller ring; Ensure food container is not obstructing rotation. |
| Sparking inside the oven. | Metal in the oven; Food residue. | Remove any metal objects (foil, metal-trimmed dishes); Clean the oven interior thoroughly. |
If the problem persists after attempting these solutions, please contact qualified service personnel.
7. Specifications
| Brand: | Galanz |
| Model: | D100N38ATP-SS |
| Capacity: | 38 Liters |
| Microwave Output Power: | 1000 Watts |
| Grill Power: | 1300 Watts |
| Voltage: | 230 Volts |
| Frequency: | 50 Hertz |
| Control Type: | Touch |
| Special Features: | Defrost |
| Installation Type: | Freestanding |
| Color: | Black |
| Interior Material: | Metal (Gray Enamel) |
| Door Hinge: | Left |
| Cavity Dimensions (W x H x D): | 376 x 250 x 404 mm |
| Product Dimensions (W x H x D): | 530 x 311 x 446 mm |
| Shipping Dimensions (L x W x H): | 63.4 x 51.4 x 38.1 cm |
| Item Weight: | 19.47 Kilograms |
| Turntable Diameter: | 350 mm |
Image: Front-side view of the Galanz 38 Liter 1000 Watt Microwave Oven in black.
Image: Rear view of the microwave oven, highlighting the ventilation grilles and product information label.
8. Warranty and Support
For warranty information, please refer to the warranty card included with your product packaging. If you require technical support, service, or have questions not covered in this manual, please contact Galanz customer service through their official website or the contact details provided in your product documentation.
