Introduction
Thank you for choosing the IKIMI Automatic Pet Feeder. This device is designed to provide scheduled and portion-controlled meals for your pets, ensuring they receive consistent nutrition even when you are away. With a 4-liter capacity and dual feeding bowls, it is suitable for cats and dogs of various sizes. Please read this manual thoroughly before use to ensure proper operation and maintenance.
Safety Instructions
- Always place the feeder on a stable, level surface.
- For indoor use only. Do not expose to rain or moisture.
- Keep out of reach of children and pets to prevent tampering or injury.
- Use only dry pet food with a diameter of 4-12 mm. Do not use wet food, canned food, or treats larger than recommended.
- Ensure the power cord is not chewed by pets. The cord is designed with a nylon braided sleeve for durability, but constant chewing can damage it.
- Unplug the feeder before cleaning.
- Do not immerse the main unit in water. Only detachable parts are washable.
- If using battery backup, ensure batteries are inserted correctly and replaced when low.
Package Contents
Please check the package to ensure all components are present:
- 1x Automatic Pet Feeder Main Unit
- 1x Food Storage Bucket
- 2x Stainless Steel Bowls (SUS304)
- 1x Bowl Holder
- 1x Power Adapter with USB-C Cable
- 1x Desiccant Bag
Product Features
- 4L Capacity: Holds 2-3 kg of dry food, suitable for kibble sizes 4-12 mm.
- Programmable Feeding: Schedule 1-6 meals per day, with 1-60 portions per meal (6g-360g per meal).
- Dual Stainless Steel Bowls: Allows two pets to eat simultaneously, made from non-toxic, odorless SUS304 stainless steel.
- Detachable and Washable Components: Food bucket, stainless steel bowls, and bowl holder are easily removable for cleaning.
- Transparent Window: Monitor food levels at a glance.
- Moisture-Proof Design: High-quality silicone ring and desiccant bags keep food fresh and dry.
- Secure Lid: Prevents accidental spills and keeps pets from accessing stored food.
- Anti-Clog Mechanism: The motor reverses if food gets stuck, preventing blockages.
- Durable Power Cord: PVC sheath with nylon braided cover for enhanced tear resistance.
- Dual Power Supply: Operates via power adapter or D-cell batteries (not included) for backup.
Setup
- Unpack and Assemble:
Remove all components from the packaging. Attach the bowl holder to the main unit and place the two stainless steel bowls into the holder.
Image: Fully assembled IKIMI Automatic Pet Feeder with two stainless steel bowls, ready for use.
- Power Connection:
Connect the USB-C power cable to the feeder and plug the adapter into a standard wall outlet. For battery backup, open the battery compartment on the bottom of the unit and insert 3 D-cell batteries (not included). Ensure correct polarity.
Image: The bottom of the feeder, illustrating the battery compartment for D-cell batteries and the USB-C power input for the adapter.
- Install Desiccant:
Open the lid of the food storage bucket. Place the provided desiccant bag into the designated compartment under the lid to help keep food fresh and dry.
Image: The feeder's lid, showing the compartment designed to hold a silica gel desiccant packet for food preservation.
- Fill with Food:
Open the top lid and pour dry pet food into the food storage bucket. Ensure the kibble size is between 4-12 mm. Close the lid securely.

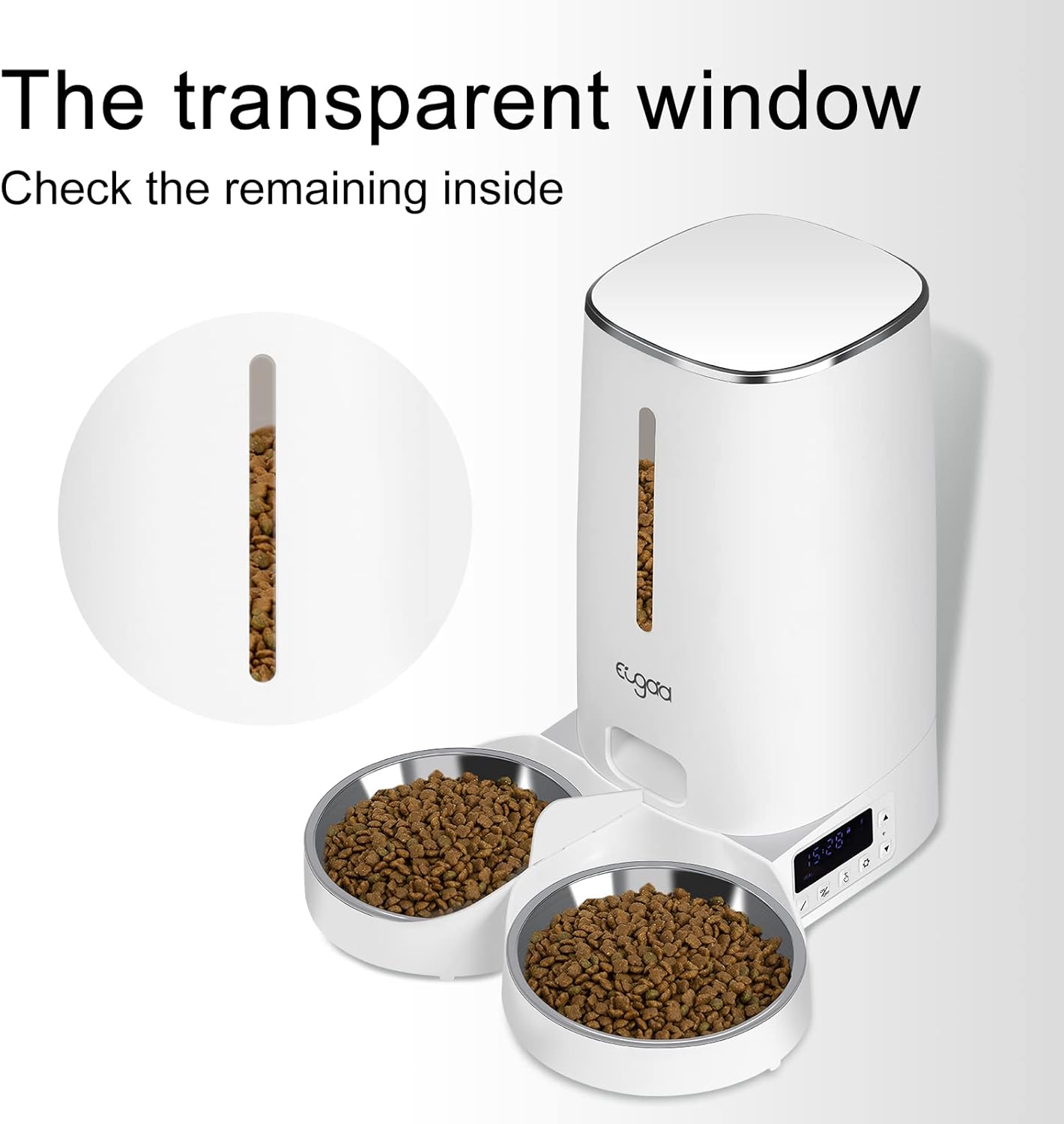

Image: A view of the transparent window on the feeder, allowing users to easily check the remaining food level.
Operating Instructions
The control panel allows you to set meal times and portion sizes. Refer to the icons on the display for navigation.
- Set Current Time:
Press the "Set" button to enter time setting mode. Use the "Up" and "Down" arrows to adjust hours and minutes. Press "Set" again to confirm.
- Program Meal Times:
Press the "Meal" button to cycle through meal settings (M1 to M6). For each meal, set the desired feeding time using the "Up" and "Down" arrows. Press "Meal" to move to the next meal or "Set" to exit.
- Adjust Portion Sizes:
After setting a meal time, use the "Portion" button to adjust the number of portions for that specific meal. Each portion is approximately 6g. You can set 1 to 60 portions per meal.
- Manual Feeding:
Press and hold the "Manual Feed" button (often represented by a paw print or food icon) to dispense a single portion immediately. Release the button to stop.
- Lock/Unlock Panel:
Some models feature a lock function to prevent accidental changes. Refer to the specific icon on your feeder's panel to lock or unlock the buttons.
Image: Visual representation of the feeder's compatibility with 4-12mm kibble, its anti-clog mechanism, and the use of SUS 304 stainless steel for the bowls.
Maintenance
- Cleaning:
The food storage bucket, stainless steel bowls, and bowl holder are detachable and washable. Disassemble these parts and wash them with mild soap and water. Rinse thoroughly and dry completely before reassembling.
Image: The feeder's components, including the food bucket and bowls, shown detached and ready for washing.
Wipe the main unit with a damp cloth. Do not immerse the main unit in water.
- Refilling Food:
Regularly check the transparent window to monitor the food level. Refill the food bucket when necessary to ensure continuous feeding for your pets.
- Desiccant Replacement:
Replace the desiccant bag every 1-2 months, or as needed, to maintain food freshness.
Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Feeder not dispensing food. | Food hopper empty; food clogged; power issue. | Refill food. Check for food blockages and clear them. Ensure power adapter is connected or batteries are charged. The anti-clog mechanism should reverse the motor if food is stuck. |
| Incorrect meal times or portions. | Settings not programmed correctly. | Re-program meal times and portion sizes according to the "Operating Instructions" section. |
| Feeder loses power. | Power adapter unplugged; batteries drained. | Check power adapter connection. Replace D-cell batteries if using backup power. |
| Food not staying fresh. | Lid not sealed; desiccant needs replacement. | Ensure the lid is securely closed. Replace the desiccant bag. |
Specifications
- Model: Automatic Pet Feeder 4L
- Material: ABS Plastic + SUS304 Stainless Steel
- Capacity: 4 Liters (approx. 2-3 kg dry food)
- Kibble Size: Ø 4-12 mm
- Meals per Day: 1-6
- Portions per Meal: 1-60 (approx. 6g per portion)
- Power Supply: DC 5V/1A via USB-C adapter; 3x D-cell batteries (not included) for backup
- Dimensions: Approximately 18cm (W) x 34cm (H) x 37cm (D, with bowls)
Image: A diagram illustrating the key dimensions of the IKIMI Automatic Pet Feeder, including width, height, and depth with bowls.
Warranty and Support
For warranty information or technical support, please refer to the documentation included with your purchase or contact IKIMI customer service directly. Keep your purchase receipt as proof of purchase.
