1. Introduction
Thank you for choosing the BEBEBAO Electric Double Breast Pump. This manual provides detailed instructions for the safe and effective use of your breast pump. Please read it thoroughly before first use and keep it for future reference. This pump is designed for mothers who wish to express milk daily, offering convenience and efficiency.
2. Important Safety Information
Always adhere to the following safety guidelines to ensure proper operation and hygiene:
- Clean and sterilize all parts that come into contact with breast milk (except the main pump body) before the first use and after each subsequent use.
- Do not immerse the main pump body in water or other liquids.
- Ensure all connections are secure before operating the pump.
- Store freshly expressed milk in a refrigerator or freezer according to recommended guidelines.
- Thawed milk must be consumed within 24 hours and should not be refrozen.
- Keep the device out of reach of children.
3. Product Components
The BEBEBAO Electric Double Breast Pump includes the following main components:
- Main Pump Unit with LED Touch Screen
- Breast Shields (2x)
- Milk Bottles (2x)
- Silicone Diaphragms (2x)
- Valve Bases (2x)
- Duckbill Valves (2x)
- Tubing (1x, for double pumping)
- USB Charging Cable
Image: Overview of the BEBEBAO Electric Double Breast Pump components.
4. Setup Instructions
Follow these steps to assemble your breast pump before use:
- Ensure all parts that come into contact with breast milk are clean and sterilized.
- Insert the duckbill valve firmly into the valve base.
- Attach the silicone diaphragm securely onto the valve base.
- Screw the milk bottle onto the assembled breast shield and valve base.
- Connect the tubing to the breast shield connector and the main pump unit. For single pumping, connect one tube; for double pumping, connect both.
- Charge the main pump unit using the provided USB cable until fully charged.
Image: Assembled breast pump components ready for use.
5. Operating Instructions
To begin expressing milk, follow these steps:
- Find a comfortable position. Some mothers find it helpful to warm their breasts with a warm towel and gently massage them to stimulate milk flow before pumping.
- Center your nipple within the breast shield and ensure the shield forms a firm seal against your breast to prevent air leakage.
- Press the power button on the LED touch screen to turn on the pump.
- The pump features three modes: Massage, Suction, and Bionic. Use the mode selection button on the touch screen to switch between modes.
- Adjust the suction intensity using the '+' and '-' buttons. There are 10 suction levels available. Start with a lower suction level and gradually increase it to a comfortable setting that allows for efficient milk expression.
- The LCD display will show the current mode, suction level, and pumping duration.
- When finished, press the power button to turn off the pump and carefully remove the breast shields from your breasts.
Image: The BEBEBAO pump in operation, demonstrating its dual pumping capability.

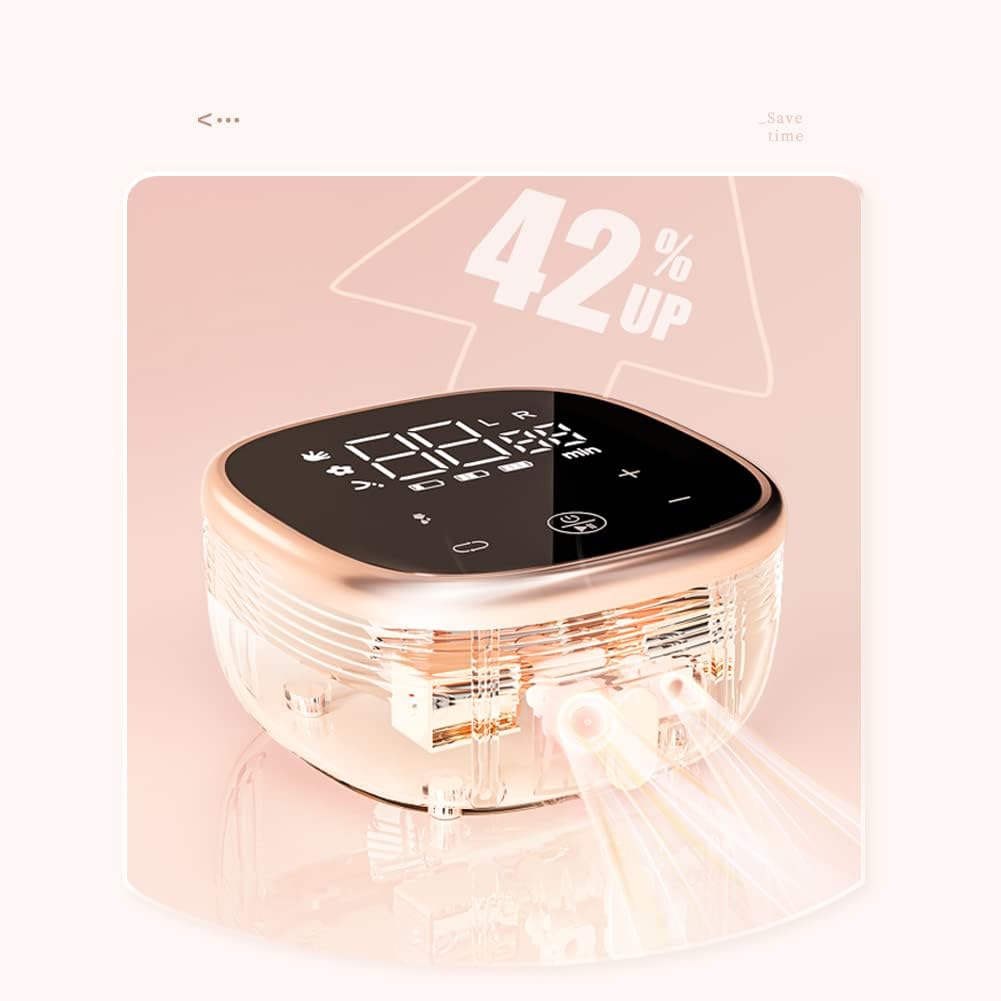

Image: Detailed view of the LED touch screen for mode and suction control.
6. Cleaning and Maintenance
Proper cleaning and maintenance are crucial for hygiene and the longevity of your breast pump:
- Disassembly: After each use, disassemble all parts that came into contact with breast milk.
- Cleaning: Wash all disassembled parts (except the main pump body and tubing) in warm soapy water. Rinse thoroughly with clean water.
- Sterilization: Sterilize the cleaned parts using a sterilizer or by boiling them in water for 5-10 minutes. Ensure parts do not touch the bottom or sides of the pot to prevent damage.
- Drying: Allow all parts to air dry completely on a clean drying rack before reassembling or storing.
- Main Pump Unit: Wipe the main pump unit with a clean, damp cloth. Do not immerse it in water.
- Tubing: The tubing typically does not need cleaning unless milk or condensation enters it. If cleaning is necessary, wash with warm soapy water, rinse, and ensure it is completely dry before reattaching.
- Dishwasher Safety: All removable parts, except the electrical components, are dishwasher safe (top rack recommended).
7. Troubleshooting
If you encounter any issues with your BEBEBAO Electric Breast Pump, please refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| No suction or weak suction | Improper assembly; damaged duckbill valve or diaphragm; tubing not connected properly; low battery. | Check all connections and ensure parts are assembled correctly. Inspect duckbill valve and diaphragm for tears or damage and replace if necessary. Ensure tubing is securely attached. Recharge the pump unit. |
| Pump not turning on | Battery is depleted; power button not pressed correctly. | Connect the pump to a power source and charge it. Press and hold the power button firmly. |
| Uncomfortable pumping sensation | Suction level too high; incorrect breast shield size; improper nipple alignment. | Reduce the suction level. Ensure your nipple is centered in the breast shield. Consider if a different breast shield size is needed for optimal comfort and milk flow. |
If the problem persists after trying these solutions, please contact BEBEBAO customer support for further assistance.
8. Specifications
| Feature | Detail |
|---|---|
| Model Number | A1 |
| Material | PP, Silicone (BPA-Free) |
| Operating Mode | Electric |
| Rated Voltage | 5V/1A |
| Battery Capacity | 1500 mAh (Built-in Lithium Battery) |
| Bottle Capacity | 113 g (approx. 4 oz) |
| Modes | 3 (Massage, Suction, Bionic) |
| Suction Levels | 10 |
| Display | LCD Touch Screen with Blue Beam |
| Noise Level | Low noise operation |
| Disinfection Method | Sterilizer / Boiled Water |
| Dishwasher Safe | Yes (removable parts, excluding electrical) |
9. Warranty and Support
For warranty information or technical support, please refer to the product packaging or contact BEBEBAO customer service directly. Keep your purchase receipt as proof of purchase.
