1. Setup and Installation
Carefully remove the appliance from its packaging. Allow the unit to stand upright for at least 24 hours before plugging it in to allow the refrigerant to settle. This beverage refrigerator is designed for freestanding installation. Ensure adequate ventilation around the unit. Do not block the rear or side vents. The dimensions are 17.64 inches (D) x 17.32 inches (W) x 20.79 inches (H).
Image: STAIGIS Beverage Refrigerator with key dimensions and capacity examples.
Connect the power cord to a grounded 110-volt electrical outlet. Do not use extension cords. Before first use, clean the interior and exterior surfaces with a soft cloth and mild detergent. Rinse thoroughly and dry. The door is configured with a left orientation. Refer to the full manual for instructions on reversing the door swing if desired.
Image: The beverage refrigerator installed in a kitchen setting, demonstrating its compact size and freestanding design.
2. Operating Instructions
The control panel is located on the top front of the unit, featuring touch controls for temperature adjustment and lighting. To unlock the control panel, press and hold the lock icon for approximately 3 seconds. The display will unlock, allowing adjustments. Use the up (▲) and down (▼) arrows to set the desired temperature. The temperature range is 40°F to 65°F. For optimal wine storage, a temperature of 55°F is generally recommended. To switch between Fahrenheit (°F) and Celsius (°C), press and hold the lock icon for approximately 3 seconds until the unit changes. Press the light bulb icon to turn the interior LED light on or off.

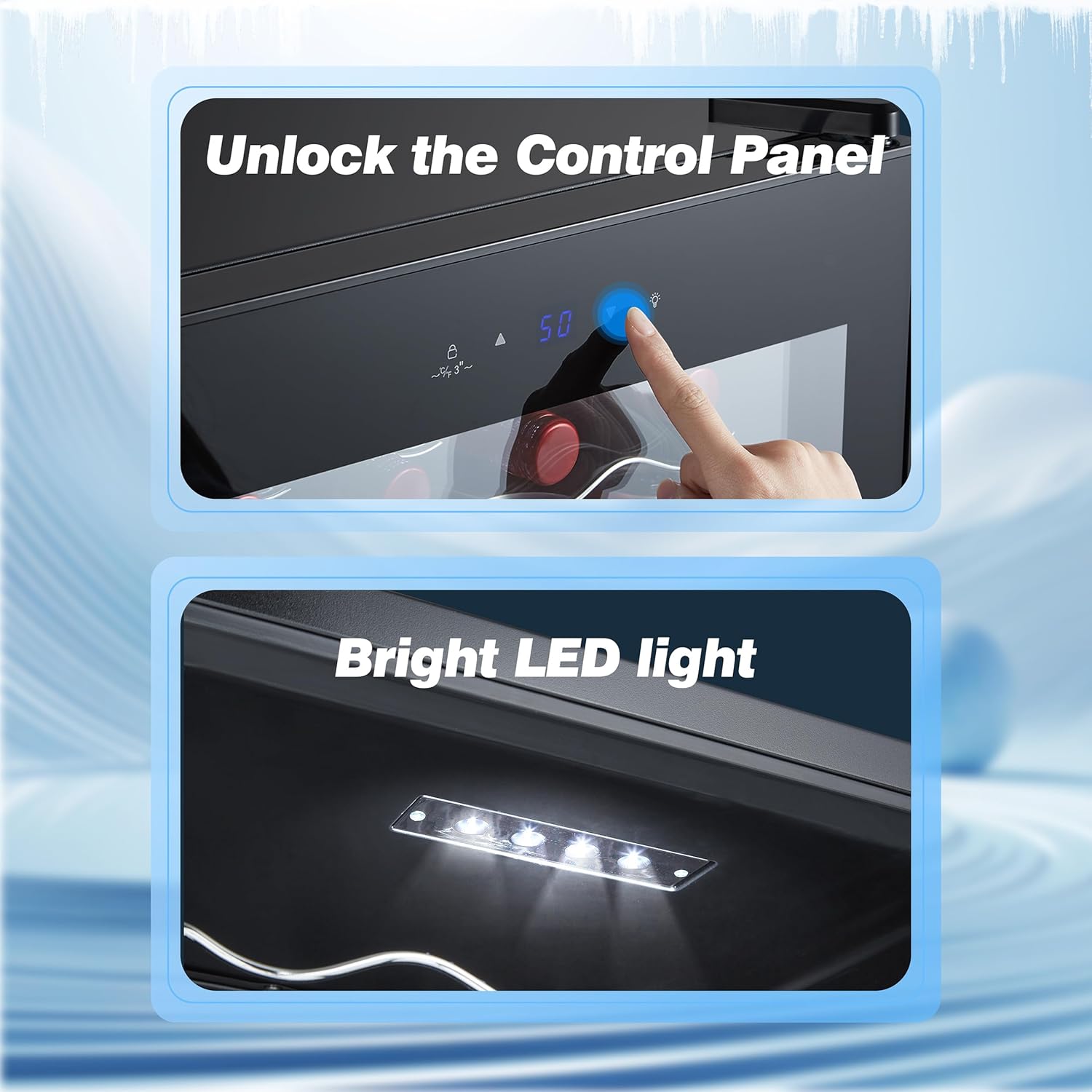

Image: Detailed view of the touch control panel for temperature and light settings.
This model can hold up to 45 standard-sized beverage cans or 15 standard wine bottles, depending on shelf configuration. The shelves are designed to accommodate various bottle and can sizes efficiently.
Image: Interior of the refrigerator showcasing its capacity for beverage cans.
Image: Interior of the refrigerator showcasing its capacity for wine bottles.
Video: An official product video demonstrating the features and operation of the STAIGIS Wine Cooler Refrigerator, including touch screen control, LED lighting, concealed pull design, large capacity, removable shelves, strong circulating fan, ultra-quiet operation, efficient compressor cooling, and various placement options in different rooms.
3. Maintenance
Regularly clean the interior and exterior of the refrigerator. Use a soft cloth and mild, non-abrasive cleaner. Ensure the unit is unplugged before cleaning. The automatic defrost system minimizes ice buildup. The shelves are removable for easy cleaning and flexible storage arrangements. Ensure the rear and side vents are clear of obstructions to maintain proper air circulation and cooling efficiency.
Image: Illustration of the powerful compressor and open-back design for optimal air circulation.
4. Troubleshooting
If the unit is not cooling, check the power connection and ensure the temperature setting is appropriate. If the unit is making unusual noises, verify it is level and not touching any surrounding objects. Excessive condensation may indicate a door seal issue or frequent door opening. For persistent issues, refer to the detailed troubleshooting guide in the complete product manual or contact customer support.
5. Specifications
| Feature | Detail |
|---|---|
| Product Dimensions | 17.64"D x 17.32"W x 20.79"H |
| Brand | STAIGIS |
| Capacity | 1.6 Cubic Feet (45 Cans / 15 Bottles) |
| Configuration | Compact Freezerless |
| Color | 45-Can black |
| Special Feature | Touch Control |
| Installation Type | Freestanding |
| Number of Doors | 1 |
| Defrost System | Automatic |
| Voltage | 110 Volts |
| Cooling Method | Compressor |
| Number Of Shelves | 2 |
| Adjustable Temperature Control | Yes |
| Door Orientation | Left |
| Item Weight | 40 Pounds |
| Annual Energy Consumption | 186 Kilowatt Hours Per Year |
| Model Number | ST-15045 |
6. Warranty
This STAIGIS Beverage Refrigerator comes with a limited 1-year warranty. Please retain your proof of purchase for warranty claims. For detailed terms and conditions, refer to the warranty information included with your product or contact STAIGIS customer support.
Image: STAIGIS 1-Year Warranty information.
7. Support
For further assistance, technical support, or warranty inquiries, please visit the official STAIGIS website or contact their customer service department. You can find more information at the STAIGIS Store: STAIGIS Store on Amazon.
