1. Introduction
This instruction manual provides essential information for the installation, operation, maintenance, and troubleshooting of your new AZ4U Washer Door Lid Lock Latch Switch. This replacement part is designed to restore proper functionality to your top-load washer, addressing common issues related to the lid locking mechanism. Please read this manual thoroughly before proceeding with installation or use.
2. Product Overview
The AZ4U Washer Door Lid Lock Latch Switch is a critical component ensuring the safe and efficient operation of your washing machine. It secures the washer lid during cycles and signals the control board when the lid is properly closed and locked.
Image: The AZ4U Washer Door Lid Lock Latch Switch, showing its main components and wiring.
Key Features:
- Durable Construction: Made with PBT material for high heat resistance, toughness, and self-lubricating properties, ensuring long-term performance.
- Secure Wiring: Features pure copper wire and a double-row metal buckle to prevent wires from falling off. Toughness durable TPE material protection layer safeguards the wire harness.
- Precise Fit: Designed for a snug fit without looseness, ensuring stable signal transmission and reduced short circuits.
- Effective Locking Mechanism: Keeps the lid tightly closed at high speeds, preventing interruptions during wash cycles.
Image: Detailed dimensions of the lid lock latch switch, indicating a cord length of 49 inches and a total length of 54.3 inches, with the main body measuring 5 inches by 2.42 inches.
Image: Close-up views highlighting the insulated wiring harness for stable signal transmission, the robust locking mechanism for secure lid closure, and the precise connector for a snug fit.
3. Compatibility
This lid lock latch switch is an aftermarket replacement part compatible with various top-load washer models from Whirlpool, Maytag, and Kenmore. To ensure compatibility, please verify your washer's model number against the list below. You can often find your model number on a sticker inside the washer door, on the back of the machine, or in your original owner's manual.
Image: A visual representation of the lid lock switch with text indicating compatibility with Whirlpool, Maytag, and Kenmore washers, and listing several specific replacement models.
Partial List of Compatible Models:
- WTW7000DW0, WTW7000DW1, WTW7000DW2, WTW7000DW3, WTW7000DW4
- WTW7040DW0, WTW7040DW1, WTW7040DW2
- WTW7300DC0, WTW7300DW0, WTW7300DW1, WTW7300DW2
- WTW7500GC0, WTW7500GW0, WTW7500GW3
- WTW8000DW0, WTW8000DW1, WTW8000DW2, WTW8000DW3, WTW8000DW4, WTW8000DW5
- WTW8040DW0, WTW8040DW1, WTW8040DW2, WTW8040DW3, WTW8040DW4
- WTW8500DC0, WTW8500DC1, WTW8500DC2, WTW8500DC3, WTW8500DC4, WTW8500DC5, WTW8500DC6
- WTW8500DR0, WTW8500DR1, WTW8500DR2, WTW8500DR3, WTW8500DR4, WTW8500DR5
- WTW8500DW0, WTW8500DW1, WTW8500DW2, WTW8500DW3, WTW8500DW4, WTW8500DW5, WTW8500DW6
- WTW6600SW2, WTW6600SW1, WTW6400SW2, WTW6300SW0, WTW6400SW1, WTW6600SW0, WTW6200SW0
- MTW6600TQ0, WTW6200SW1, WTW6200SW2, WTW6400SW0, WTW6600SB2, WTW6700TW0, WTW6200SW3
- WTW6600SB1, WTW6400SW3, WTW6600SG1, WTW6300SB0, WTW6300SW1
- 11027032600, 11027032601, 11027032602, 11027032603, 11027042600, 11027042601, 11027042602, 11027042603
- 11027052600, 11027052601, 11027052602, 11027062600, 11027062601, WTW6600SG2, WTW6700TW1
- WTW6800WL1, WTW7600XW1, WTW7800XL0, WTW7800XW0, WTW8600YW1, MVWB755YQ0, MVWB755YR0, WTW6300SG1
- 110.27032600, 110.27072603, 110.27092603, 7MMVWB850WL0, MTW6600TB0
If you are unsure about compatibility, please contact the manufacturer or a qualified technician for assistance.
4. Installation
Safety First: Before attempting any installation or repair, always disconnect your washing machine from the power supply to prevent electrical shock. It is recommended to consult a qualified appliance technician if you are not comfortable performing this repair yourself.
- Access the Lid Lock: Depending on your washer model, you may need to remove the top panel or the control panel to access the lid lock assembly. Refer to your specific washer's service manual for detailed instructions on accessing the lid lock.
- Disconnect Wiring: Carefully disconnect the electrical connectors from the old lid lock switch. Note the position of each wire for correct reinstallation.
- Remove Old Lid Lock: Unfasten any screws or clips securing the old lid lock assembly to the washer frame. Remove the old part.
- Install New Lid Lock: Position the new AZ4U lid lock latch switch in place, ensuring it aligns correctly with the mounting points. Secure it with the screws or clips removed earlier.
- Connect Wiring: Reconnect the electrical connectors to the new lid lock switch. Ensure all connections are secure and properly seated.
- Test Functionality: Before reassembling the washer, plug it back in and perform a quick test cycle to ensure the lid locks and unlocks correctly.
- Reassemble Washer: Once confirmed functional, reattach any panels or components removed during disassembly.
Many users find video tutorials helpful for visual guidance during installation. Search for "Whirlpool Cabrio lid lock replacement" or similar terms on video platforms for model-specific instructions.
Video: An overview of the Washer Door Lid Lock Latch Switch, demonstrating its features and potential installation points. This video is provided by the seller, AZ4UPARTS.
Video: A closer look at the Washer Door Lid Lock, detailing its construction and how it functions within the washing machine. This video is provided by the seller, AZ4UPARTS.
5. Operation
Once installed, the lid lock latch switch operates automatically with your washing machine's cycles. When you select a wash cycle and close the lid, the switch engages, locking the lid for safety and allowing the wash cycle to begin. The lid will remain locked until the spin cycle is complete and the water has drained, or until the machine signals it is safe to open.
Image: A visual demonstrating the restoration of the washer's start function, quick start, washing cycle, and fixing lid lock errors with the new part.

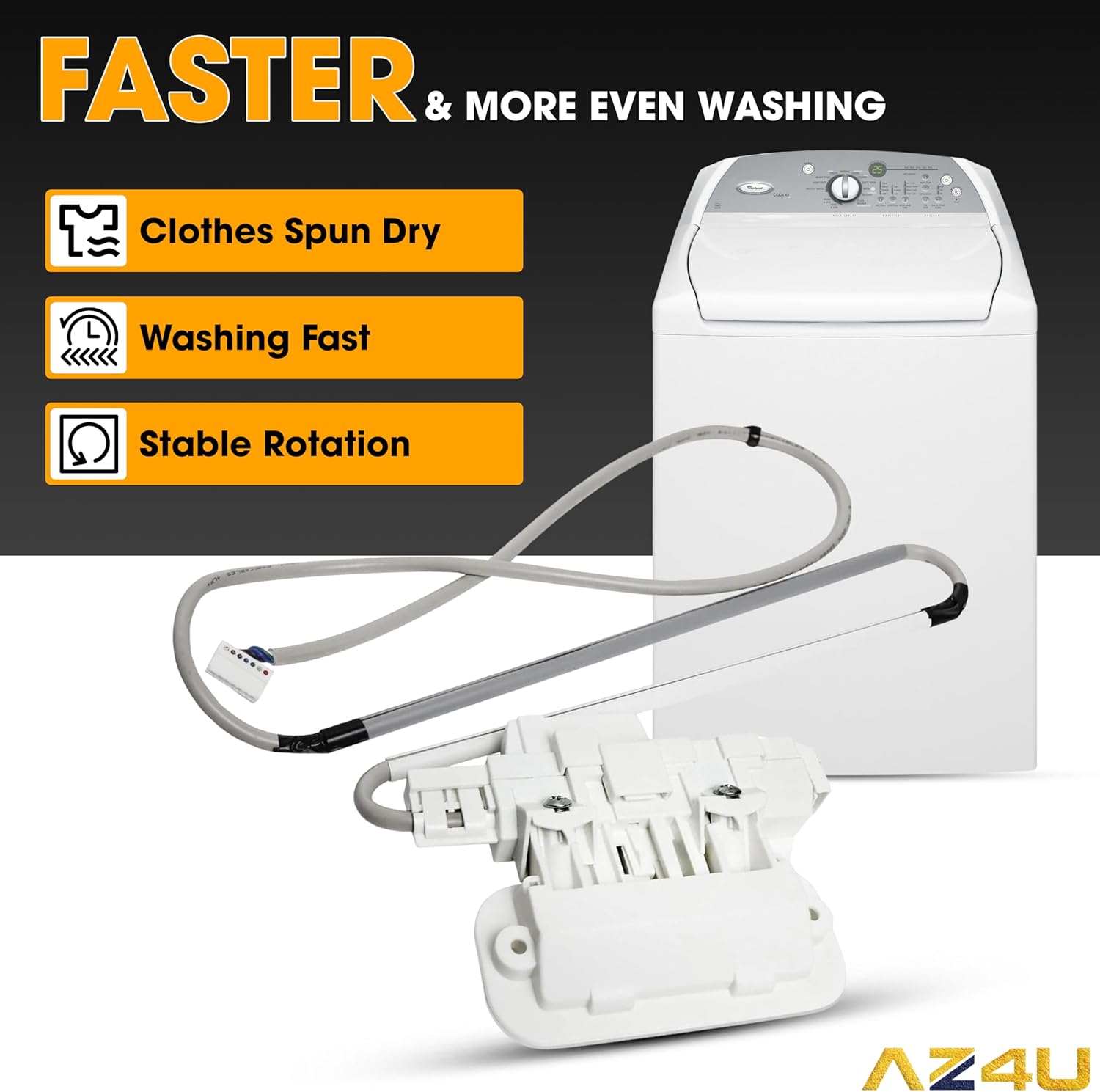

Image: Illustrates the benefits of a properly functioning lid lock, including clothes spun dry, faster washing, and stable rotation during cycles.
Image: Highlights the safety aspects of the lid lock, ensuring safe operation, secure lid lock, and peace of mind by helping the appliance operate durably and avoid damage.
6. Maintenance
The AZ4U Washer Door Lid Lock Latch Switch is designed for durability and requires minimal maintenance. However, regular inspection can help prolong its lifespan and ensure continued safe operation:
- Keep Area Clean: Ensure the area around the lid lock mechanism is free from lint, debris, or detergent residue that could obstruct its movement.
- Inspect Wiring: Periodically check the wiring for any signs of wear, fraying, or loose connections.
- Avoid Forcing Lid: Never force the washer lid open or closed if it feels stuck. This can damage the lid lock mechanism.
7. Troubleshooting
If your washing machine exhibits issues related to the lid lock, the AZ4U Washer Door Lid Lock Latch Switch is designed to address the following common symptoms:
Image: Lists five common symptoms that the lid lock switch can fix: Lid Lock Light Flashes, Stopped Mid-Cycle, Washer Won't Start, Machine Jammed, and Won't Spin.
- Lid Lock Light Flashes: This often indicates a fault with the lid lock mechanism, preventing the cycle from starting or continuing.
- Stopped Mid-Cycle: If the washer stops unexpectedly during a cycle, especially during the wash or spin phase, it could be due to a lid lock error.
- Washer Won't Start: The machine will not begin a cycle if it does not detect that the lid is securely closed and locked.
- Machine Jammed: A faulty lid lock can sometimes cause the machine to appear jammed or unresponsive.
- Won't Spin: For safety, the washer will not enter the high-speed spin cycle if the lid lock is not engaged or is malfunctioning.
If you experience these symptoms after installing the new part, double-check all connections and ensure the lid closes properly. If issues persist, consult a professional technician.
8. Specifications
| Feature | Detail |
|---|---|
| Brand | AZ4U |
| Part Type | Washer Door Lid Lock Latch Switch |
| Item Weight | 7 ounces |
| Product Dimensions | 9.57 x 3.54 x 1.57 inches |
| Item Model Number | WTW7800XW2 WTW6200SW2 |
| Batteries Included? | No |
| Batteries Required? | No |
| Date First Available | August 26, 2022 |
9. Warranty and Support
The AZ4U Washer Door Lid Lock Latch Switch comes with a 2-month warranty. Customer support is available within 30 days from the date of purchase. If you are not satisfied with the product, a refund will be provided. For any inquiries or assistance, please contact AZ4U customer service.
You can visit the AZ4U Store for more information and products.
