Navaris Wood Floor Repair Kit User Manual

Introduction

This manual provides instructions for the safe and effective use of the Navaris Wood Floor Repair Kit. This kit is designed to repair scratches on hardwood and laminate flooring, as well as furniture, by filling them with colored wax.

Safety Information

• Keep out of reach of children and pets.
• Use in a well-ventilated area.
• The heating tool becomes hot during use. Avoid direct skin contact.
• Do not immerse the heating tool in water or any other liquid.
• Ensure the heating tool is switched off and cooled before storage.
• Use only the wax sticks provided with the kit.
• Dispose of used materials responsibly.

Package Contents

The Navaris Wood Floor Repair Kit includes the following components:

• 11 x Wax Sticks (various wood colors)
• 1 x Heating Tool
• 1 x Cloth
• 1 x Sponge
• 2 x Scrapers
• 1 x Storage Case

Image: All components of the Navaris Wood Floor Repair Kit laid out, including the heating device, 11 wax sticks, two scrapers, a sponge, a cloth, and the storage case.

Setup

1. Open the storage case and remove all components.
2. Ensure the work area is clean, dry, and well-lit.
3. Identify the scratch or damaged area on the wood or laminate surface.
4. Select the wax stick(s) that best match the color of your floor. You may need to mix colors to achieve the desired shade.

Operating Instructions

Follow these steps to repair scratches using the Navaris Wood Floor Repair Kit:

1. Prepare the Wax:
   • Select the wax stick(s) that closely match your floor color. If mixing, break off small pieces of different colored waxes.
   • Hold the heating tool and press the activation button. The tip will heat up.
   • Carefully touch the heated tip to the wax stick(s) to melt a small amount.


   Image: A hand holding the heating tool, melting a light brown wax stick.
2. Fill the Scratch:
   • Drip the melted wax directly into the scratch or damaged area. Ensure the scratch is completely filled and slightly overfilled to allow for leveling.


   Image: Melted wax being applied directly into a scratch on a wooden surface.

3. Level the Surface:
   • Allow the wax to cool and harden for a few seconds.
   • Use one of the provided scrapers to carefully remove any excess wax, leveling the repaired area flush with the surrounding surface. Scrape gently to avoid further damage.


   Image: A clear plastic scraper being used to remove excess wax from a repaired scratch on a wooden surface.

4. Clean and Polish:
   • Use the sponge to gently buff the repaired area.
   • Wipe the area with the provided cloth to remove any residue and blend the repair seamlessly.


   Image: A white cloth being used to wipe and polish the repaired area on a wooden surface.

Color Matching Tips

The kit includes 11 wax sticks in various wood tones. For a perfect match, you can mix different wax colors. Melt small amounts of desired colors together on a non-porous surface (like a piece of scrap wood or the scraper itself) and blend them before applying to the scratch. Test the color on an inconspicuous area first.

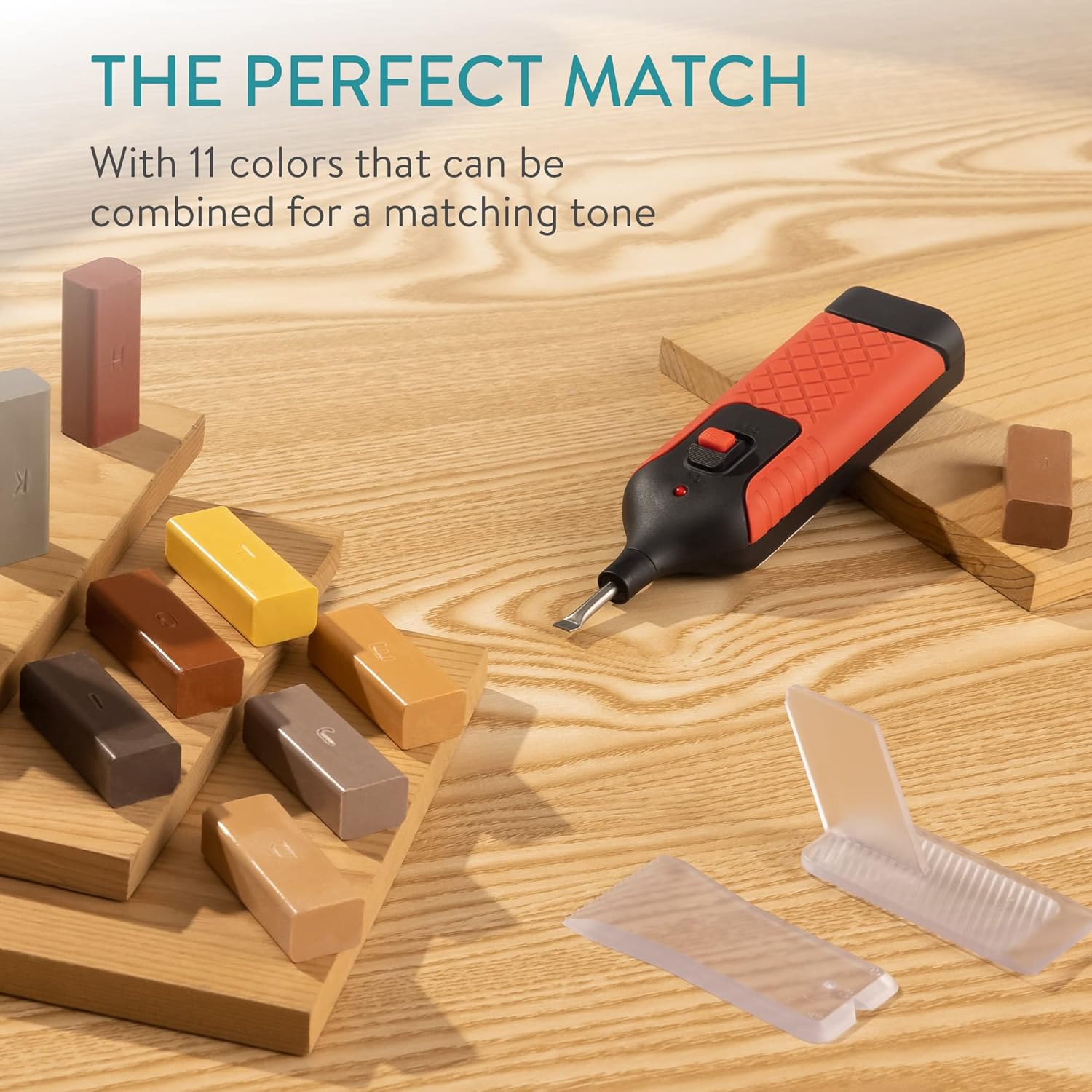

Image: Eleven different colored wax sticks arranged on wooden blocks, with the heating tool and scrapers nearby, illustrating the variety of colors available for mixing.

Maintenance

• After each use, clean the tip of the heating tool with a dry cloth while it is still warm (but not hot) to remove any wax residue.
• Store all components back in the provided storage case to keep them organized and protected from dust and damage.
• Keep the wax sticks away from direct sunlight or high temperatures to prevent premature melting.

Troubleshooting

If you encounter issues not listed here, please refer to the support section.

Specifications

• Product Dimensions: 7.6 x 7.48 x 1.73 inches (19.3 x 19 x 4.4 cm)
• Item Weight: 13.7 ounces (0.39 kg)
• Materials: Plastic, Foam, Wax
• Power Source for Heating Tool: Batteries (type not specified)
• Model Number: 51392.02_m001368

Warranty and Support

For warranty information or technical support, please contact Navaris customer service. Keep your purchase receipt as proof of purchase.
