Electrolux 9kg 5 Star Fully Automatic Front Load Washing Machine

1. Important Safety Information

Read all instructions carefully before installing and using the appliance. Keep this manual for future reference. Always follow basic safety precautions to reduce the risk of fire, electric shock, or injury to persons.

1.1 General Safety

• This appliance is intended for household use only.
• Do not allow children to play on or in the appliance. Close supervision is necessary when the appliance is used near children.
• Do not install or store this appliance where it will be exposed to the weather or to freezing temperatures.
• Do not repair or replace any part of the appliance or attempt any servicing unless specifically recommended in the user-maintenance instructions or in published user-repair instructions that you understand and have the skills to carry out.

1.2 Electrical Safety

• Ensure the appliance is properly grounded.
• Do not operate the appliance with a damaged power cord or plug.
• Do not pull the power cord to disconnect the appliance. Always grasp the plug firmly and pull straight out from the outlet.
• Keep the area beneath and around the appliance free of combustible materials, such as lint, paper, rags, chemicals, etc.

1.3 Water Safety

• Ensure water supply hoses are securely connected to prevent leaks.
• Turn off water supply taps when the machine is not in use for extended periods.

2. Product Overview

The Electrolux UltimateCare 500 Front Load Washing Machine (Model EWF9024R5WB) is designed to provide efficient and hygienic laundry care. Featuring a 9kg capacity and advanced technologies like UltraMix and Hygienic Care, it ensures thorough cleaning while protecting your garments.

Figure 2.1: Electrolux UltimateCare 500 Front Load Washing Machine, showcasing its modern design and control panel.

2.1 Key Features

• Hygienic Care: Vapour wash removes up to 99.9% of germs and allergens.
• UltraMix Technology: Ensures thorough dissolution of detergent and softener, preventing residue and color fading.
• EcoInverter Motor: Reduces vibration, noise, and uses up to 50% less energy.
• Woolmark Certified: Provides best care for woolen clothes.
• Favourite Setting: Save frequently used program settings for quick access.
• Quick 15 Cycle: Efficient 15-minute wash cycle for daily loads.
• Add Clothes Function: Pause cycle to add missed items within 15 minutes.
• Steam Wash: Full load steam wash at temperatures as low as 40°C.

Figure 2.2: Illustration of Hygienic Care for sanitization, UltraMix for detergent dissolution, and Woolmark certification for woolens.

Figure 2.3: Overview of the washing machine's comprehensive features, such as the EcoInverter Motor, large drum capacity, quick wash cycles, and child lock.

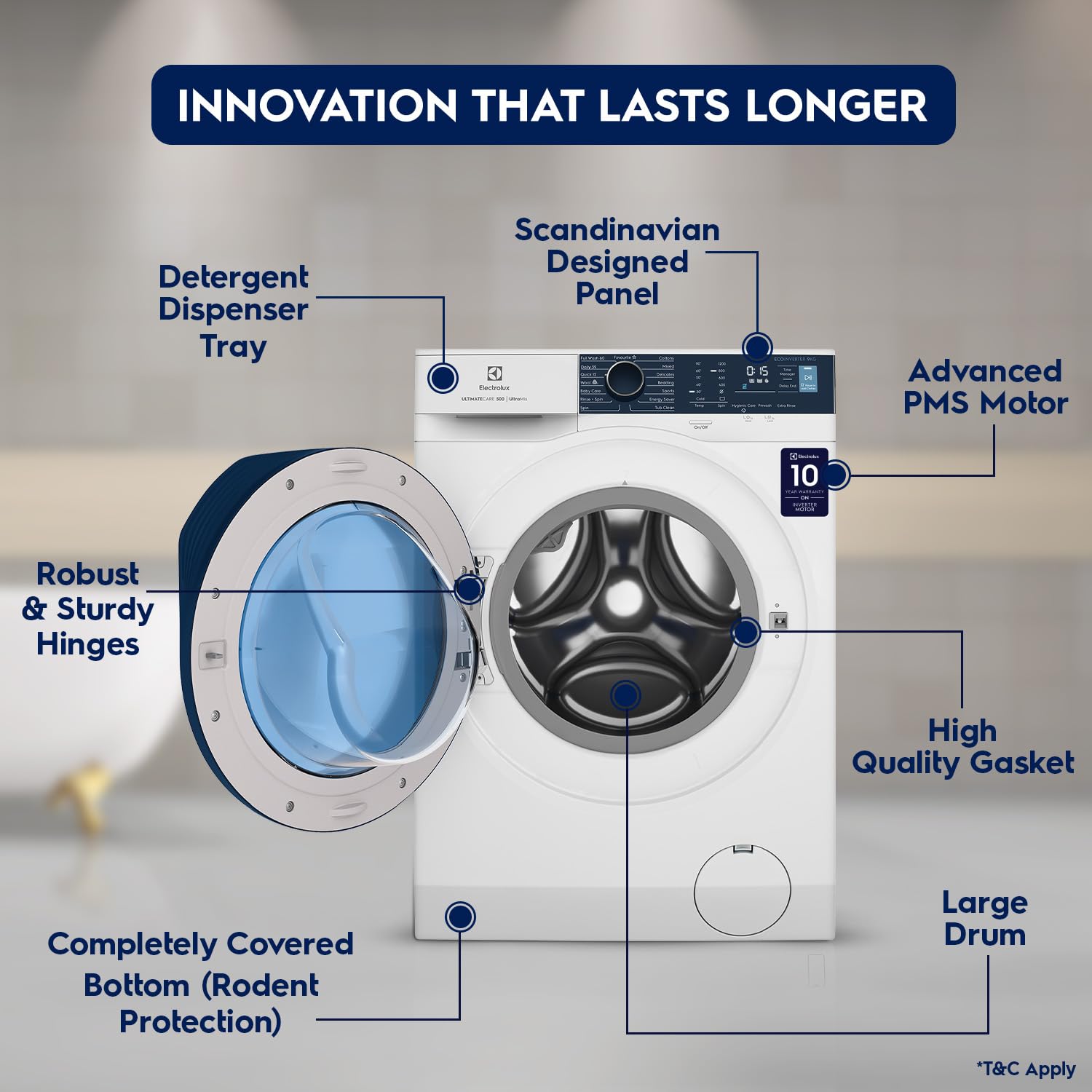

Figure 2.4: Detailed view of the machine's innovative design elements, including the detergent dispenser, Scandinavian panel, robust hinges, high-quality gasket, large drum, and rodent protection.

Figure 2.5: The EcoInverter motor provides significant benefits including 50% lower energy consumption, quiet operation, and reduced vibration.

2.2 Included Components

Upon unpacking, ensure all the following components are present:

• Washing Machine
• Hose Drain
• Hose Inlet
• User Manual (this document)
• Drain hose hanger
• Cap hole
• Pre-installed Shutter (Rat Mesh)

3. Installation and Setup

Proper installation is crucial for the optimal performance and longevity of your washing machine. It is recommended to have the appliance installed by a qualified technician.

3.1 Unpacking

• Carefully remove all packaging materials, including the polystyrene base and any protective films.
• Remove all transit bolts from the rear of the machine. These bolts secure the drum during transport and must be removed before use. Keep them for future transport if needed.

3.2 Location Requirements

• Place the washing machine on a firm, level floor. Uneven surfaces can cause vibration and noise.
• Ensure there is adequate space around the machine for ventilation and maintenance.
• The location should have access to a water supply (cold water tap with 3/4" thread) and a drain point.
• Avoid placing the machine in areas prone to freezing temperatures.

3.3 Connecting Water Supply

• Connect the inlet hose to the cold water tap and the corresponding inlet valve on the back of the washing machine.
• Ensure all connections are tight to prevent leaks. Do not overtighten.
• Open the water tap fully and check for any leaks.

3.4 Connecting Drain Hose

• Insert the drain hose into a standpipe or secure it over the edge of a sink using the provided drain hose hanger.
• Ensure the drain hose is not kinked or blocked. The end of the drain hose must be at a height between 60 cm and 100 cm from the floor.

3.5 Leveling the Machine

• Use a spirit level to check if the machine is perfectly level.
• Adjust the adjustable feet at the bottom of the machine by turning them clockwise or anti-clockwise until the machine is stable and level.
• Once leveled, tighten the lock nuts on the feet to secure them in position.

3.6 Initial Run

• Before the first wash, run a short cycle (e.g., Quick 15) without laundry and detergent to clean the drum and internal components.
• This helps remove any manufacturing residues.

4. Operating Instructions

This section guides you through the daily operation of your Electrolux washing machine.

4.1 Control Panel Overview

Figure 4.1: The intuitive control panel features a central knob for program selection and touch controls for various settings and functions.

The control panel features a central program selection knob and touch-sensitive buttons for various functions and settings. The digital display shows cycle time, selected options, and error codes.

4.2 Loading Laundry

• Sort laundry by fabric type, color, and degree of soiling.
• Open the door and load items loosely into the drum. Do not overload the machine; ensure there is enough space for clothes to tumble freely.
• Close the door firmly until you hear a click.

4.3 Adding Detergent and Softener

• Pull out the detergent dispenser drawer located on the top left of the machine.
• Add liquid or powder detergent to the main wash compartment (usually marked with 'II' or a large compartment).
• Add fabric softener to the compartment marked with a flower symbol.
• Close the dispenser drawer gently.
• Note: The UltraMix technology ensures thorough dissolution of detergent, reducing residue.

4.4 Selecting a Wash Program

• Turn the program selection knob to choose the desired wash program. Available programs include:
  • Cotton
  • Mixed
  • Delicates
  • Baby Care
  • Energy Saver
  • Quick 15 (for fast, light loads)
  • Daily 39
  • Woolmark (for woolens)
  • Spin
  • Rinse
  • Tub Clean
  • And more, totaling 9 washing cycles.
• The display will show the default temperature and spin speed for the selected program.

4.5 Adjusting Settings and Functions

After selecting a program, you can customize it using the touch buttons:

• Temperature: Press the temperature button to cycle through available temperature options (e.g., Cold, 40°C, 60°C, 90°C).


  Figure 4.2: The machine allows adjustment of cycle temperatures to suit various fabric types, from cold to 90°C.
• Spin Speed: Press the spin speed button to select the desired RPM (up to 1200 RPM).
• Delay End: Set a delay for the wash cycle to finish at a later time.
• Pre-Wash: Add a pre-wash phase for heavily soiled items.
• Extra Rinse: Add an additional rinse cycle for sensitive skin or to ensure no detergent residue.
• Hygienic Care: Activates the vapour wash at the end of the cycle to remove allergens and germs.


  Figure 4.3: The HygienicCare feature uses steam to sanitize clothes, removing up to 99.9% of allergens and germs.

• Favourite Setting: Press and hold the "Favourite" button to save your current program and settings for quick recall in the future.
• Add Clothes: If you forget an item, press the "Add Clothes" button within the first 15 minutes of the cycle to pause and open the door.


  Figure 4.4: The Add Clothes feature allows you to pause the wash cycle and add forgotten items within the first 15 minutes.

• Child Lock: Activate the child lock to prevent accidental changes to settings during operation. Refer to the control panel for specific button combination to activate/deactivate.

4.6 Starting and Ending a Cycle

• Press the "Start/Pause" button to begin the selected wash cycle.
• The display will show the remaining time.
• Once the cycle is complete, the machine will signal with an audible alert and/or a message on the display.
• Open the door and remove your laundry promptly to prevent wrinkles and odors.

5. Maintenance and Care

Regular maintenance ensures your washing machine operates efficiently and extends its lifespan.

5.1 Cleaning the Detergent Dispenser

• Pull out the detergent dispenser drawer completely.
• Remove any removable inserts and rinse all compartments under running water to remove detergent and softener residues.
• Use a brush to clean stubborn buildup.
• Wipe the drawer housing clean and reinsert the drawer.
• Perform this cleaning monthly or as needed.

5.2 Cleaning the Drum

• Run the "Tub Clean" program (if available) or a hot wash cycle with a washing machine cleaner or a cup of white vinegar.
• This helps remove detergent buildup, mold, and odors from the drum.
• Leave the door slightly ajar after each wash to allow the drum to air dry and prevent odors.

5.3 Cleaning the Drain Filter

• Locate the drain filter, usually at the bottom front of the machine.
• Place a shallow container or towel underneath to catch any residual water.
• Slowly unscrew the filter cover and remove any lint, coins, or small objects.
• Clean the filter under running water and reinsert it securely.
• Clean the drain filter every few months or if you notice drainage issues.

5.4 Exterior Cleaning

• Wipe the exterior surfaces with a soft, damp cloth.
• Do not use abrasive cleaners, solvents, or harsh chemicals.
• Clean the door seal regularly to remove lint and debris, which can cause leaks or odors.

6. Troubleshooting

Before contacting customer service, please refer to the following table for common issues and their solutions.

7. Specifications

Detailed technical specifications for the Electrolux EWF9024R5WB Washing Machine.

8. Warranty and Support

Electrolux is committed to providing high-quality products and excellent customer service.

8.1 Warranty Information

• Standard Warranty: 5 Years
• Inverter Motor Warranty: 10 Years
• Please retain your purchase receipt as proof of purchase for warranty claims.
• The warranty covers manufacturing defects under normal household use. It does not cover damage due to misuse, improper installation, or unauthorized repairs.

8.2 Customer Support

For any queries, technical assistance, or service requests, please contact Electrolux Customer Support:

• Toll-Free Number: 1800 202 1800
• Importer: Electrolux India Private Limited, 1st Floor, Plus Offices, Landmark Cyber Park, Sector 67, Gurugram-122018 Haryana, India

You can also visit the official Electrolux website for more information and online support resources.
