1. Introduction
This manual provides essential information for the installation, operation, and maintenance of your DJ-Motor Butterfly H Style Go Karts Steering Wheel. Designed for racing sportkarts and drift go-karts, this steering wheel features a durable construction and a universal fit. Please read these instructions carefully before installation and use to ensure proper function and safety.

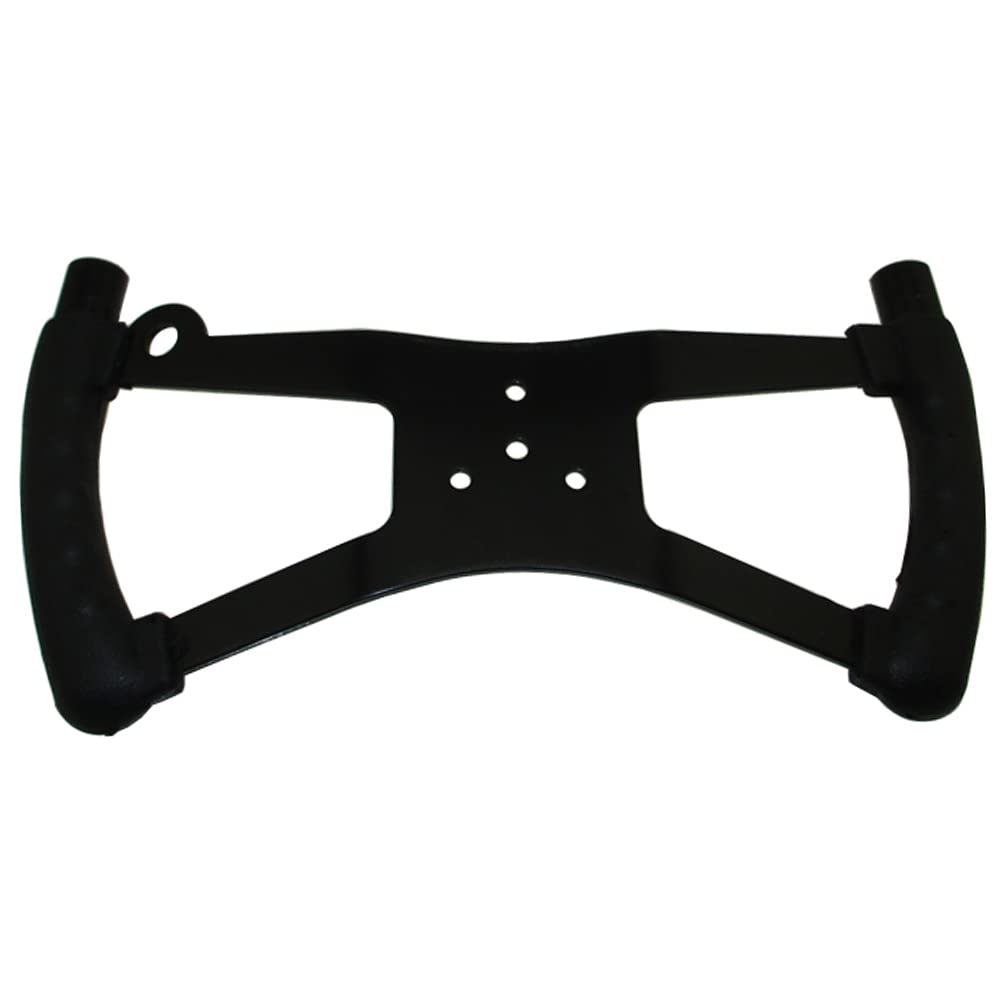

Image 1.1: Front view of the DJ-Motor Butterfly H Style Go Karts Steering Wheel.
2. Product Specifications
| Feature | Detail |
|---|---|
| Brand | DJ-Motor |
| Model Number | TY-B0312 |
| Color | Black |
| Fit Type | Universal Fit |
| Number of Spokes | 3 |
| Vehicle Service Type | Go Kart |
| Number of Items | 1 PC Steering Wheel |
3. Setup and Installation
Before beginning installation, ensure your go-kart is turned off and secured to prevent accidental movement. Always wear appropriate safety gear, such as gloves and eye protection.
- Compatibility Check: Verify that the DJ-Motor Butterfly H Style Steering Wheel is compatible with your specific go-kart model. Refer to your go-kart's manual for steering wheel specifications.
- Remove Old Steering Wheel: If replacing an existing steering wheel, carefully remove any central cap or cover. Loosen and remove the retaining nut or bolt that secures the old steering wheel to the steering shaft. Gently pull the old steering wheel off the shaft.
- Inspect Steering Shaft: Clean the steering shaft and inspect it for any damage or wear. Ensure the splines (if present) are clean and intact.
- Align New Steering Wheel: Place the DJ-Motor Butterfly H Style Steering Wheel onto the steering shaft. Ensure it slides on smoothly and is properly aligned for straight-ahead driving. The mounting holes on the steering wheel should align with the corresponding holes on the steering shaft hub.
- Secure Steering Wheel: Install the retaining nut or bolt and tighten it securely according to your go-kart manufacturer's torque specifications. Do not overtighten.
- Final Check: After installation, gently pull and push on the steering wheel to ensure it is firmly attached and has no excessive play. Turn the wheel left and right to confirm full range of motion without obstruction.
Image 3.1: Top-down view of the steering wheel, showing mounting points.
4. Operating Instructions
The DJ-Motor Butterfly H Style Steering Wheel is designed for direct and responsive control. Proper operation involves maintaining a firm grip and being aware of your surroundings.
- Grip: Hold the steering wheel firmly with both hands, ensuring a comfortable and secure grip on the handles.
- Steering: Turn the wheel smoothly in the desired direction. Avoid sudden or jerky movements, especially at high speeds, to maintain control of the go-kart.
- Awareness: Always be aware of your speed, track conditions, and other vehicles or obstacles.
- Safety: Never operate the go-kart under the influence of alcohol or drugs. Always wear appropriate safety gear, including a helmet and protective clothing.
Video 4.1: Official video showcasing the DJ-Motor Butterfly H Style Go Karts Steering Wheel.
5. Maintenance
Regular maintenance will help prolong the life and performance of your steering wheel.
- Cleaning: Clean the steering wheel regularly with a soft, damp cloth. Avoid using harsh chemicals or abrasive cleaners that could damage the finish or material.
- Fastener Check: Periodically check the retaining nut or bolt that secures the steering wheel to the shaft. Ensure it remains tight. Re-tighten if necessary, but do not overtighten.
- Inspection: Inspect the steering wheel for any signs of cracks, bends, or other damage. If any damage is found, replace the steering wheel immediately to ensure safety.
Image 5.1: Rear view of the steering wheel, showing the mounting area for inspection.
6. Troubleshooting
If you encounter any issues with your steering wheel, refer to the following common troubleshooting steps:
- Loose Steering Wheel: If the steering wheel feels loose or wobbly, check the retaining nut or bolt on the steering shaft. Tighten it securely. If the issue persists, inspect the steering shaft and the steering wheel hub for wear or damage.
- Unusual Play: Excessive play in the steering might indicate wear in the steering column components or an improperly secured steering wheel. Re-check installation and consult a professional if needed.
- Difficulty Turning: If the steering wheel is difficult to turn, ensure there are no obstructions in the steering mechanism. This is typically not related to the steering wheel itself but rather other steering components.
7. Warranty and Support
For warranty information or technical support regarding your DJ-Motor Butterfly H Style Go Karts Steering Wheel, please contact DJ-Motor directly through their official channels or the retailer from whom you purchased the product. Keep your proof of purchase for any warranty claims.
For additional products and information, visit the DJ-Motor Store.
