VIHELM WT8800 Portable Oxygen Monitor User Manual

1. Introduction

1.1 Overview

The VIHELM WT8800 is a portable oxygen monitor designed for accurate and reliable detection of oxygen (O2) levels in various environments. This device provides real-time data, visual, audible, and vibratory alarms to ensure user safety. Its compact design and robust construction make it suitable for professional and personal use where oxygen monitoring is critical.

1.2 Package Contents

• VIHELM WT8800 Portable Oxygen Monitor
• Charging Cable
• User Manual

2. Safety Information

Please read all safety instructions carefully before operating the device. Failure to follow these instructions may result in injury or damage to the device.

• Explosion Hazard: This device has an explosion-proof mark Ex ib IIb T3 Gb. Do not charge or disassemble batteries in an explosive environment.
• Battery Safety: Use only the specified battery model (LP103450-1800mAh) and charging cable. Do not expose the battery to extreme temperatures or puncture it.
• Environmental Conditions: Operate the device within the specified operating temperature and humidity ranges to ensure accurate readings and prevent damage.
• Calibration: Regular calibration is essential for maintaining accuracy. Refer to the maintenance section for details.
• Maintenance: Do not attempt to repair or modify the device yourself. Refer all servicing to qualified personnel.

3. Product Features and Components

3.1 Device Layout

Figure 1: Front view of the VIHELM WT8800 Portable Oxygen Monitor, showing the display screen and control buttons.

Figure 2: Close-up view of the top section, highlighting the power button (red), navigation buttons (gray arrows), and the gas sensor inlet.

Figure 3: Side view of the device, showing the grille for the audible alarm speaker.

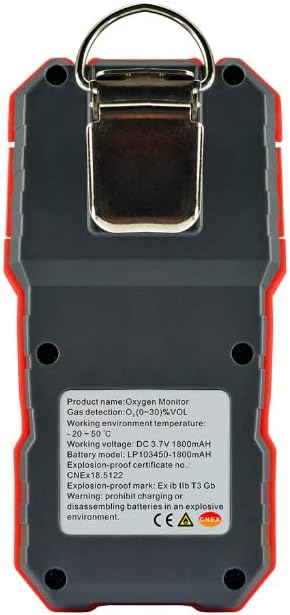

Figure 4: Rear view of the device, featuring a sturdy metal belt clip and the product information label detailing specifications and explosion-proof markings.

Figure 5: The device's LCD display showing a real-time oxygen concentration reading (20.8% VOL), battery status, and alarm thresholds.

3.2 Key Components

• LCD Display: Shows real-time oxygen concentration, battery status, and system information.
• Control Buttons: Power button (red), and navigation buttons (gray) for menu interaction.
• Gas Sensor Inlet: Located near the control buttons, where ambient air is drawn for oxygen detection.
• Audible Alarm Speaker: Emits a loud sound when oxygen levels exceed or fall below set thresholds.
• LED Indicator: Provides visual alarm signals.
• Vibration Motor: Provides tactile alarm signals.
• Belt Clip: For convenient attachment to clothing or equipment.

4. Setup

4.1 Charging the Device

1. Connect the charging cable to the device's charging port.
2. Plug the other end of the charging cable into a compatible USB power adapter (not included) or a computer USB port.
3. The battery indicator on the LCD display will show charging status.
4. A full charge typically takes 6-8 hours. Ensure the device is fully charged before first use.

Note: Do not charge the device in an explosive environment.

4.2 Powering On/Off

• To Power On: Press and hold the red power button for a few seconds until the display illuminates and the device performs a self-test.
• To Power Off: Press and hold the red power button until the device prompts you to confirm shutdown, then confirm using the navigation buttons.

5. Operation

5.1 Gas Detection

Once powered on, the WT8800 will automatically begin detecting oxygen levels in the ambient air. The real-time concentration will be displayed on the LCD screen. Ensure the sensor inlet is unobstructed for accurate readings.

5.2 Alarm Indications

The device is equipped with multiple alarm indicators:

• Audible Alarm: A loud beeping sound will activate.
• Visual Alarm: An LED indicator will flash.
• Vibration Alarm: The device will vibrate.

These alarms are triggered when the detected oxygen concentration falls below the lower threshold or rises above the upper threshold set in the device's settings. Refer to the device's on-screen menu for adjusting alarm thresholds.

5.3 Menu Navigation

Use the gray navigation buttons (left/right arrows) to scroll through menu options and the 'Enter' button (often indicated by a square or 'L' shape) to select options or confirm settings. The specific menu structure will be displayed on the LCD screen.

6. Maintenance

6.1 Cleaning

• Wipe the device with a soft, damp cloth. Do not use abrasive cleaners or solvents.
• Ensure the sensor inlet is free from dust and debris. Do not insert any objects into the sensor opening.

6.2 Sensor Care and Calibration

The oxygen sensor is a critical component. Avoid exposing it to harsh chemicals or extreme physical shock. Regular calibration is recommended to maintain the accuracy of the oxygen readings. Consult a qualified service technician for calibration procedures or refer to advanced settings within the device menu if applicable.

7. Troubleshooting

• Device not powering on: Ensure the battery is fully charged. If the issue persists, contact support.
• Inaccurate readings: Check for obstructions around the sensor inlet. Consider if calibration is due. Ensure the device is operating within specified environmental conditions.
• Alarms not working: Check alarm settings in the device menu. Ensure volume/vibration is enabled.
• Short battery life: Ensure the device is fully charged (6-8 hours). Battery performance may degrade over time.

8. Specifications

Figure 6: Detailed technical specifications as displayed on the device's screen.

9. Warranty and Support

VIHELM products are manufactured to high-quality standards. For warranty information, technical support, or service inquiries, please refer to the contact information provided with your purchase documentation or visit the official VIHELM website. Please retain your proof of purchase for warranty claims.
