1. Introduction
Thank you for choosing the DIESEL Baby Chief 43mm Chronograph Quartz Men's Watch, model DZ4564. This manual provides essential information for the proper use, care, and maintenance of your watch. Please read it thoroughly to ensure optimal performance and longevity of your timepiece.
2. Product Overview
Familiarize yourself with the components of your DIESEL watch.
Figure 2.1: Front view of the DIESEL Baby Chief watch, showcasing the black dial with chronograph subdials, silver-tone case, and white textile-patterned strap.

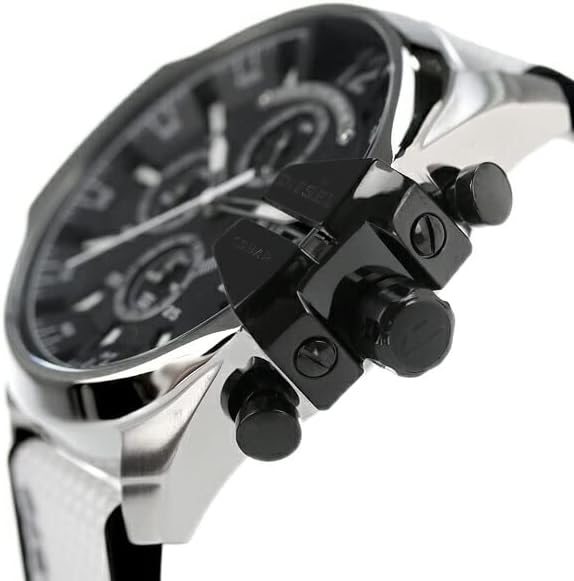

Figure 2.2: Close-up side view of the watch, highlighting the prominent crown and chronograph pushers on the right side of the case.

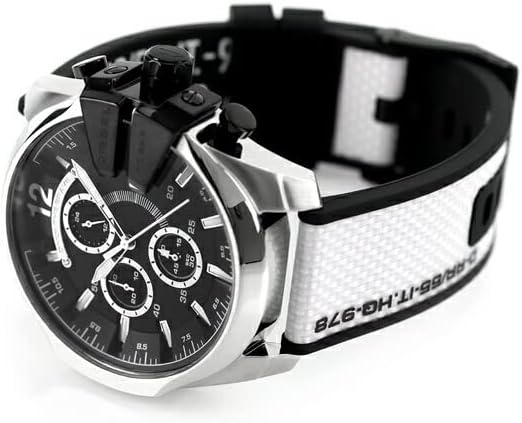

Figure 2.3: Angled view of the watch, showing the textured white strap with black accents and the overall robust design of the case.
Figure 2.4: Rear view of the watch, displaying the case back and the black and white strap with the buckle closure.
Figure 2.5: The DIESEL Baby Chief watch worn on a wrist, demonstrating its size and fit in a real-world context.
3. Setup
3.1 Initial Time Setting
- Pull out the crown: Gently pull the crown (the knob on the side of the watch) to position 2.
- Set the time: Rotate the crown clockwise or counter-clockwise to set the hour and minute hands to the correct time.
- Push in the crown: Once the time is set, push the crown back into position 1 (normal operating position) to start the watch.
4. Operating Instructions
4.1 Using the Chronograph Function
The chronograph allows you to measure elapsed time independently of the main time display.
- Start: Press the upper pusher (button A) to start the chronograph. The chronograph second hand will begin to move.
- Stop/Pause: Press the upper pusher (button A) again to stop or pause the chronograph.
- Resume: If paused, press the upper pusher (button A) again to resume timing.
- Reset: While the chronograph is stopped, press the lower pusher (button B) to reset all chronograph hands to their zero positions.
4.2 Reading the Chronograph Subdials
- Small Second Hand: Typically located at the 6 o'clock or 9 o'clock position, this subdial displays the continuous running seconds of the main time.
- Chronograph Minute Counter: This subdial (e.g., at 12 o'clock or 3 o'clock) counts the minutes elapsed during chronograph operation.
- Chronograph Hour Counter (if applicable): Some chronographs include an hour counter subdial.
5. Maintenance
- Cleaning: Wipe the watch regularly with a soft, dry cloth to remove dust and dirt. For the strap, follow specific cleaning instructions based on its material (e.g., silicone, leather, textile).
- Water Resistance: While your watch may be water-resistant, avoid exposing it to hot water, steam, or sudden temperature changes, which can compromise seals. Do not operate pushers or crown when the watch is wet.
- Battery Replacement: When the watch stops or the second hand moves erratically (indicating low battery), have the battery replaced by an authorized service center to ensure proper sealing and function.
- Avoid Extreme Conditions: Protect your watch from extreme temperatures, strong magnetic fields, and direct impacts.
- Storage: When not in use, store your watch in a cool, dry place, away from direct sunlight.
6. Troubleshooting
| Problem | Possible Cause | Solution |
|---|---|---|
| Watch stops or runs intermittently | Low battery | Replace the battery at an authorized service center. |
| Chronograph hands do not reset to zero | Misalignment | Refer to the chronograph calibration section in a detailed service manual or consult an authorized service center. |
| Condensation inside the watch | Water resistance compromised | Immediately take the watch to an authorized service center for inspection and repair. |
7. Specifications
| Feature | Detail |
|---|---|
| Brand | DIESEL |
| Model Number | DZ4564 |
| Movement | Quartz Chronograph |
| Case Diameter | 43mm |
| ASIN | B0BBG3F2RK |
| First Available Date | August 23, 2022 |
8. Warranty and Support
For warranty information, please refer to the warranty card included with your purchase or visit the official DIESEL website. For technical support, repairs, or genuine spare parts, please contact an authorized DIESEL service center or the retailer from whom you purchased the watch. Unauthorized repairs may void your warranty.
You can find more information and contact details on the official DIESEL store page: DIESEL Official Store
