1. Introduction
This instruction manual provides essential information for the proper installation, operation, and maintenance of the mainlead Carburetor, model LMT 5-4993. Adhering to these guidelines will help ensure optimal performance and longevity of your engine components.
Compatibility: This carburetor is designed to be compatible with various Walbro and other small gas engines. Specific compatible models include:
- Walbro LMT 5-4993
- Engine models: 799728, 498027, 499161, 498231, 494502, 494392, 495706, 498134, 496592, 699318, 699737, 699856, 699896-28V707
- 4-Cycle small gas engine motor lawn tractors and mowers, including specific engine numbers: 282707, 283702, 283707, 284707, 284777, 285707, 286702, 286707, 288702, 288707, 289702, 289707, 28A702, 28A707, 28C702, 28C707, 28B702, 28B705, 28B706, 28B707, 28D702, 28D707, 28M706, 28M707, 28F707, 28R707, 28T707, 28V707
- Coleman PowerMate Pro-Gen 5000 Watts Portable Electric Generator 5000W with 9HP Engine
- Toro Riding Lawn Mower models: 71300, 71301, S2-12B502, R3-10B404, R3-12B602, 56176, 56177, 56185, 70080, 70081, 70082, 70084, 70089, 70100, 70120, 70131, 70141, 70142, 70171, 70183, 71140, 71180, 71181, 71182, 71184, 71185, 71188, 71189, 71190, 71191, 71200, 71201, 71202, 71203, 71205, 71208, 71209, 71213, 71199
- Craftsman Lawn Tractor models: 917256450, 917256460
2. Package Contents
Verify that all the following components are included in your package:
- 1 x Carburetor (LMT 5-4993)
- 1 x Spark Plug
- 1 x Air Filter (replaces # 496894S, 496894, 493909, 4139, 5053B, 5053D, 5053H, 5053K)
- 1 x Fuel Filter
- 1 x Fuel Line
- 4 x Clamps
- 1 x Shut-off Valve
- 1 x Gasket
Figure 1: Overview of all included components in the mainlead Carburetor kit.
3. Product Overview (Visuals)
Observe the carburetor and its components from various angles to familiarize yourself with the product.
Figure 2: Front view of the carburetor.
Figure 3: Side view of the carburetor.

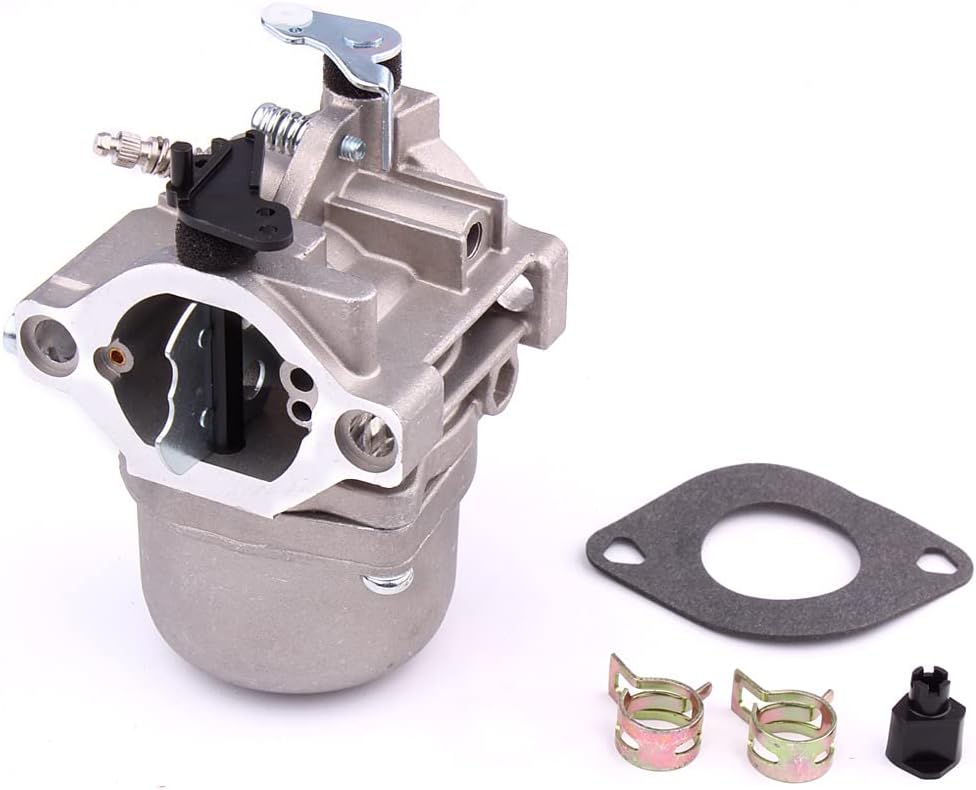

Figure 4: Carburetor with gasket and clamps.
Product Videos
Video 1: Detailed view of the mainlead LMT 5-4993 carburetor, showcasing its various angles and features.
Video 2: A closer look at the 5-4993 carburetor, demonstrating its construction and moving parts.
4. Installation Guide
Safety First: Before beginning any installation, ensure the engine is turned off, cooled down, and the spark plug wire is disconnected to prevent accidental starting. Wear appropriate safety gear, including gloves and eye protection.
- Prepare the Work Area: Ensure you have a clean, well-lit workspace. Gather all necessary tools.
- Remove Old Components: Carefully disconnect the fuel lines, air filter housing, and any linkages attached to the old carburetor. Remove the old carburetor and gasket.
- Install New Gasket: Place the new gasket between the engine and the new carburetor. Ensure it is properly aligned to prevent air leaks.
- Mount New Carburetor: Secure the new carburetor to the engine using the appropriate bolts. Do not overtighten.
- Connect Fuel Line and Shut-off Valve: Attach the new fuel line to the carburetor and the fuel tank. Install the new shut-off valve in the fuel line, ensuring the flow direction is correct. Use the provided clamps to secure all fuel line connections.
- Install Fuel Filter: Insert the new fuel filter into the fuel line, observing the flow direction arrow if present. Secure with clamps.
- Install Air Filter: Place the new air filter element into the air filter housing and reattach the housing to the carburetor.
- Replace Spark Plug: Remove the old spark plug. Install the new spark plug, ensuring it is tightened to the manufacturer's specifications. Reconnect the spark plug wire.
- Reconnect Linkages: Reattach any throttle or choke linkages that were disconnected. Verify smooth operation.
- Check for Leaks: Before starting the engine, visually inspect all connections for proper seating and potential fuel leaks.
5. Operation
After successful installation, follow these general steps to operate your engine:
- Fuel Supply: Ensure the fuel tank contains fresh, clean gasoline. Open the fuel shut-off valve.
- Choke: For a cold engine, engage the choke. For a warm engine, the choke may not be necessary.
- Throttle: Set the throttle to the appropriate starting position (usually mid-range or as recommended by your engine's manual).
- Start Engine: Use the recoil starter or electric starter to crank the engine.
- Disengage Choke: Once the engine starts and runs smoothly, gradually disengage the choke.
- Warm-up: Allow the engine to warm up for a few minutes before applying full load.
6. Maintenance
Regular maintenance is crucial for the performance and lifespan of your carburetor and engine. Perform the following checks and replacements as needed:
- Air Filter: Inspect the air filter regularly (e.g., every 25 operating hours or seasonally). Clean or replace it if it is dirty or damaged. A clogged air filter can restrict airflow and affect engine performance.
- Fuel Filter: Inspect the fuel filter for debris or discoloration. Replace it annually or if fuel flow appears restricted.
- Spark Plug: Check the spark plug for wear, carbon buildup, or incorrect gap. Replace it annually or if the engine experiences starting difficulties or misfires.
- Fuel Lines and Clamps: Periodically inspect fuel lines for cracks, leaks, or hardening. Ensure all clamps are secure. Replace any damaged components immediately.
- Carburetor Cleaning: If the engine runs rough, stalls, or has difficulty starting, the carburetor may need cleaning. This typically involves disassembling, cleaning jets and passages with carburetor cleaner, and reassembling with new gaskets if necessary. Professional service is recommended for complex carburetor issues.
7. Troubleshooting
Refer to the table below for common issues and potential solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Engine will not start | No fuel, clogged fuel filter, faulty spark plug, incorrect choke setting | Check fuel level, replace fuel filter, inspect/replace spark plug, adjust choke |
| Engine runs rough/stalls | Dirty carburetor, clogged air filter, old fuel, spark plug issue | Clean carburetor, replace air filter, use fresh fuel, inspect spark plug |
| Loss of power | Clogged air filter, dirty carburetor, incorrect engine speed adjustment | Replace air filter, clean carburetor, adjust engine speed |
| Fuel leaks | Loose fuel line connections, damaged fuel line, faulty carburetor gasket | Tighten clamps, replace damaged fuel line, replace carburetor gasket |
8. Specifications
- Brand: mainlead
- Model: LMT 5-4993 (also compatible with GM-CAR-CT687)
- OEM Part Numbers: 799728, 498027, 499161, 498231, 494502, 494392, 495706, 498134, 496592, 699318, 699737, 699856, 699896-28V707
- Vehicle Service Type: Tractor, Lawn Mower
- Flange Type: Bolt On
- Fuel Type: Gasoline
- Item Weight: Approximately 1.29 pounds
- Package Dimensions: Approximately 8.43 x 6.46 x 3.43 inches
- UPC: 047793950341
9. Warranty & Support
For any questions or concerns regarding your mainlead carburetor, please feel free to contact us. We aim to reply to every email within 24 hours.
Please note: Specific warranty details may vary. Refer to your purchase documentation for complete warranty information.
