Instruction Manual for LYREIGN CNC Tool Cart / Cabinet

1. Introduction

This manual provides comprehensive instructions for the assembly, operation, maintenance, and troubleshooting of your LYREIGN CNC Tool Cart/Cabinet, model PO6C-HSK63-6CAP. This robust tool storage solution is designed for efficient organization and accessibility of CNC tools and related equipment in workshop environments. Its durable construction and thoughtful design aim to enhance productivity and tool longevity.

Figure 1: Front view of the LYREIGN CNC Tool Cart/Cabinet.

2. Main Components

The LYREIGN CNC Tool Cart/Cabinet is comprised of several key components designed for functionality and durability:

• Main Cabinet Body: Constructed from high-quality, anti-rust, corrosion-resistant treated material for indoor and outdoor use.
• Drawers: Includes three large drawers, one flat drawer, and three normal drawers, providing varied storage capacities for different tool sizes and supplies.
• Top Work Surface: A sturdy wooden tabletop suitable for placing tools, drawings, or operating a computer.
• Tool Holder Rack: An integrated pegboard and tool holder system for organizing CNC tool holders (HSK63 type for this model).
• Casters: Equipped with two directional wheels and two brake wheels for easy mobility and secure positioning.
• Side Panel: Features three screw holes for installing additional tool fastening fixtures.
• Handles: Metal enlarging handles for easy maneuvering of the cart.

Figure 2: Detailed view of product features including the wooden top, reinforcement design, one-body bending process, and DIY drawer capability.

Figure 3: Example of a drawer with adjustable dividers for organized storage.

Figure 4: View of a large capacity drawer, suitable for bulkier items.

3. Setup and Assembly

The LYREIGN CNC Tool Cart/Cabinet is designed for straightforward assembly. Please follow the included installation instructions carefully. An Allen wrench is provided for your convenience.

3.1 Unpacking

Carefully unpack all components from the packaging. Verify that all parts listed in the packing list are present and undamaged. Keep the packaging materials until assembly is complete in case of returns or missing parts.

3.2 Assembly Steps

1. Attach the casters to the base of the cabinet. Ensure the two brake wheels are positioned at the front for easy access.
2. Secure the main cabinet body according to the provided diagrams.
3. Install the drawers into their respective slots, ensuring smooth operation.
4. Mount the top work surface and the tool holder rack.
5. Attach any additional accessories, such as side handles or tool fastening fixtures, if applicable.

Refer to the detailed assembly diagrams and packing list provided with your product for specific instructions and part identification.

Figure 5: The product comes with a packing list and an Allen wrench for assembly.

4. Operating Instructions

The LYREIGN CNC Tool Cart/Cabinet is designed for intuitive use in a workshop setting.

4.1 Tool Storage and Organization

• Drawers: Utilize the various drawer sizes to categorize and store your tools. The large drawers are suitable for bulkier items, while smaller drawers can hold precision tools or accessories.
• Tool Holder Rack: Secure your CNC tool holders (HSK63) onto the designated slots on the rack for easy access and protection.
• Top Work Surface: Use the wooden tabletop as a temporary workspace for assembly, inspection, or to hold equipment like laptops or blueprints.

4.2 Mobility and Positioning

• Moving the Cart: Unlock the brake wheels. Use the side handles to push or pull the cart to your desired location. The directional wheels provide steering control.
• Securing the Cart: Once in position, engage the brakes on the two brake wheels to prevent unintended movement.

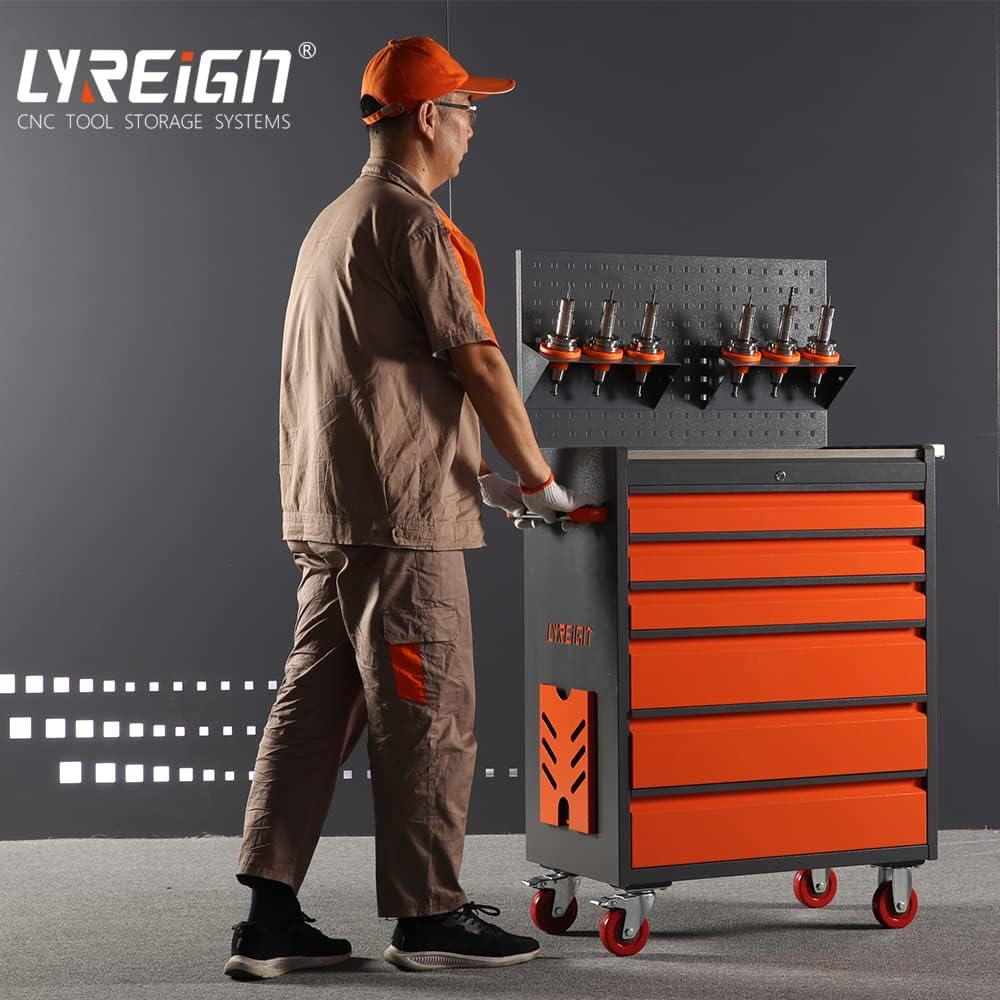

Figure 6: Demonstrating the ease of moving the tool cart within a workshop.

Figure 7: Examples of the tool cart in practical workshop usage scenarios.

5. Maintenance

Regular maintenance will ensure the longevity and optimal performance of your LYREIGN CNC Tool Cart/Cabinet.

• Cleaning: Wipe down all surfaces regularly with a damp cloth to remove dust, debris, and oil. The glossy anti-rust corrosion-resistant treatment makes cleaning easy. Avoid abrasive cleaners that could damage the finish.
• Drawer Slides: Periodically check drawer slides for smooth operation. If they become stiff, apply a small amount of silicone lubricant.
• Casters: Inspect wheels for debris accumulation and ensure they rotate freely. Clean any tangled material from the axles. Check brake mechanisms for proper function.
• Fasteners: Periodically check all screws and bolts to ensure they are tight. Retighten as necessary to maintain structural integrity.
• Tool Holders: Ensure tool holders are clean and free of chips or debris before placing them in the rack to prevent damage to the holders or the rack.

6. Troubleshooting

This section addresses common issues you might encounter with your tool cart.

7. Product Specifications

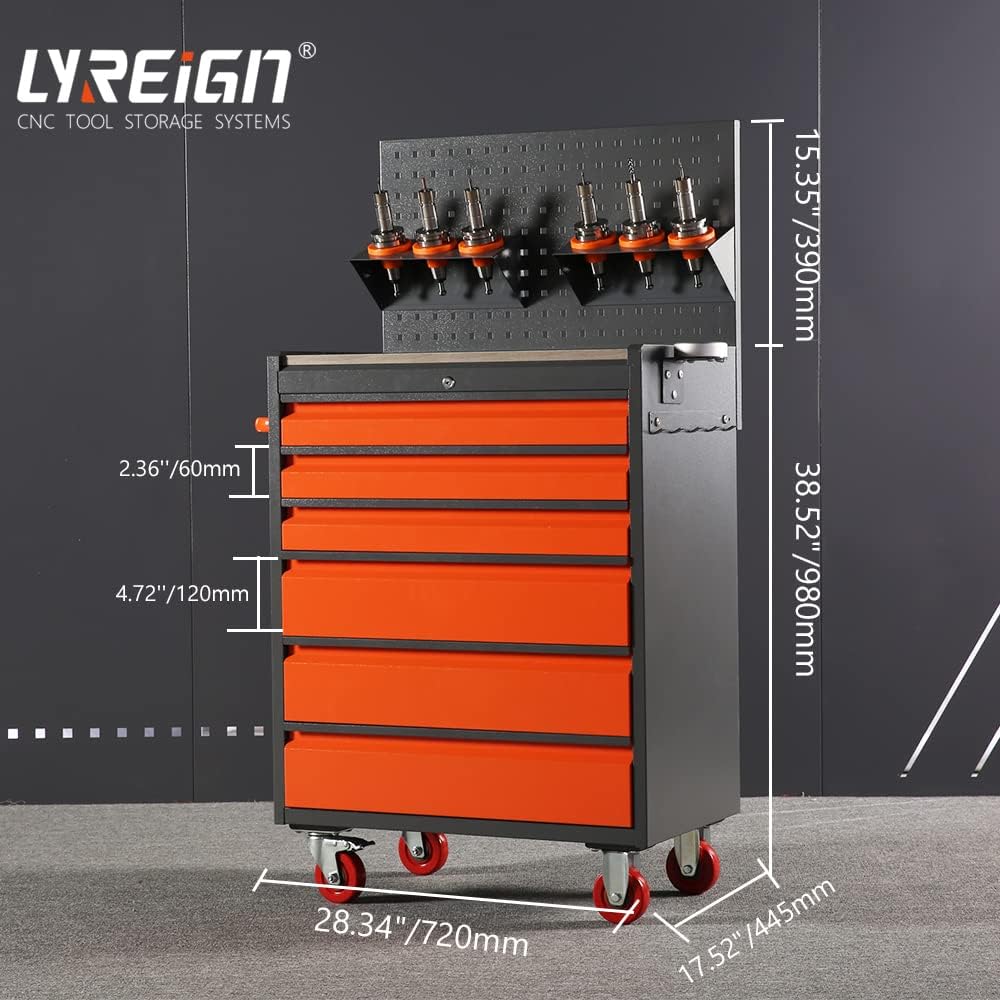

Figure 8: Detailed dimensions of the LYREIGN CNC Tool Cart/Cabinet.

Figure 9: Comparison of two tool cart styles, including the PO6C model, with their respective dimensions.

8. Warranty Information

Specific warranty details for the LYREIGN CNC Tool Cart/Cabinet (Model: PO6C-HSK63-6CAP) are not provided in this manual. For information regarding product warranty, including coverage period and terms, please refer to the warranty card included with your purchase or contact LYREIGN customer support directly. Keep your proof of purchase for warranty claims.

9. Customer Support

Should you require assistance with assembly, operation, or encounter any issues not covered in this manual, please contact LYREIGN customer support. For the most up-to-date contact information, please visit the official LYREIGN website or refer to the contact details provided with your product packaging.

You may also find helpful resources and video tutorials by searching for "LYREIGN + product model" (e.g., "LYREIGN DJ105AC") on video platforms.
