1. Introduction
The NEEWER RT-08 2.4G Remote Control is designed to provide enhanced wireless control for NEEWER Motorized Camera Sliders. This upgraded remote offers compatibility with both older generation (VS-80WC/VS-100WC) and newer generation (ER1-120/100/80) sliders, enabling precise control over video recording and time-lapse photography functions. Its ergonomic design and rechargeable battery ensure convenience and reliability for professional and amateur photographers alike.
Figure 1.1: NEEWER RT-08 Remote Control with a compatible camera slider.
2. Product Components and Overview
Familiarize yourself with the various parts of your RT-08 remote control:
Figure 2.1: Front and back view of the RT-08 remote control with labeled components.
- Screen: Displays operational modes, settings, and battery status.
- Four-way Joystick: Used for navigation and adjusting parameters.
- Confirmation Button: Selects options and confirms settings.
- Power Button: Turns the remote on/off.
- Photo Button: Triggers photo capture or initiates time-lapse.
- Return Button: Navigates back to previous menus.
- Type-C Charging Port: For recharging the remote's internal battery.
3. Setup
3.1 Charging the Remote Control
The RT-08 remote control features a built-in rechargeable battery. To charge:
- Connect a USB Type-C cable to the charging port on the remote.
- Connect the other end of the cable to a DC5V/1A USB wall charger or a portable charger.
- The charging indicator on the remote will show charging status.
Figure 3.1: Charging the RT-08 remote control via USB Type-C.
3.2 Pairing with NEEWER Motorized Camera Sliders
The RT-08 remote can be paired with different NEEWER motorized camera sliders. The pairing process varies slightly depending on your slider model.
3.2.1 Pairing with APP Controlled Sliders (ER1-120, ER1-100, ER1-80) and Newest 2.4G Sliders (VS-80WC/VS-100WC)
No firmware upgrade is required for these models. Follow these steps:
- On the RT-08 remote, long press the On/Off key and the Camera key simultaneously.
- Turn on the motor switch of your camera slider.
- Observe the indicator light on the slider; it should flash rapidly in red and green.
- Once the indicator light stops flashing and pairing is confirmed on the remote's screen, the pairing is complete.

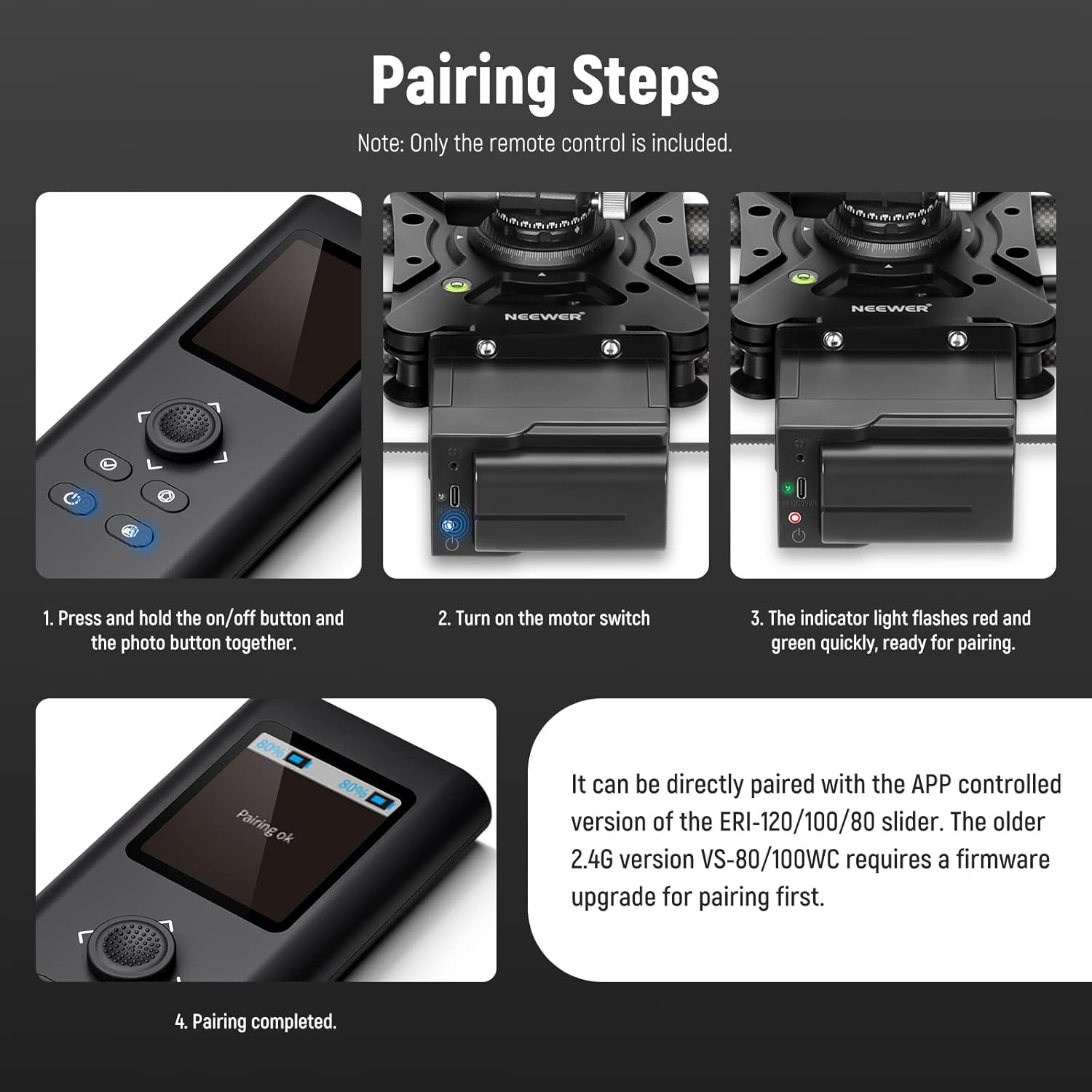

Figure 3.2: Visual guide for the pairing process.
Figure 3.3: RT-08 compatibility with APP controlled NEEWER sliders.
3.2.2 Upgrading Older Generation 2.4G Sliders (VS-80WC/VS-100WC) for Remote Use
For older versions of the VS-80WC/VS-100WC sliders, a firmware update is required before pairing with the RT-08 remote. Please refer to the official NEEWER website for detailed instructions and to download the necessary firmware:
- Visit the NEEWER official website.
- Navigate to the "Upgrade Firmware and Software" section.
- Select "NEEWER 2.4G Wireless Motorized Camera Slider VS-80WC/VS-100WC" to download the firmware.
- Follow the provided upgrade instructions carefully.
Once the firmware update is complete, proceed with the pairing steps outlined in Section 3.2.1.
Figure 3.4: RT-08 compatibility with 2.4G version NEEWER sliders.
4. Operating the Remote Control
The RT-08 remote control offers various modes and settings for precise slider operation.
4.1 General Functions
The remote supports the following core functions:
- Video Mode: For continuous video recording with smooth slider movement.
- Time-Lapse Photography: Configures the slider for interval shooting to create time-lapse sequences.
- A/B Point Setting: Allows you to define start and end points for precise, repeatable movements.
- Adjustable Interval: Sets the time between shots for time-lapse.
- Exposure Time: Controls the duration of exposure for each shot.
- Fixed Shots: For specific, pre-defined movements.
- Number of Shots: Specifies the total number of photos for time-lapse.
- Delay: Introduces a delay before the sequence begins.
Figure 4.1: Remote control in use with a motorized camera slider.
4.2 Manual Mode (for APP Controlled Sliders)
When paired with APP controlled sliders (ER1 series), the remote also supports a manual mode, allowing for real-time adjustments:
- Adjustable interval.
- Adjustable exposure time.
- Adjustable frame rate.
- Adjustable video length.
5. Maintenance
To ensure the longevity and optimal performance of your NEEWER RT-08 remote control, follow these maintenance guidelines:
- Cleaning: Use a soft, dry cloth to clean the remote's surface. Avoid using liquid cleaners or solvents, which may damage the finish or internal components.
- Storage: Store the remote in a cool, dry place away from direct sunlight, extreme temperatures, and high humidity.
- Battery Care: Recharge the remote regularly, even if not in frequent use, to maintain battery health. Avoid fully discharging the battery for extended periods.
- Protection: Protect the remote from drops and impacts. Consider using a protective case if available.
6. Troubleshooting
If you encounter issues with your RT-08 remote control, refer to the following common troubleshooting steps:
| Problem | Possible Cause | Solution |
|---|---|---|
| Remote not turning on. | Low battery. | Charge the remote control using the provided USB Type-C cable and a DC5V/1A power source. |
| Unable to pair with slider. | Incorrect pairing procedure; Older slider firmware; Interference. |
|
| Remote functions are unresponsive. | Loss of connection; Software glitch. |
|
7. Specifications
| Feature | Detail |
|---|---|
| Model Number | RT-08 (10101168) |
| Product Dimensions | 5 x 2.1 x 0.63 inches |
| Item Weight | 10.6 ounces |
| Brand | NEEWER |
| Special Feature | Ergonomic |
| Color | Black |
| Max Number of Supported Devices | 1 |
| Compatible Devices | NEEWER Motorized Camera Sliders (VS-80WC/100WC, ER1-120/100/80) |
| Power Input | DC5V/1A (USB Type-C) |
8. Warranty and Support
For warranty information, technical support, or service inquiries, please contact NEEWER customer support through their official website or the retailer from whom you purchased the product. Keep your purchase receipt as proof of purchase for warranty claims.
