Amewi D90X12 Landrover Scale Crawler 4WD 1:12 RTR RC Vehicle User Manual

Introduction

This manual provides essential instructions for the setup, operation, and maintenance of your Amewi D90X12 Landrover Scale Crawler. This 1:12 scale, 4WD remote-controlled vehicle is designed for enthusiasts aged 14 and above. It features a licensed Landrover design, proportional control, and a durable metal chassis. Please read this manual thoroughly before operating the vehicle to ensure safe and optimal performance.

Safety Information

Warning! Not suitable for children under three years of age. Choking hazard due to small parts.

• Always operate the vehicle in a safe environment, away from people, pets, and obstacles.
• Do not operate near water or in wet conditions to prevent electrical damage.
• Ensure all components are securely attached before operation.
• Keep fingers, hair, and loose clothing away from moving parts.
• Adult supervision is recommended for users under 18 years of age.
• Handle batteries with care. Refer to the battery section for specific safety guidelines.

Package Contents

Verify that all items listed below are included in your package.

• Amewi D90X12 Landrover Scale Crawler Model
• Remote Control (2.4 GHz)
• Li-Ion 2S 7.4V 1200mAh Battery
• Battery Charger
• Instruction Manual (this document)
• Additional accessories (e.g., stickers, small parts for customization)

Setup

1. Battery Installation (Vehicle)

1. Locate the battery compartment on the vehicle. This is typically under the hood or chassis.
2. Open the battery compartment cover.
3. Carefully insert the provided Li-Ion 2S 7.4V 1200mAh battery into the compartment.
4. Connect the battery's HBX connector to the vehicle's power connector. Ensure the polarity is correct.
5. Close the battery compartment cover securely.

2. Remote Control Setup

1. Open the battery cover on the underside of the remote control.
2. Insert the required batteries (not included, typically AA) into the compartment, observing correct polarity.
3. Close the battery cover.
4. Turn on the remote control. The indicator light should illuminate.
5. Turn on the vehicle. The remote control and vehicle should automatically pair. If not, refer to the troubleshooting section.

Operating Instructions

Basic Controls

• Throttle Trigger: Pull the trigger to move forward. Push the trigger away from you to brake or reverse. The vehicle features proportional control, allowing for precise speed adjustments.
• Steering Wheel: Turn the steering wheel left or right to control the vehicle's direction. Proportional steering allows for fine-tuned turns.
• Trim Adjustments: Use the trim dials on the remote control to fine-tune steering and throttle if the vehicle does not drive straight or stops when the trigger is neutral.

Driving Tips

• Start slowly to get accustomed to the vehicle's handling.
• Practice steering in open areas before attempting more complex maneuvers.
• The 4WD system provides excellent traction on various terrains. Experiment with different surfaces.
• Avoid prolonged full-throttle operation, especially when turning, to prevent excessive wear on components.
• Observe the vehicle's lights for operational status.

Maintenance

General Care

• After each use, clean the vehicle to remove dirt, dust, and debris. Use a soft brush or cloth.

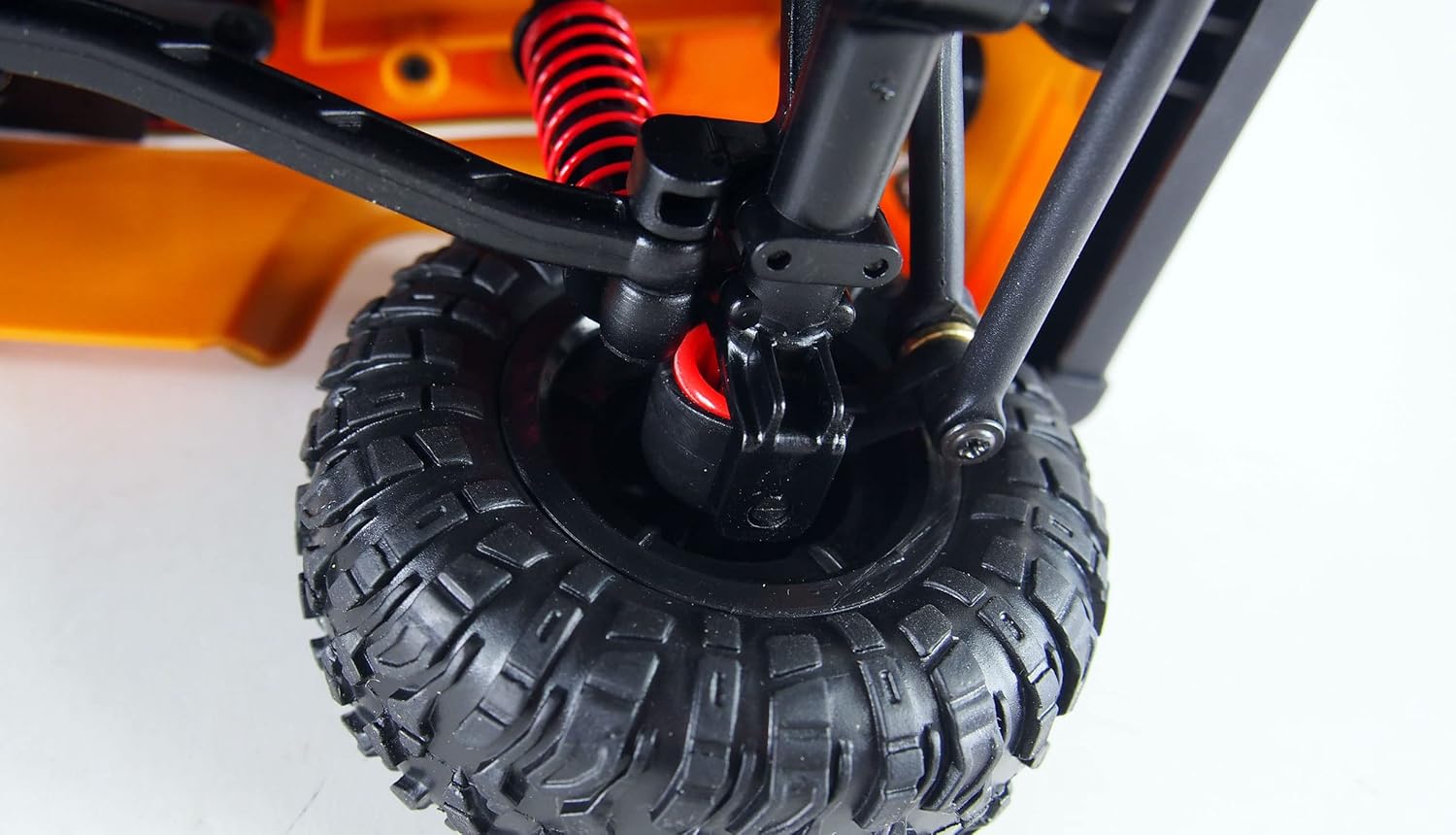

• Inspect all moving parts, including wheels, suspension, and drivetrain, for any damage or obstructions.
• Ensure all screws and fasteners are tight. Do not overtighten.
• Store the vehicle in a cool, dry place away from direct sunlight and extreme temperatures.

Battery Care

• Always use the provided charger for the Li-Ion 2S 7.4V 1200mAh battery.
• Do not overcharge or over-discharge the battery. Disconnect once fully charged.
• Store batteries in a cool, dry place, ideally at a storage charge (around 3.8V per cell for Li-Ion) if not used for extended periods.
• If the battery shows signs of damage (swelling, leakage), discontinue use immediately and dispose of it properly.

Troubleshooting

Specifications

Warranty and Support

Specific warranty information is not provided in this document. For details regarding warranty coverage, technical support, or replacement parts, please refer to the official Amewi website or contact your retailer. Keep your proof of purchase for any warranty claims.
