1. Introduction
This user manual provides essential information for the safe and efficient operation of your Cloudenergy 48V 150Ah Cabinet Type Lithium LiFePO4 Deep Cycle Rechargeable Battery. This high-capacity battery is designed for various applications including residential energy storage systems, solar power installations, RVs, marine use, overland adventures, and off-grid power solutions. Featuring over 6000 life cycles and a 10-year lifetime, it includes a built-in Battery Management System (BMS) and an LED monitor for optimal performance and safety.
2. Important Safety Instructions
Always adhere to these safety guidelines to prevent injury or damage to the battery and connected equipment.
- Do Not Disassemble: Never attempt to open or disassemble the battery pack. Internal components are not user-serviceable.
- Proper Ventilation: Ensure adequate ventilation around the battery to prevent heat buildup.
- Temperature Range: Operate the battery within the specified temperature ranges: Charge at 0℃~50℃ (32℉~122℉); Discharge at -25℃~60℃ (-13℉~140℉). The built-in BMS prevents charging above 75℃ (167℉).
- Avoid Short Circuits: Ensure all connections are secure and properly insulated to prevent short circuits.
- Water and Moisture: Keep the battery away from water, moisture, and corrosive substances.
- Fire Hazard: Do not expose the battery to open flames or extreme heat.
- Professional Installation: For complex installations involving inverters or multiple batteries, professional assistance is recommended.
The built-in BMS provides comprehensive protection against overcharge, over-discharge, overcurrent, short circuit, and cell voltage imbalances, enhancing the safety and longevity of the battery.
3. What's in the Box
Your Cloudenergy 48V 150Ah LiFePO4 Battery package includes:
- 1 x LiFePO4 Battery Pack
- 1 x Built-in Battery Management System (BMS)
- 1 x LCD Display (integrated)
4. Product Features
The Cloudenergy 48V 150Ah LiFePO4 battery is engineered for superior performance and durability:
- Extended Lifespan: Offers over 6000 deep cycles at 80% Depth of Discharge (DOD), providing a lifespan more than 10 times longer than traditional lead-acid batteries.
- Integrated BMS: Features a robust built-in BMS that protects against overcharge, over-discharge, overcurrent, short circuit, and ensures cell voltage protection. It also includes a high-temperature cut-off function at 75℃.
- Versatile Power Solution: Ideal for residential energy storage, solar power systems, and can power most household and office loads such as refrigerators, lamps, televisions, fans, and air conditioning units.
- Flexible Recharging: Supports recharging via solar power, standard wall outlets, and generators, offering flexibility for various power needs.
- Scalable Capacity: Supports connecting up to 16 batteries in parallel, allowing for a maximum usable battery energy of 122.8 kWh and a maximum 90 kW load power.
Product Overview
Figure 4.1: Front view of the Cloudenergy 48V 150Ah LiFePO4 Battery, showing the LCD display, connection terminals, and control buttons.
Dimensions and Weight
Figure 4.2: The battery's dimensions are 19.27 x 20.27 x 6.3 inches, and it weighs 126.8 pounds. This image illustrates the physical size of the unit.
Communication System & Function
Figure 4.3: Detailed view of the communication system and functions, including negative and positive electrodes, LCD display, LCD key indicator, On-Off switch, power indicator, alarm/running light, DIP address, RS485/Can Port, RS485 Port-2, and Reset key. Compatible inverter brands are also listed.
Built-in BMS Protection

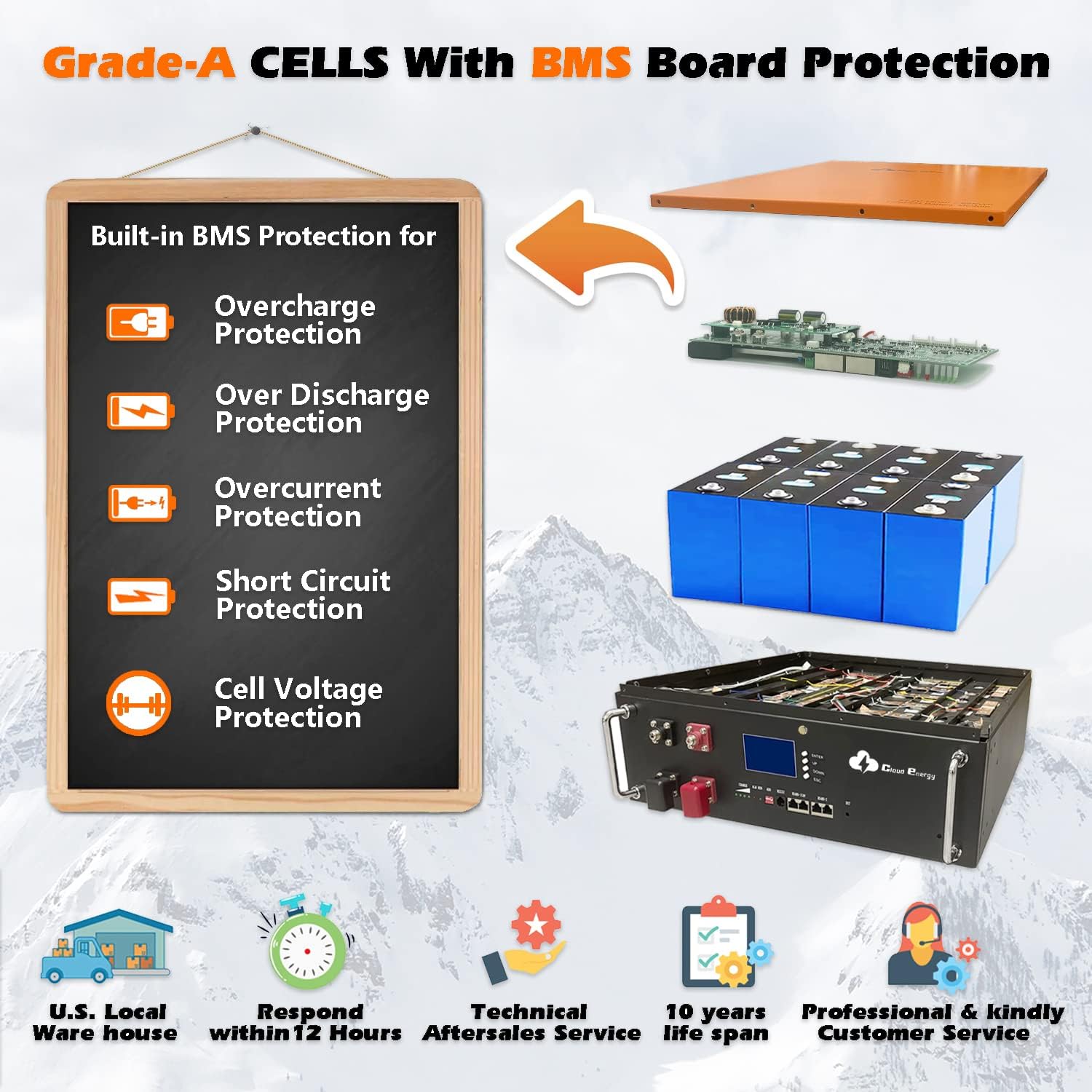

Figure 4.4: Illustration of the built-in BMS protection features, including overcharge, over-discharge, overcurrent, short circuit, and cell voltage protection. The image also shows the internal Grade-A LiFePO4 cells.
Energy Storage System Diagram
Figure 4.5: A diagram illustrating how the Cloudenergy battery integrates into an energy storage system with solar panels and an inverter, powering various household appliances.
Product Application Scenarios
Figure 4.6: Examples of where the Cloudenergy LiFePO4 battery can be used, including RVs, solar homes, golf carts, marine applications, and general outdoor power needs.
Official Product Videos
Cloudenergy 48V 150Ah Cabinet Type LiFePO4 Battery Overview
Video 4.1: This video provides a comprehensive overview of the Cloudenergy 48V 150Ah Cabinet Type LiFePO4 Battery, highlighting its key features and design.
48V 150Ah LiFePO4 Battery Disassembly for Internal View
Video 4.2: This video demonstrates the disassembly of the 48V 150Ah LiFePO4 Battery, offering a detailed look at its internal components and construction, including the battery cells and wiring layout.
LiFePO4 Battery 48V 150Ah Features and Connections
Video 4.3: This video showcases the features of the 48V 150Ah LiFePO4 battery, including its charging ports, communication ports, and power switch functionality.
5. Setup and Installation
Proper setup is crucial for optimal performance and safety. Follow these steps for installation:
5.1 Mounting the Battery
The battery can be mounted using a compatible mounting bracket (not included with the battery pack itself, but often available separately or as part of a system). Ensure the mounting surface is sturdy enough to support the battery's weight (126.8 pounds).
Video 5.1: This video demonstrates the mounting process for the Cloudenergy 48V 150Ah battery, including the use of expansion screws for wall attachment.
5.2 Electrical Connections
The battery features four charging ports on the left side for connecting to inverters. These ports facilitate both charging and discharging. Ensure all connections are tight and secure to prevent arcing or power loss.
- Parallel Connection: For increased capacity, up to 16 batteries can be connected in parallel. This allows for a maximum system capacity of 122.8 kWh.
- Communication Ports: Utilize the RS485 and CAN ports for communication with compatible inverters. These ports relay critical battery parameters and status information to your inverter system.
Figure 5.1: Refer to this image for the location and labeling of the charging ports, communication ports (RS485, CAN), and other indicators on the battery's front panel.
5.3 Recharging Methods
Your Cloudenergy battery can be recharged using multiple methods:
- Solar Power: Connect to a solar charge controller and solar panels for efficient renewable energy charging.
- Wall Outlet: Use a compatible AC-to-DC charger to charge from a standard wall outlet.
- Generator: The battery can also be charged using a suitable generator with an appropriate DC-to-DC charger.
6. Operating the Battery
The battery is designed for user-friendly operation with its integrated LCD display and control buttons.
6.1 Power On/Off
To power on or off the battery, locate the power switch on the front panel. Press and hold the power switch for approximately 5 seconds to toggle the battery's power state.
Video 6.1: This video demonstrates how to operate the power switch and navigate the LCD display to view battery parameters.
6.2 LCD Display and Indicators
The integrated LCD display provides real-time information about the battery's status, including voltage, current, temperature, and state of charge. Use the MENU, ENTER, UP, DOWN, and ESC buttons to navigate through the display screens and view various battery parameters.
- Charge Indicator: A series of LEDs indicates the current charge level of the battery.
- ALM (Alarm) Light: Illuminates to indicate a fault or warning condition. Refer to the troubleshooting section if this light is active.
- RUN Light: Indicates normal operation.
7. Maintenance
The Cloudenergy LiFePO4 battery requires minimal maintenance due to its robust design and integrated BMS. However, regular checks can help ensure long-term performance:
- Visual Inspection: Periodically inspect the battery for any signs of physical damage, loose connections, or corrosion.
- Cleanliness: Keep the battery terminals and casing clean and free from dust and debris. Use a dry cloth for cleaning.
- Temperature Monitoring: Ensure the battery operates within its specified temperature ranges. Avoid prolonged exposure to extreme heat or cold.
- Charge Level: For optimal longevity, avoid consistently deep discharging the battery. Aim to keep the State of Charge (SOC) above 20% when possible.
- Firmware Updates: Check the Cloudenergy official website or contact customer support for any available firmware updates for the BMS, which may improve performance or add features.
8. Troubleshooting
If you encounter issues with your Cloudenergy battery, refer to the following common problems and solutions:
| Problem | Possible Cause | Solution |
|---|---|---|
| Battery not charging/discharging | Loose connections, BMS in protection mode, incompatible inverter settings. | Check all cable connections. Power cycle the battery by holding the power switch for 5 seconds. Verify inverter settings are compatible with LiFePO4 batteries. |
| ALM (Alarm) light is on | Over-voltage, under-voltage, over-temperature, overcurrent, or cell imbalance detected by BMS. | Check battery voltage and temperature on the LCD. Reduce load if overcurrent is suspected. If the issue persists, contact Cloudenergy customer support. |
| LCD display not working | Battery is off, loose internal connection, or display malfunction. | Ensure the battery is powered on. If the battery is on but the display is blank, contact customer support. |
| Lower than advertised capacity | Initial charge state, measurement discrepancy, or potential cell issue. | Ensure the battery has undergone a full charge and discharge cycle. If the discrepancy is significant, contact customer support for further diagnosis. |
For issues not listed here or if solutions do not resolve the problem, please contact Cloudenergy customer support.
9. Specifications
| Attribute | Value |
|---|---|
| Product Dimensions | 19.27 x 20.27 x 6.3 inches |
| Item Weight | 126.8 pounds |
| ASIN | B0B9JVXGTF |
| Item model number | CL48V-150Ah-Rack |
| Batteries | 16 Lithium Ion batteries required. (included) |
| Date First Available | June 28, 2022 |
| Manufacturer | cloudenergy |
| Country of Origin | China |
| Brand | Cloudenergy |
| Size | CL48V-150Ah-Rack |
10. Warranty and Customer Support
Cloudenergy is committed to providing excellent customer service and product reliability.
- Warranty: The Cloudenergy 48V 150Ah LiFePO4 battery typically comes with a 5-year warranty. Please refer to your purchase documentation for specific warranty terms and conditions.
- Returns: Enjoy a 30-day easy return policy for eligible purchases.
- Customer Service: Cloudenergy provides 24-hour customer service and technical support. If you have any product-related issues or questions, please contact the Cloudenergy support team directly for fast feedback.
