Mellif Cordless Tire Inflator Air Compressor User Manual

1. Introduction

Thank you for choosing the Mellif Cordless Tire Inflator Air Compressor. This portable and powerful device is designed for convenient and efficient inflation of various items, including vehicle tires, bicycle tires, and sports balls. Compatible with Dewalt 20V MAX batteries, it features a digital pressure gauge, automatic shut-off, and an integrated LED light for ease of use in diverse conditions.

2. Safety Information

WARNING: Read all safety warnings and instructions before using this product. Failure to follow the warnings and instructions may result in electric shock, fire, and/or serious injury.

• Always wear eye protection when operating the inflator.
• Do not leave the inflator unattended while in operation.
• Ensure the inflator is compatible with the battery voltage (20V).
• Keep children and bystanders away from the operating area.
• Do not over-inflate items. Refer to the manufacturer's recommended pressure.
• Store the inflator in a dry, secure location away from extreme temperatures.

3. Package Contents

• 1 x Mellif Cordless Air Pump
• 1 x 20V 2.0Ah Battery
• 1 x Battery Charger
• 1 x Ball Needle
• 1 x Tire Valve Adapter
• 1 x User Manual

4. Product Overview

Familiarize yourself with the components of your Mellif Cordless Tire Inflator:

Figure 1: Labeled components of the Mellif Cordless Tire Inflator, showing the nylon braided inflatable tube, LED indicator light, trigger, quick connect metal air nozzle, digital pressure gauge, and accessory storage.

Figure 2: The Mellif Cordless Tire Inflator with its included accessories: a ball needle, a tire valve adapter, and a tapered adapter.

5. Setup

Before first use, ensure the battery is fully charged.

5.1. Charging the Battery

Figure 3: The 20V 2.0Ah Lithium-Ion battery and its dedicated charger, designed for fast charging with overheat protection.

Connect the charger to a power outlet and insert the 20V 2.0Ah battery. The charger's indicator light will show the charging status. Once fully charged, remove the battery from the charger.

5.2. Installing the Battery

Figure 4: A hand inserting the 20V battery into the base of the Mellif Cordless Tire Inflator, demonstrating the compatibility with Dewalt 20V MAX batteries.

Align the charged battery with the battery slot at the base of the inflator and slide it in until it clicks securely into place.

6. Operating Instructions

The Mellif Cordless Tire Inflator features an intelligent digital display for precise control.

Figure 5: Close-up of the inflator's digital display, showing the current pressure reading and buttons for unit switching (PSI, KPA, BAR) and pressure adjustment.

6.1. Basic Operation Steps

Figure 6: A visual guide demonstrating the four easy steps to use the inflator: 1. Attaching the valve to the tire valve. 2. Pressing the power button and adjusting the unit. 3. Adjusting the appropriate pressure with +/- buttons. 4. Pressing the black button to start inflation.

1. Connect the Hose: Attach the quick-connect metal air nozzle to the tire valve stem. Ensure a secure connection to prevent air leakage.
2. Power On & Select Unit: Press the power button to turn on the inflator. The LCD screen will display the current pressure. Use the 'PSI', 'KPA', or 'BAR' button to cycle through the desired pressure unit.
3. Set Desired Pressure: Use the '+' and '-' buttons to set your target tire pressure. The digital gauge provides accurate readings.
4. Start Inflation: Press the main trigger button to begin inflation. The compressor will automatically shut off once the preset pressure is reached.
5. Disconnect: Once inflation is complete and the device has stopped, disconnect the air nozzle from the valve stem.

6.2. Using the LED Light

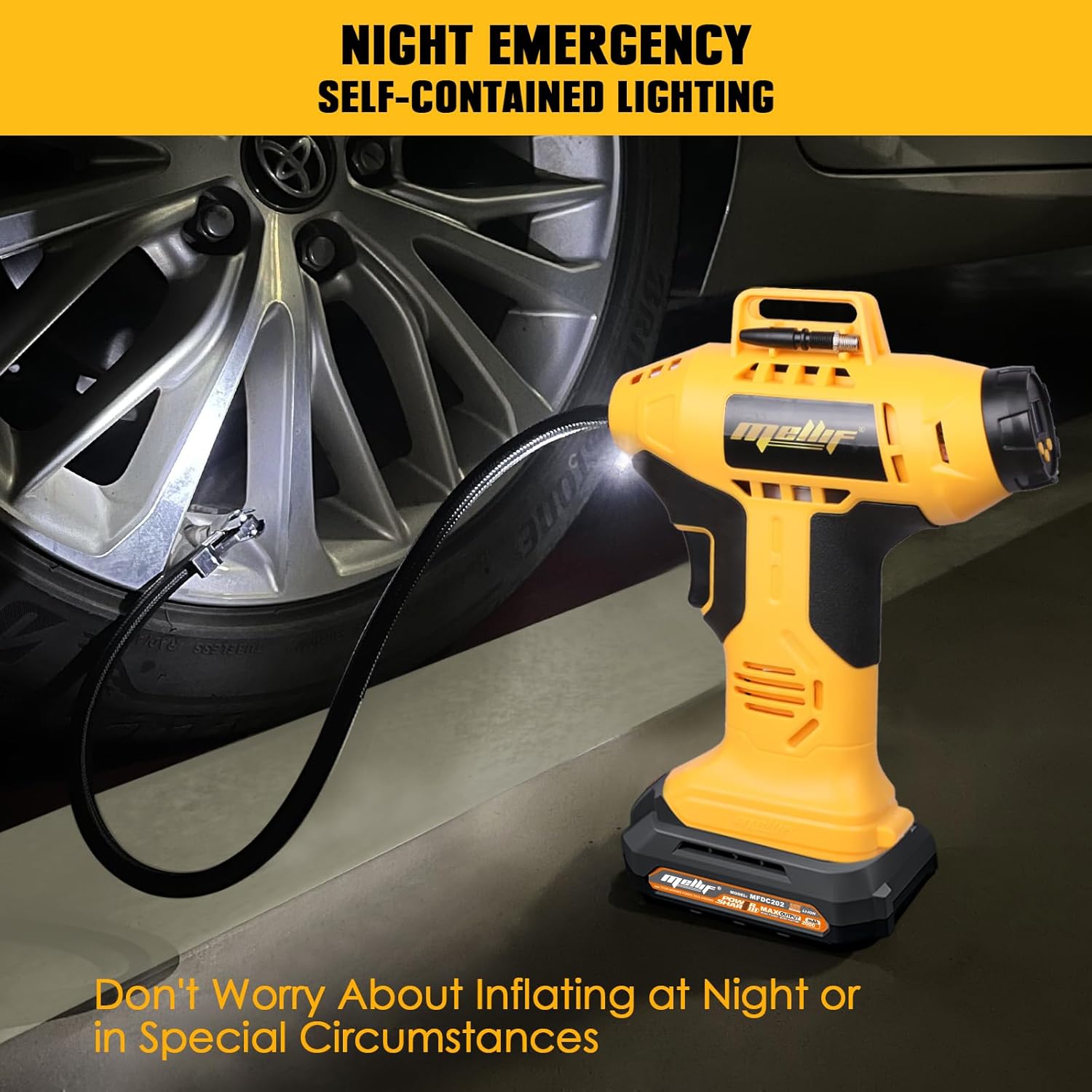

Figure 7: The Mellif Cordless Tire Inflator illuminating a tire in a dark environment, highlighting its self-contained LED lighting feature for night emergencies or low-light conditions.

The integrated LED work light can be activated to provide illumination in dark environments, such as during night-time tire inflation or in dimly lit garages. The light is typically activated by a dedicated button or automatically when the device is powered on.

7. Applications

The Mellif Cordless Tire Inflator is versatile and suitable for a wide range of inflation needs:

Figure 8: Collage showing the diverse applications of the inflator, including car tires, bicycles, motorcycles, basketballs, and swim rings.

• Vehicle Tires: Cars, motorcycles, ATVs, and small trucks.
• Bicycle Tires: All types of bicycles.
• Sports Equipment: Basketballs, footballs, soccer balls, etc. (using the included ball needle).
• Inflatables: Swim rings, small inflatable toys, etc. (using appropriate adapters).

8. Maintenance

• Clean the exterior of the inflator with a soft, damp cloth. Do not use harsh chemicals or abrasive cleaners.
• Regularly check the air hose and nozzle for any signs of wear or damage. Replace if necessary.
• Store the inflator and its accessories in a cool, dry place when not in use.
• Ensure the battery is charged periodically, even if not in use, to maintain battery health.

9. Troubleshooting

10. Specifications

11. Warranty & Support

The Mellif Cordless Tire Inflator comes with a 1 Year Warranty from the date of purchase. For warranty claims, technical support, or any inquiries, please contact Mellif customer service.
